Single-pole switch with LED backlight (module) 230V, white DW1AL.01/11

Name: Single-pole switch with LED backlight (module) 230V, white
Brand: KONTAKT-SIMON
SKU: MMP080KONT
Price: 38.63 PLN
Availability: BackOrder

Lokaler Index:

MMP080KONT

Katalognummer:

DW1AL.01/11

EAN-Code:

5902787558970

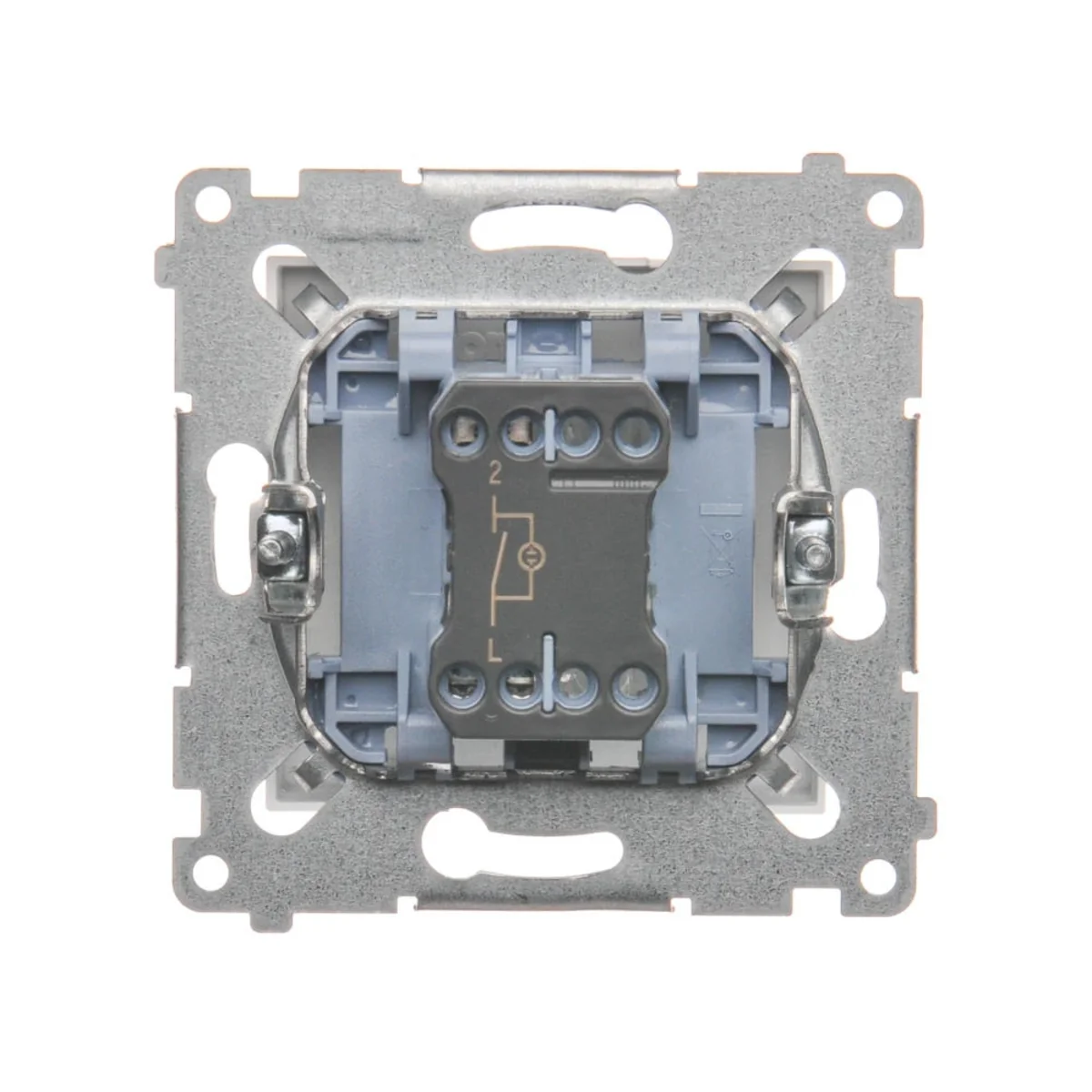

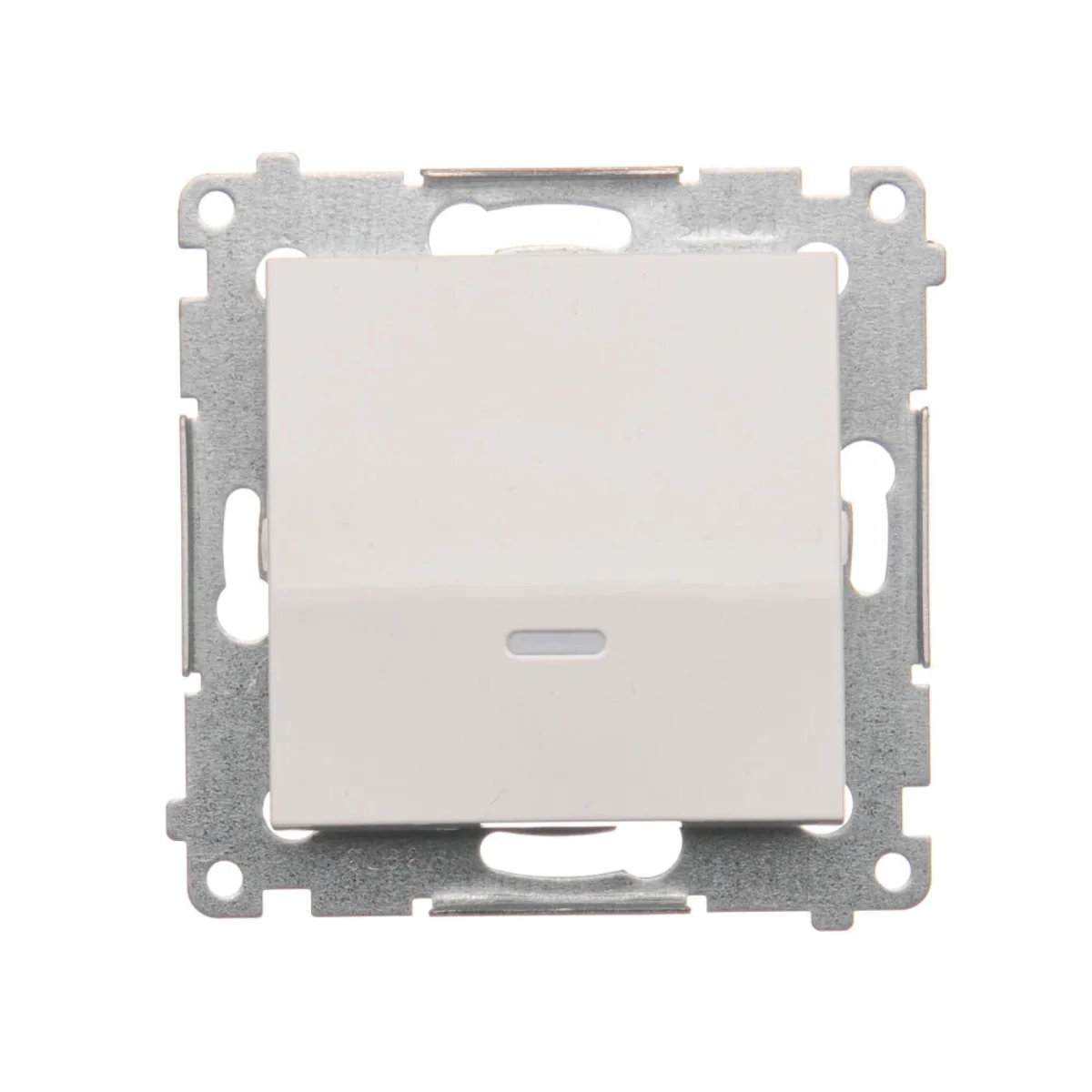

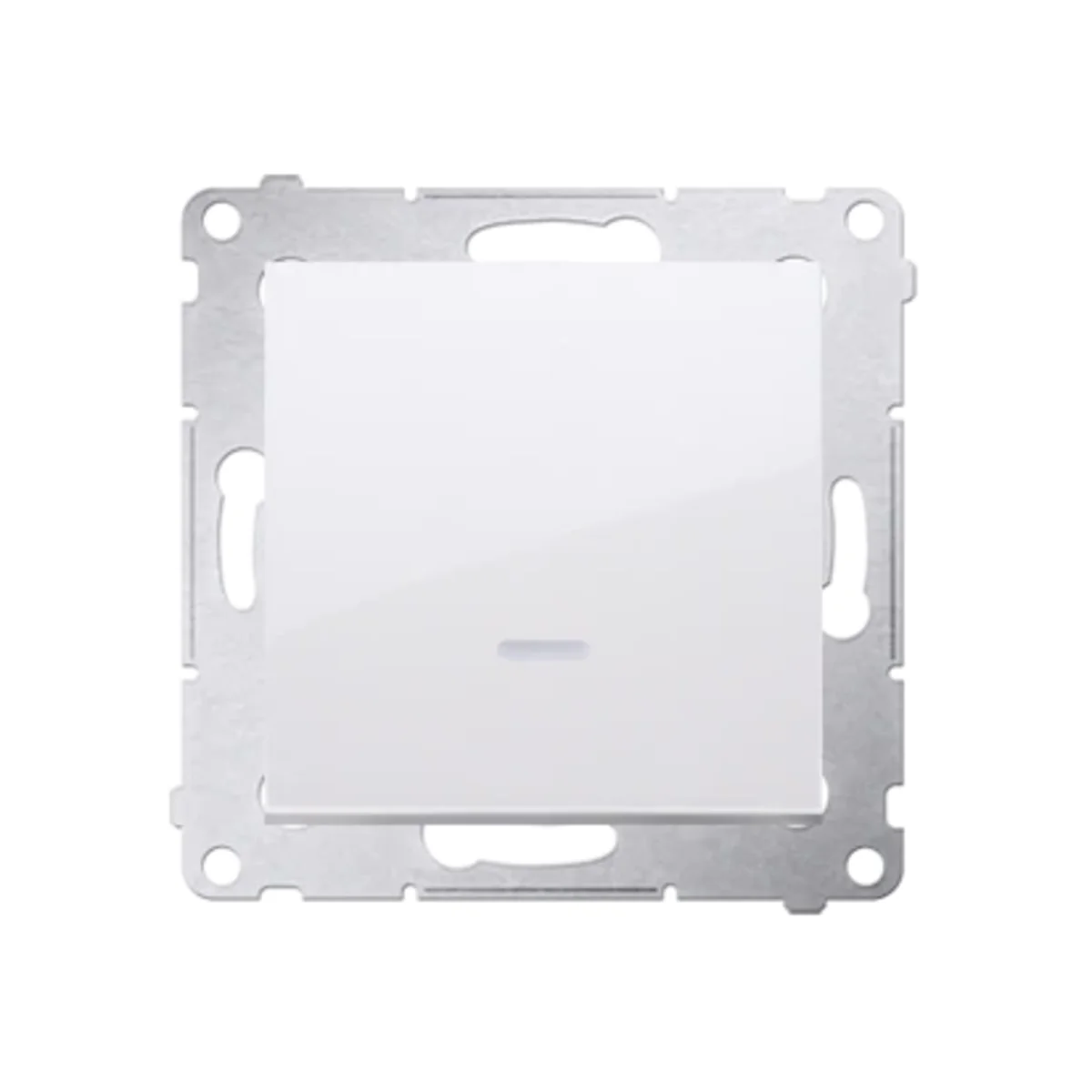

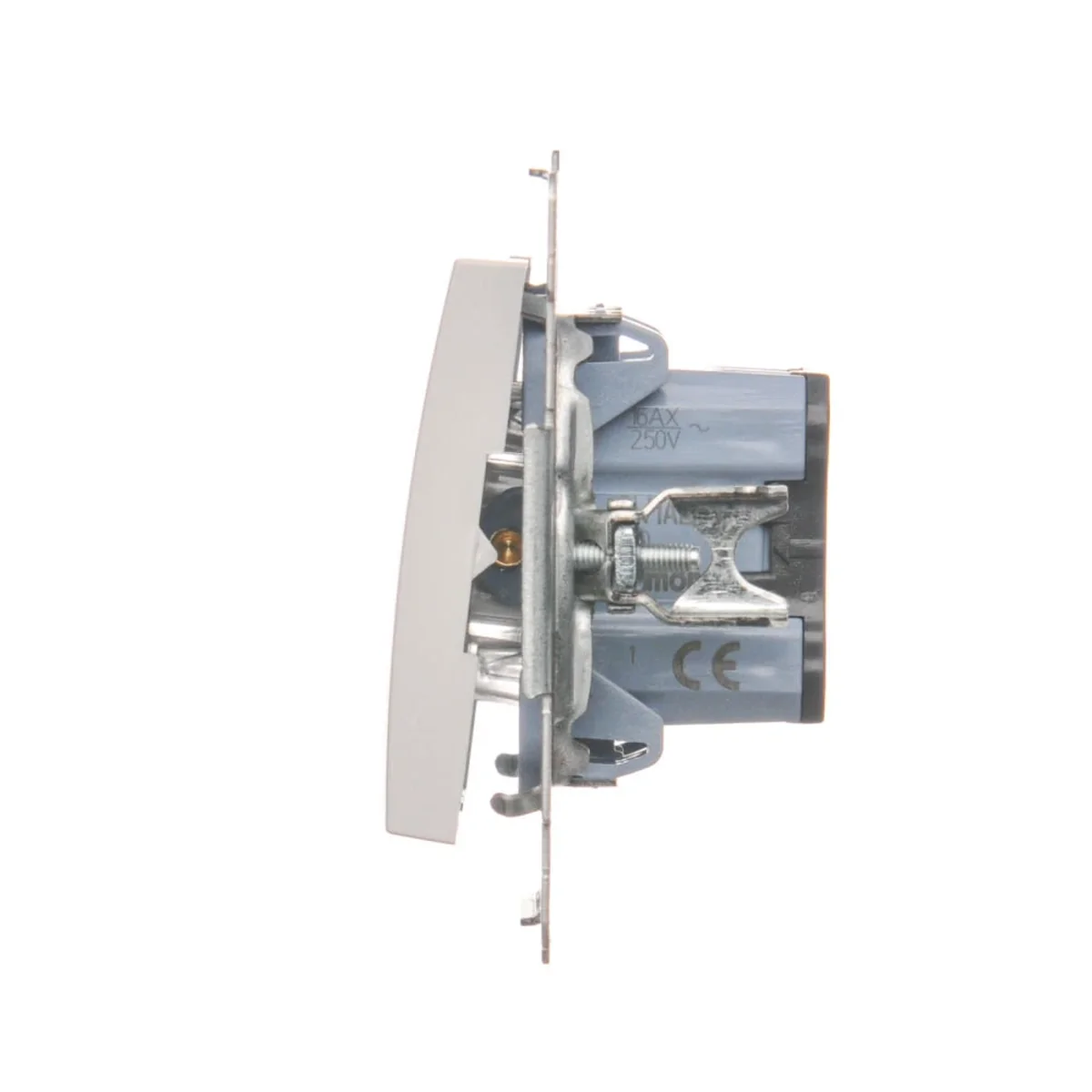

Single-pole switch with LED backlight (module) 230V, white

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 1

Siehe vollständige Beschreibung

Preis:

38,63 zł

gross / stk.

(inklusive MwSt 23%)

bis zu 2 Wochen

Auf Bestellung

Menge stk.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

Single-pole switch (bistable) from the Simon 54 series. With replaceable blue LED illumination for orientation. To obtain IP44 splash-proof class, use a frame gasket.

SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and assembly-friendly mechanisms, distinguished by a noble form and rich colors.

Technische Daten

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Single
Level of security

IP20
Type

Flush-mounted
Surface protection

Natural
Backlight

Yes
Terminal type

Threaded
Exact material

PC
Backlight color

Blue

Depth [mm]

41
Color

White
Material

Plastic
Installation

Flush-mounted
Rated current [A]

16
Family

Simon 54
Width [mm]

75
Height [mm]

75
Surface finish

Shiny
Mounting depth [mm]

26
For the frame system

Yes
Backlight type

orientation
PKWIU

27.33.11.0

Weitere technische Daten

Wiring system

Off switch 1-pole
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Untreated
Colour

White
Nominal voltage

250 V
Connection type

Screwed terminal

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

16 AX

Hersteller-Details

Hersteller

Kontakt-Simon S.A.
Adresse

43-500 Czechowice-Dziedzice Bestwińska 21 Polska
E-Mail

info@kontakt-simon.com.pl

Großpackungen

Eine Art Paket	Paczka	Karton
Menge	1 stk.	10 stk.
Gewicht (kg)	0,060	0,690
Breite (m)	0,110	0,190
Länge (m)	0,045	0,230
Tiefe (m)	0,160	0,100
