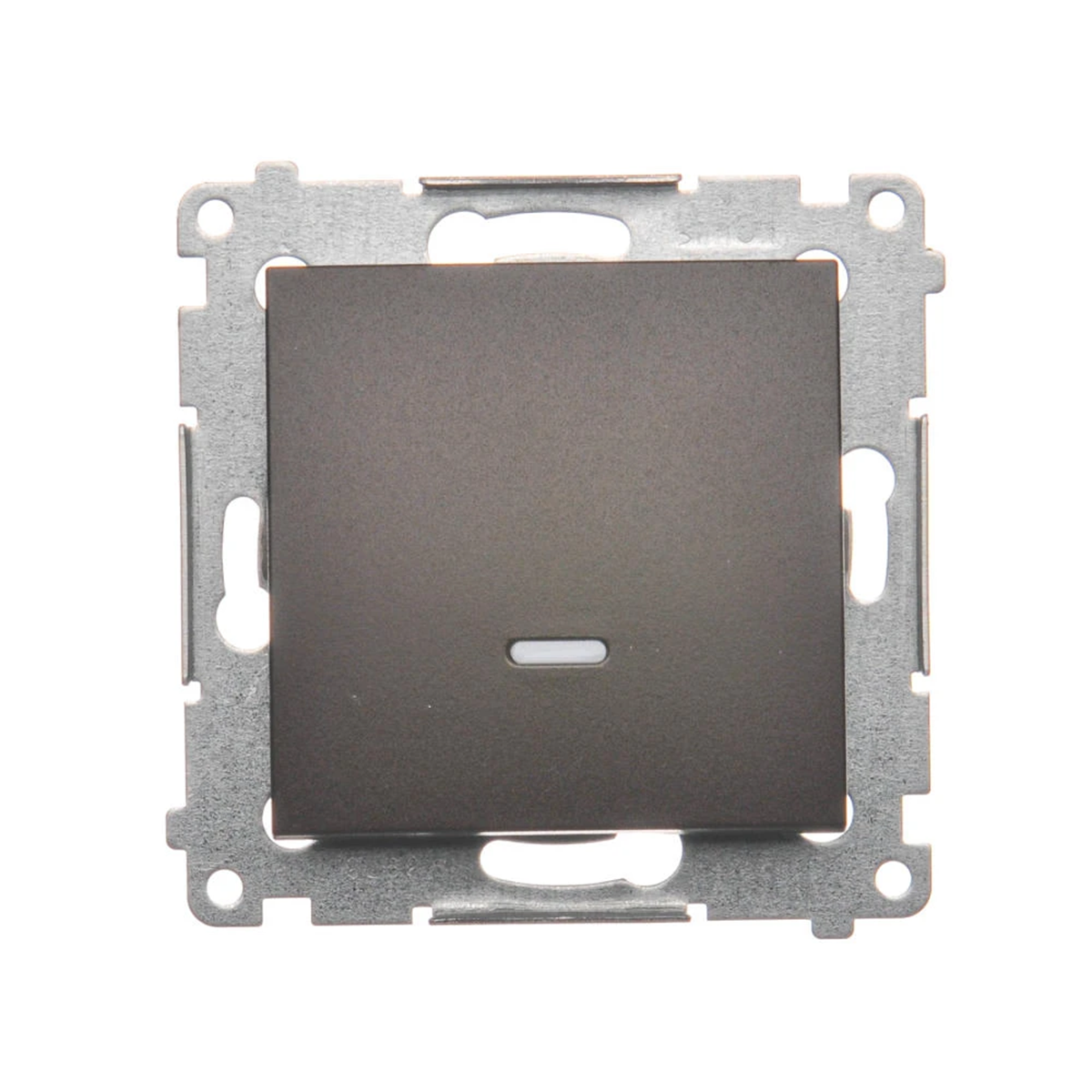

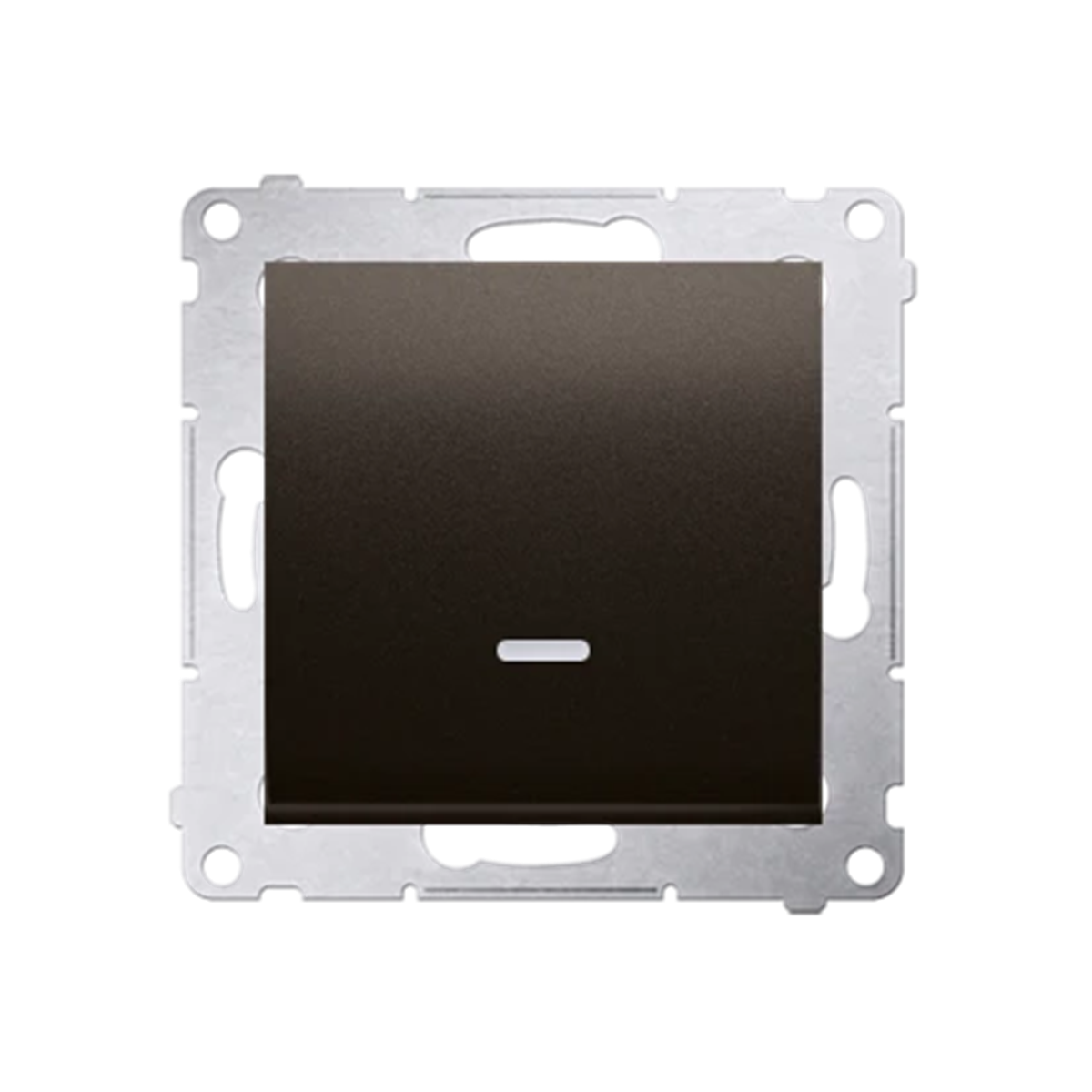

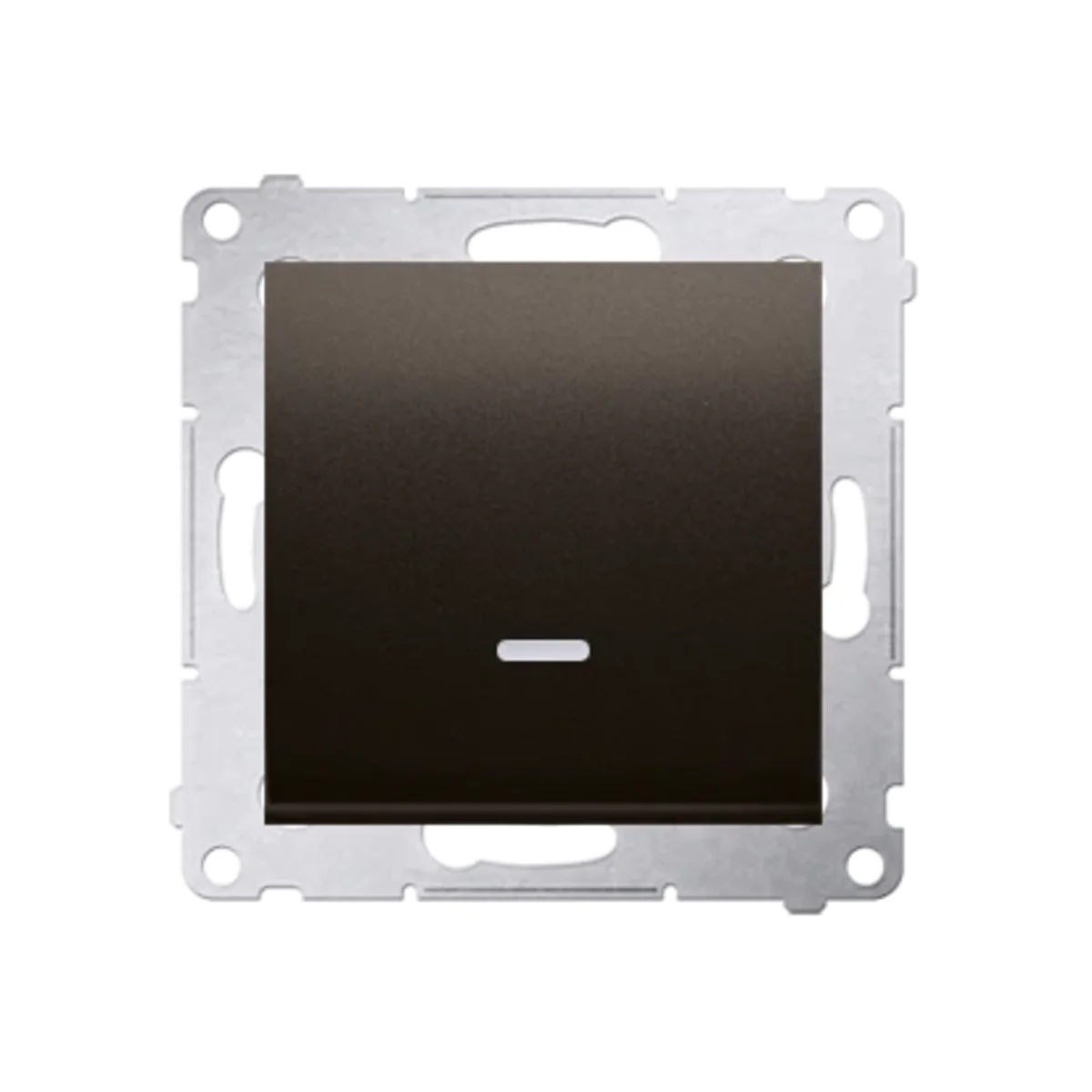

Name: Single-pole switch with LED backlight (module) 230V, matt bronze metallic
Brand: KONTAKT-SIMON
SKU: MMP084KONT
Price: 10.30 PLN

Single-pole switch (bistable) from the Simon 54 series. With replaceable blue LED illumination for orientation. To obtain IP44 splash-proof class, use a frame gasket.

SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and assembly-friendly mechanisms, distinguished by a noble form and rich colors.

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Single
Level of security

IP20
Type

Flush-mounted
Surface protection

varnishing
Accurate color

Metallic bronze matt
Mounting depth [mm]

26
For the frame system

Yes
Backlight type

Orientation LED
PKWIU

27.33.11.0

Depth [mm]

41
Color

Brown
Material

Plastic
Installation

Flush-mounted
Rated current [A]

16
Family

Simon 54
Width [mm]

75
Height [mm]

75
Surface finish

matte
Backlight

Yes
Terminal type

Threaded
Exact material

PC
Backlight color

Blue

Other technical data

Wiring system

Off switch 1-pole
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Lacquered
Colour

Brown
Nominal voltage

250 V
Connection type

Screwed terminal

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

16 AX

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,060	0,060	0,690
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
