Single pole switch with LED backlight (module) 10A 250V quick connectors silver (metallic) DW1L.01/43

Name: Single pole switch with LED backlight (module) 10A 250V quick connectors silver (metallic)
Brand: KONTAKT-SIMON
SKU: MMP093KONT
Price: 10.26 PLN

Índice local:

MMP093KONT

Número de catálogo:

DW1L.01/43

Código EAN:

5902787822071

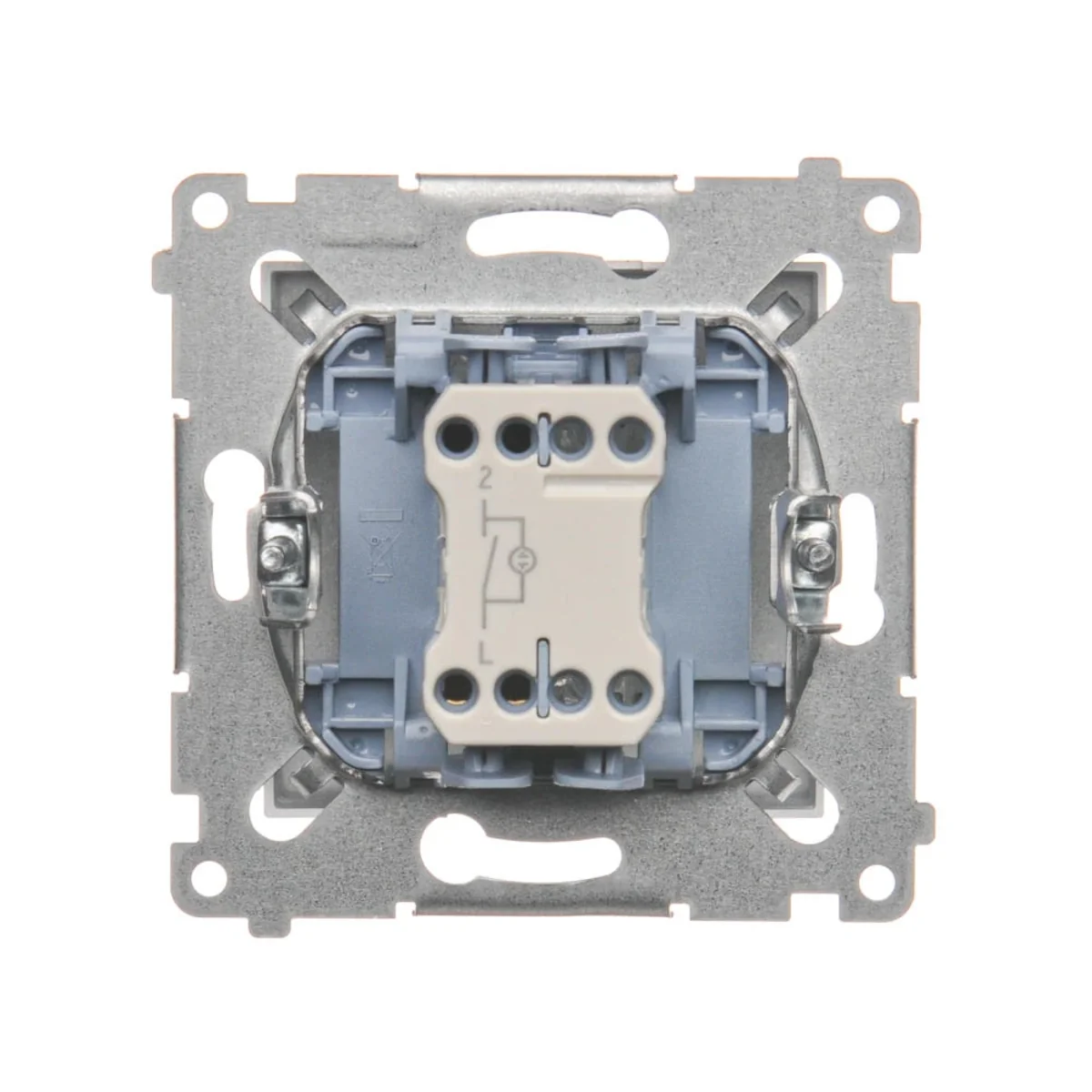

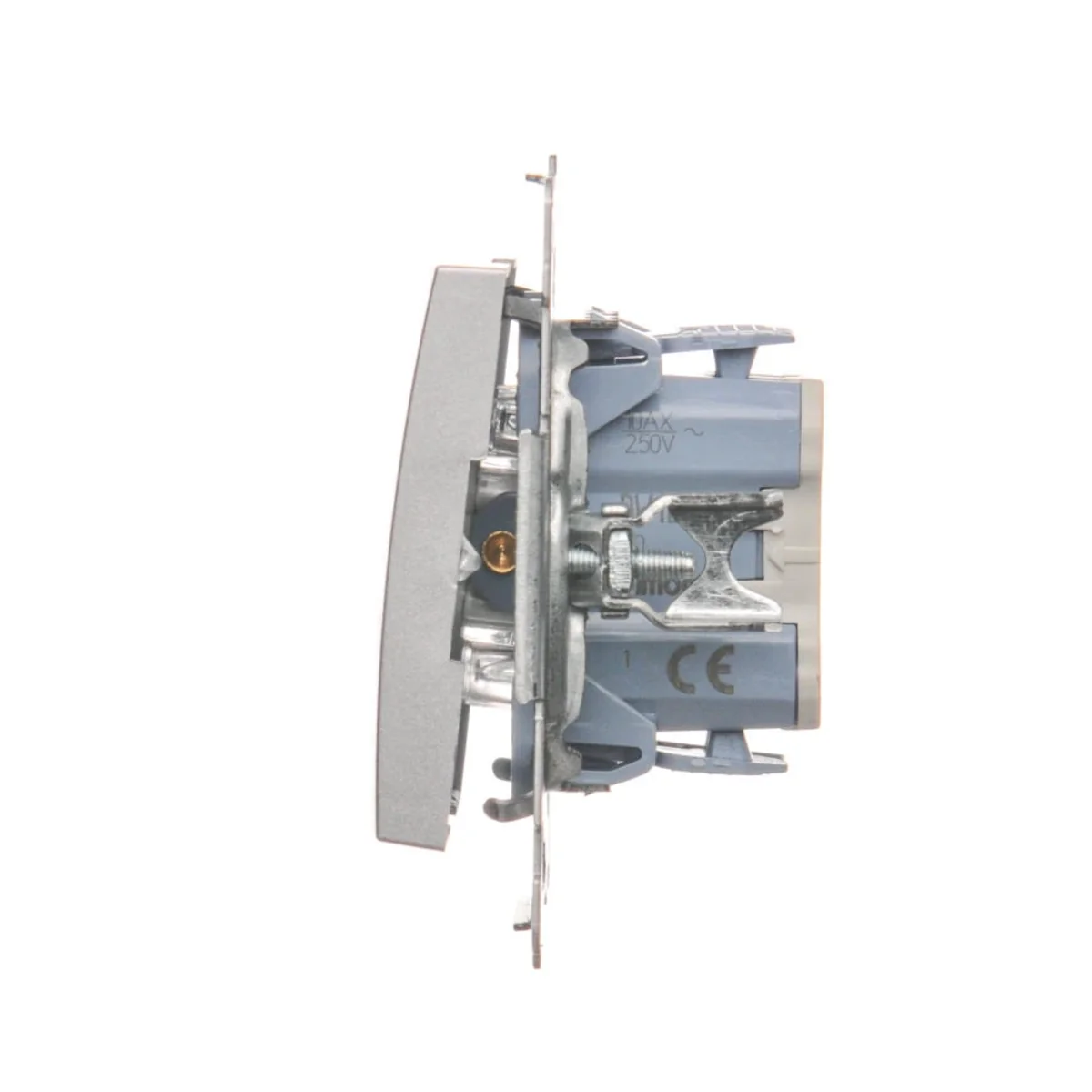

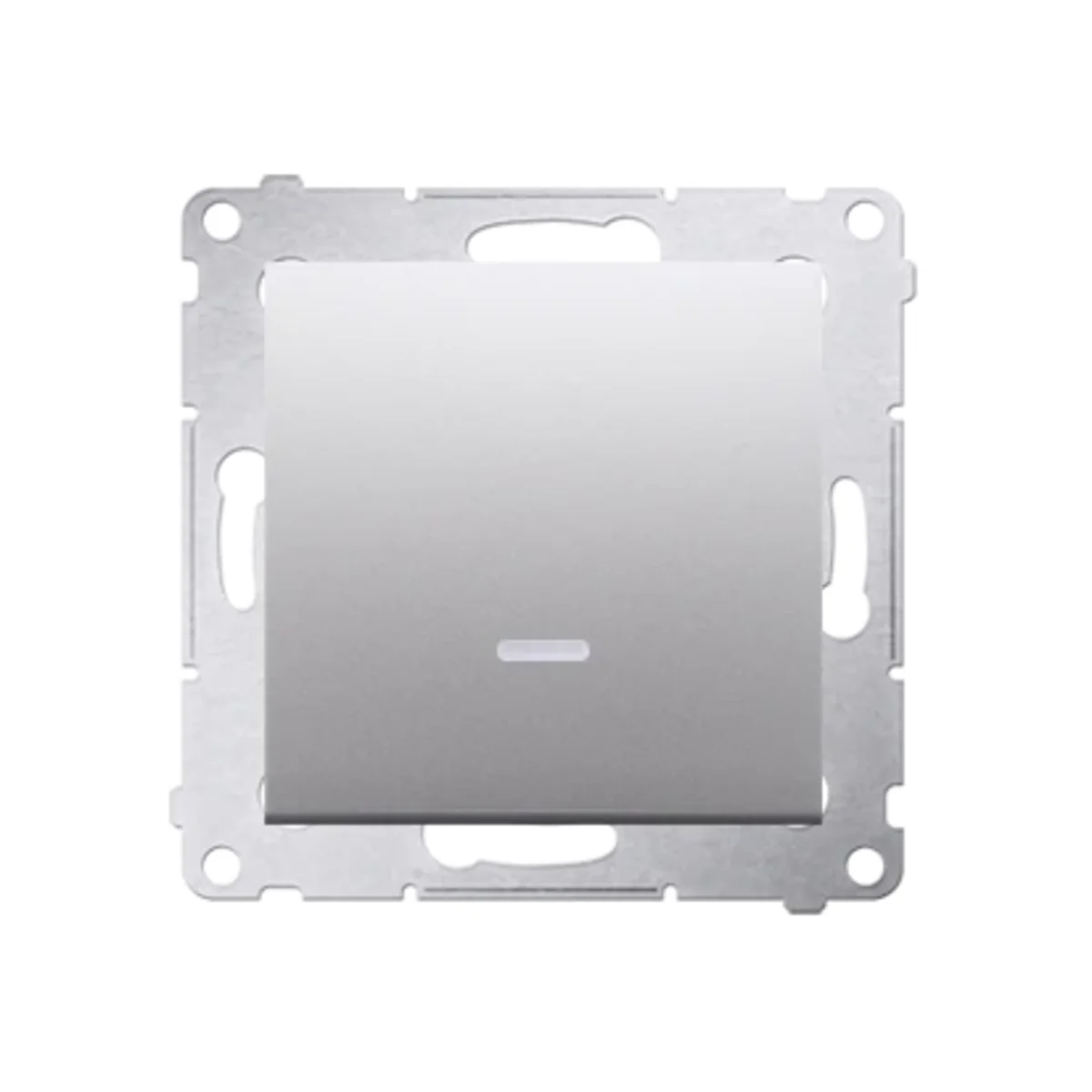

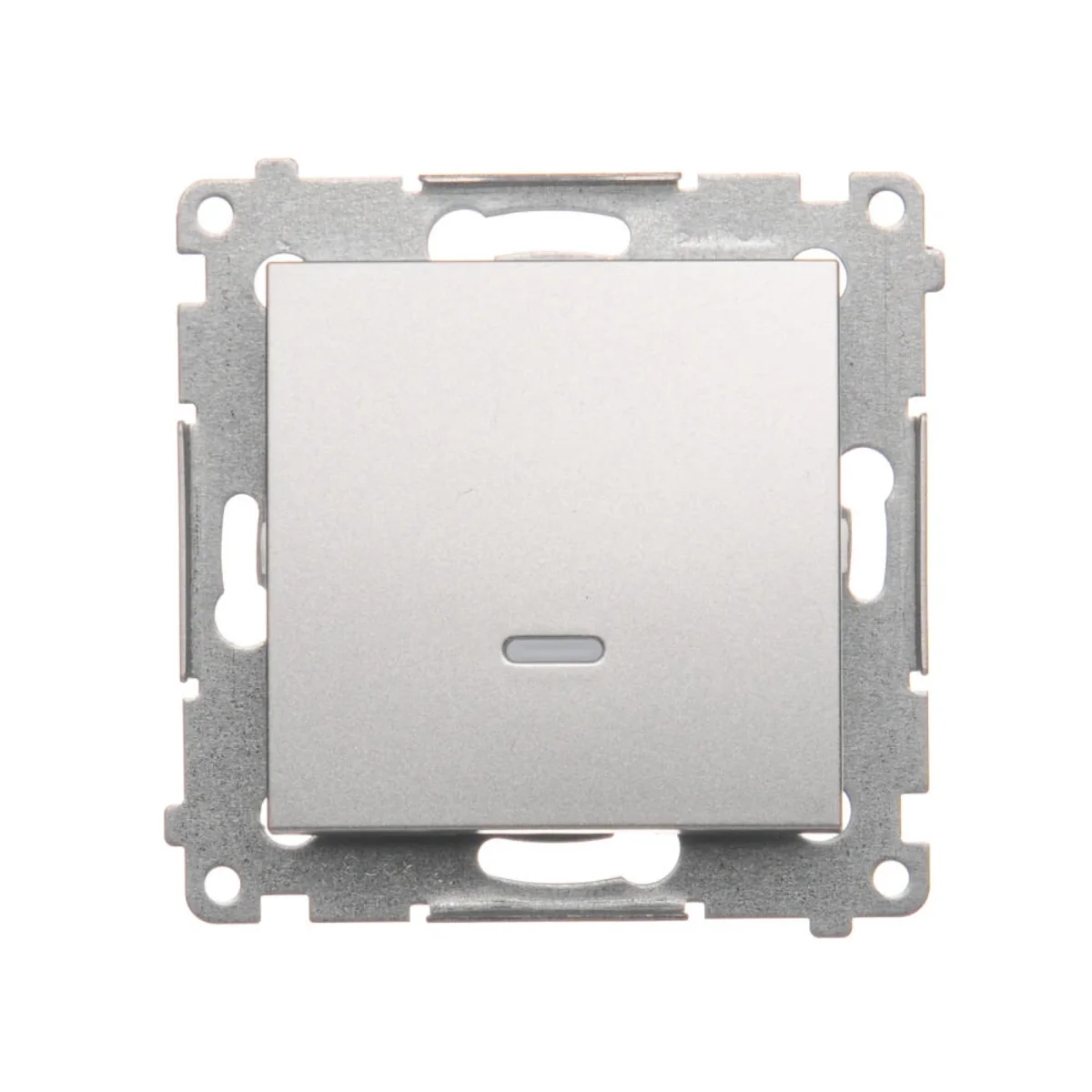

Single pole switch with LED backlight (module) 10A 250V quick connectors silver (metallic)

Haga clic en la foto para ampliar

Fabricante: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 1

Ver descripción completa

Precio:

10,26 €

gross / uds.

(IVA incluido 23%)

Entrega en 3h

hasta 2 semanas (días laborables)

Recogida en 1h

Cantidad uds.

(múltiple:

)

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

Single-pole switch (bistable) from the Simon 54 series. With replaceable orienting LED backlight, in blue. To obtain IP44 splash-proof class, use frame gasket.

SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and user-friendly assembly mechanisms, distinguished by a noble form and rich colors.

Datos técnicos

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Single
Level of security

IP20
Type

Flush-mounted
Surface protection

varnishing
Accurate color

Silver metallic matt
Mounting depth [mm]

26
For the frame system

Yes
Backlight type

Orientation LED
PKWIU

27.33.11.0

Depth [mm]

41
Color

Silver
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Width [mm]

75
Height [mm]

75
Surface finish

matte
Backlight

Yes
Terminal type

Threadless
Exact material

PC
Backlight color

Blue

Otros datos técnicos

Wiring system

Off switch 1-pole
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Lacquered
Colour

Silver
Nominal voltage

250 V
Connection type

Push-in clamp

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Detalles del fabricante

Fabricante

Kontakt-Simon S.A.
Dirección

43-500 Czechowice-Dziedzice Bestwińska 21 Polska
Email

info@kontakt-simon.com.pl

Empaquetado a granel

una especie de paquete	Paczka	Karton	Paczka	Karton
Cantidad	1 uds.	10 uds.	1 uds.	10 uds.
Peso (kg)	0,060	0,690	0,060	0,690
Ancho (m)	0,110	0,190	0,110	0,190
Longitud (m)	0,045	0,230	0,045	0,230
Profundidad (m)	0,160	0,100	0,160	0,100
