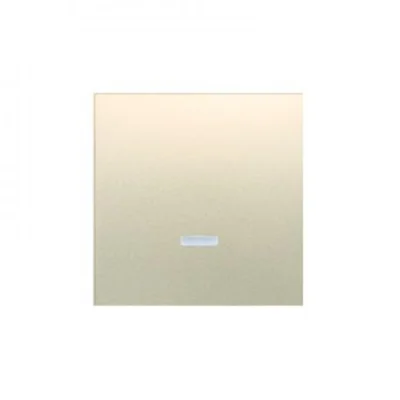

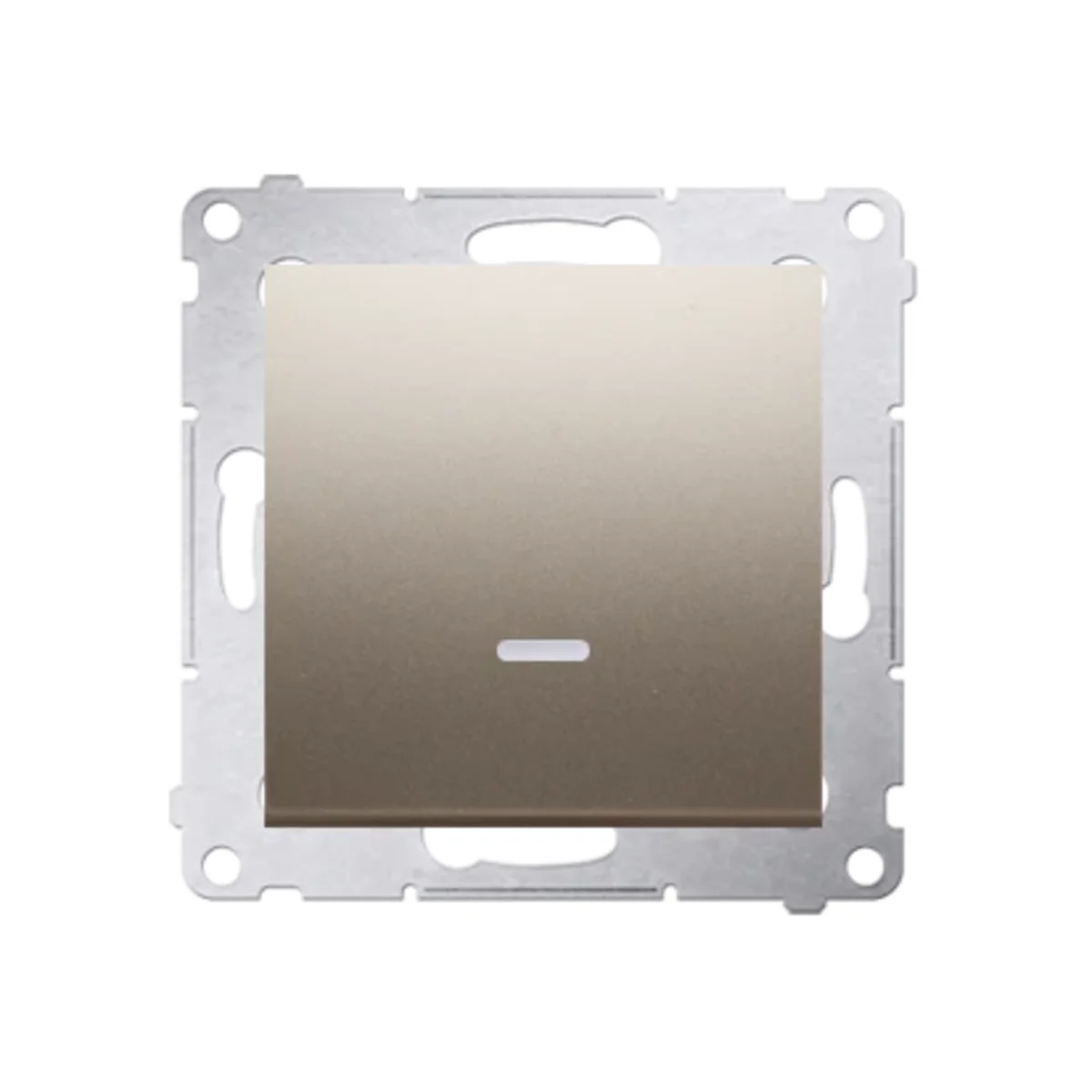

Single-pole switch with LED activation signaling (module) 10A 250V gold quick connectors (metallic) DW1ZL.01/44

Name: Single-pole switch with LED activation signaling (module) 10A 250V gold quick connectors (metallic)
Brand: KONTAKT-SIMON
SKU: MMP100KONT
Price: 11.05 PLN

local index:

MMP100KONT

Catalog No:

DW1ZL.01/44

EAN code:

5902787822132

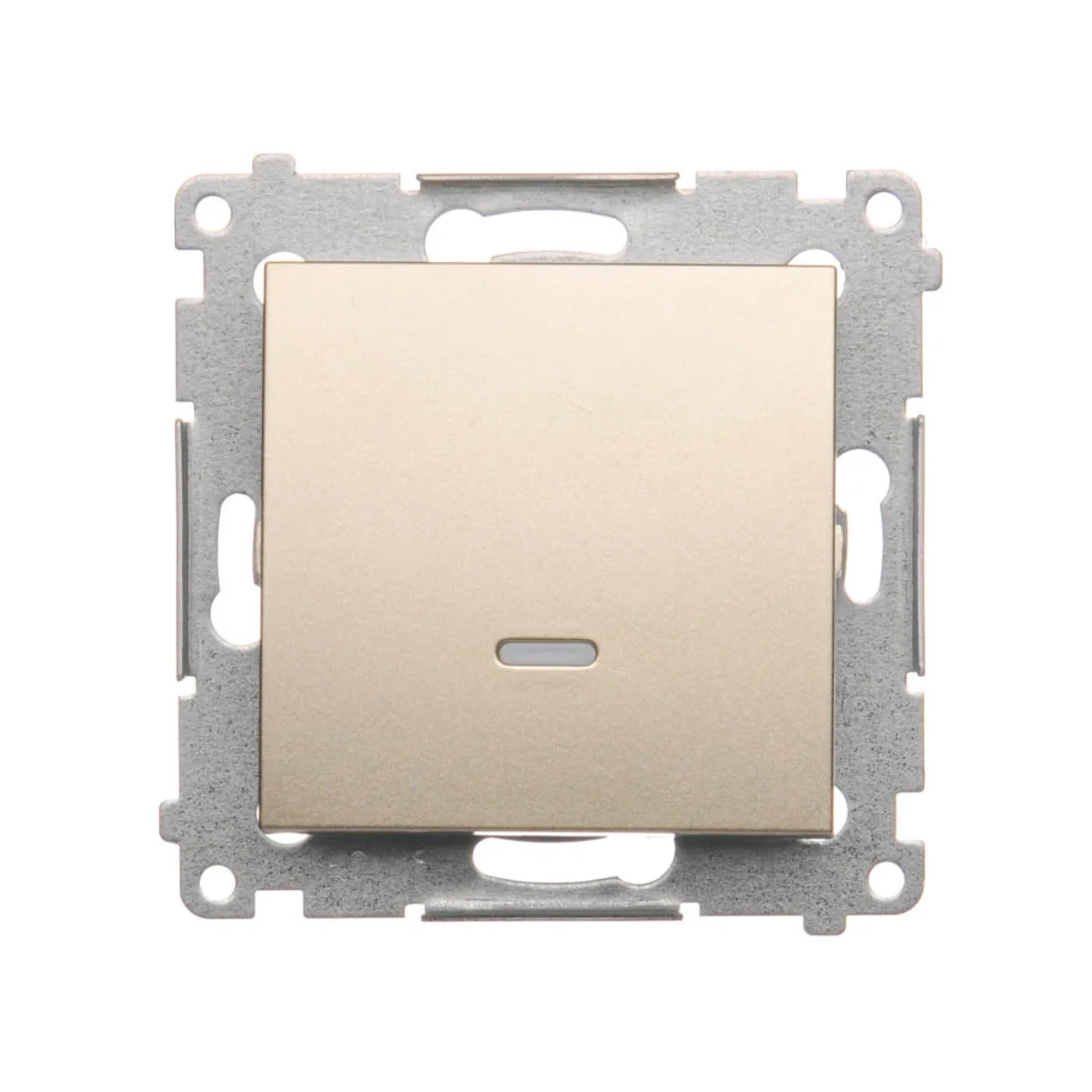

Single-pole switch with LED activation signaling (module) 10A 250V gold quick connectors (metallic)

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 1

See full description

Price:

11,05 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Single-pole switch (bistable) of the Simon 54 series.

With signaling of activation LED (replaceable) .
To obtain IP44 splash-proof class, use a frame gasket.

SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and installation-friendly mechanisms, distinguished by a noble form and rich colors.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Single
Level of security

IP20
Type

Flush-mounted
Surface protection

varnishing
Accurate color

Gold metallic matt
Mounting depth [mm]

26
For the frame system

Yes
Backlight type

Activation indication LED

Depth [mm]

41
Color

Golden
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 54
Width [mm]

75
Height [mm]

75
Surface finish

matte
Backlight

Yes
Terminal type

Threadless
Exact material

PC
PKWIU

27.33.11.0

Other technical data

Wiring system

Off switch 1-pole
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Lacquered
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Nominal voltage

250 V
Connection type

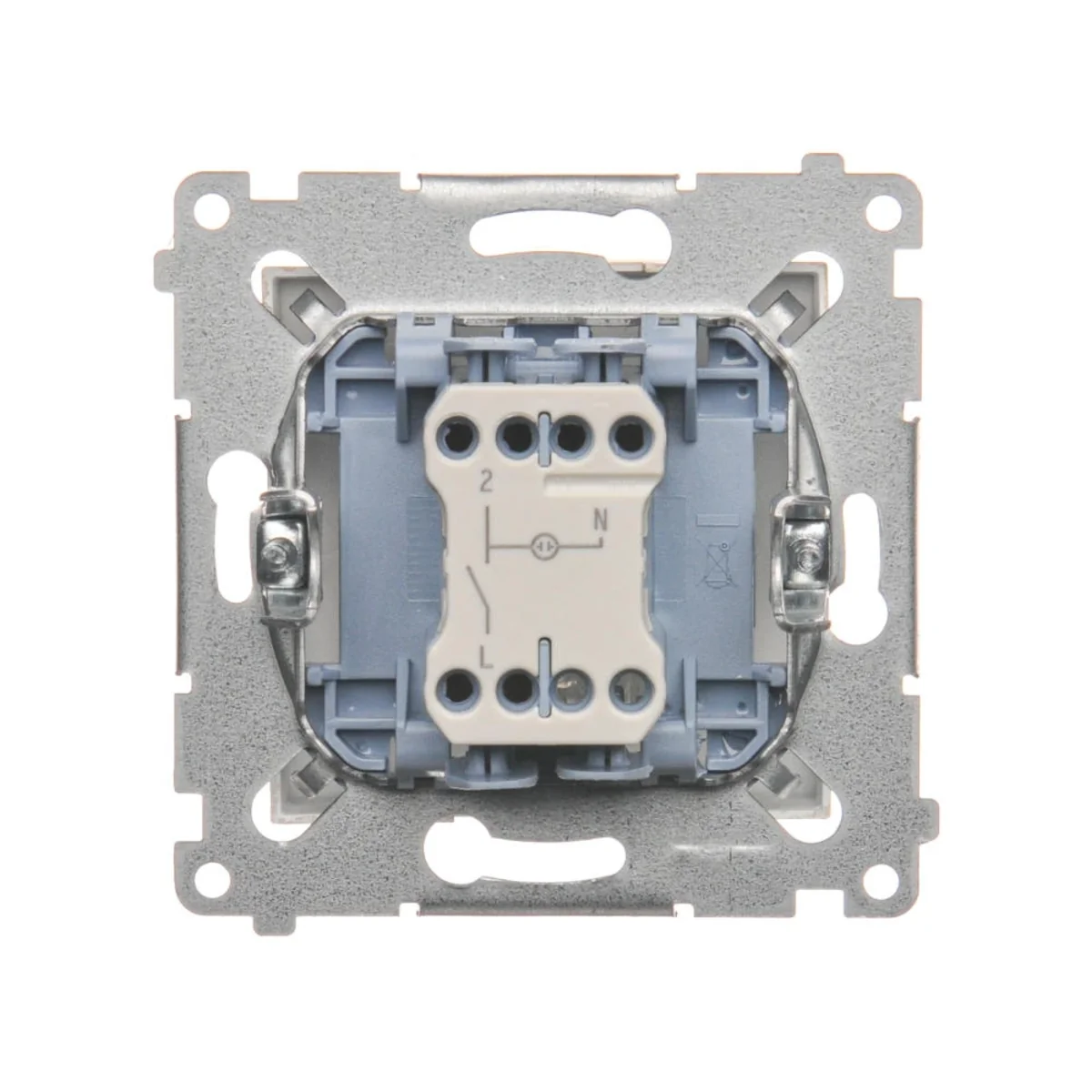

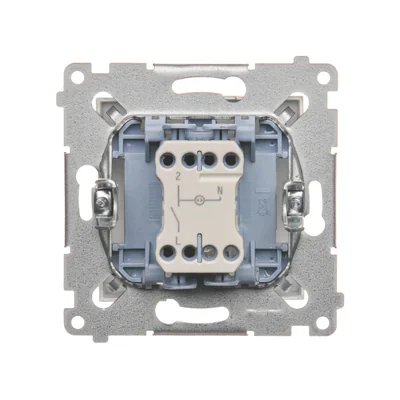

Push-in clamp

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,058	0,058	0,669
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
