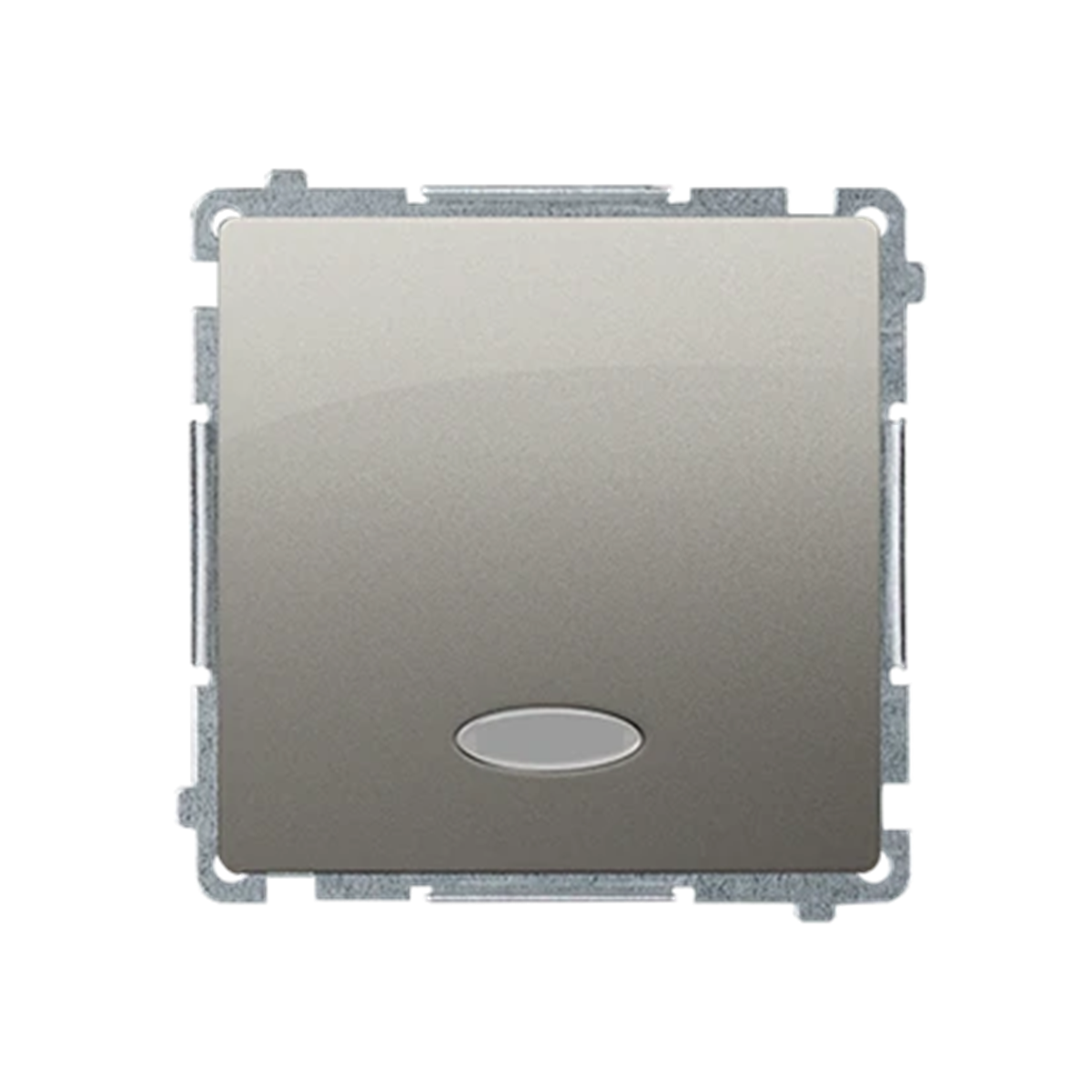

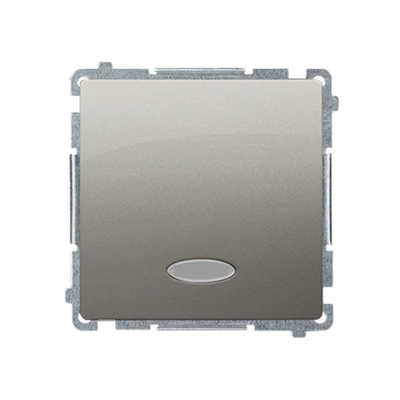

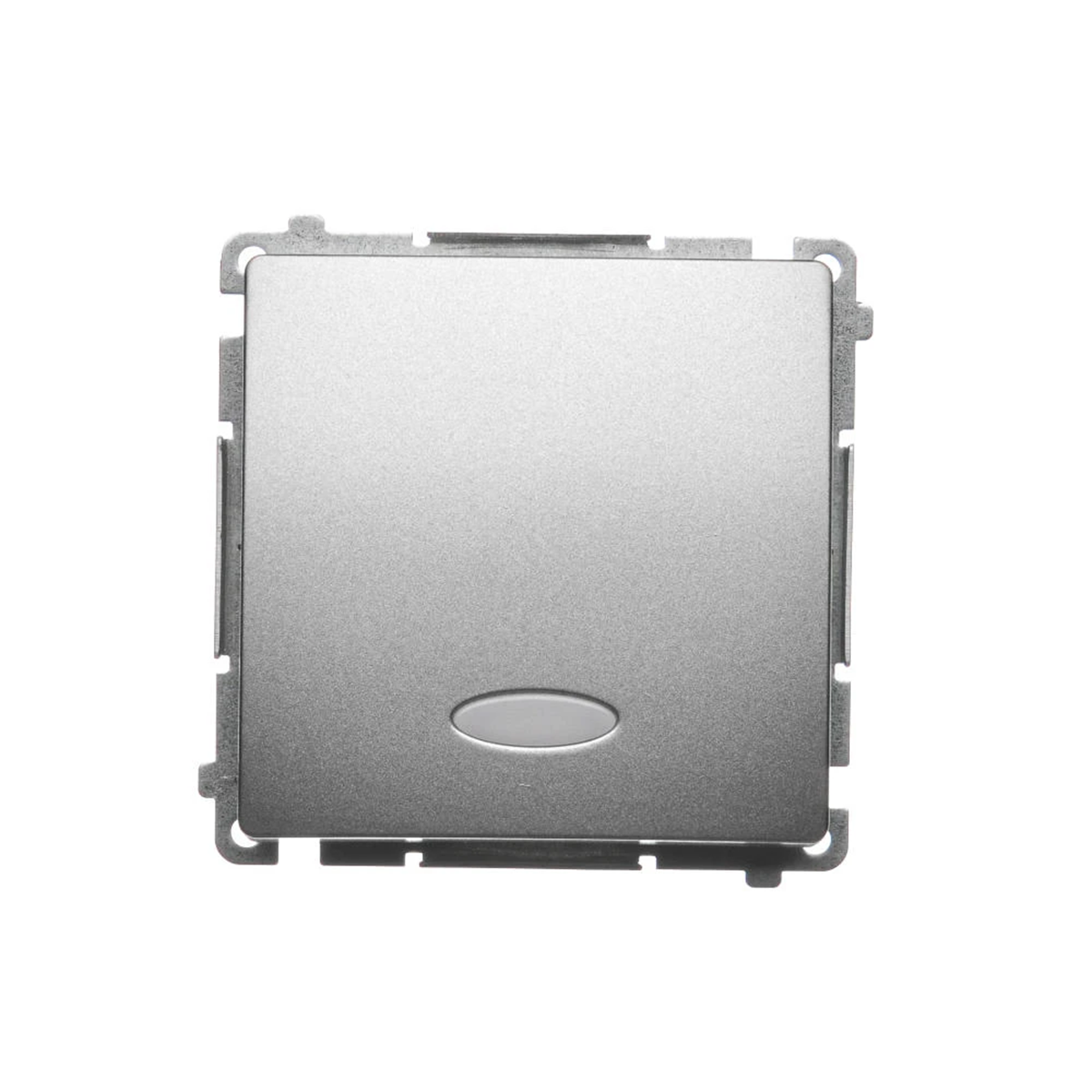

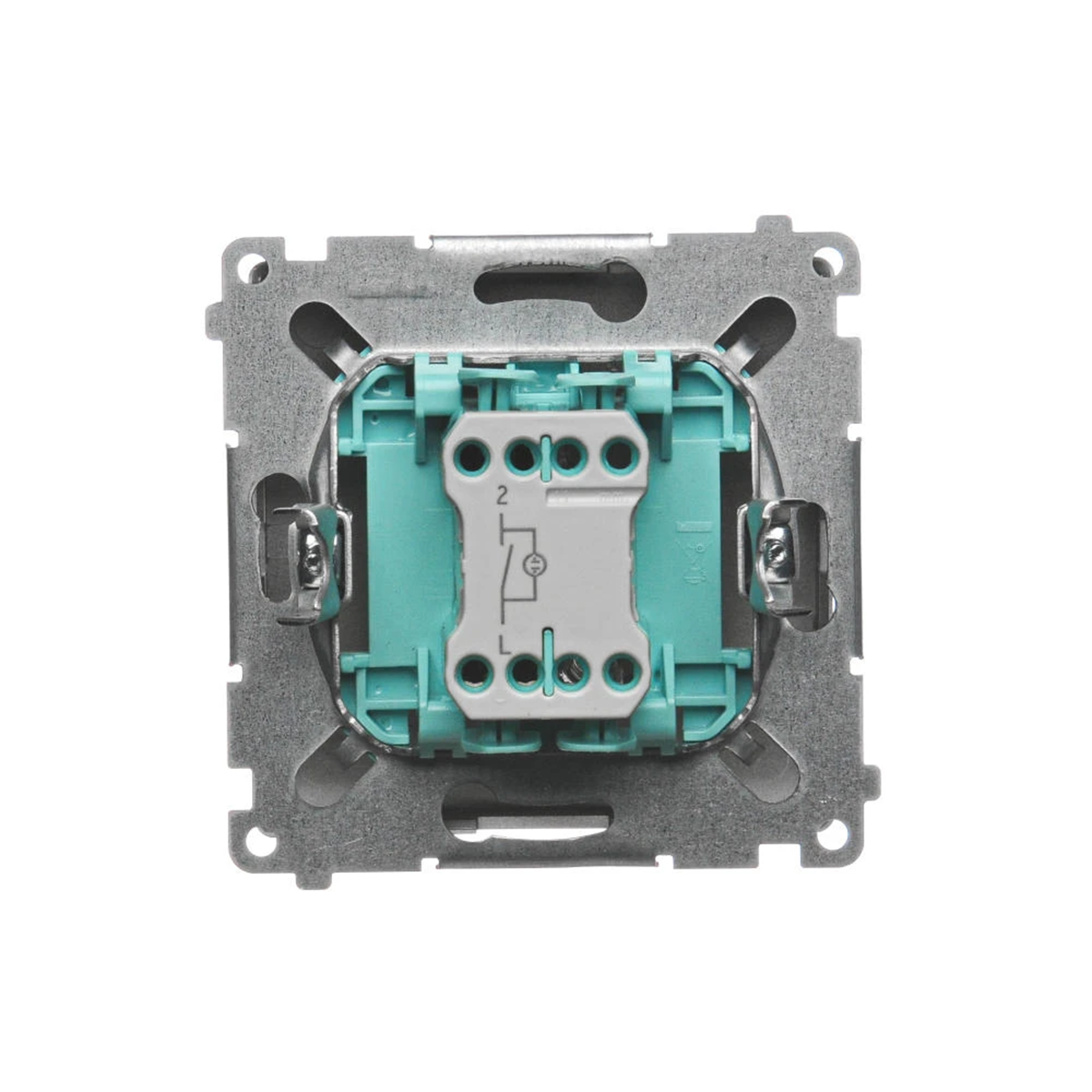

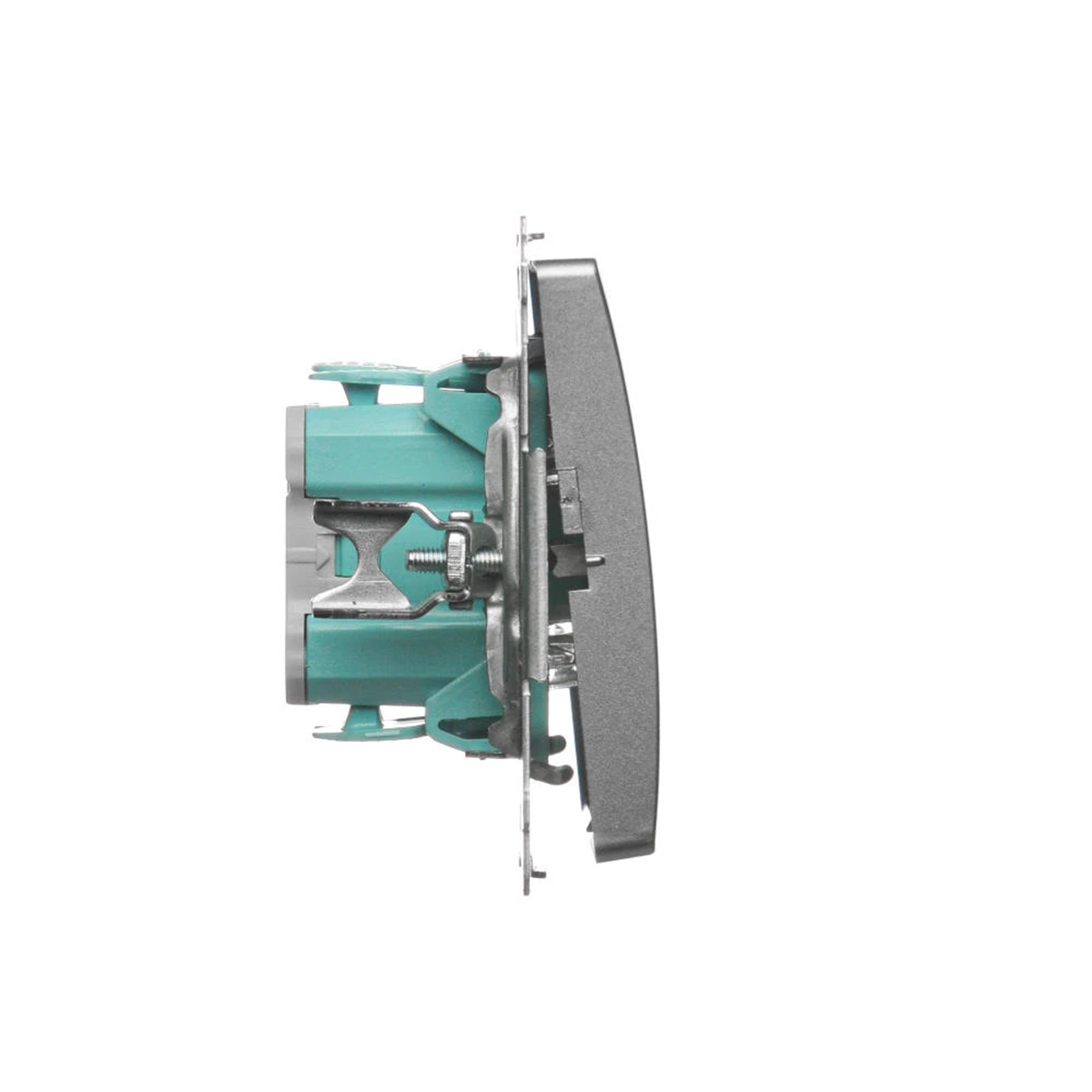

Single-pole switch with illumination (module) 10A 250V satin (metallic) BMW1L.01/29

Name: Single-pole switch with illumination (module) 10A 250V satin (metallic)
Brand: KONTAKT-SIMON
SKU: MMP051KONT
Price: 36.54 PLN
Availability: BackOrder

Index local:

MMP051KONT

Numéro de catalogue:

BMW1L.01/29

Code EAN:

5902787813116

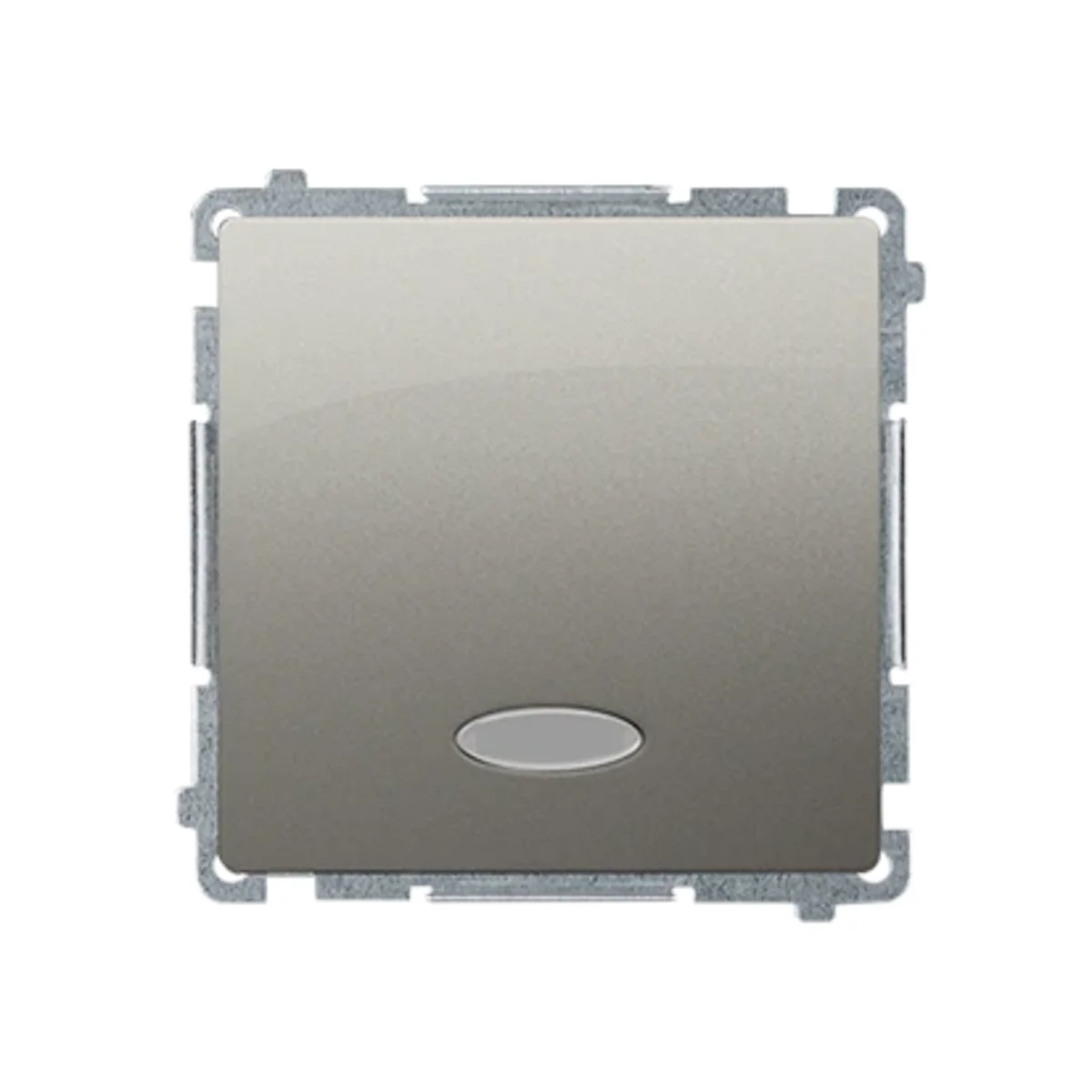

Single-pole switch with illumination (module) 10A 250V satin (metallic)

Cliquer sur la photo pour l'agrandir

Producteur: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 1

Voir la description complète

Prix:

36,54 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 2 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Single-pole switch (bistable) from the Simon Basic series. With non-replaceable LED backlight, blue.

For to obtain the IP44 splash-proof class, use the IP44 NEOS frame: BMRC1B/..; BMRC2B/... or IP44 frame STANDARD: BMR1B/..; BMR2B/...; BMR3B/..

SERIES DESCRIPTION

Functionality and classic look are the hallmarks of the Simon Basic series, which it will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Données techniques

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Single
Level of security

IP20
Type

Flush-mounted
Surface protection

varnishing
Accurate color

Satin metallic
Mounting depth [mm]

24
For the frame system

Yes
Backlight type

Orientation LED
PKWIU

27.33.11.0

Depth [mm]

41
Color

Silver
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

SIMON BASIC
Width [mm]

75
Height [mm]

75
Surface finish

matte
Backlight

Yes
Terminal type

Threadless
Exact material

PC
Backlight color

Blue

Autres données techniques

Wiring system

Off switch 1-pole
Assembly arrangement

Basic element with central cover plate
Type of fastening

Other
Surface finishing

Matt
Nominal voltage

250 V
Connection type

Push-in clamp

Method of operation

Other
Mounting method

Flush-mounted
Surface protection

Lacquered
Colour

Beige
Switching current for fluorescent lamps

10 AX
Built-in depth

24 mm

Détails du fabricant

Producteur

Kontakt-Simon S.A.
Adresse

43-500 Czechowice-Dziedzice Bestwińska 21 Polska
E-mail

info@kontakt-simon.com.pl

Emballage en vrac

Une sorte de paquet	Paczka	Karton
Quantité	1 pcs.	10 pcs.
poids (kg)	0,079	0,875
Largeur (m)	0,110	0,190
Longueur (m)	0,045	0,230
Profondeur (m)	0,160	0,100
