Single-pole switch with backlight 10A 250V satin (metallic) AW1L/29

Name: Single-pole switch with backlight 10A 250V satin (metallic)
Brand: KONTAKT-SIMON
SKU: MMP027KONT
Price: 6.85 PLN

local index:

MMP027KONT

Catalog No:

AW1L/29

EAN code:

5902787597634

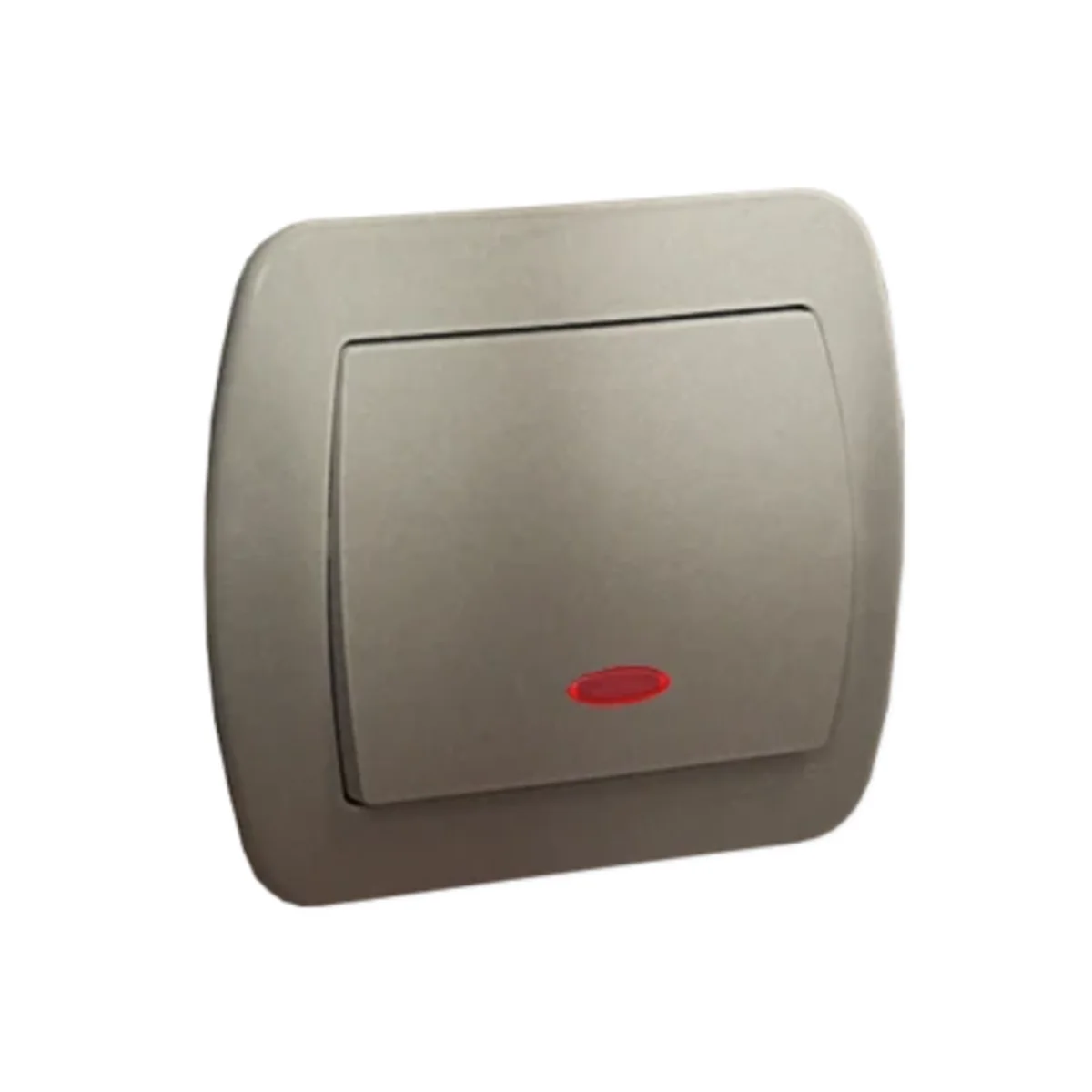

Single-pole switch with backlight 10A 250V satin (metallic)

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 37.5

Number of keys: 1

See full description

Price:

6,85 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Single-pole switch (bistable) from the Simon Akord series. With built-in orange backlight.

SERIES DESCRIPTION

The slightly longer line of the base and spine in relation to the sides and clearly rounded corners of the frames distinguish this series from others. SimonChord is a monoblock, i.e. non-frame series. Economical, but tasteful colors combined with a characteristic oval shape will appeal to customers who expect originality and minimalism from functional details.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Rectangular
Fixing

claws Screws
Rated voltage [V]

230
Type

Single
Level of security

IP20
Type

Flush-mounted
Surface protection

varnishing
Accurate color

Satin metallic
Mounting depth [mm]

24.5
For the frame system

NO
Backlight type

Orientation LED
PKWIU

27.33.11.0

Depth [mm]

37.5
Color

Silver
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

SIMON CHORD
Width [mm]

90
Height [mm]

80
Surface finish

matte
Backlight

Yes
Terminal type

Threaded \ Threadless
Exact material

PC
Backlight color

Orange

Other technical data

Wiring system

Off switch 1-pole
Assembly arrangement

Basic element with complete housing
Material

Plastic
Surface protection

Lacquered
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Nominal voltage

250 V
Connection type

Screwed terminal

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,058	0,058	0,670
Width (m)	0,080	0,110	0,190
Length (m)	0,090	0,043	0,230
Depth (m)	0,038	0,165	0,100
