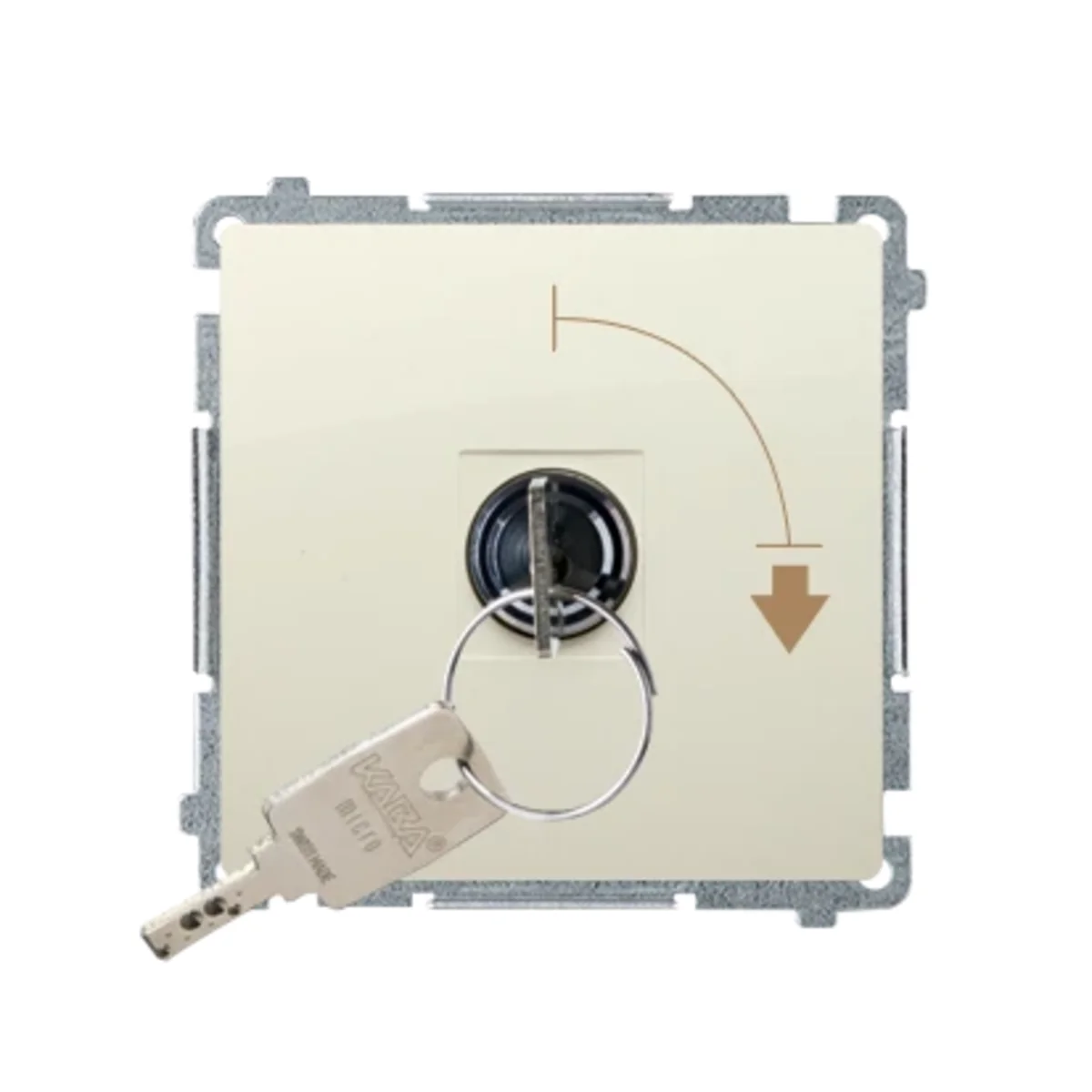

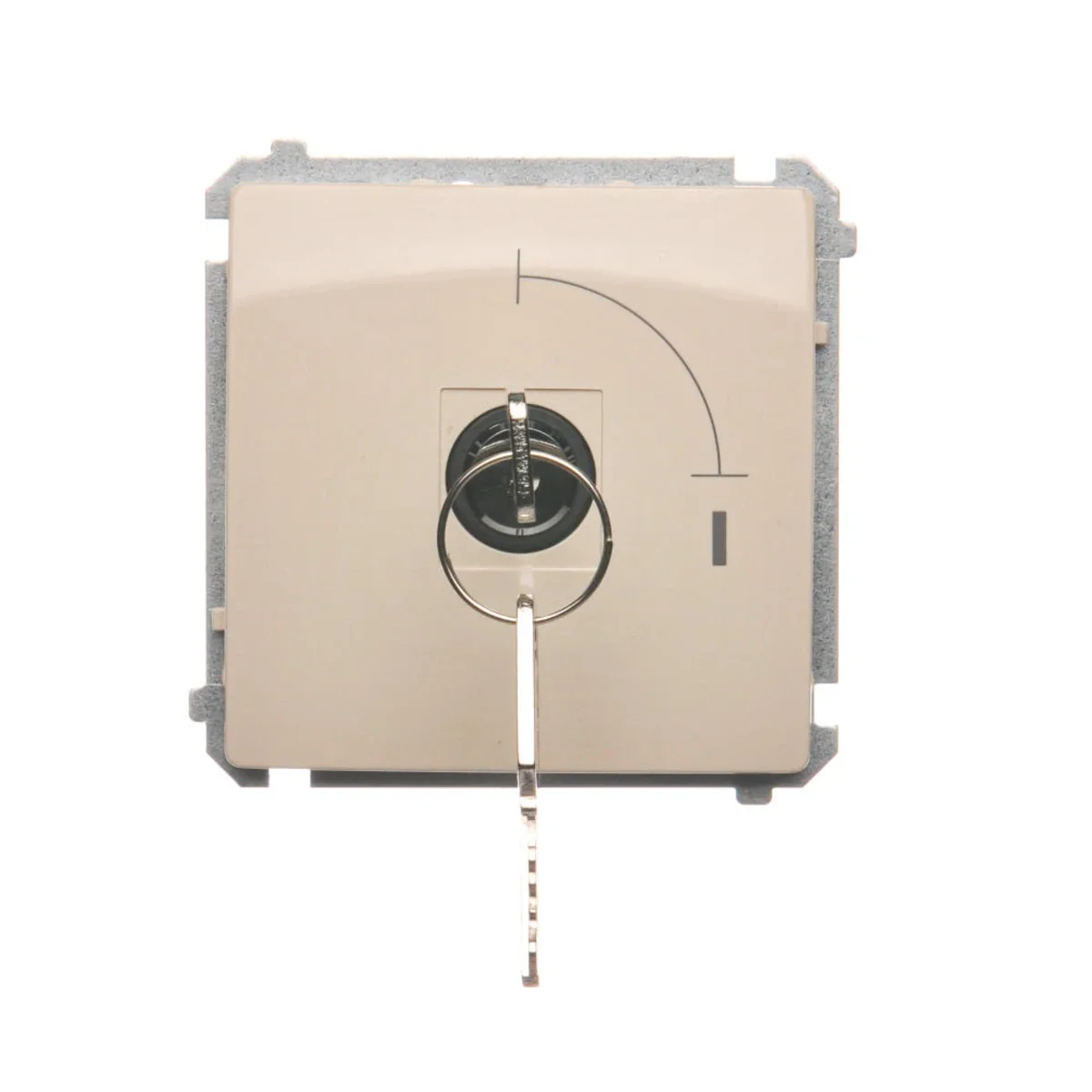

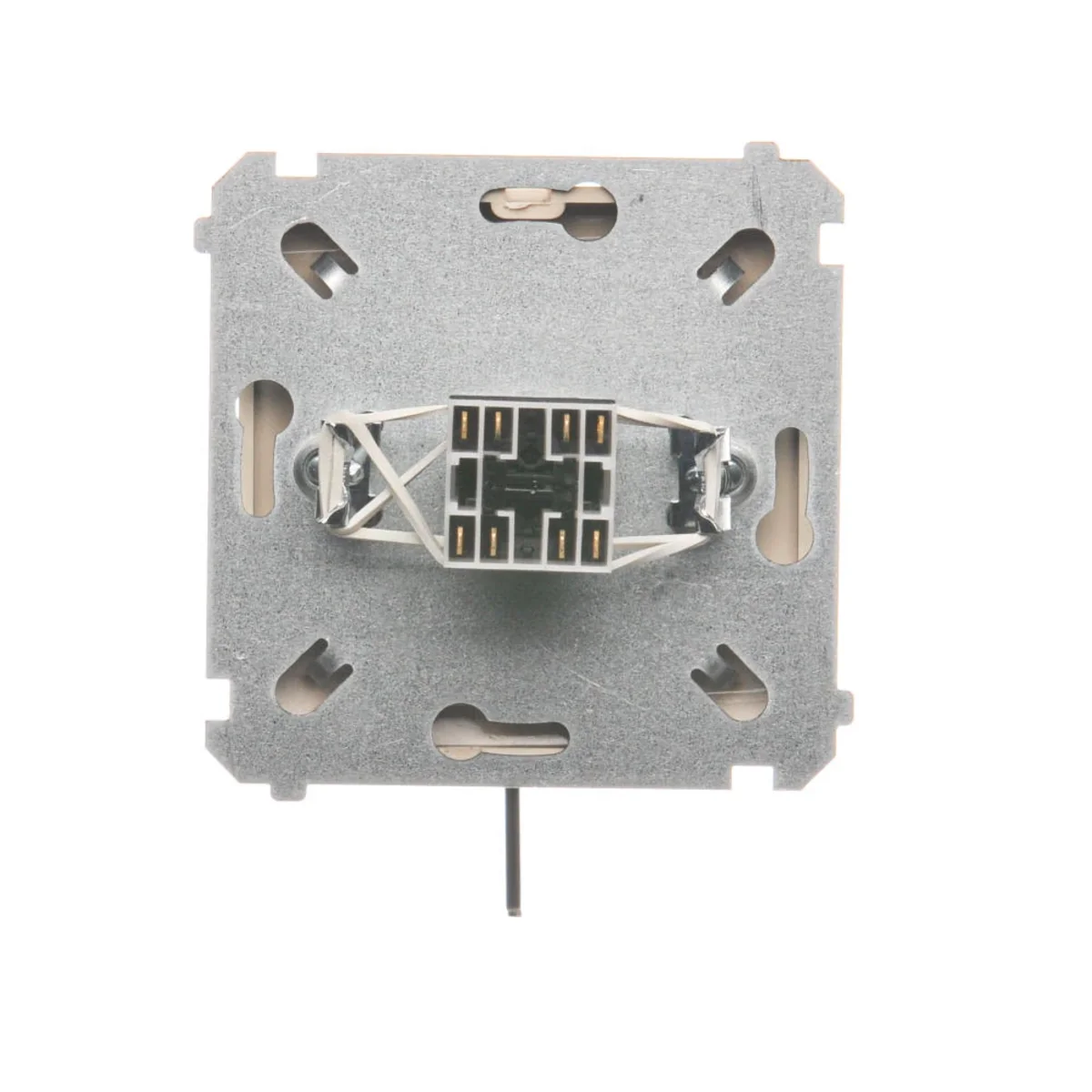

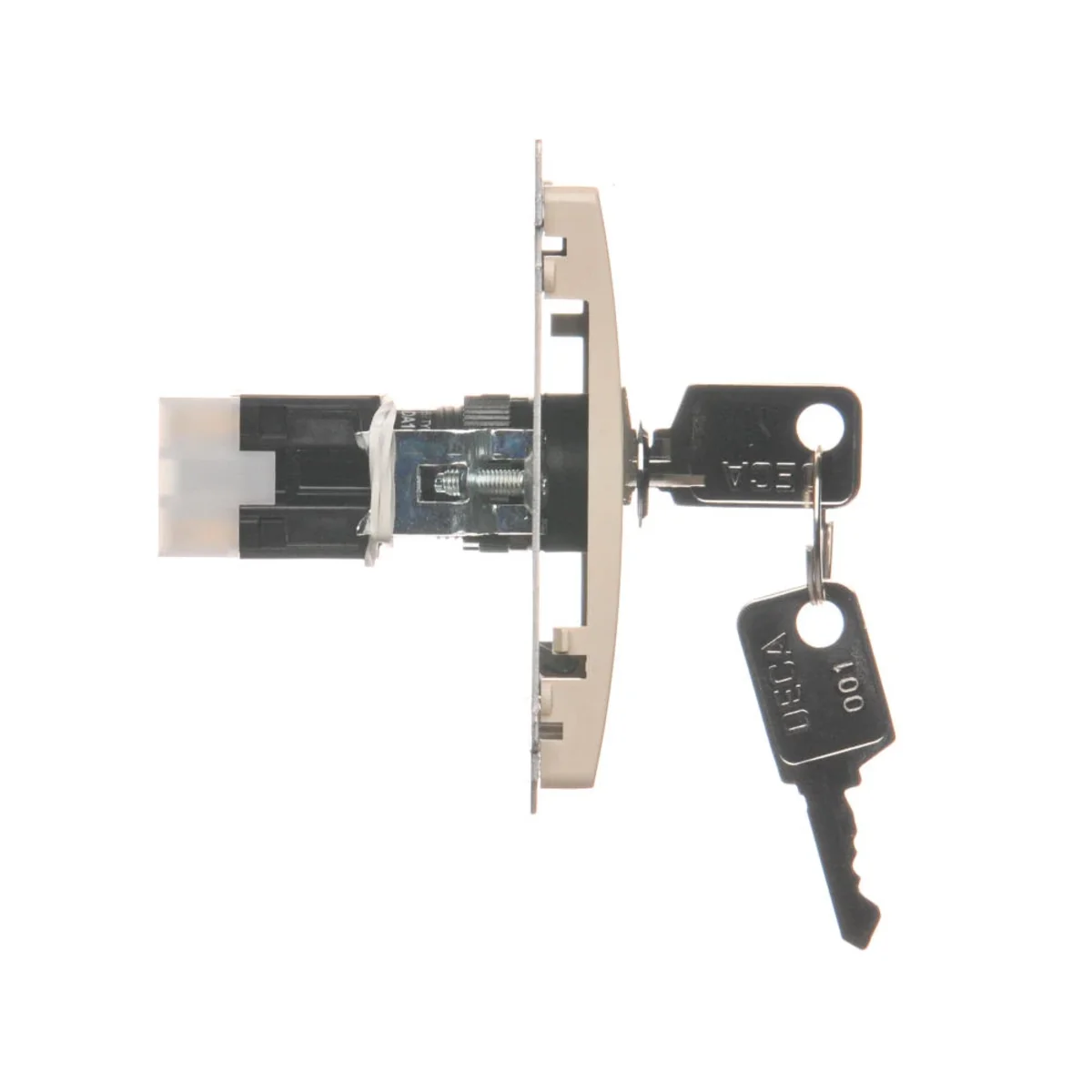

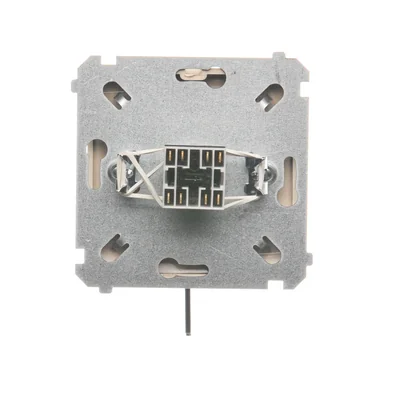

Single-pole switch with 2-position key beige BMW1K.01/12
local index:
MMP042KONT
Catalog No:
BMW1K.01/12
EAN code:
5902787830809
Price:
81,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Single-pole switch (bistable) from the Simon Basic series. Key-operated - 2-position “0-I”. The key can be removed in any position. The product comes with 2 keys.
SERIES DESCRIPTION
Functionality and classic look are the hallmarks of the Simon Basic, which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.
Technical data
-
Halogen freeYes
-
Number of keyskey
-
ShapeSquare
-
Fixingclaws Screws
-
Rated voltage [V]230
-
Rated current [A]5
-
FamilySIMON BASIC
-
Width [mm]75
-
Height [mm]75
-
Surface finishShiny
-
Mounting depth [mm]31
-
Exact materialPC
-
PKWIU27.33.11.0
-
Depth [mm]47
-
ColorBeige
-
MaterialPlastic
-
InstallationFlush-mounted
-
items0-I
-
TypeSingle
-
Level of securityIP20
-
TypeFlush-mounted
-
Surface protectionNatural
-
BacklightNO
-
For the frame systemYes
-
Connection typeFor soldering
Other technical data
-
Wiring systemOff switch 1-pole
-
Assembly arrangementBasic element with central cover plate
-
MaterialPlastic
-
Surface protectionUntreated
-
ColourBeige
-
Nominal voltage250 V
-
Method of operationKey
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface finishingGlossy
-
Suitable for degree of protection (IP)IP20
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,093 | 0,093 | 1,032 |
| Width (m) | 0,075 | 0,085 | 0,190 |
| Length (m) | 0,075 | 0,055 | 0,290 |
| Depth (m) | 0,047 | 0,115 | 0,100 |
