Single-pole switch (module) with activation signaling, 230V, metallic satin BMW1ZL.01/29

Name: Single-pole switch (module) with activation signaling, 230V, metallic satin
Brand: KONTAKT-SIMON
SKU: MMP058KONT
Price: 8.77 PLN

local index:

MMP058KONT

Catalog No:

BMW1ZL.01/29

EAN code:

5902787548872

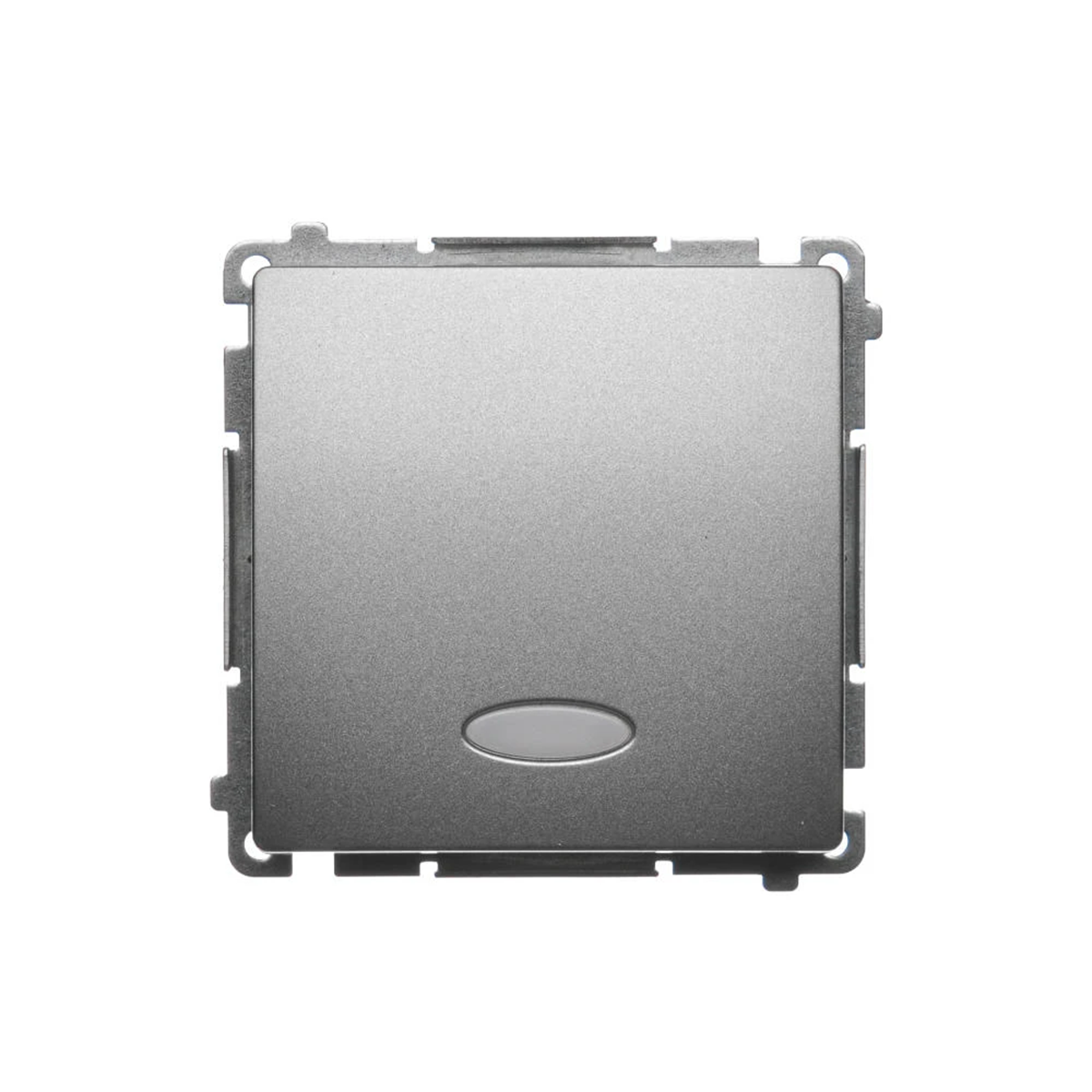

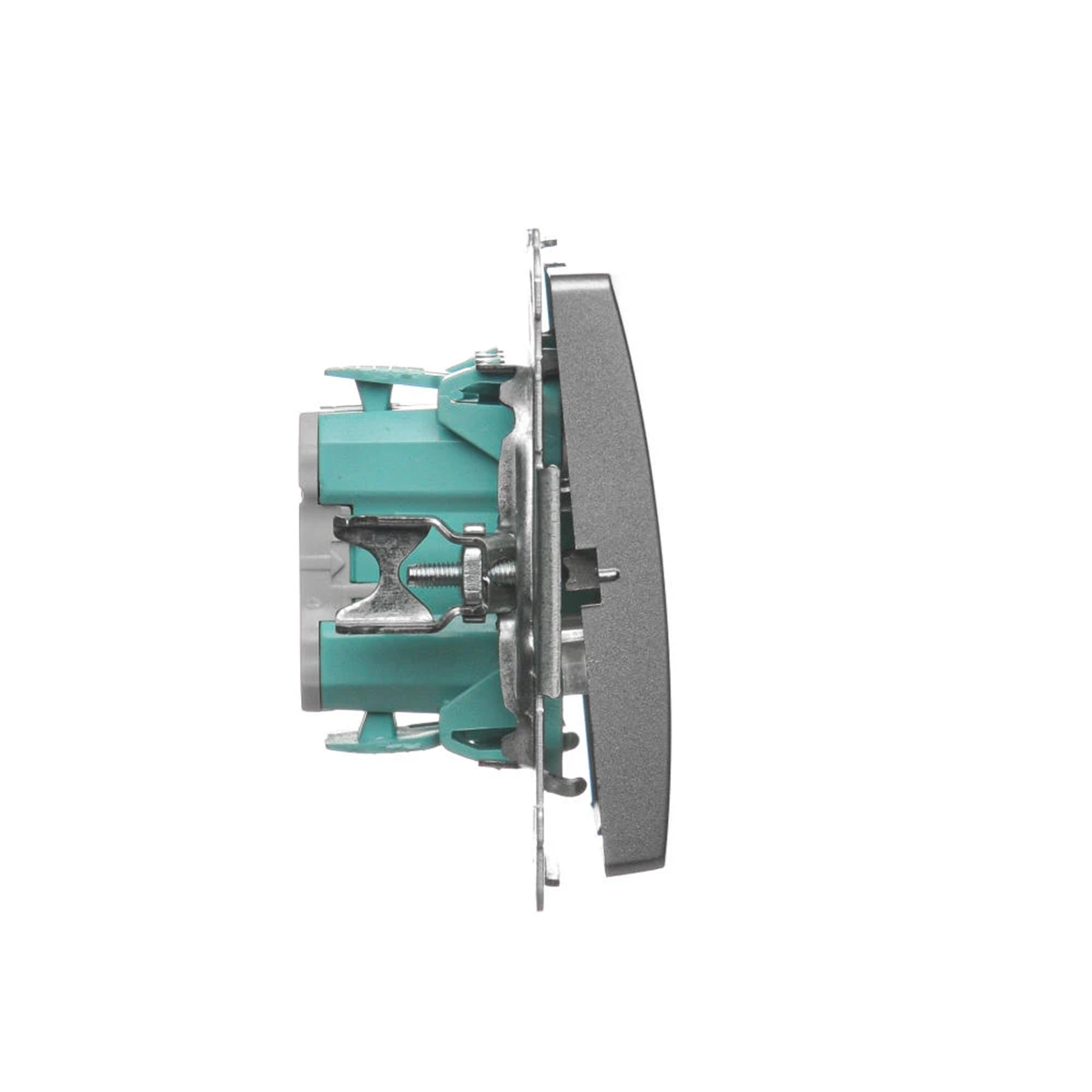

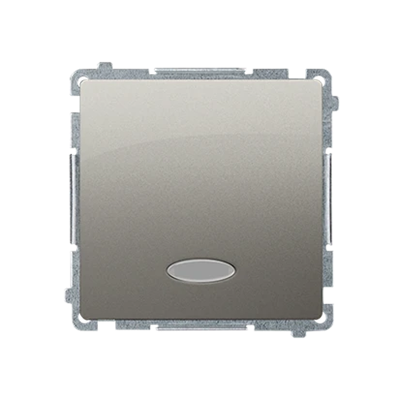

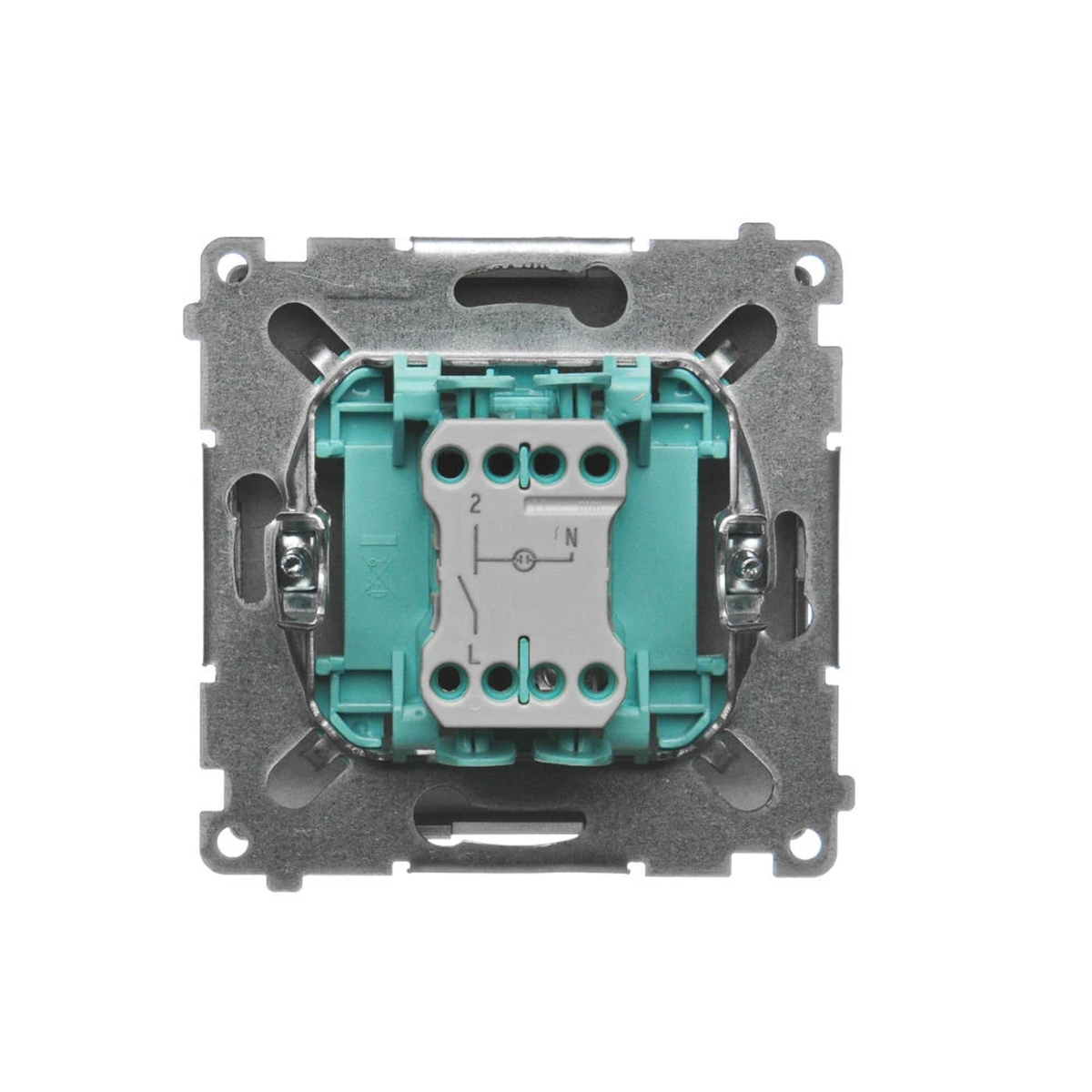

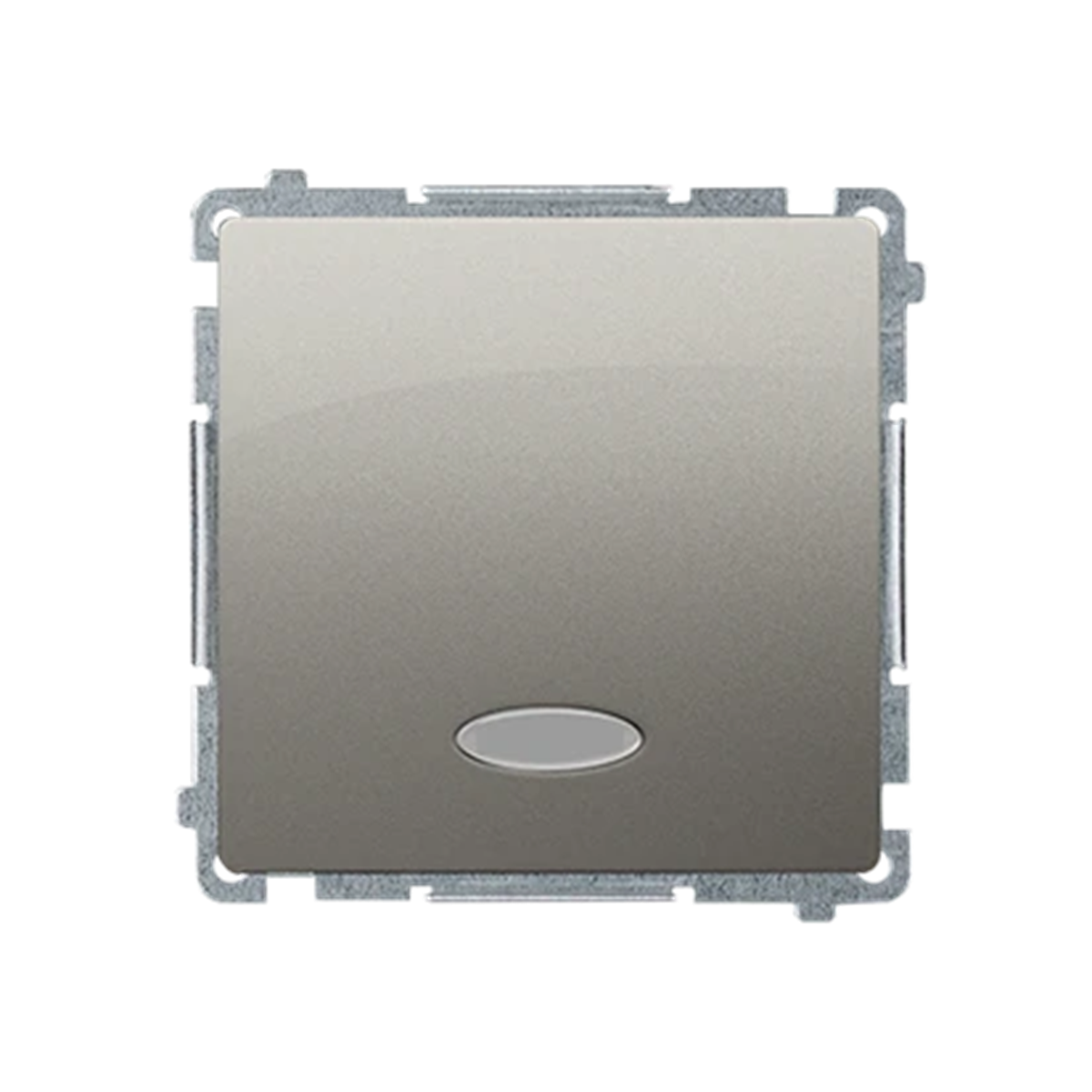

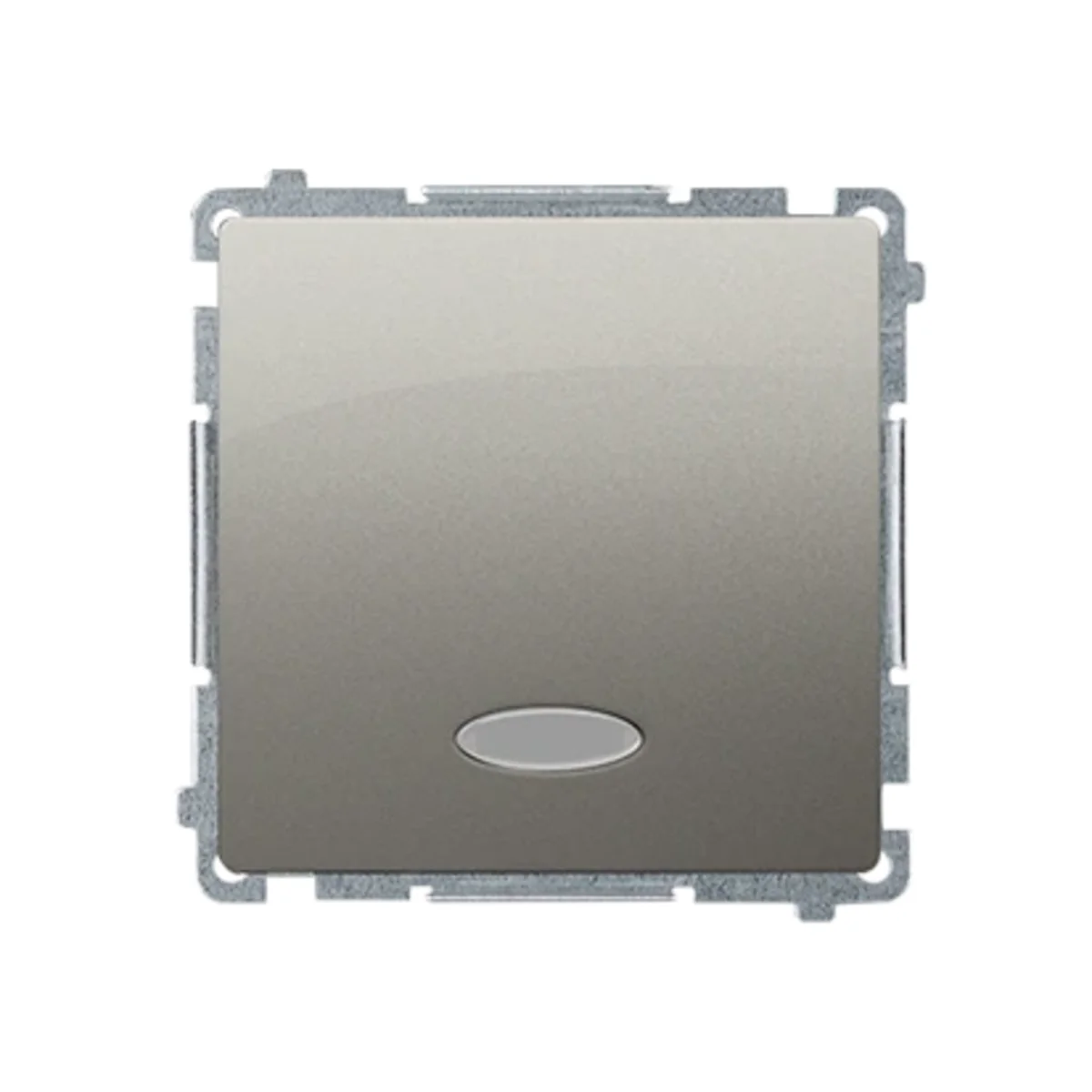

Single-pole switch (module) with activation signaling, 230V, metallic satin

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 1

See full description

Price:

8,77 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Functionality and classic look are the hallmarks of the SIMON BASIC series, which will work in any space. It includes a single-pole switch with LED activation signaling (non-replaceable, blue). It was made of plastic and PC in a satin, metallized color. Clamp type - quick couplers. The rated voltage is 230V, and the rated current for fluorescent lamps is 10AX. The surface of the connector is varnished and the finish is matt. Works on rocker key. To obtain the IP44 splash-proof class, use the IP44 NEOS frame: BMRC1B/..; BMRC2B/... or IP44 frame STANDARD: BMR1B/..; BMR2B/...; BMR3B/...

Technical data

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Single
Level of security

IP20
Type

Flush-mounted
Surface protection

varnishing
Accurate color

Satin metallic
Mounting depth [mm]

24
For the frame system

Yes
Backlight type

Activation indication LED
PKWIU

27.33.11.0

Depth [mm]

41
Color

Silver
Material

Plastic
Installation

Flush-mounted
Rated current [A]

10
Family

SIMON BASIC
Width [mm]

75
Height [mm]

75
Surface finish

matte
Backlight

Yes
Terminal type

Threadless
Exact material

PC
Backlight color

Blue

Other technical data

Wiring system

Off switch 1-pole
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Lacquered
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Nominal voltage

250 V
Connection type

Push-in clamp

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,079	0,079	0,885
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
