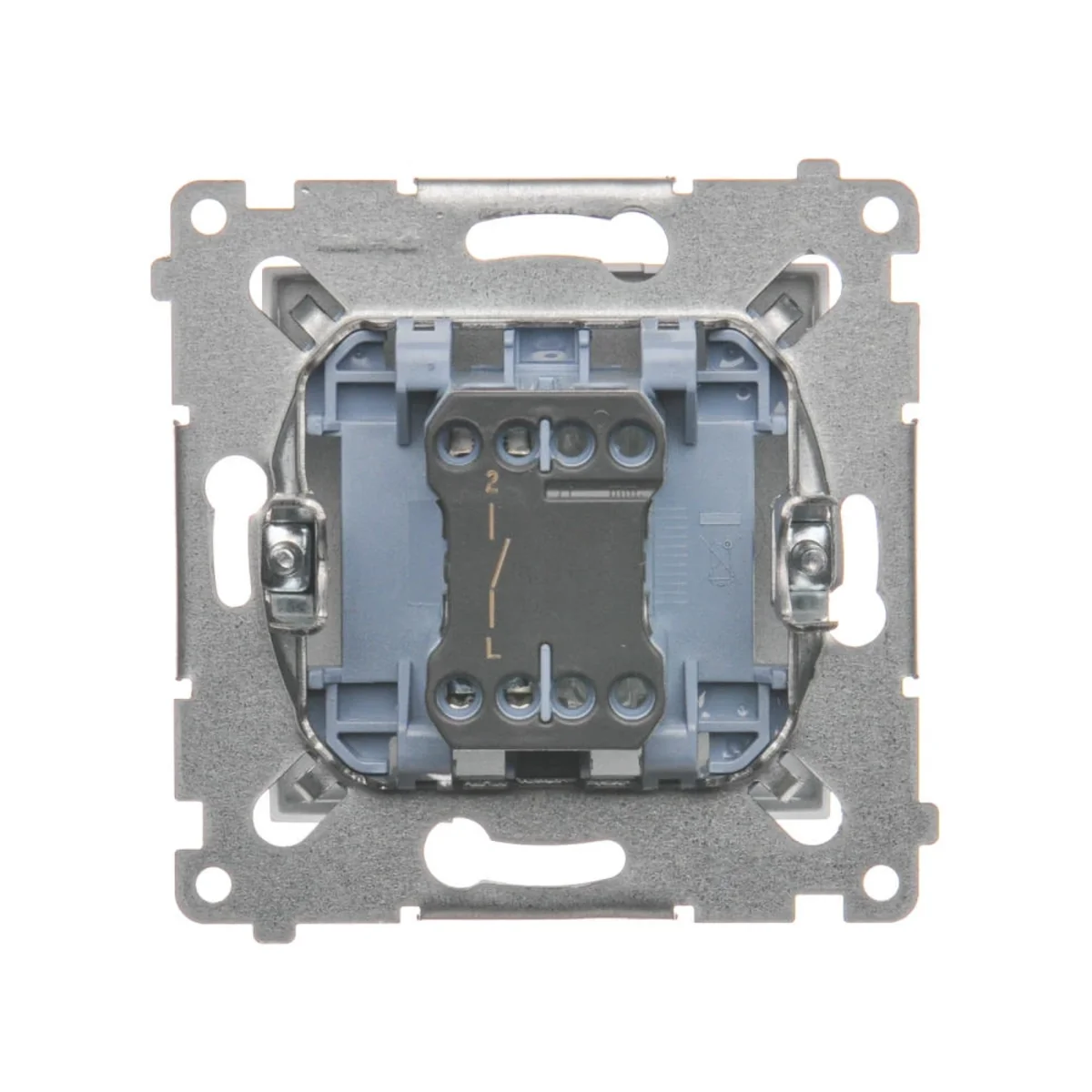

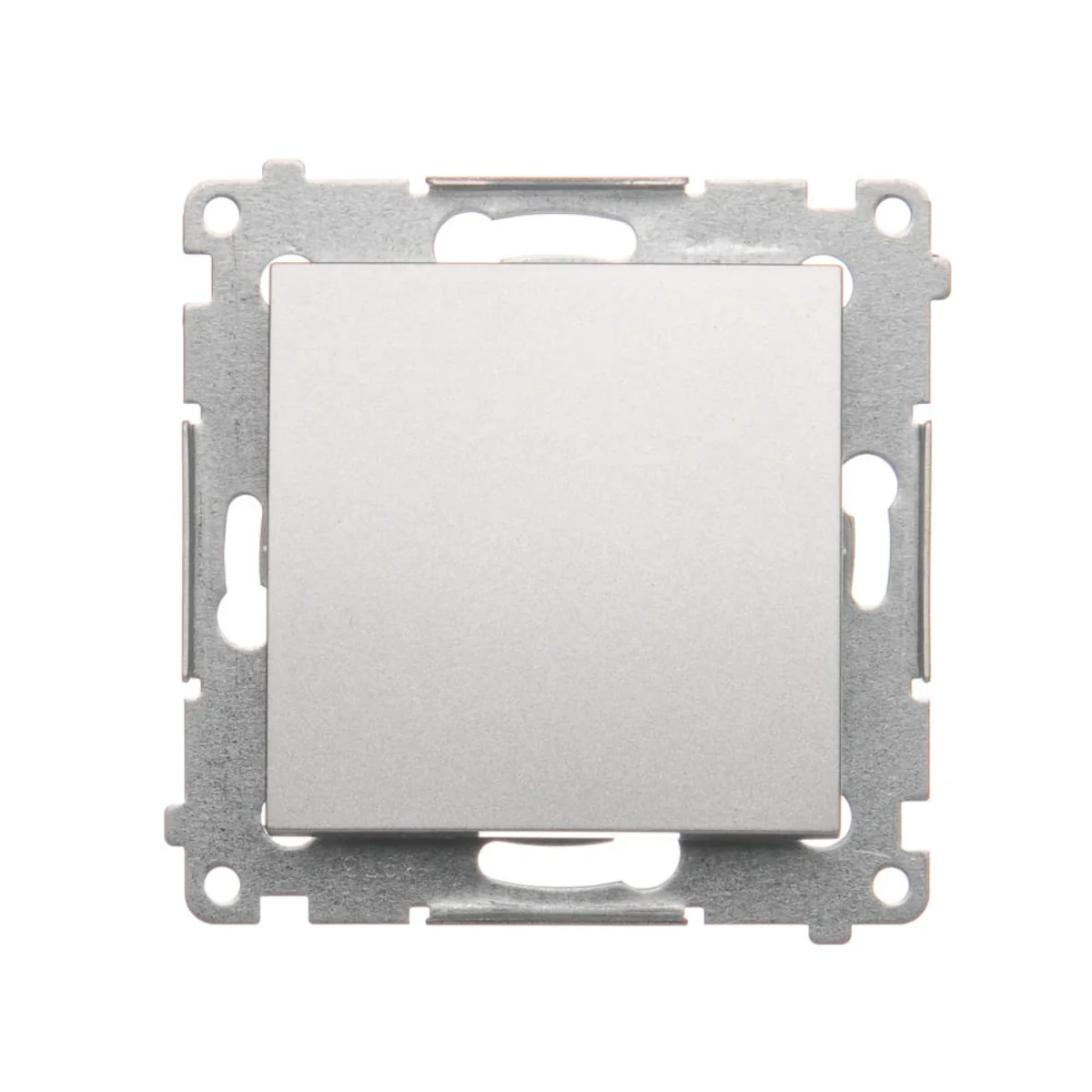

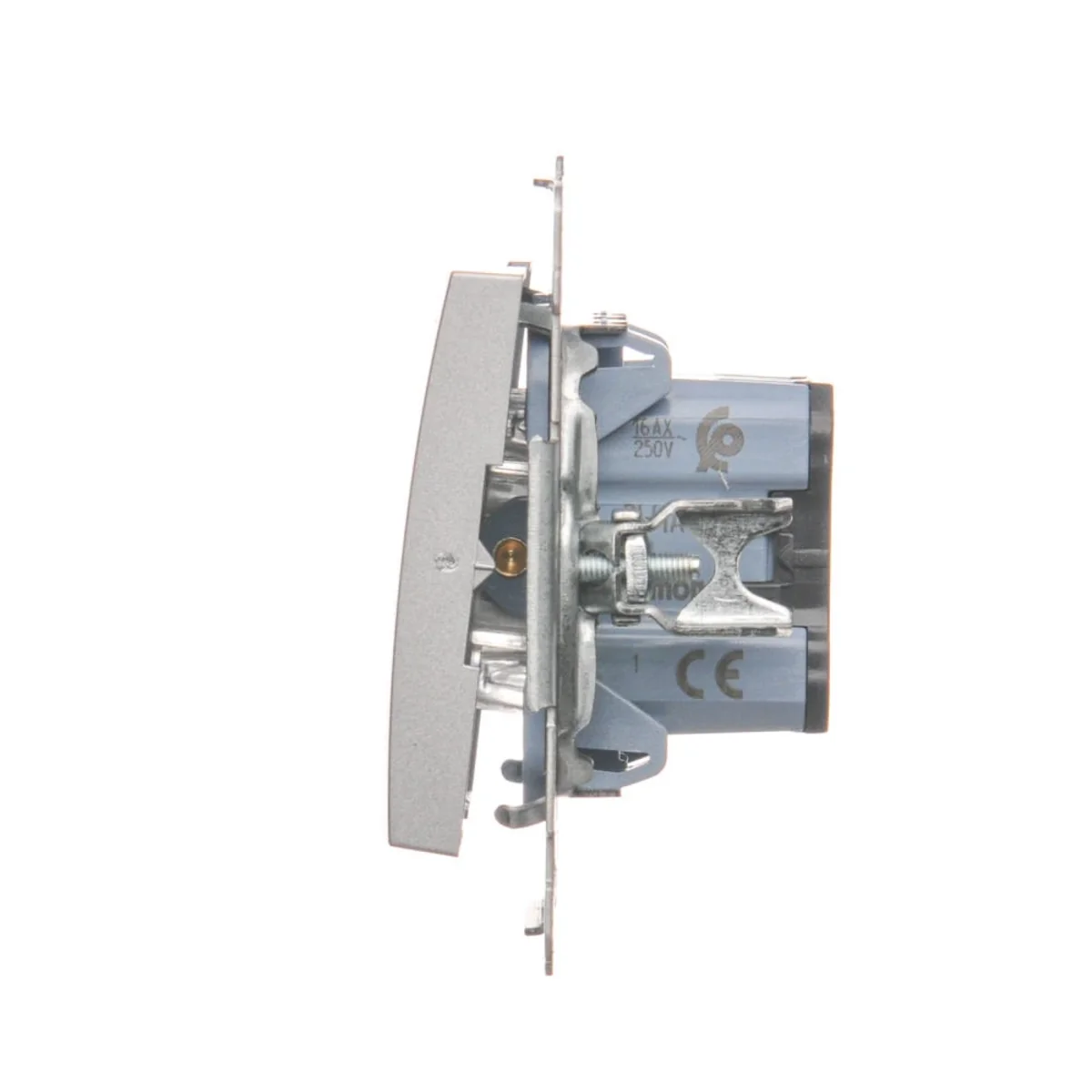

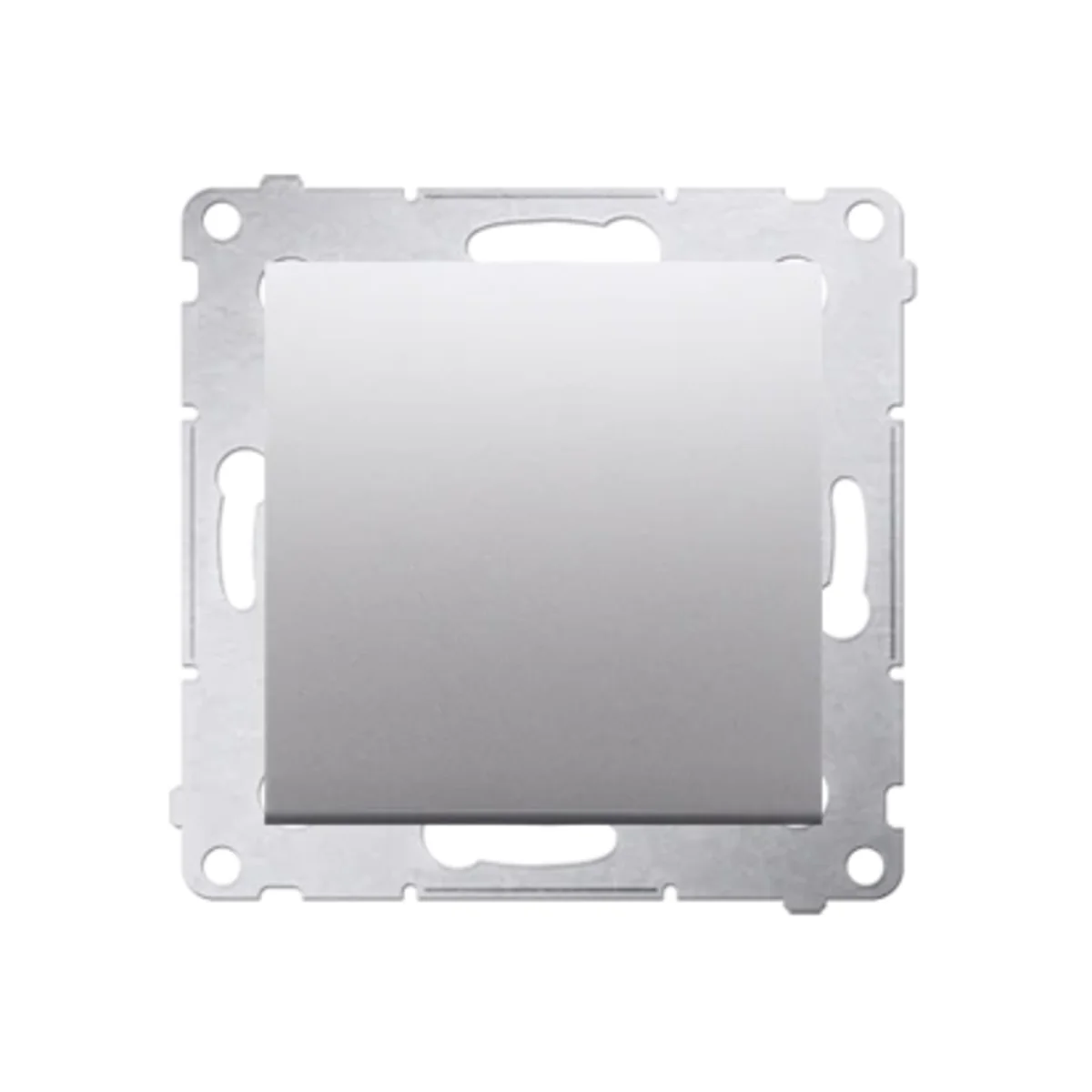

Single-pole switch (module) 16A 250V screw terminals silver (metallic) DW1A.01/43

Name: Single-pole switch (module) 16A 250V screw terminals silver (metallic)
Brand: KONTAKT-SIMON
SKU: MMP076KONT
Price: 33.22 PLN
Availability: BackOrder

Índice local:

MMP076KONT

Número de catálogo:

DW1A.01/43

Código EAN:

5902787822170

Single-pole switch (module) 16A 250V screw terminals silver (metallic)

Haga clic en la foto para ampliar

Fabricante: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 1

Ver descripción completa

Precio:

33,22 zł

gross / uds.

(IVA incluido 23%)

hasta 2 semanas

Por encargo

Cantidad uds.

(múltiple:

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Descripción del producto Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Descripción del producto

Single-pole switch (bistable) from the Simon 54 series. To obtain IP44 splash-proof class, use a frame gasket.

SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and easy-to-install mechanisms, distinguished by its noble form and rich colors .

Datos técnicos

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Single
Level of security

IP20
Type

Flush-mounted
Surface protection

varnishing
Accurate color

Silver metallic matt
Mounting depth [mm]

26
For the frame system

Yes
PKWIU

27.33.11.0

Depth [mm]

41
Color

Silver
Material

Plastic
Installation

Flush-mounted
Rated current [A]

16
Family

Simon 54
Width [mm]

75
Height [mm]

75
Surface finish

matte
Backlight

NO
Terminal type

Threadless
Exact material

PC

Otros datos técnicos

Wiring system

Off switch 1-pole
Assembly arrangement

Basic element with central cover plate
Type of fastening

Other
Surface finishing

Matt
Nominal voltage

250 V
Connection type

Screwed terminal

Method of operation

Other
Mounting method

Flush-mounted
Surface protection

Lacquered
Colour

Silver
Switching current for fluorescent lamps

16 AX
Built-in depth

26 mm

Detalles del fabricante

Fabricante

Kontakt-Simon S.A.
Dirección

43-500 Czechowice-Dziedzice Bestwińska 21 Polska
Email

info@kontakt-simon.com.pl

Empaquetado a granel

una especie de paquete	Paczka	Karton
Cantidad	1 uds.	10 uds.
Peso (kg)	0,059	0,679
Ancho (m)	0,110	0,190
Longitud (m)	0,045	0,230
Profundidad (m)	0,160	0,100
