Single-pole switch (module) 16A 250V inox screw terminals (metallic) BMW1A.01/21

Name: Single-pole switch (module) 16A 250V inox screw terminals (metallic)
Brand: KONTAKT-SIMON
SKU: MMP037KONT
Price: 6.45 PLN

local index:

MMP037KONT

Catalog No:

BMW1A.01/21

EAN code:

5902787542771

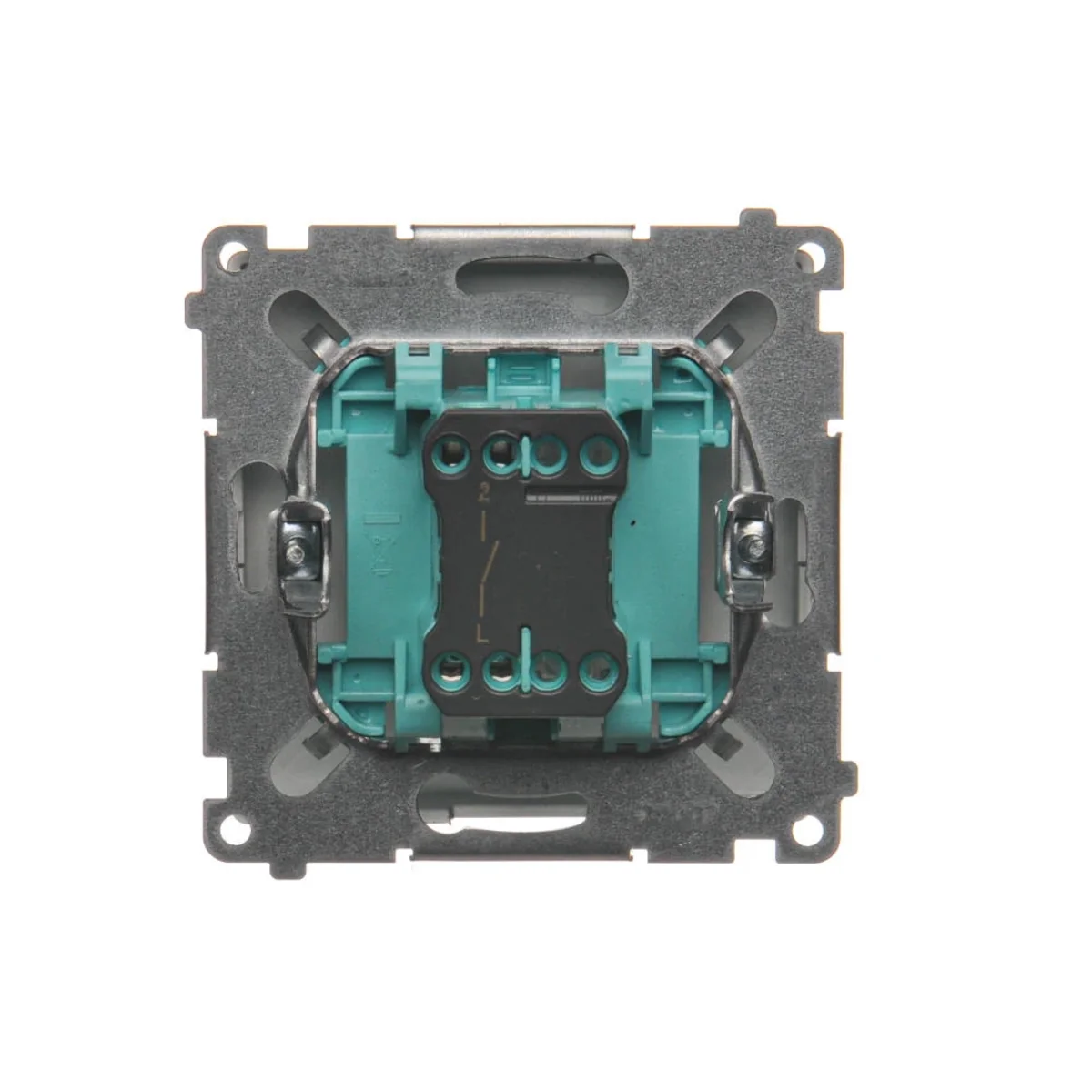

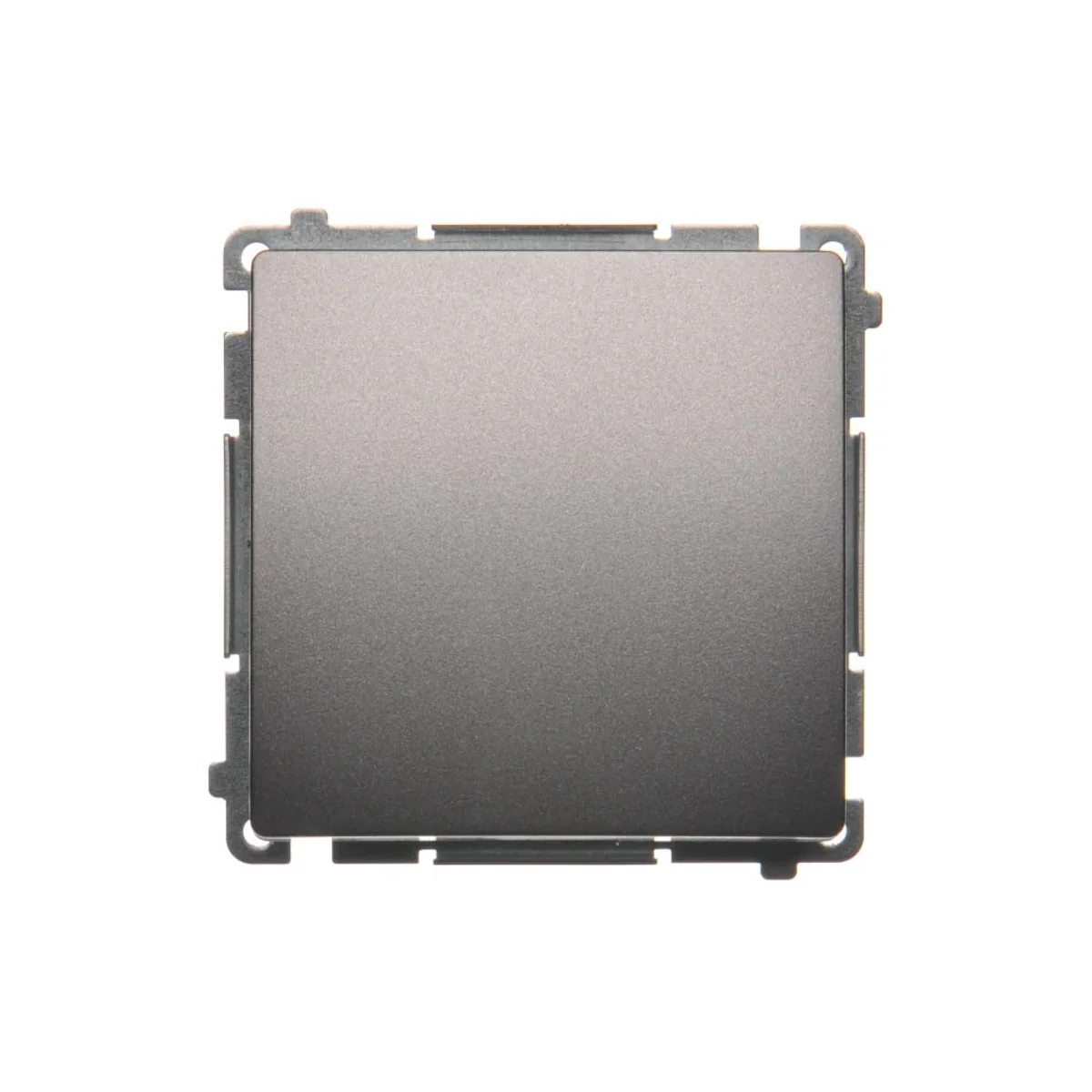

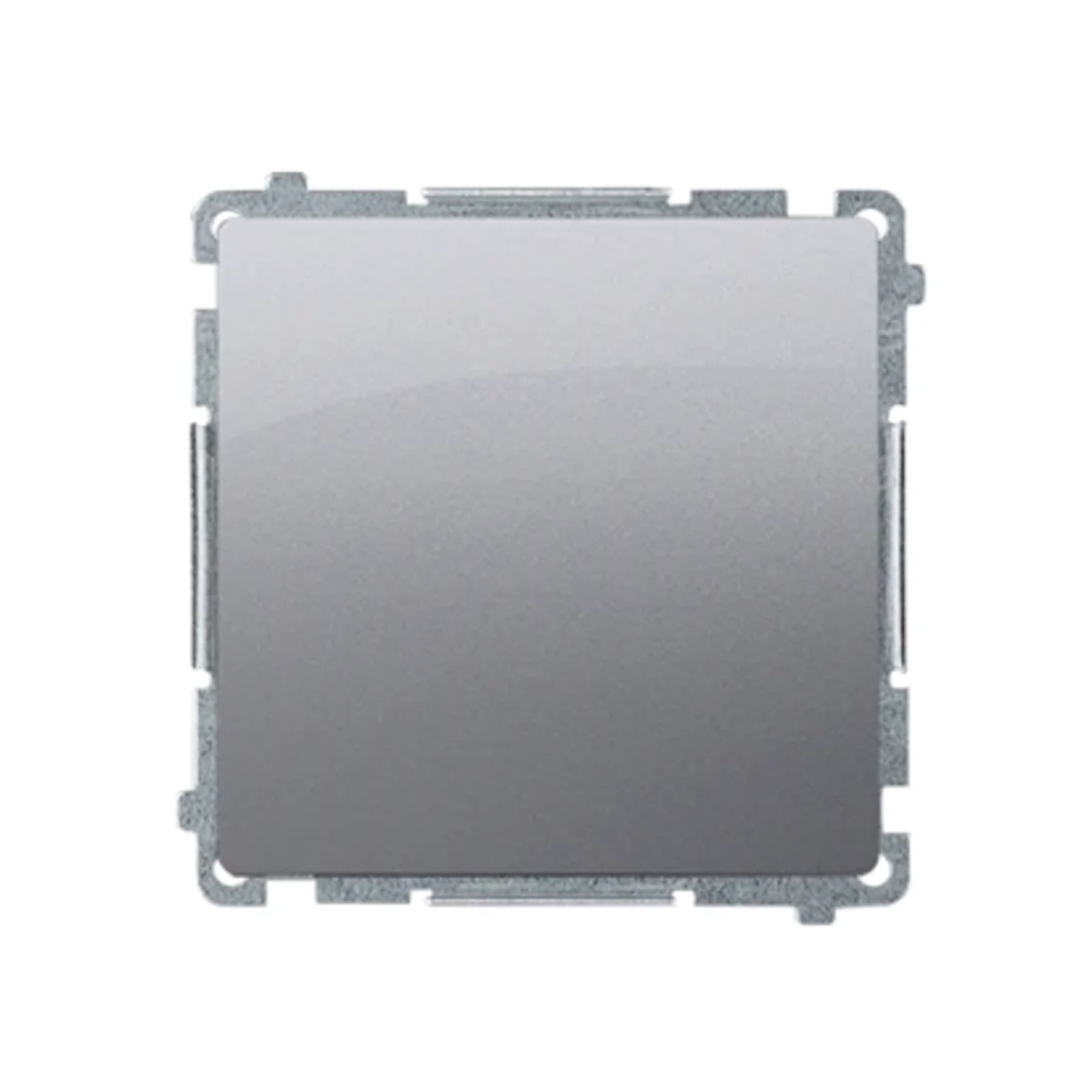

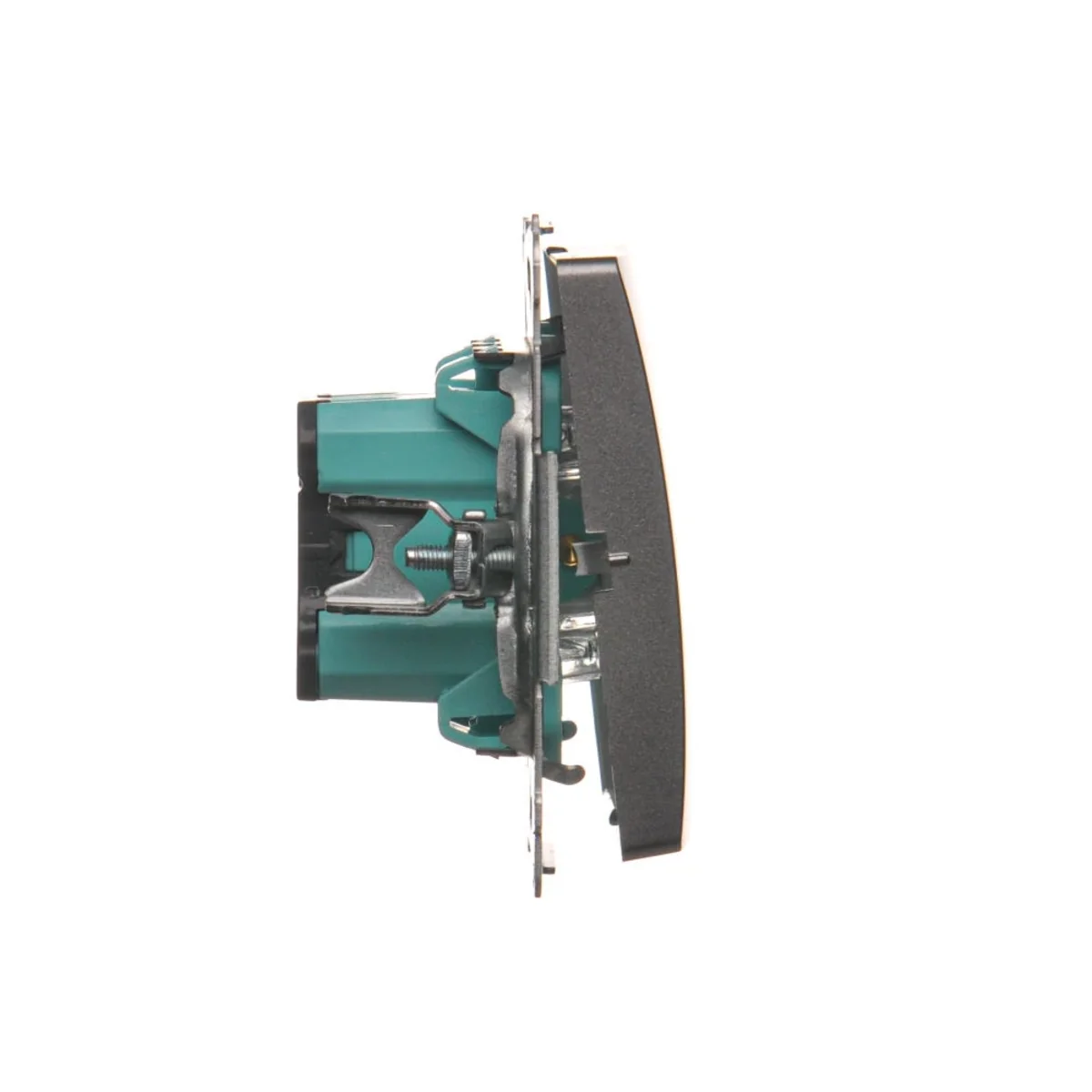

Single-pole switch (module) 16A 250V inox screw terminals (metallic)

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 1

See full description

Price:

6,45 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Single-pole switch (bistable) from the Simon Basic series.

To obtain the IP44 splash-proof class, use the IP44 NEOS frame: BMRC1B/. .; BMRC2B/... or IP44 frame STANDARD: BMR1B/..; BMR2B/...; BMR3B/..

SERIES DESCRIPTION

Functionality and classic look are the hallmarks of the Simon Basic series, which it will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Single
Level of security

IP20
Type

Flush-mounted
Surface protection

varnishing
Accurate color

Metallized stainless steel
Mounting depth [mm]

24
For the frame system

Yes
PKWIU

27.33.11.0

Depth [mm]

41
Color

Silver
Material

Plastic
Installation

Flush-mounted
Rated current [A]

16
Family

SIMON BASIC
Width [mm]

75
Height [mm]

75
Surface finish

matte
Backlight

NO
Terminal type

Threaded
Exact material

PC

Other technical data

Wiring system

Off switch 1-pole
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Lacquered
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

16 AX

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Nominal voltage

250 V
Connection type

Screwed terminal

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,077	0,077	0,855
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
