Single-pole switch (module) 10A, 250V, quick connectors, white DW1.01/11

Name: Single-pole switch (module) 10A, 250V, quick connectors, white
Brand: KONTAKT-SIMON
SKU: MMP117KONT
Price: 5.23 PLN
Availability: InStock

local index:

MMP117KONT

Catalog No:

DW1.01/11

EAN code:

5902787822002

Single-pole switch (module) 10A, 250V, quick connectors, white

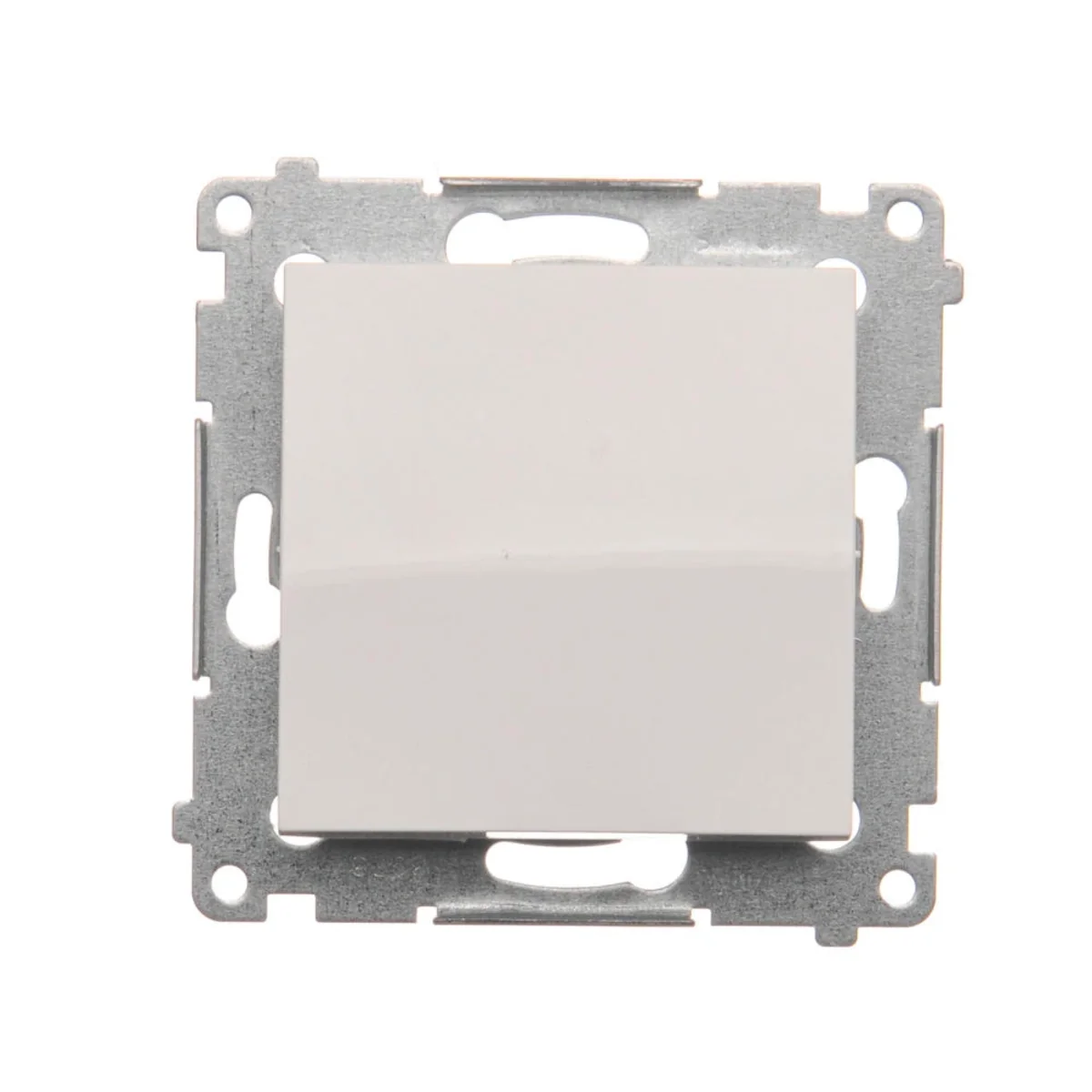

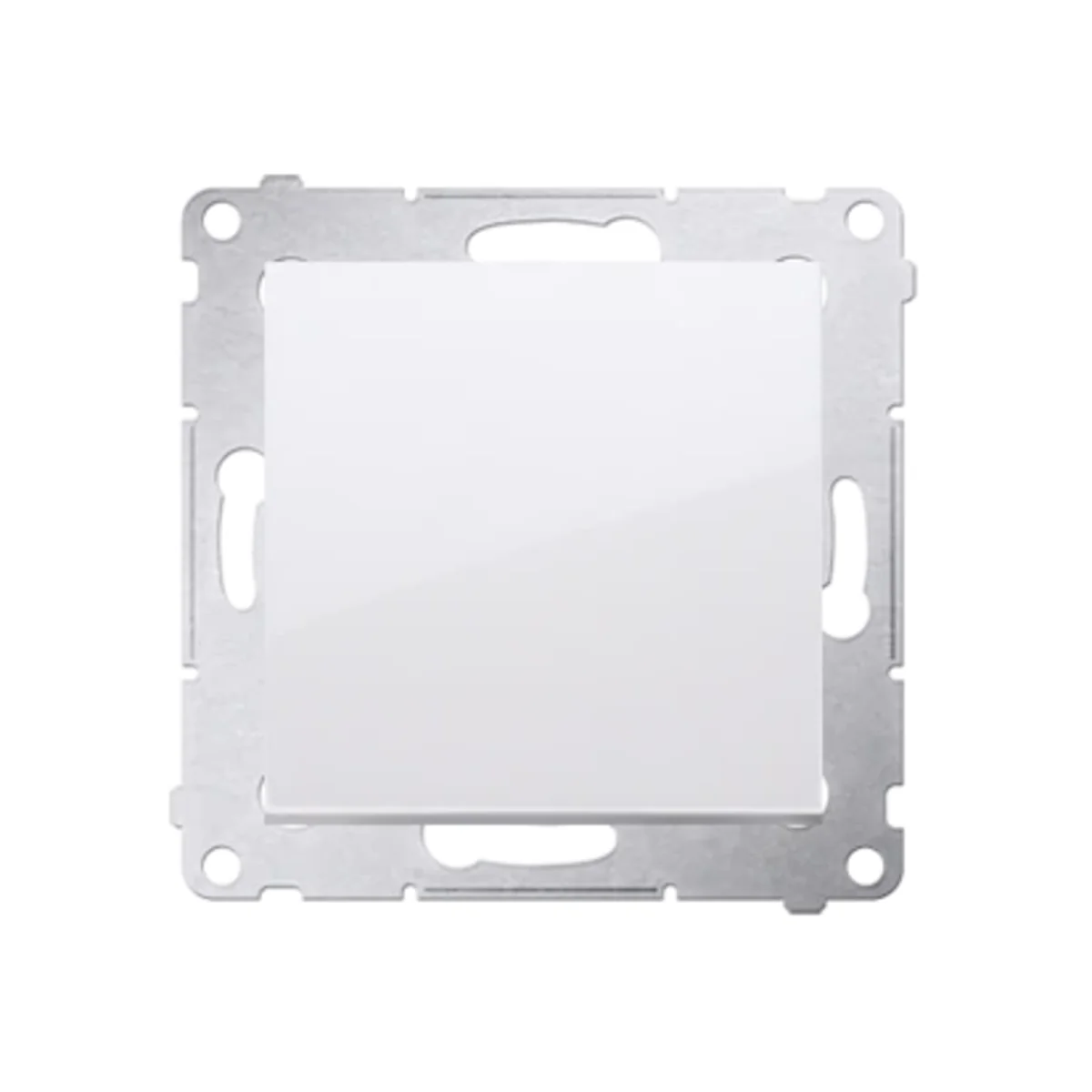

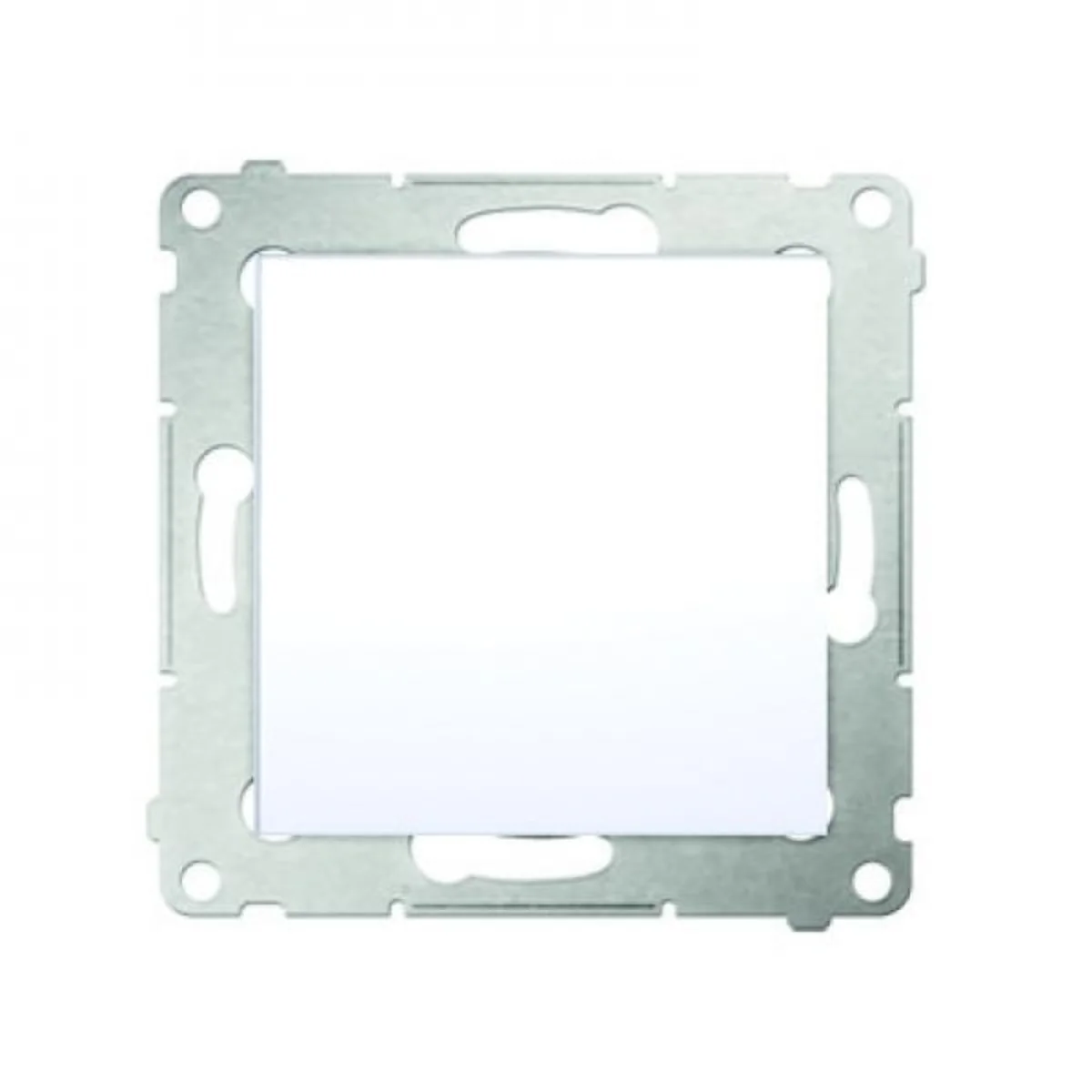

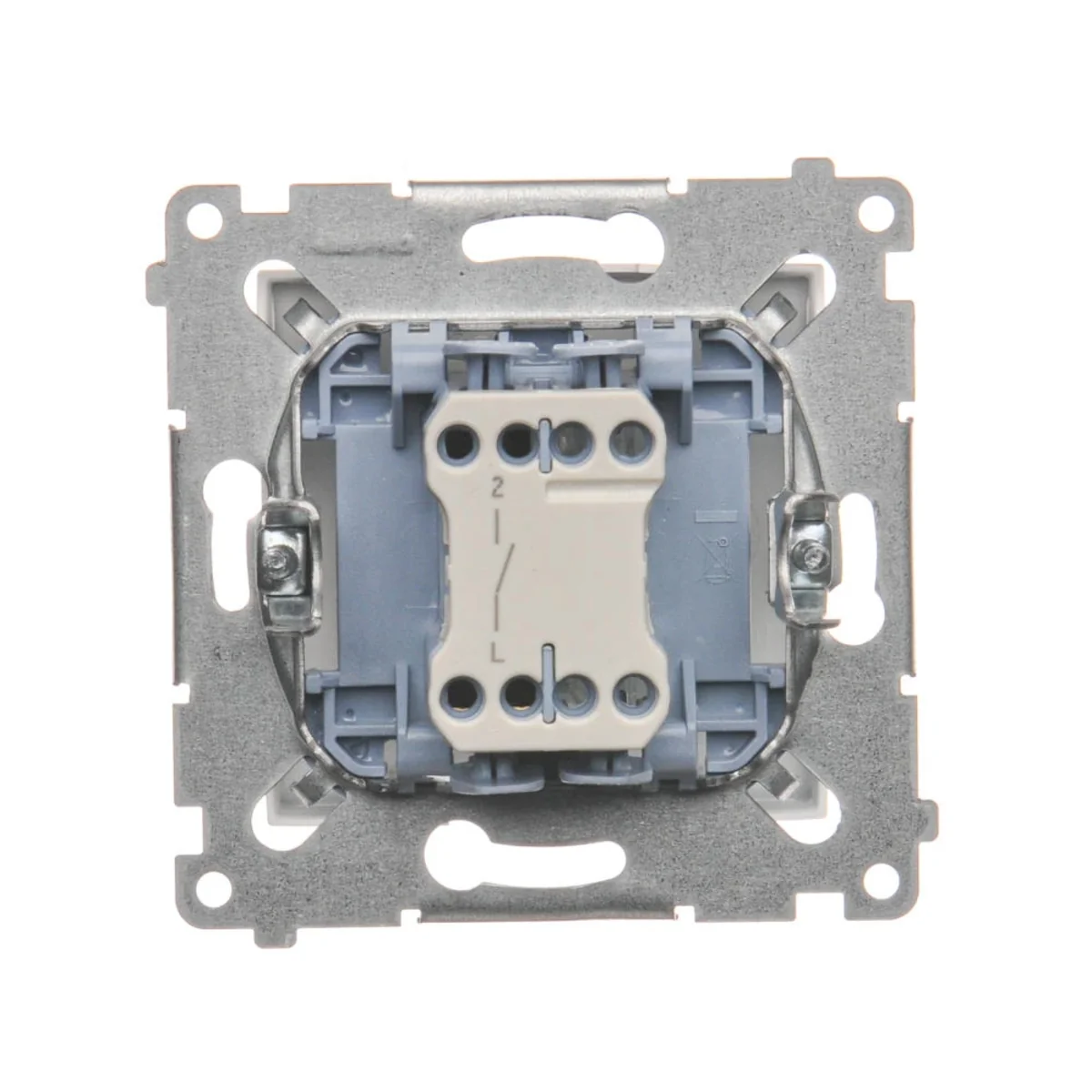

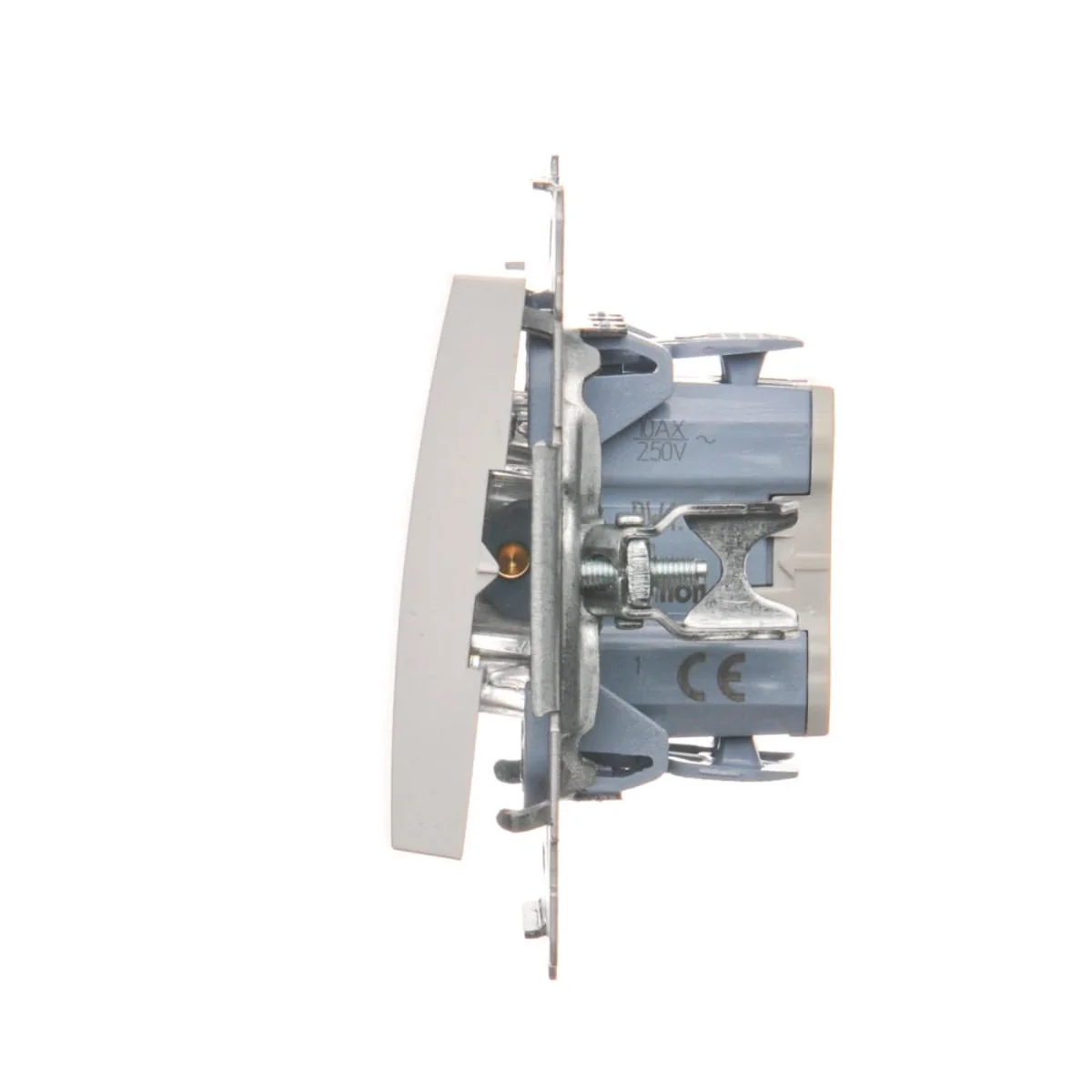

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Color: White

Voltage [V]: 230

Family: SIMON 54 PREMIUM

See full description

Price:

5,23 €

gross / pcs.

(including VAT 23%)

Accessible 186 pcs.

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

The single-pole switch (module) 10A, 250V series SIMON 54 consists of a single rocker switch. It is made of PC plastic with a shiny surface.

Perfectlysuitable for living rooms, kitchens, children's rooms. White color perfectly composes with other colors.

To obtain the IP44 splashproof classa frame gasket must be used.

Technical data

Color

White
Family

SIMON 54 PREMIUM
Current [A]

10
PKWIU

27.33.11.0

Voltage [V]

230
Fastener type

Single
Accurate color

White

Other technical data

Wiring system

Off switch 1-pole
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Untreated
Colour

White
Nominal voltage

250 V
Connection type

Push-in clamp

Method of operation

Rocker/button
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,059	0,059	0,679
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,041	0,160	0,100
