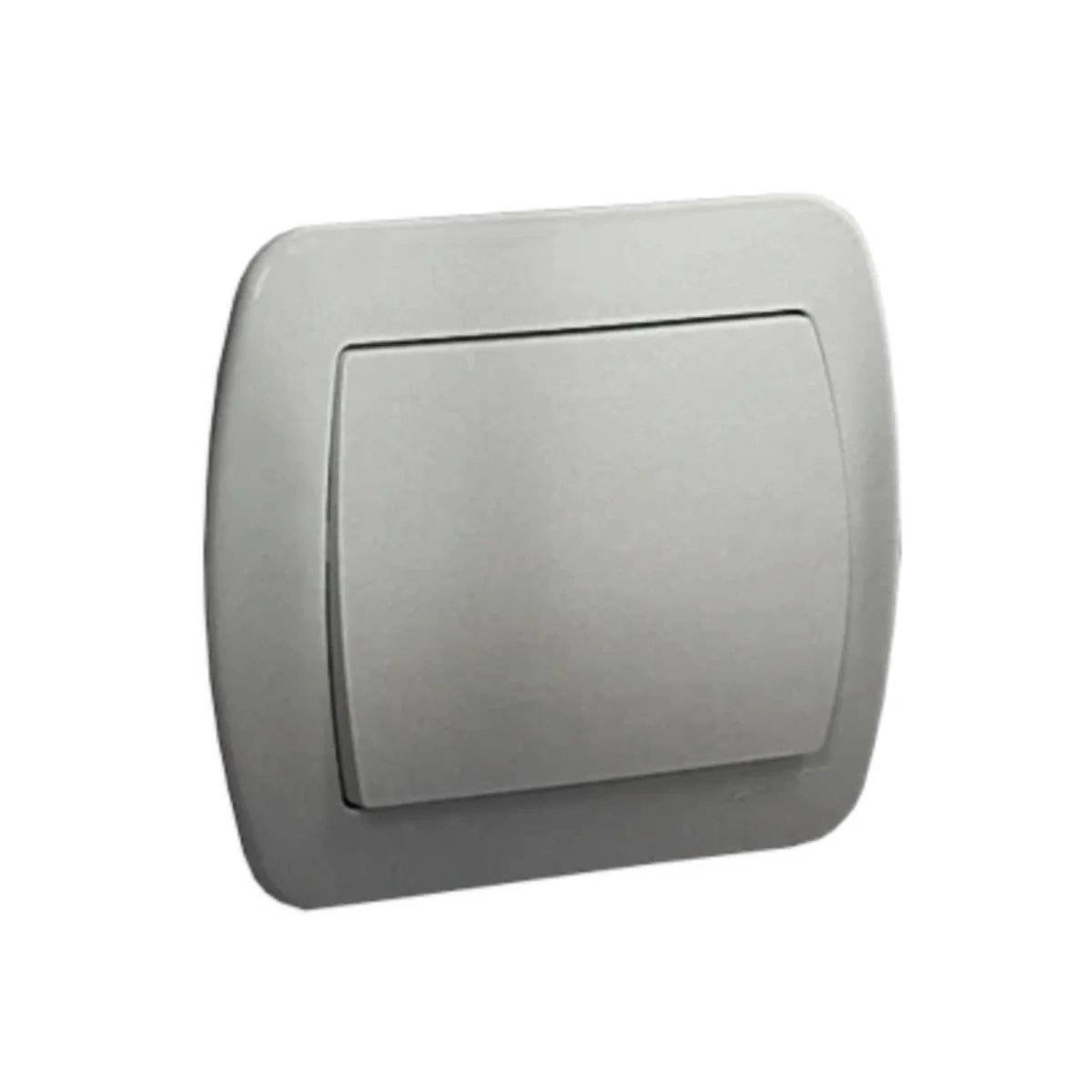

Single-pole switch 10A 250V screw terminals silver (metallic) AW1/26

Indice locale:
MMP023KONT
Numero di catalogo:
AW1/26
Codice EAN:
5902787597573
Produttore: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 37.5
Number of keys: 1
Prezzo:
5,51 €
gross / pezzi
(inclusa IVA 23%)
Consegna in 3 ore
fino a 2 settimane (giorni lavorativi)
Raccolta in 1h
Quantità pezzi
(multiplo:
1
)
Aggiungi agli appunti
Stampa

Descrizione del prodotto

Single pole switch (bistable) from the Simon Akord series.



SERIES DESCRIPTION

The slightly longer line of the base and spine relative to the sides and clearly rounded corners of the frames distinguish this series from others. Simon Chord is a monoblock, i.e. non-frame series. Economical, but tasteful colors combined with a characteristic oval shape will appeal to customers who expect originality and minimalism from functional details.

Dati tecnici

  • Halogen free
    Yes
  • Number of keys
    1
  • Shape
    Rectangular
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Single
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Accurate color
    Aluminum metallised
  • Mounting depth [mm]
    24.5
  • For the frame system
    NO
  • PKWIU
    27.33.11.0
  • Depth [mm]
    37.5
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    SIMON CHORD
  • Width [mm]
    90
  • Height [mm]
    80.5
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threaded \ Threadless
  • Exact material
    PC

Altri dati tecnici

  • Wiring system
    Off switch 1-pole
  • Assembly arrangement
    Basic element with complete housing
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Suitable for degree of protection (IP)
    IP20
  • Switching current for fluorescent lamps
    10 AX
  • Method of operation
    Rocker/button
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Nominal voltage
    250 V
  • Connection type
    Screwed terminal

Dettagli del produttore

Imballaggio sfuso

Una specie di pacchetto Paczka Karton
Quantità 1 pezzi 1 pezzi 10 pezzi
Peso (kg) 0,056 0,056 0,652
Larghezza (m) 0,080 0,110 0,190
Lunghezza (m) 0,090 0,043 0,230
Profondità (m) 0,038 0,165 0,100
