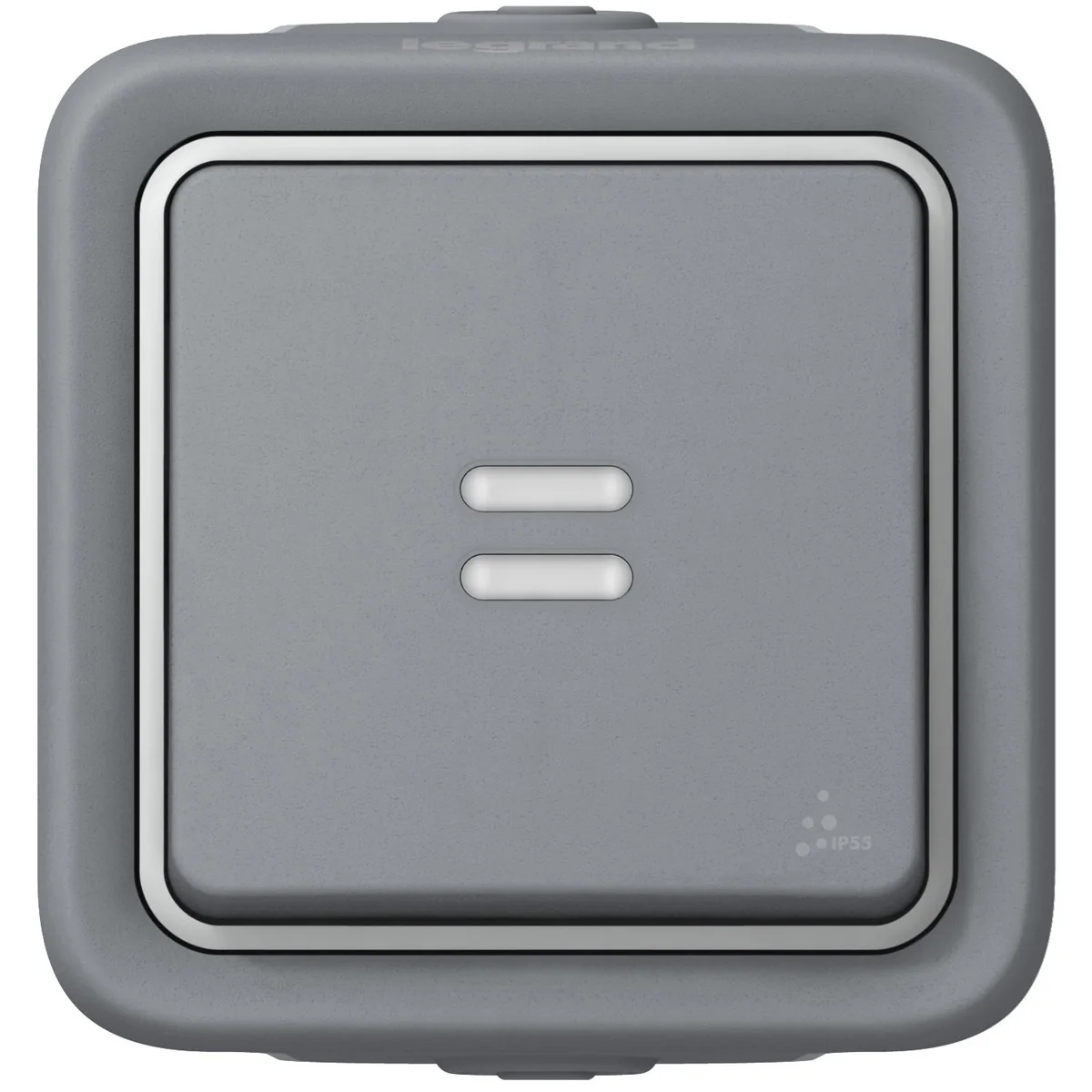

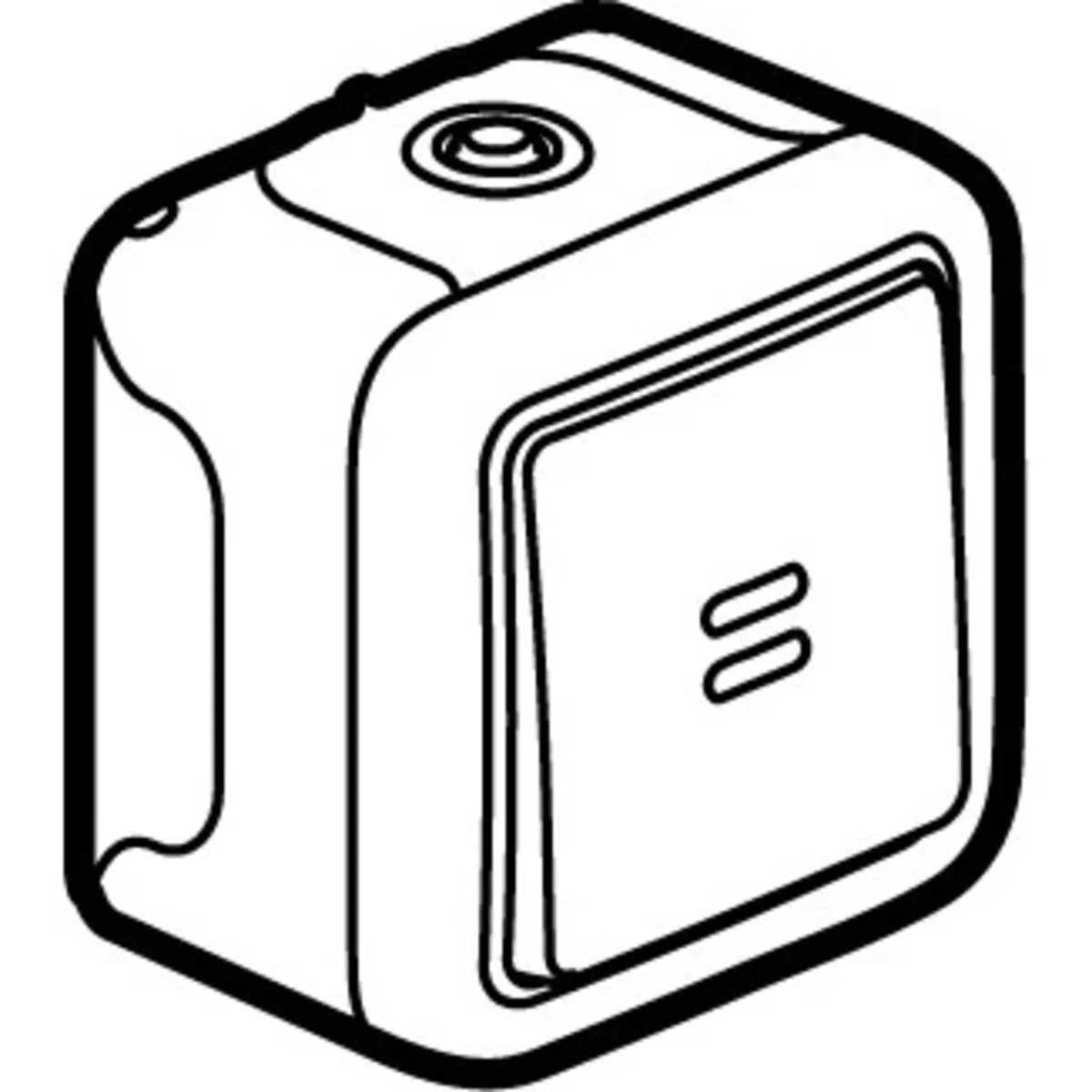

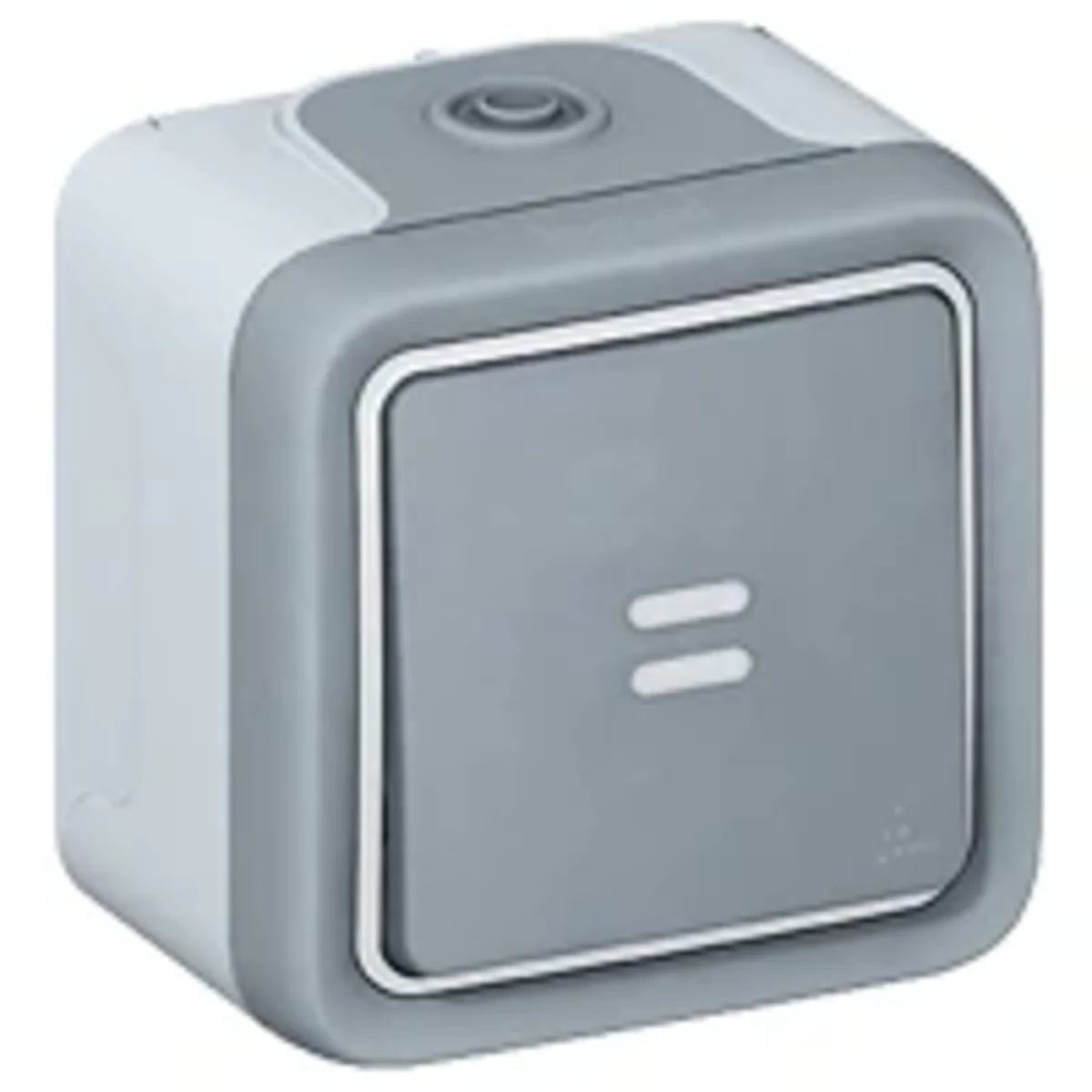

Single-pole push-button with gray backlight 069722

Indice locale:
MNZ002LEGR
Numero di catalogo:
069722
Codice EAN:
3245060697228
Produttore: LEGRAND
Depth [mm]: 57
Number of keys: 1
Color: Gray
Prezzo:
127,99 zł
gross / pezzi
(inclusa IVA 23%)
Esaurito
Aggiungi alla richiesta di preventivo
Stampa

Descrizione del prodotto

Single pole pushbutton from the Plexo55 series, from the manufacturer Legrand. The product catalog number is 069722.

  • Illuminated.
  • Mechanism complete with key and surface-mounted box .

Dati tecnici

  • Depth [mm]
    57
  • Color
    Gray
  • Material
    Plastic
  • Rated current [A]
    10
  • Family
    PLEXO55
  • Width [mm]
    80
  • Version
    Confident
  • Degree of mechanical protection
    IK07
  • Variant
    Ordinary
  • Exact material
    ABS PP PC
  • Number of keys
    1
  • Shape
    Rectangular
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP55
  • Type
    Surface-mounted
  • Height [mm]
    84
  • Backlight
    Yes
  • For the frame system
    NO
  • PKWIU
    27.33.11.0

Altri dati tecnici

  • Assembly arrangement
    Basic element with complete housing
  • Method of operation
    Rocker
  • Number of contacts as normally open contact
    0
  • Contactless type
    No
  • Number of modules (module system)
    2
  • Nominal voltage
    250 V
  • With lighting
    Yes
  • Feedback-signal contact
    No
  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Colour
    Grey
  • Transparent
    No
  • Imprint
    None
  • Impact strength
    IK07
  • Device height
    84 mm
  • Min. depth of built-in installation box
    40 mm
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No
  • Model
    Single push button
  • Number of contacts as normally closed contact
    1
  • Number of contacts as change-over contact
    0
  • Number of rockers
    1
  • Number of poles
    1
  • Rated current
    10 A
  • With signal lamp
    Yes
  • Connection type
    Push-in clamp
  • Type of fastening
    Screw mounting
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • RAL-number (similar)
    7046
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP55
  • Device width
    80 mm
  • Device depth
    57 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No

Dettagli del produttore

  • Produttore
    Legrand Polska Sp. z o.o.
  • Indirizzo
    57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
