el12 Electrical equipment Fasteners Buttons
el12 Electrical equipment Fasteners Concealed connectors

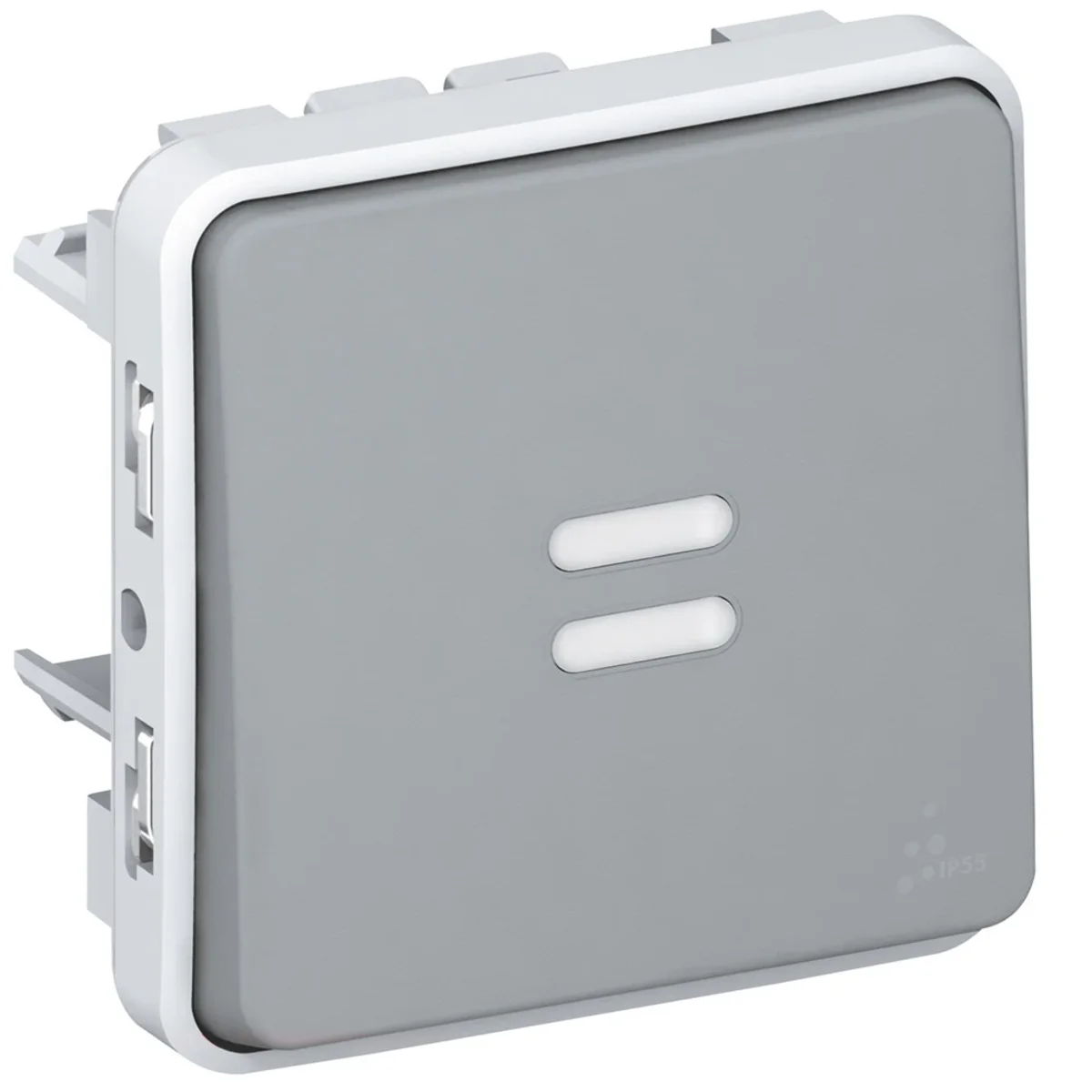

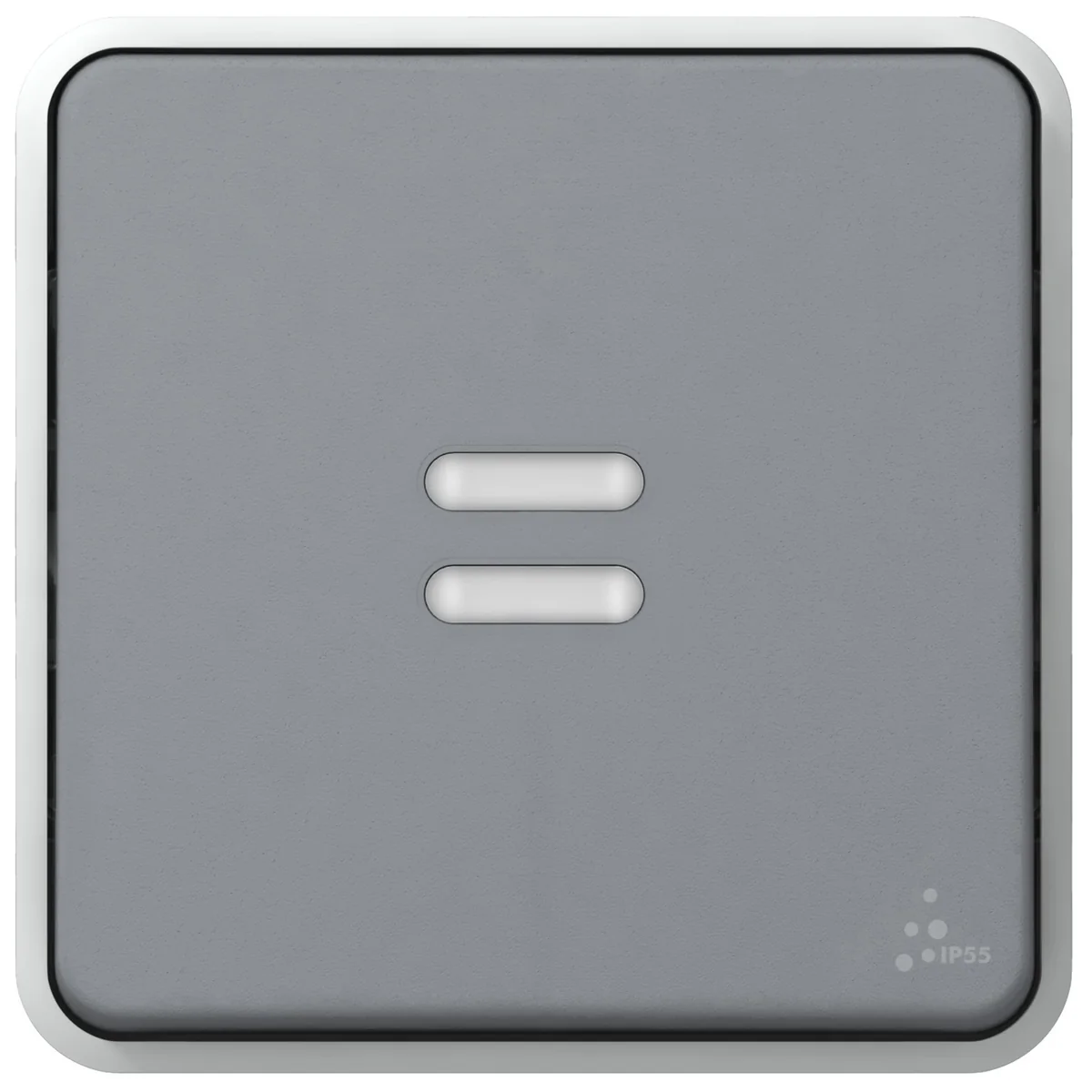

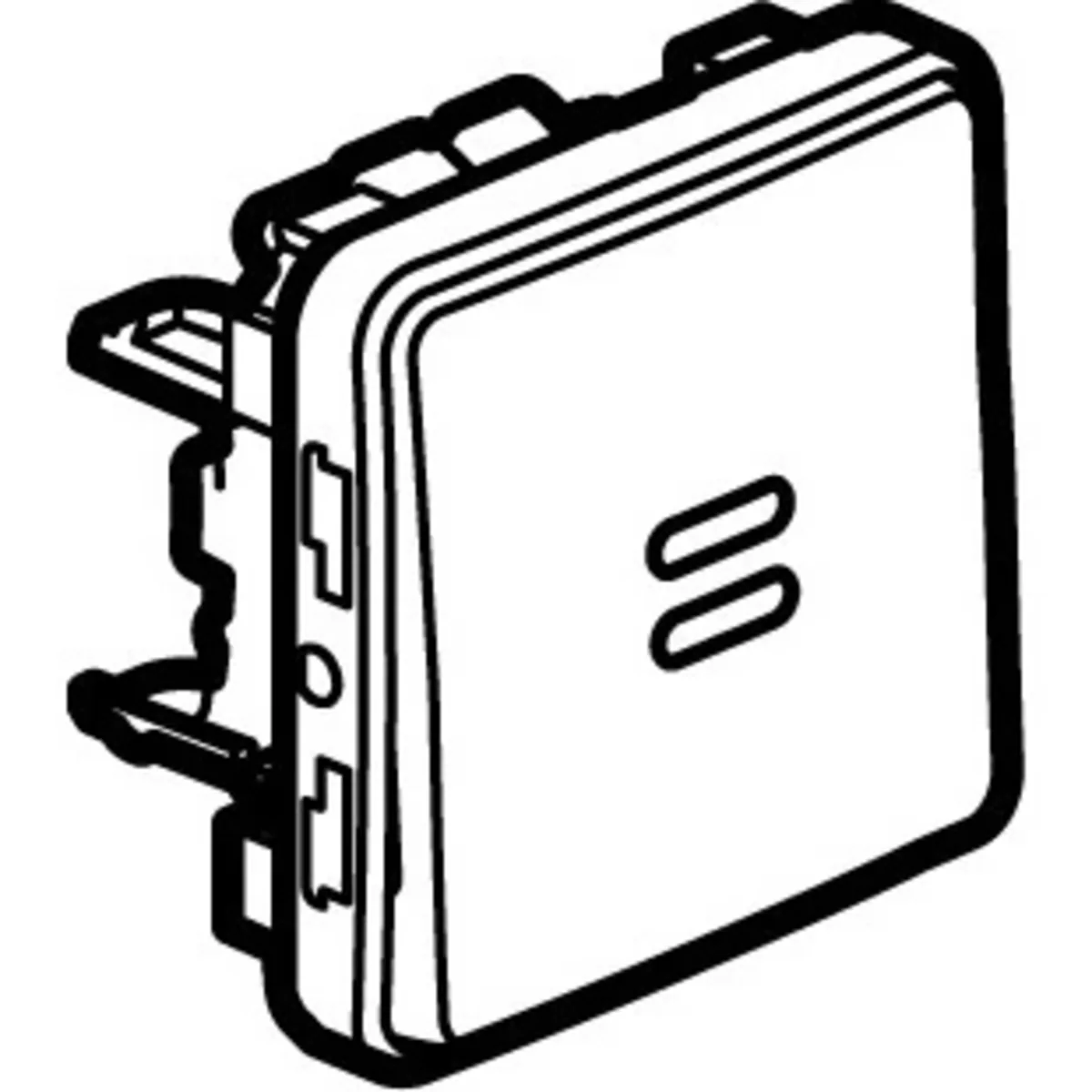

Single-pole push-button mechanism with gray backlight 069542

Indice locale:
MMZ010LEGR
Numero di catalogo:
069542
Codice EAN:
3245060695422
Single-pole push-button mechanism with gray backlight
Single-pole push-button mechanism with gray backlight
Single-pole push-button mechanism with gray backlight
Single-pole push-button mechanism with gray backlight
Single-pole push-button mechanism with gray backlight
Single-pole push-button mechanism with gray backlight

Clicca sulla foto per ingrandire

Produttore: LEGRAND
Depth [mm]: 40
Number of keys: 1
Color: Gray
Vedi la descrizione completa
Prezzo:
75,66 zł
gross / pezzi
(inclusa IVA 23%)
fino a 2 settimane
Su ordinazione
Quantità pezzi
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa
Descrizione del prodotto Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Descrizione del prodotto

Single-pole pushbutton illuminated from the  PLEXO55 series, from the manufacturer Legrand. The product catalog number is 069542. Grey color



FEATURES

  • Mechanism complete with key.
  • To be equipped with a plug-in box or flush-mounted handle.



SERIES DESCRIPTION

Plexo accessories are characterized by a high degree of IP55 protection, which guarantees safe operation even in high humidity and dusty conditions. Using a common mechanism for surface and flush mounting, this series of fittings has many functional elements that make installation exceptionally quick and easy.

Dati tecnici

  • Depth [mm]
    40
  • Color
    Gray
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP55
  • Type
    Recessed Surface-mounted
  • Height [mm]
    64
  • Backlight
    Yes
  • PKWIU
    27.33.11.0
  • Number of keys
    1
  • Shape
    Square
  • Installation
    Recessed Surface-mounted
  • Rated current [A]
    10
  • Family
    PLEXO55
  • Width [mm]
    64
  • Version
    Confident
  • Degree of mechanical protection
    IK07
  • Variant
    Ordinary

Altri dati tecnici

  • Assembly arrangement
    Basic element with central cover plate
  • Method of operation
    Rocker
  • Number of contacts as normally open contact
    0
  • Contactless type
    No
  • Number of modules (module system)
    2
  • Nominal voltage
    250 V
  • With lighting
    Yes
  • Feedback-signal contact
    No
  • Mounting method
    Other
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Colour
    Grey
  • Transparent
    No
  • Imprint
    None
  • Impact strength
    IK07
  • Device height
    64 mm
  • Min. depth of built-in installation box
    40 mm
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No
  • Model
    Single push button
  • Number of contacts as normally closed contact
    1
  • Number of contacts as change-over contact
    0
  • Number of rockers
    1
  • Number of poles
    1
  • Rated current
    10 A
  • With signal lamp
    Yes
  • Connection type
    Push-in clamp
  • Type of fastening
    Other
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Matt
  • RAL-number (similar)
    7046
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP55
  • Device width
    64 mm
  • Device depth
    40 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No

Dettagli del produttore

  • Produttore
    Legrand Polska Sp. z o.o.
  • Indirizzo
    57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
  • Email
    info@legrand.com.pl

Imballaggio sfuso

Una specie di pacchetto Pudełko Karton
Quantità 10 pezzi 100 pezzi
Peso (kg) 0,673 7,030
Volume (m3) 0,003 0,031
Larghezza (m) 0,140 0,274
Lunghezza (m) 0,052 0,301
Profondità (m) 0,356 0,370
