el12 Electrical equipment Fasteners Buttons
el12 Electrical equipment Fasteners Surface-mounted connectors

Single-pole push-button, gray colour 782384

local index:
MNZ008LEGR
Catalog number:
782384
EAN code:
3245067823842

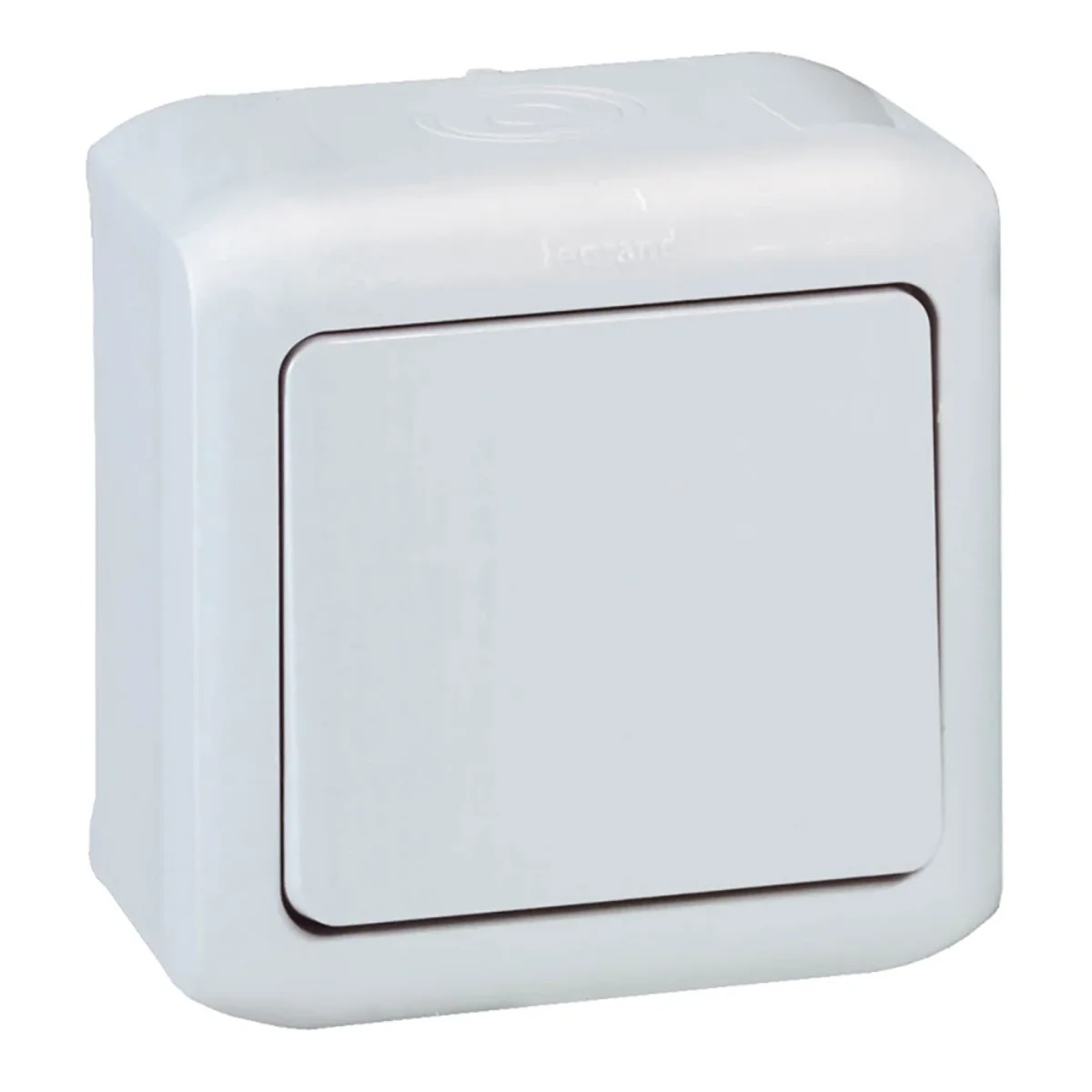

Single-pole push-button, gray colour
Single-pole push-button, gray colour

Click on the photo to enlarge

Manufacturer: LEGRAND
Depth [mm]: 51
Number of keys: 1
Color: Gray
See full description
Price:
28,43 zł
gross / pcs.
(including VAT 23%)
up to 2 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Surface-mounted single-pole switch from the Forix series, from the manufacturer Legrand. The product catalog number is 782384 .

  • Backlight possible with ref. 7823 98.
  • Complete mechanism equipped with screw clamps.

Technical data

  • Depth [mm]
    51
  • Color
    Gray
  • Material
    Plastic
  • Rated current [A]
    6
  • Family
    FORIX
  • Width [mm]
    70
  • Version
    Confident
  • Degree of mechanical protection
    IK07
  • Backlight
    Yes
  • Variant
    Ordinary
  • Exact material
    ABS
  • Number of keys
    1
  • Shape
    Square
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP44
  • Type
    Surface-mounted
  • Height [mm]
    70
  • Surface finish
    Shiny
  • Terminal type
    Threaded
  • For the frame system
    NO
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element with complete housing
  • Method of operation
    Rocker
  • Number of contacts as normally open contact
    1
  • Contactless type
    No
  • Number of modules (module system)
    2
  • Nominal voltage
    250 V
  • With lighting
    Yes
  • Feedback-signal contact
    No
  • Mounting method
    Surface mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface protection
    Untreated
  • Colour
    Grey
  • Transparent
    No
  • Imprint
    Other
  • Impact strength
    IK07
  • Device height
    70 mm
  • Min. depth of built-in installation box
    40 mm
  • Compatible with Google Assistant
    No
  • IFTTT support available
    No
  • Model
    Single push button
  • Number of contacts as normally closed contact
    0
  • Number of contacts as change-over contact
    0
  • Number of rockers
    1
  • Number of poles
    1
  • Rated current
    6 A
  • With signal lamp
    Yes
  • Connection type
    Screwed terminal
  • Type of fastening
    Screw mounting
  • Material quality
    Thermoplastic
  • Anti-bacterial treatment
    No
  • Surface finishing
    Glossy
  • RAL-number (similar)
    7035
  • Label space/information surface
    No
  • Suitable for degree of protection (IP)
    IP44
  • Device width
    70 mm
  • Device depth
    51 mm
  • Compatible with Apple HomeKit
    No
  • Compatible with Amazon Alexa
    No

Manufacturer details

  • Manufacturer
    Legrand Polska Sp. z o.o.
  • Address
    57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
  • E-mail
    info@legrand.com.pl

Bulk packaging

A kind of package Karton Paleta
Quantity 10 pcs. 320 pcs.
Weight (kg) 1,043 33,376
Volume (m3) 0,005 0,360
Width (m) 0,146 1,200
Length (m) 0,085 0,300
Depth (m) 0,400 1,000
