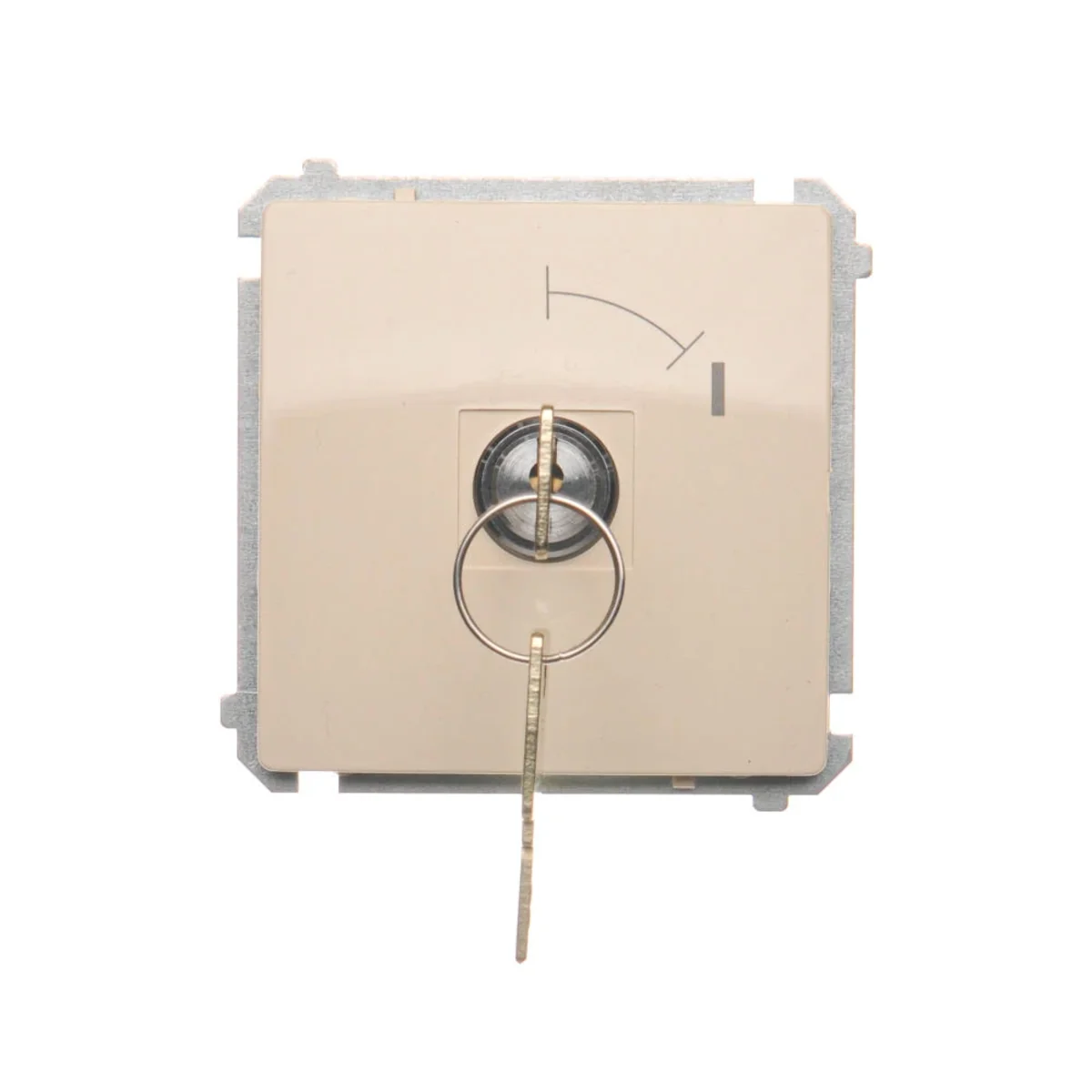

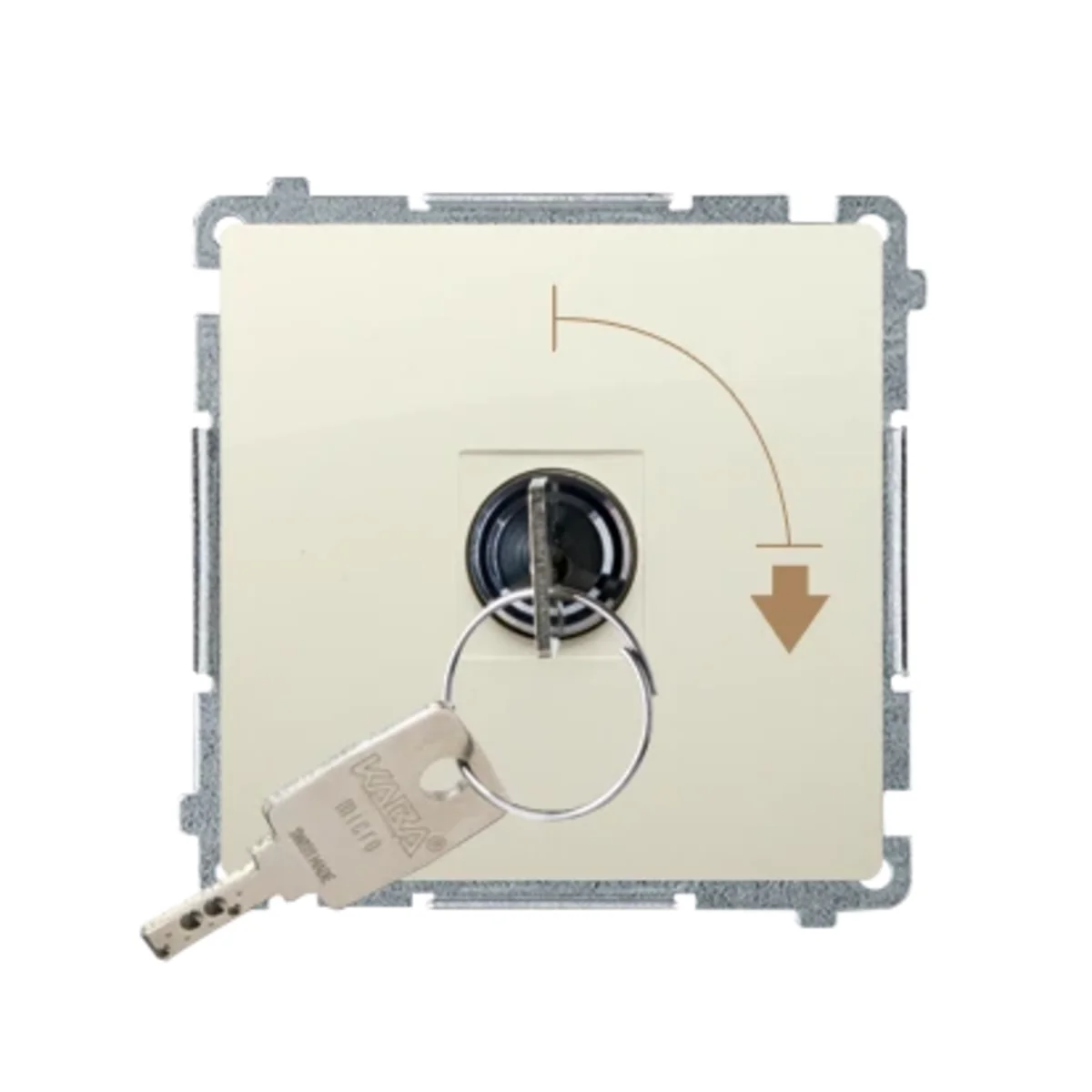

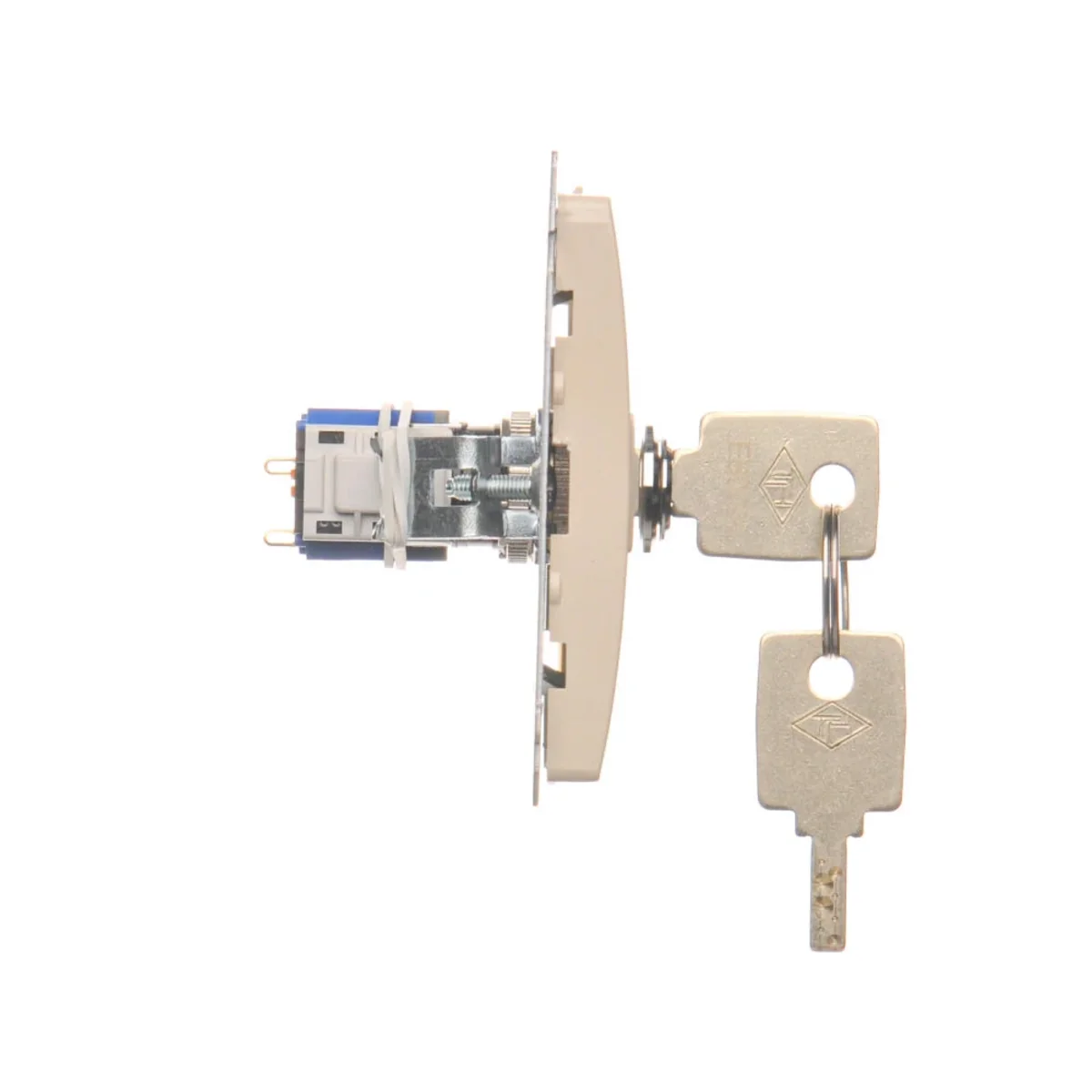

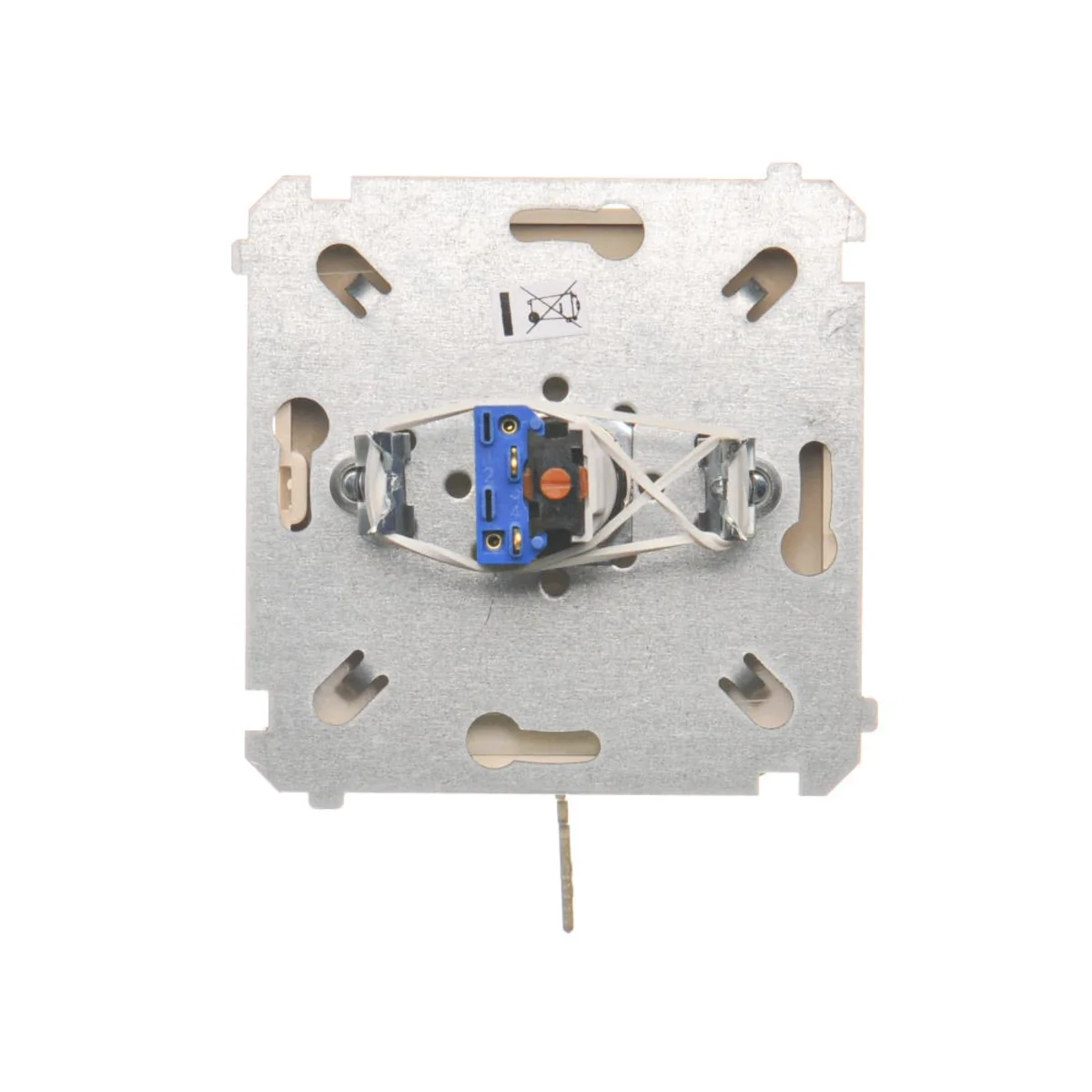

Single-pole momentary switch with key, 2 positions, beige BMP1K.01/12

local index:
MMZ111KONT
Catalog No:
BMP1K.01/12
EAN code:
5902787557690
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 47
Number of keys: key
Price:
93,10 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Momentary key switch (push button) from the Simon Basic series, from the manufacturer Contact Simon. Product catalog number it's BMP1K.01/12. Beige color.



FEATURES

  • 2 position &ldquo ;0-I”.
  • For soldering.
  • The key can only be removed in the 0 position.
  • 2 pieces of keyóincluded with the product.< /li>



SERIES DESCRIPTION

Functionality and classic look are the hallmarks of the Simon Basic series, which will in every space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Technical data

  • Halogen free
    Yes
  • Number of keys
    key
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    Shiny
  • Mounting depth [mm]
    31
  • For the frame system
    Yes
  • Connection type
    For soldering
  • Depth [mm]
    47
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    5
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Version
    Confident
  • Surface protection
    Natural
  • Backlight
    NO
  • Variant
    Ordinary
  • Exact material
    PC
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Off switch 1-pole
  • Assembly arrangement
    Basic element with central cover plate
  • Material
    Plastic
  • Surface protection
    Untreated
  • Colour
    Beige
  • Nominal voltage
    250 V
  • Method of operation
    Key
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Suitable for degree of protection (IP)
    IP20

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,093 0,093 1,032
Width (m) 0,075 0,085 0,190
Length (m) 0,075 0,055 0,290
Depth (m) 0,047 0,115 0,100
