Single pole bell push button, satin colour 067032

Lokaler Index:

MPZ001LEGR

Katalognummer:

067032

EAN-Code:

3245060670320

Single pole bell push button, satin colour

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: LEGRAND

Number of keys: 1

Shape: Square

Material: Plastic

Siehe vollständige Beschreibung

zł

gross / stk. (inklusive MwSt 23%)

Dostępne bis zu 2 Wochen

Auf Bestellung

Wählen Sie Ihren Großhändler

Wählen Sie

Menge stk. (mehrere: 1 )

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

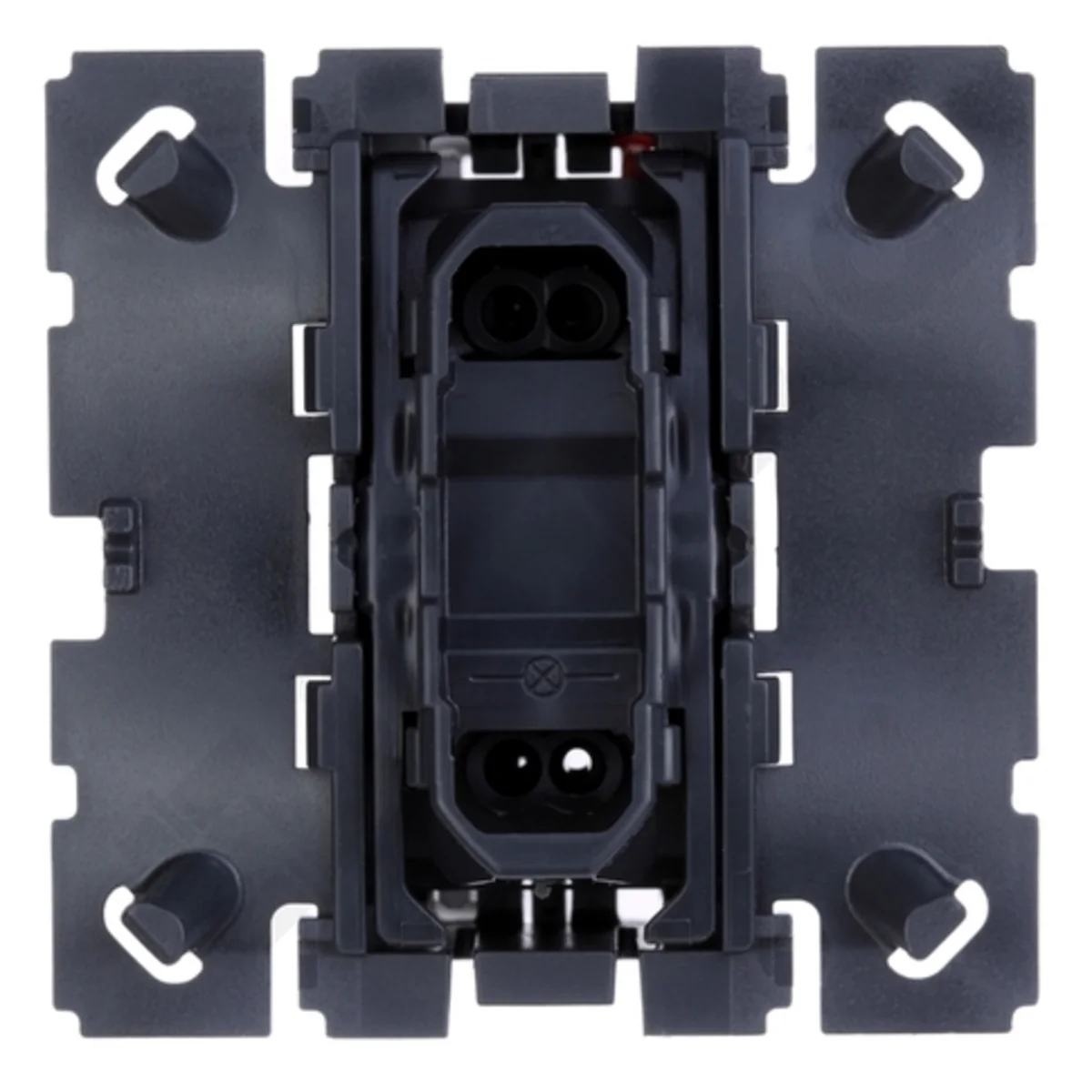

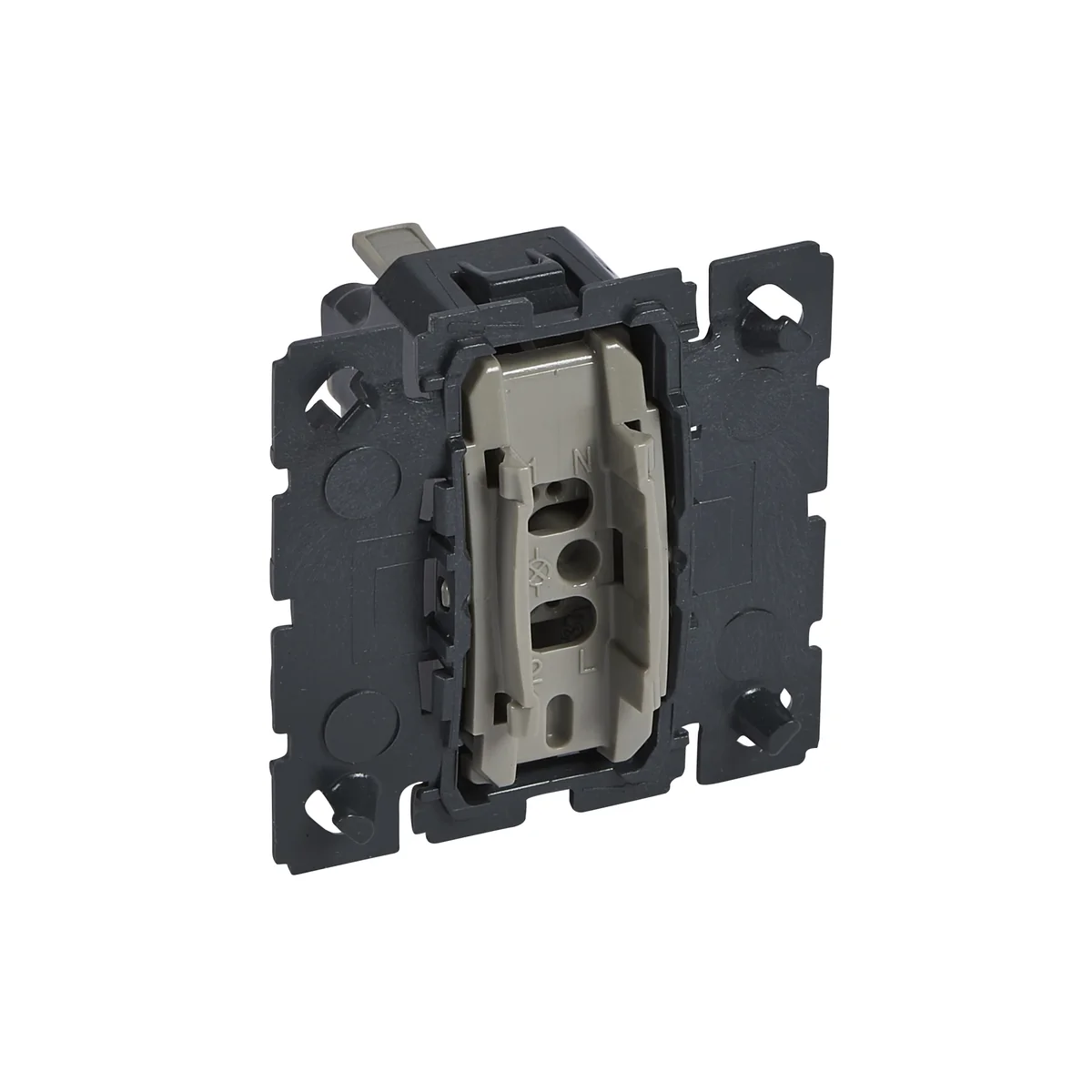

Push-button mechanism with NO contactfrom the Celiane series, from the Legrand manufacturer. The product part number is 067032.

To be equipped with a mounting bracket, key, frame.

SERIES DESCRIPTION

Celiane is a series of modern electrical installation accessories, created by a universal combination of circle and rectangle shapes. The button mechanism characterizes the features of this unique series.

Technische Daten

Number of keys

1
Material

Plastic
Rated voltage [V]

230
Type

Short
Level of security

IP20
Version

Confident
Terminal type

Threadless
For the frame system

Yes

Shape

Square
Installation

Flush-mounted
Rated current [A]

6
Family

CELIANE
Type

The linkage mechanism
Backlight

NO
Variant

Bell
PKWIU

27.33.11.0

Weitere technische Daten

Assembly arrangement

Basic element
Method of operation

Rocker
Number of contacts as normally open contact

0
Contactless type

No
Number of modules (module system)

2
Nominal voltage

250 V
With lighting

No
With signal lamp

No
Connection type

Push-in clamp
Type of fastening

Other
Material quality

Thermoplastic
Anti-bacterial treatment

No
Surface finishing

Matt
RAL-number (similar)

7016
Label space/information surface

No
Suitable for degree of protection (IP)

IP20
Device width

45.1 mm
Device depth

31.2 mm
Compatible with Apple HomeKit

No
Compatible with Amazon Alexa

No

Model

Single push button
Number of contacts as normally closed contact

0
Number of contacts as change-over contact

1
Number of rockers

1
Number of poles

2
Rated current

6 A
With light source

No
Feedback-signal contact

No
Mounting method

Module frame
Material

Plastic
Halogen free

Yes
Surface protection

Lacquered
Colour

Grey
Transparent

No
Imprint

None
Impact strength

IK04
Device height

45.1 mm
Min. depth of built-in installation box

40 mm
Compatible with Google Assistant

No
IFTTT support available

No

Hersteller-Details

Hersteller

Legrand Polska Sp. z o.o.
Adresse

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
E-Mail

info@legrand.com.pl

Großpackungen

Eine Art Paket	Pudełko	Karton
Menge	10 stk.	120 stk.
Gewicht (kg)	0,176	2,311
Volumen (m3)	0,001	0,015
Breite (m)	0,102	0,208
Länge (m)	0,035	0,257
Tiefe (m)	0,238	0,276
