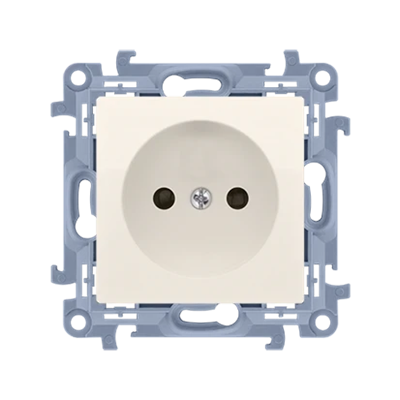

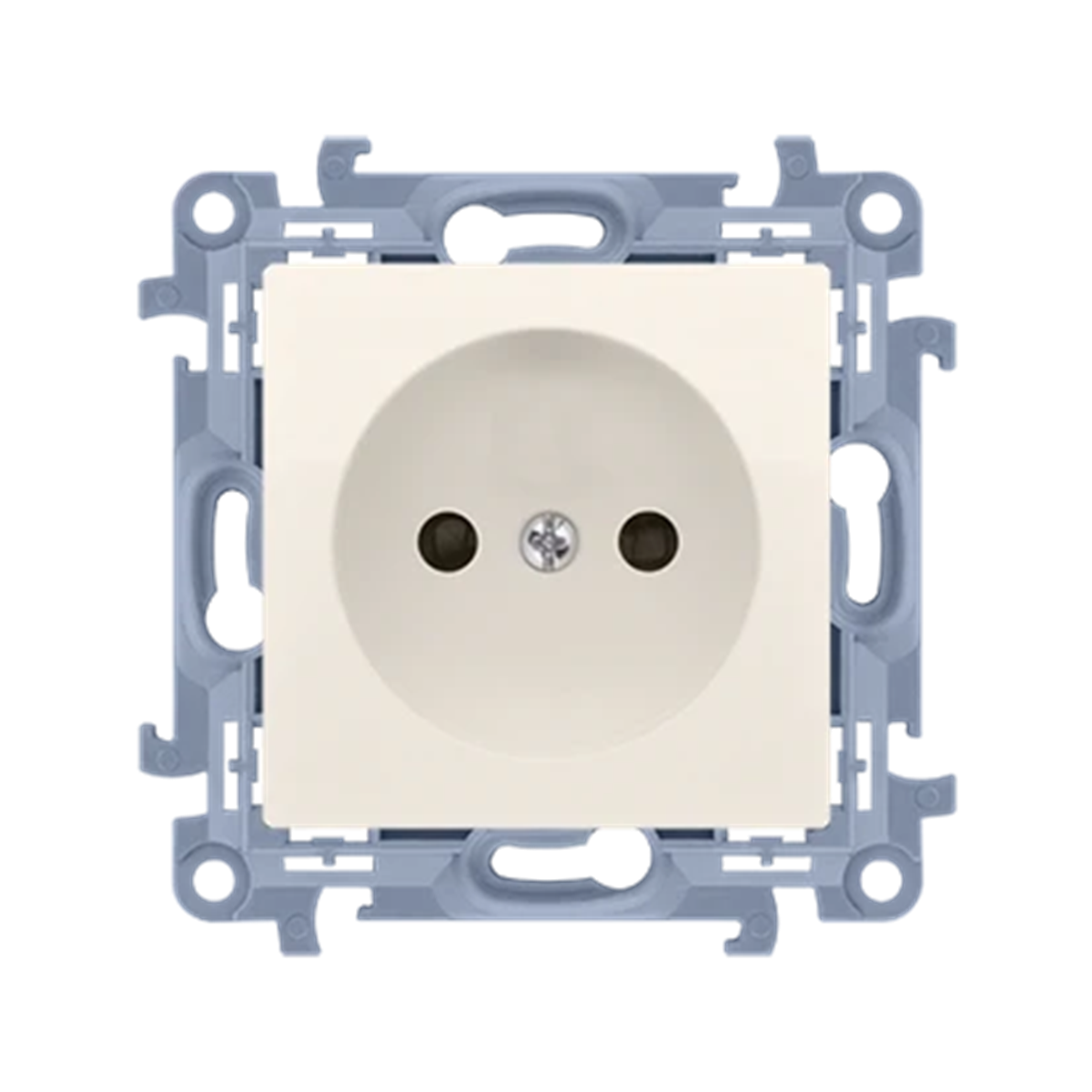

Single plug socket without grounding (module) 16A 230V cream CG1.01/41

local index:
MEE254KONT
Catalog No:
CG1.01/41
EAN code:
5902787842116
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 37.5
Number of sockets: 1
Price:
2,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Plug series Simon 10, from the manufacturer Contact Simon. The product part number is CG1.01/41.



FEATURES

  • Single.
  • Ungrounded.
  • Screw terminals.
  • Color cream.< /li>
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • flush mounting.
  • Dimensions: 77 x 77 mm (height x width).
  • Material < strong>PC.



SERIES DESCRIPTION

Simon 10 is an economical modular series for investments where different colors are not required. A full cross-section of the range of switches and sockets will allow you to comprehensively equip each apartment or office. The distinguishing element of this series is a non-conductive bridge made of high-quality plastic ensuring durability and flexibility as well as safety during assembly work.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    77
  • Surface finish
    Shiny
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0
  • Depth [mm]
    37.5
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    Simon 10
  • Width [mm]
    77
  • Ground
    Lack
  • Surface protection
    Natural
  • Accurate color
    Creamy
  • Mounting depth [mm]
    26.5
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    PC

Other technical data

  • Number of units
    1
  • Colour
    Kremowy
  • Material
    Plastic
  • Surface protection
    Untreated
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
  • Connection type
    Screwed terminal
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Glossy
  • Frequency
    50 ... 60 Hz

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,048 0,048 0,569
Width (m) 0,077 0,110 0,190
Length (m) 0,077 0,043 0,230
Depth (m) 0,038 0,160 0,100
