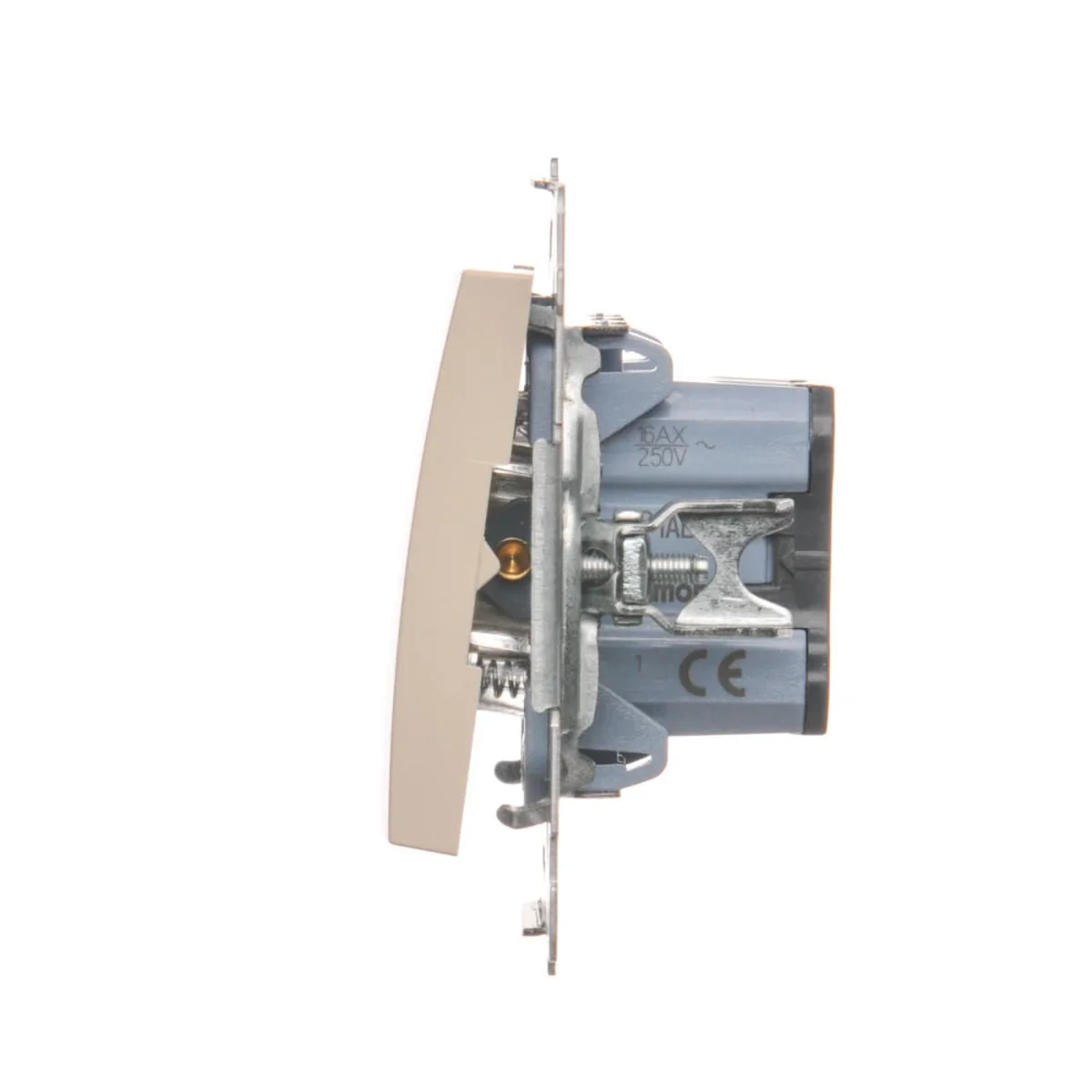

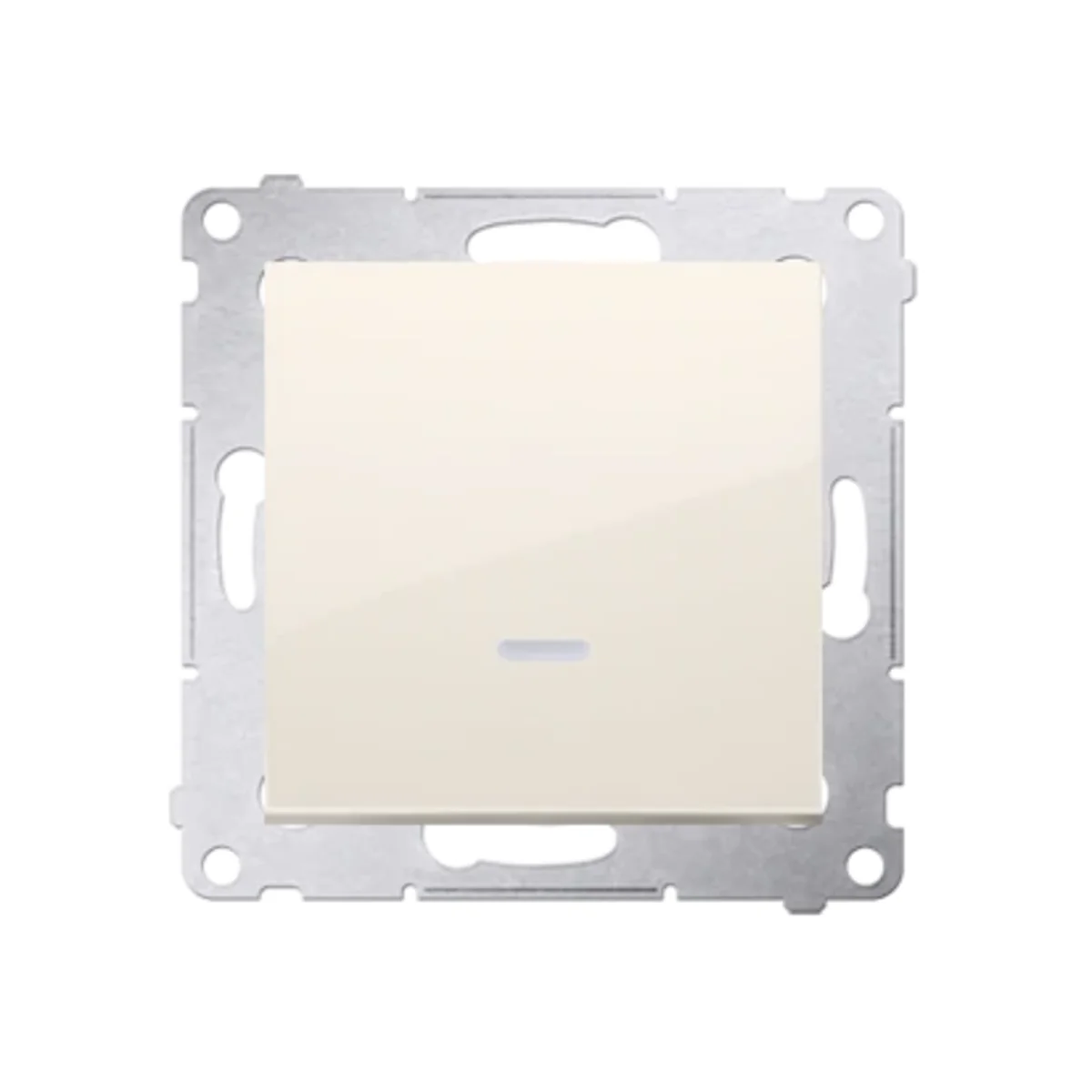

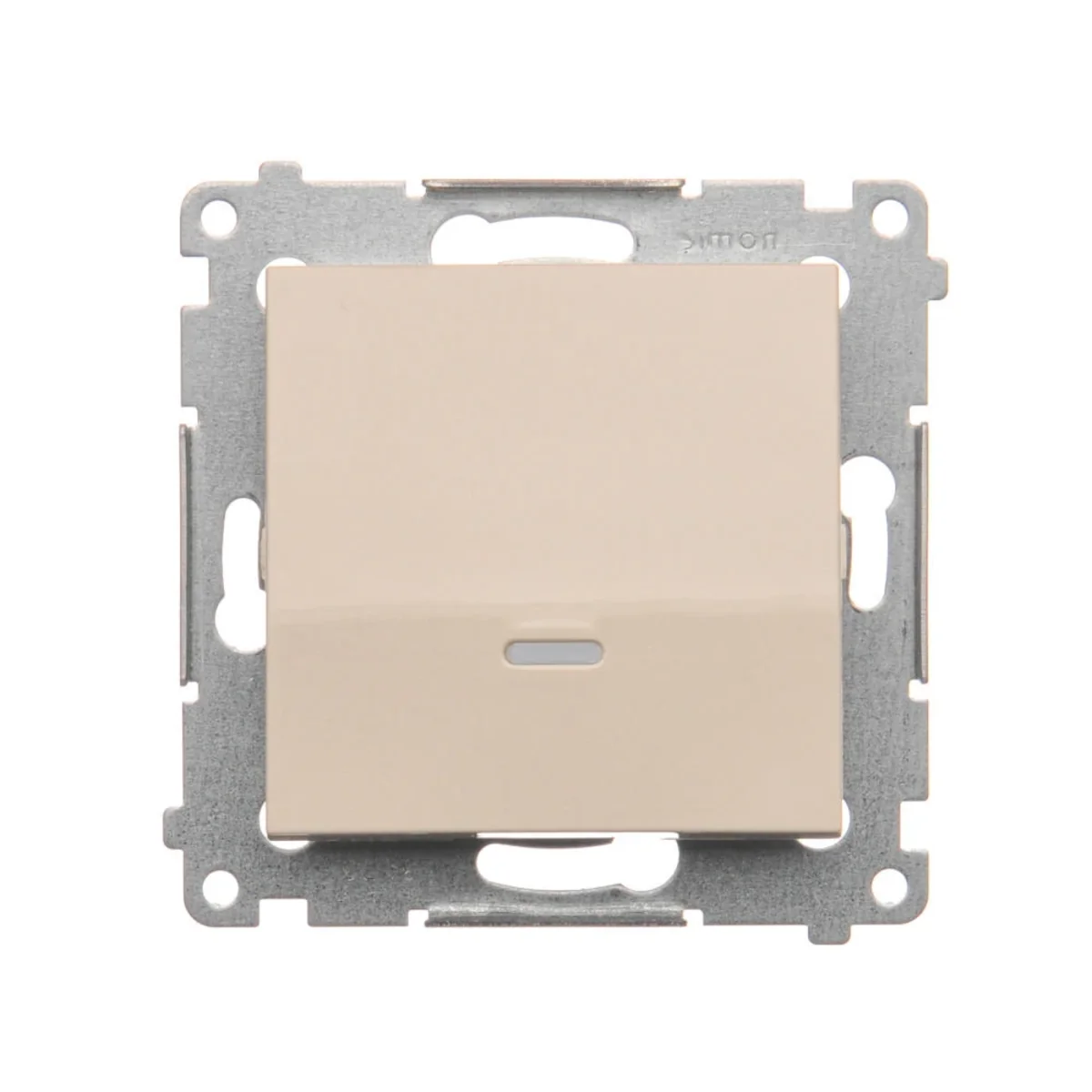

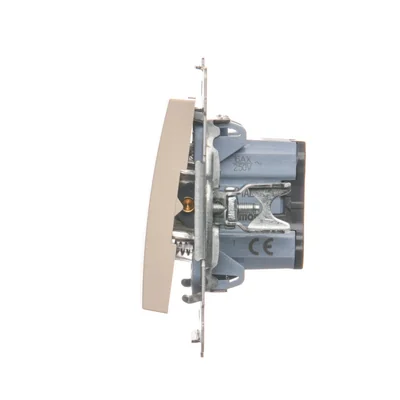

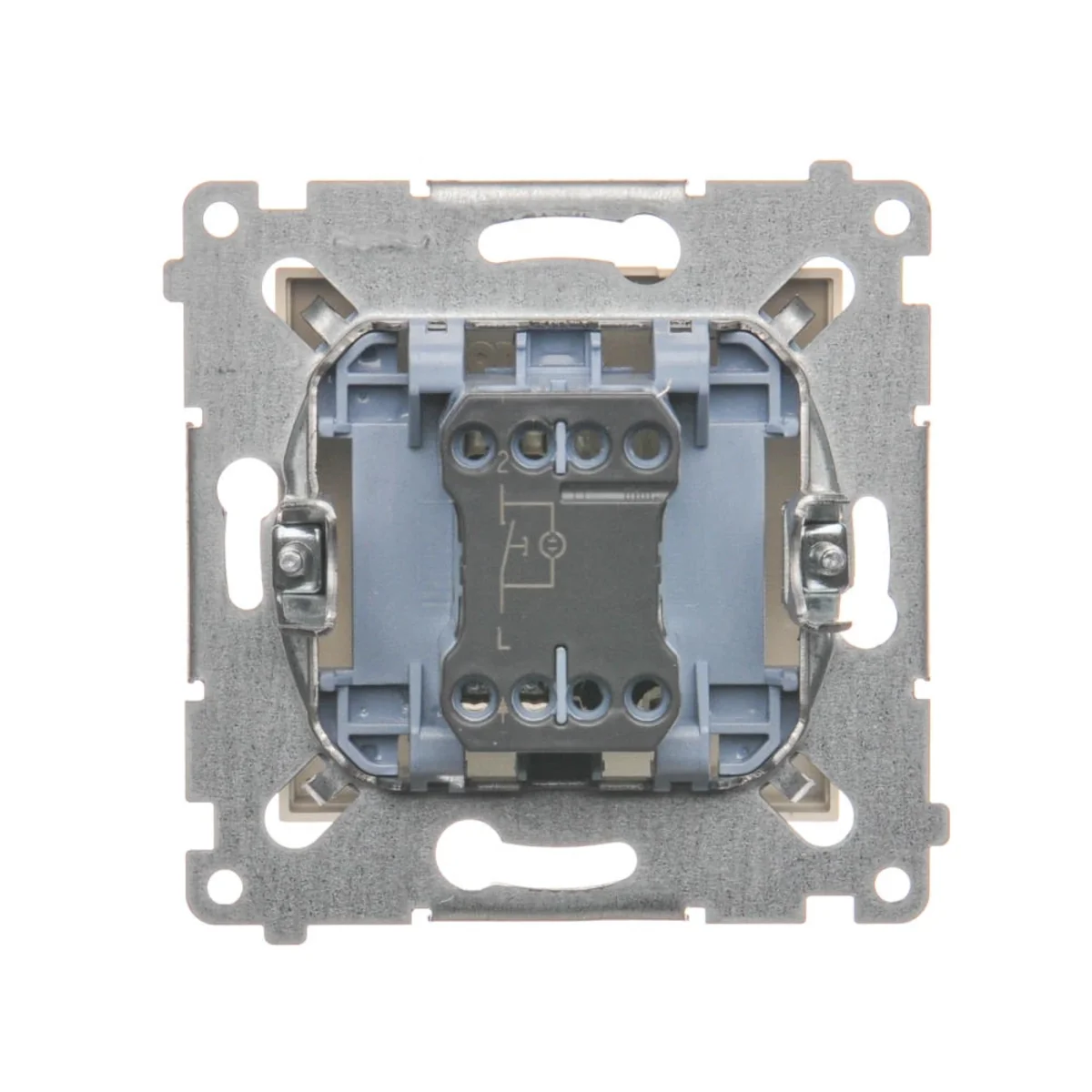

Single NO button with LED backlight without pictogram (module) 16A 250V cream screw terminals DP1AL.01/41

Name: Single NO button with LED backlight without pictogram (module) 16A 250V cream screw terminals
Brand: KONTAKT-SIMON
SKU: MMZ196KONT
Price: 10.28 PLN

local index:

MMZ196KONT

Catalog No:

DP1AL.01/41

EAN code:

5902787828899

Single NO button with LED backlight without pictogram (module) 16A 250V cream screw terminals

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of keys: 1

See full description

Price:

10,28 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Single push button with backlight, series Simon 54, from the manufacturer Contact Simon. The product catalog number is DP1AL.01/41. Cream color.

FEATURES

Built-in, blue LED backlight (replaceable).
No pictogram.
To obtain IP44 splash-proof class, use a frame gasket.

SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and easy-to-install mechanisms, distinguishing noble form and rich colors.

Technical data

Halogen free

Yes
Number of keys

1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Short
Level of security

IP20
Type

Flush-mounted
Height [mm]

75
Surface finish

Shiny
Backlight

Yes
Terminal type

Threaded
For the frame system

Yes
Backlight type

Orientation LED
PKWIU

27.33.11.0

Depth [mm]

41
Color

Beige
Material

Plastic
Installation

Flush-mounted
Rated current [A]

16
Family

Simon 54
Width [mm]

75
Version

Confident
Surface protection

Natural
Accurate color

Creamy
Mounting depth [mm]

26
Variant

Ordinary
Exact material

PC
Backlight color

Blue

Other technical data

Assembly arrangement

Basic element with central cover plate
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20

Contacts

1 make contact (NO)
Material

Plastic
Surface protection

Untreated
Colour

Kremowy
Nominal voltage

250 V

Manufacturer details

Manufacturer

Kontakt-Simon S.A.
Address

43-500 Czechowice-Dziedzice Bestwińska 21 Polska
E-mail

info@kontakt-simon.com.pl

Bulk packaging

A kind of package	Paczka	Karton
Quantity	1 pcs.	10 pcs.
Weight (kg)	0,063	0,717
Width (m)	0,110	0,190
Length (m)	0,045	0,230
Depth (m)	0,160	0,100
