Single-module RJ45 socket STP aluminum colour 079473

Index local:

MGI023LEGR

Numéro de catalogue:

079473

Code EAN:

3245060794736

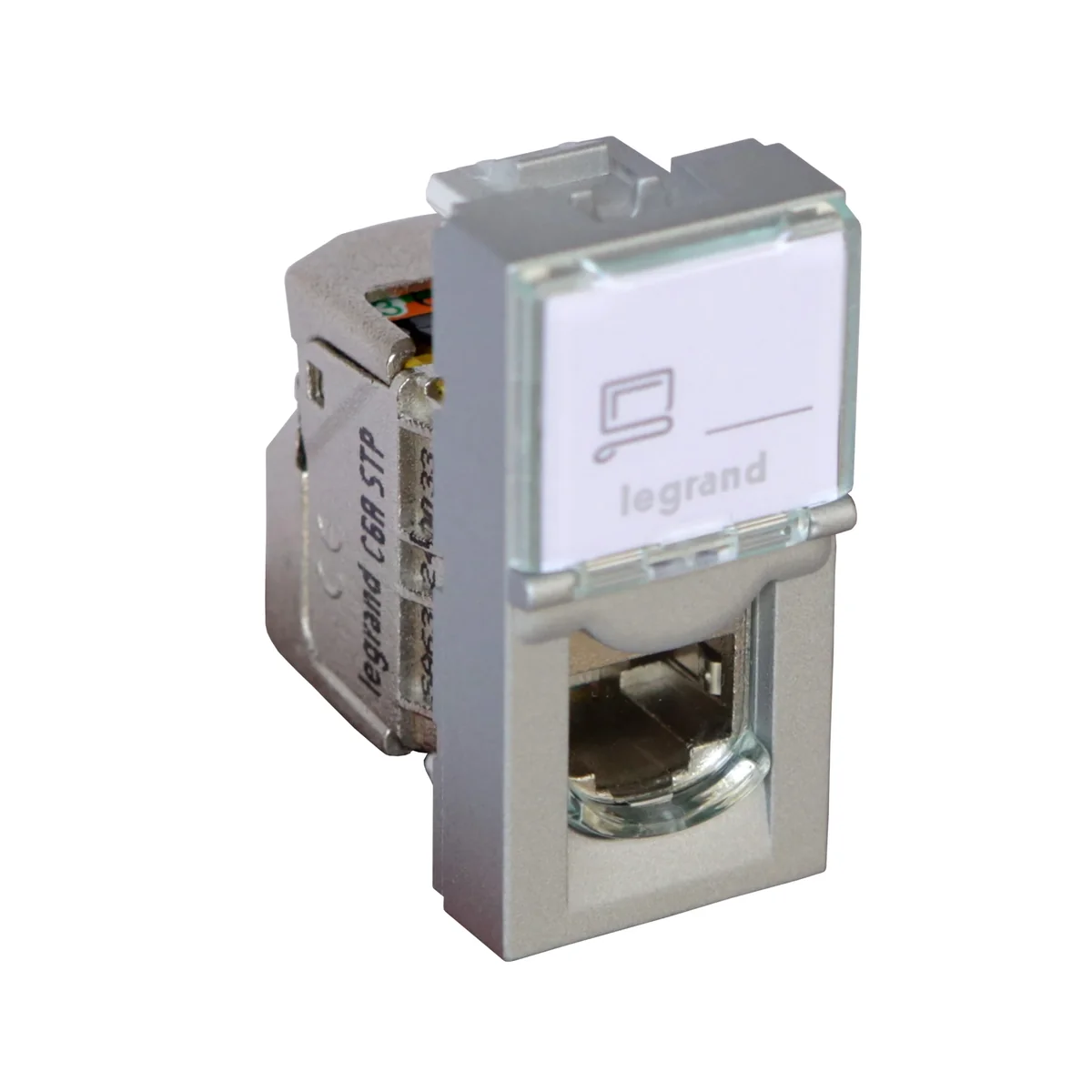

Single-module RJ45 socket STP aluminum colour

Cliquer sur la photo pour l'agrandir

Producteur: LEGRAND

Number of modules: 1

Category: 6a

Color: Silver

Voir la description complète

Prix:

182,18 zł

gross / pcs.

(y compris la TVA 23%)

jusqu'à 2 semaines

Sur commande

Quantité pcs.

(plusieurs:

)

Ajouter à la demande de devis

Ajouter au presse-papiers

Imprimer

Renseignez-vous sur le produit

Description du produit Données techniques Détails du fabricant Emballage en vrac Fichiers à télécharger

Description du produit

Internet socket for Mosaic, from the manufacturer Legrand. The product part number is 079473.< /p>

FEATURES

1 x RJ45.
Category 6a.
STP.
1 module.
Color aluminum.
Mechanism to be equipped with a universal holder and a frame.
360º metal screen.

SERIES DESCRIPTION

The Mosaic program is an ideal solution for users who want to install electrical installation equipment according to their own preferences - on a desk, on the floor, in a wall or in cable trunkings. Internet socket characterize the features of this unique series.

Données techniques

Number of modules

1
Color

Silver
Type

Internet
Level of security

IP20
Type

45x45
Height [mm]

45
Variant

RJ45 (twisted pair)
Number of internet sockets

1

Category

6a
Shape

Rectangular
Family

MOSAIC
Width [mm]

22.5
Version

STP
Accurate color

Aluminum
For the frame system

Yes
PKWIU

27.33.13.0

Autres données techniques

Surface mounting

No
Duct installation

Yes
Type of fastening

Engage (snap)
Type of connector

RJ45 8(8)
Suitable for number of connectors

1
Colour

Aluminium
Connection type

Insulation displacement connector
Separate earthing connection

No
Separate strain relief

No
Outlet direction

Straight
Degree of protection (IP)

IP20
Device width

22.5 mm
Device depth

46.5 mm

Flush-mounted installation

Yes
Floor box/subfloor mounted

Yes
Assembly arrangement

Modular device for domestic switching devices
With buses/couplings

Yes
Category

6A (IEC)
RAL-number

0
Shielded buses

Yes
With label space

Yes
Mounting method shielding connection

Other
With dust cover

Yes
Colour coding

Yes
Device height

45 mm
Number of modules (module system)

1

Détails du fabricant

Producteur

Legrand Polska Sp. z o.o.
Adresse

57-200 Ząbkowice Śląskie Waryńskiego 20 Polska
E-mail

info@legrand.com.pl

Emballage en vrac

Une sorte de paquet	BX	CT	PF
Quantité	10 pcs.	100 pcs.	1000 pcs.
poids (kg)	0,426	4,855	48,550
Volume (m3)	0,003	0,042	0,602
Largeur (m)	0,104	0,398	1,200
Longueur (m)	0,149	0,176	0,502
Profondeur (m)	0,181	0,603	1,000
