Single loudspeaker socket (module) white DGL2.01/11

Name: Single loudspeaker socket (module) white
Brand: KONTAKT-SIMON
SKU: MEG031KONT
Price: 11.43 PLN

local index:

MEG031KONT

Catalog No:

DGL2.01/11

EAN code:

5902787559021

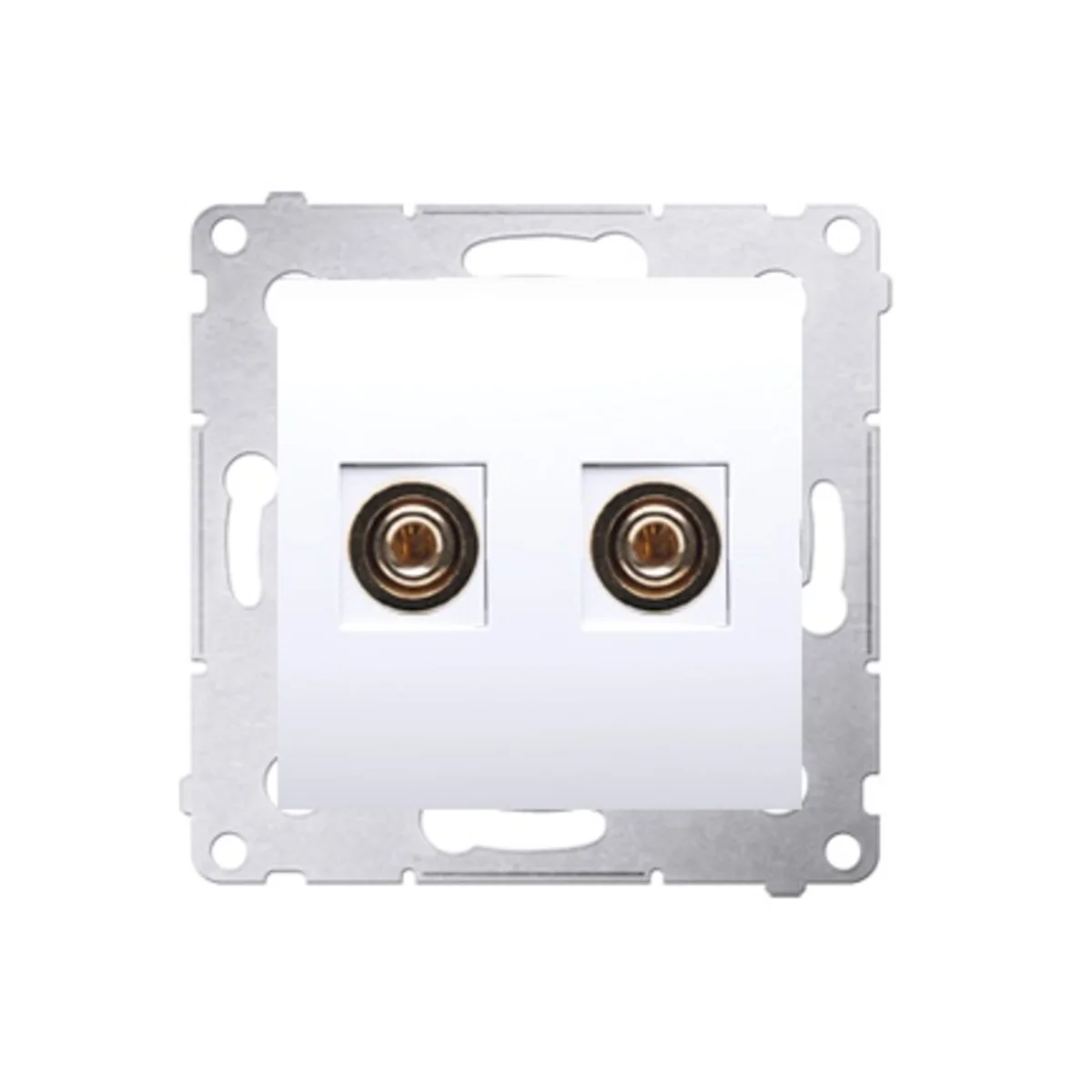

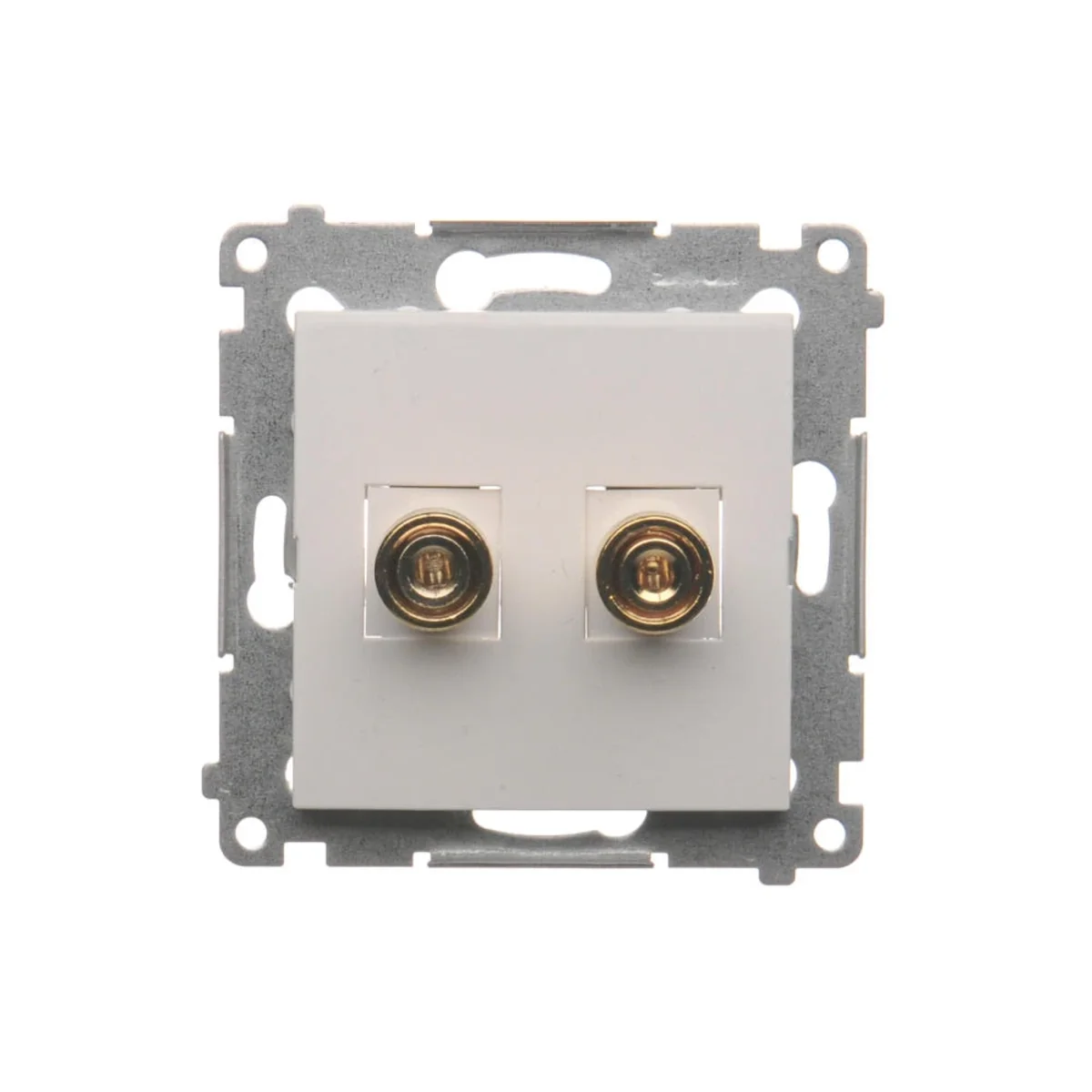

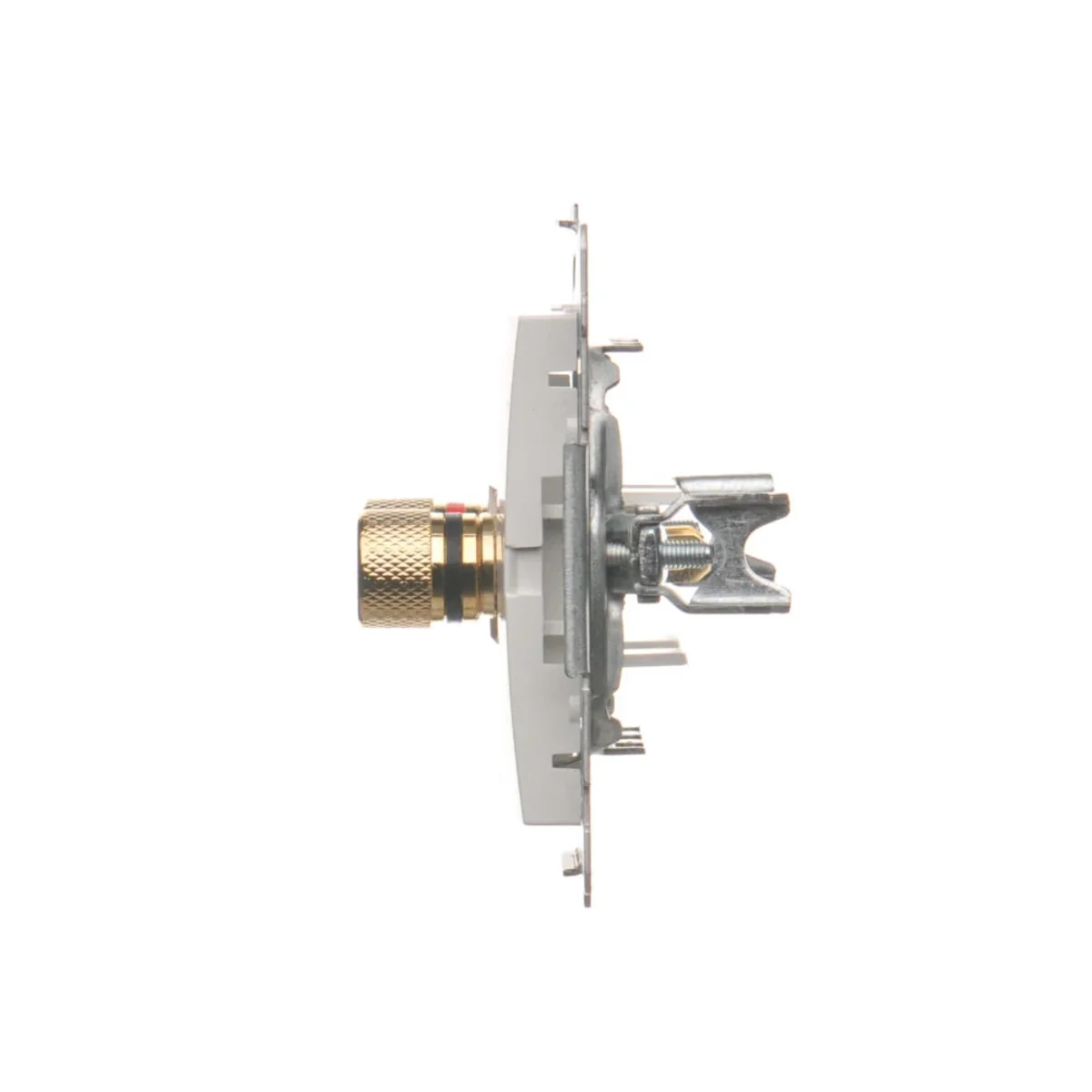

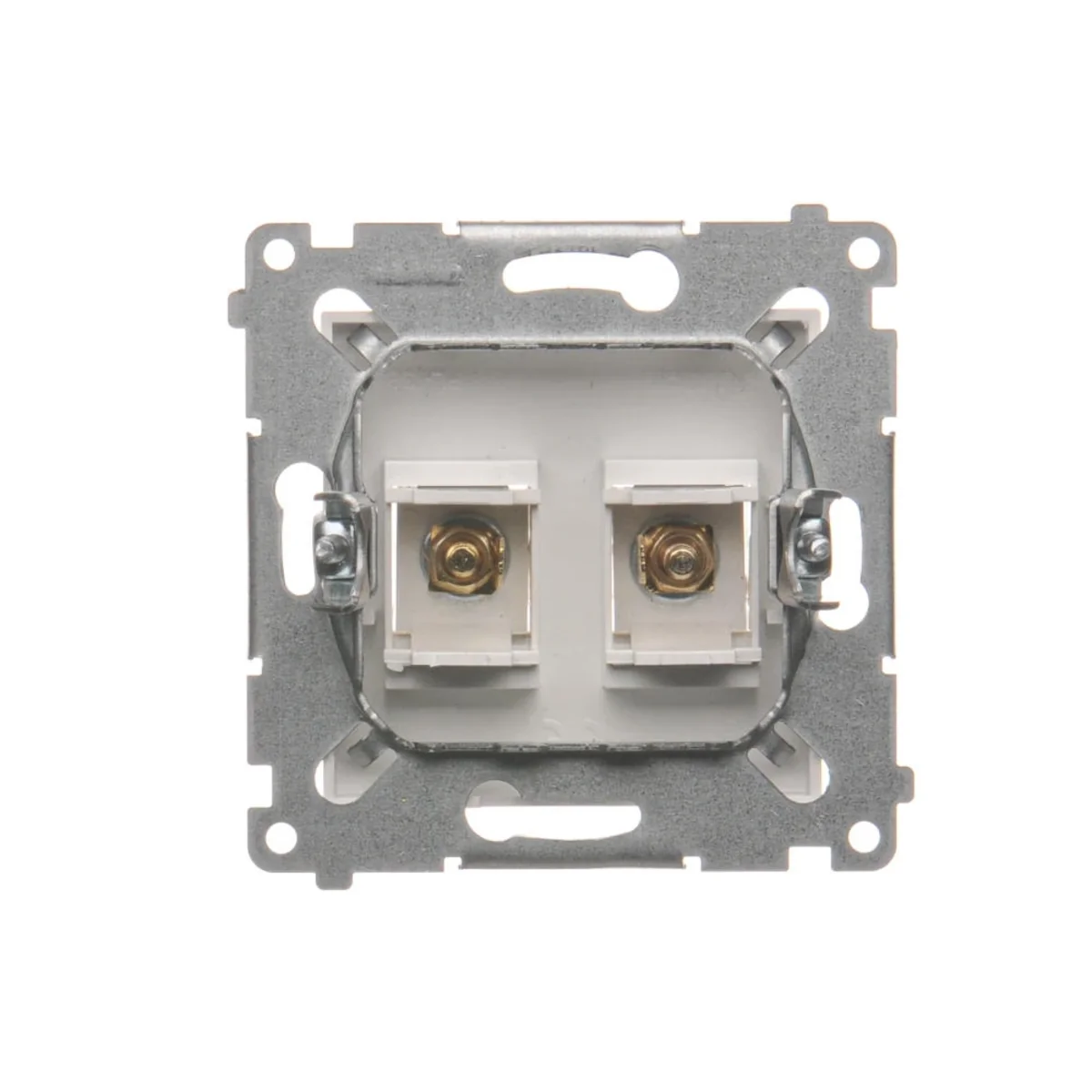

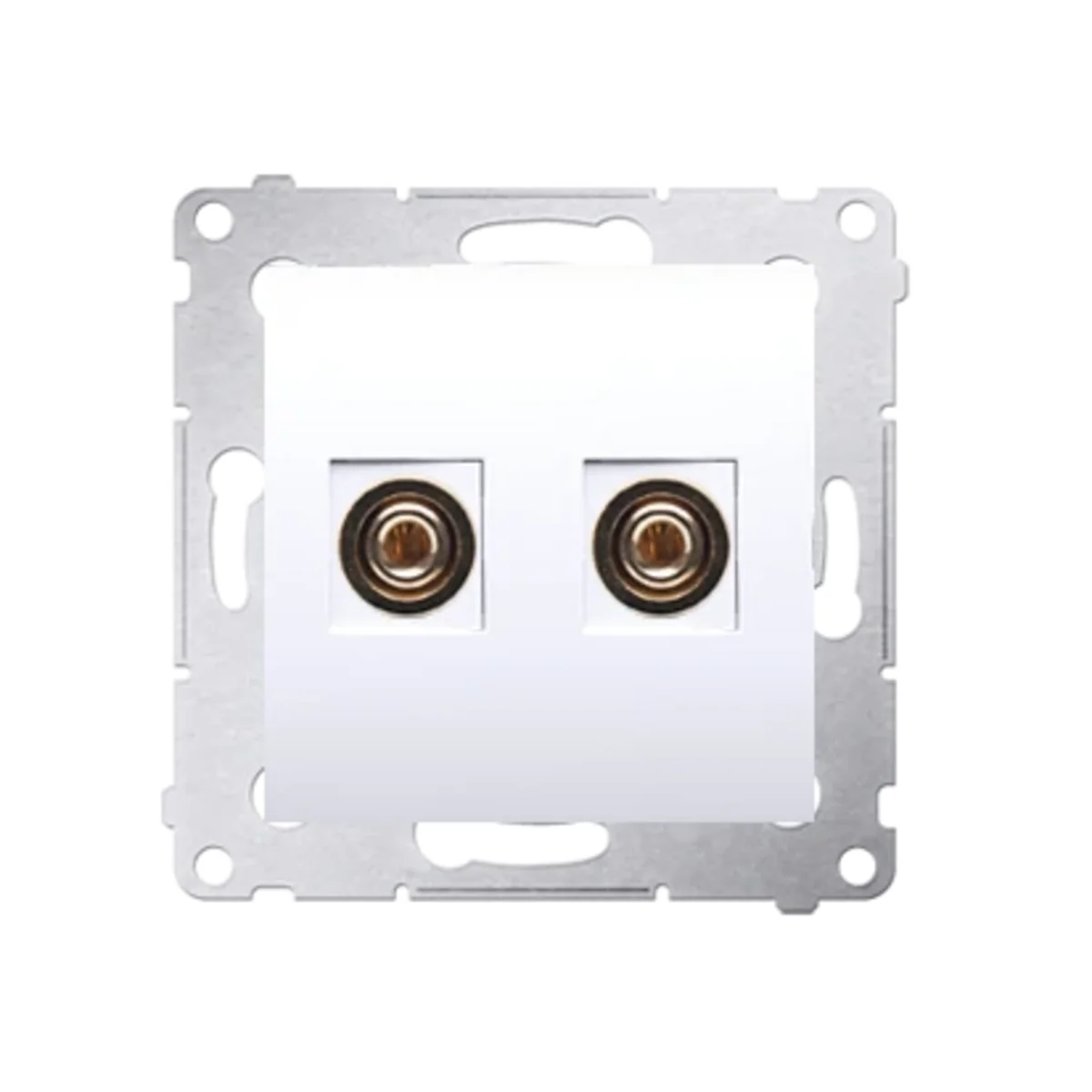

Single loudspeaker socket (module) white

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 47

Number of sockets: 1

See full description

Price:

11,43 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging

Product description

Speaker socket from the Simon 54 series, from the manufacturer Contact Simon. The product catalog number is DGL2.01/11.

FEATURES

For connection 1 speaker cabinet.
Module without frame.
Solderable.
Color white.
flush mounting.
Made of PC.
Cable cross-section for up to 6mm2.

SERIES DESCRIPTION

SIMON 54 is a modern line of electrical installation equipment based on new, reliable and installation-friendly mechanisms, distinguished by a noble form and rich colors. The loudspeaker socket has all the features of this unique series.

Technical data

Halogen free

Yes
Number of sockets

1
Shape

Square
Fixing

claws Screws
Type

speaker
Level of security

IP20
Type

Flush-mounted
Surface protection

Natural
Wire cross-section [mm²]

6
Mounting depth [mm]

22
For the frame system

Yes
PKWIU

27.33.13.0

Depth [mm]

47
Color

White
Material

Plastic
Installation

Flush-mounted
Family

Simon 54
Width [mm]

75
Height [mm]

75
Surface finish

Shiny
Backlight

NO
Variant

For banana plugs
Exact material

PC

Other technical data

Assembly arrangement

Basic element with central cover plate
Imprintable label

Without indication field
Material

Plastic
Surface protection

Untreated
Colour

White

Utilization

Loudspeaker connection
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,067	0,067	0,759
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,053	0,230
Depth (m)	0,047	0,160	0,100
