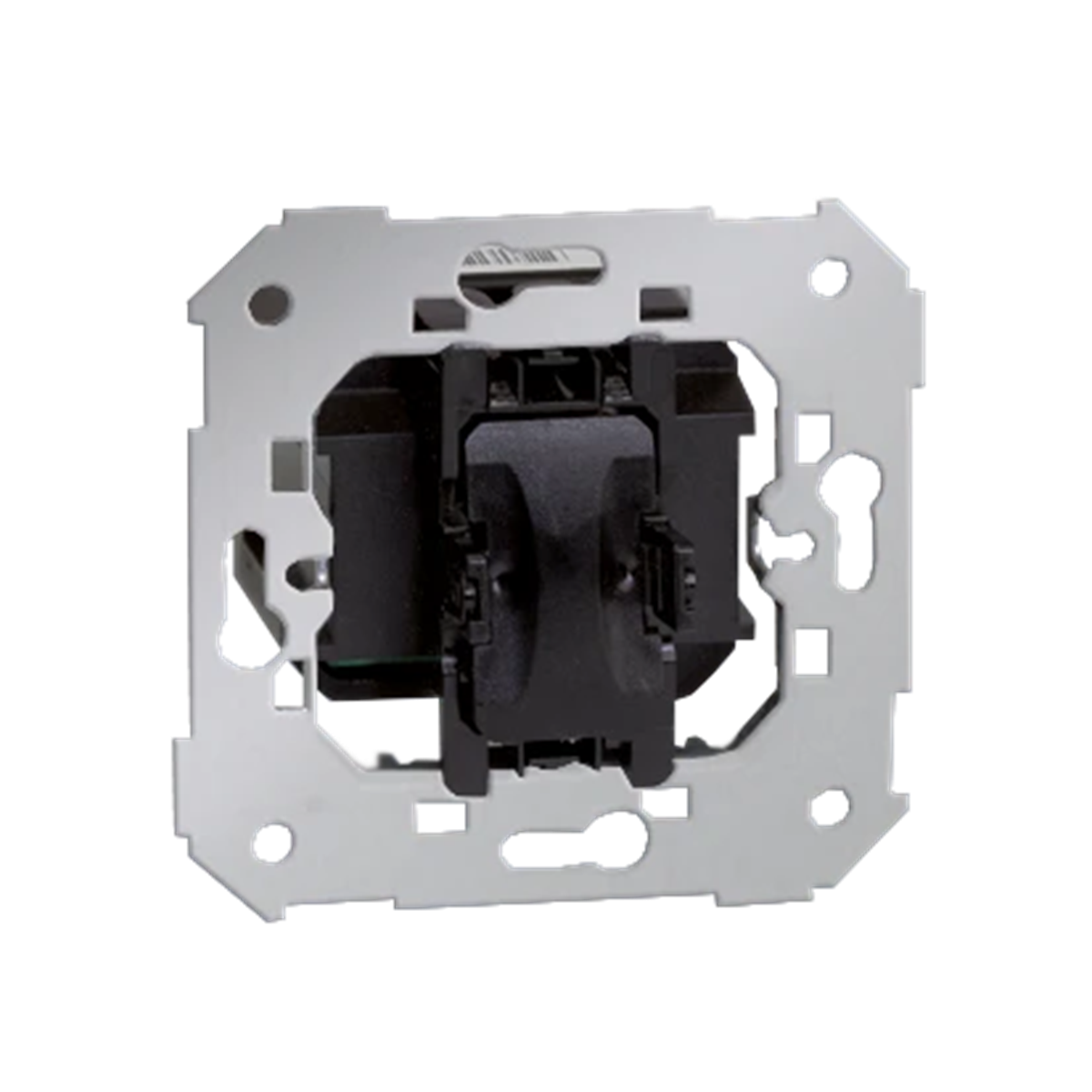

Single-key, three-position shutter switch 75333-39

local index:
MPO002KONT
Catalog No:
75333-39
EAN code:
8421053080917
Manufacturer: KONTAKT-SIMON
Depth [mm]: 32
Number of keys: 1
Shape: Square
Price:
12,94 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

The mechanism of the three-position shutter switch (1-0-2) from the Simon 82 series, from the manufacturer Contact Simon. The product catalog number is 75333-39.

  • Use a frame gasket to obtain IP44 splash-proof class.
  • Quick connectors.
  • Bistable switch.

Technical data

  • Depth [mm]
    32
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Shutter
  • Level of security
    IP20
  • Type
    The linkage mechanism
  • Height [mm]
    75
  • Backlight
    NO
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • Number of keys
    1
  • Material
    Metal
  • Installation
    Flush-mounted
  • Rated current [A]
    2.5
  • Family
    Simon 82
  • Width [mm]
    75
  • Version
    Single
  • Surface protection
    Natural
  • Mounting depth [mm]
    21
  • Variant
    Three-position
  • PKWIU
    27.33.11.0

Other technical data

  • Assembly arrangement
    Basic element
  • Material
    Metal
  • Suitable for degree of protection (IP)
    IP20
  • Mounting method
    Flush-mounted
  • Surface protection
    Untreated
  • Nominal voltage
    250 V

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,052 0,052 -
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,045 0,230
Depth (m) 0,032 0,160 0,100
