Single hotel switch with backlight, 10A, beige BMWH1.02/12

Name: Single hotel switch with backlight, 10A, beige
Brand: KONTAKT-SIMON
SKU: MMH005KONT
Price: 25.61 PLN

local index:

MMH005KONT

Catalog No:

BMWH1.02/12

EAN code:

5902787807030

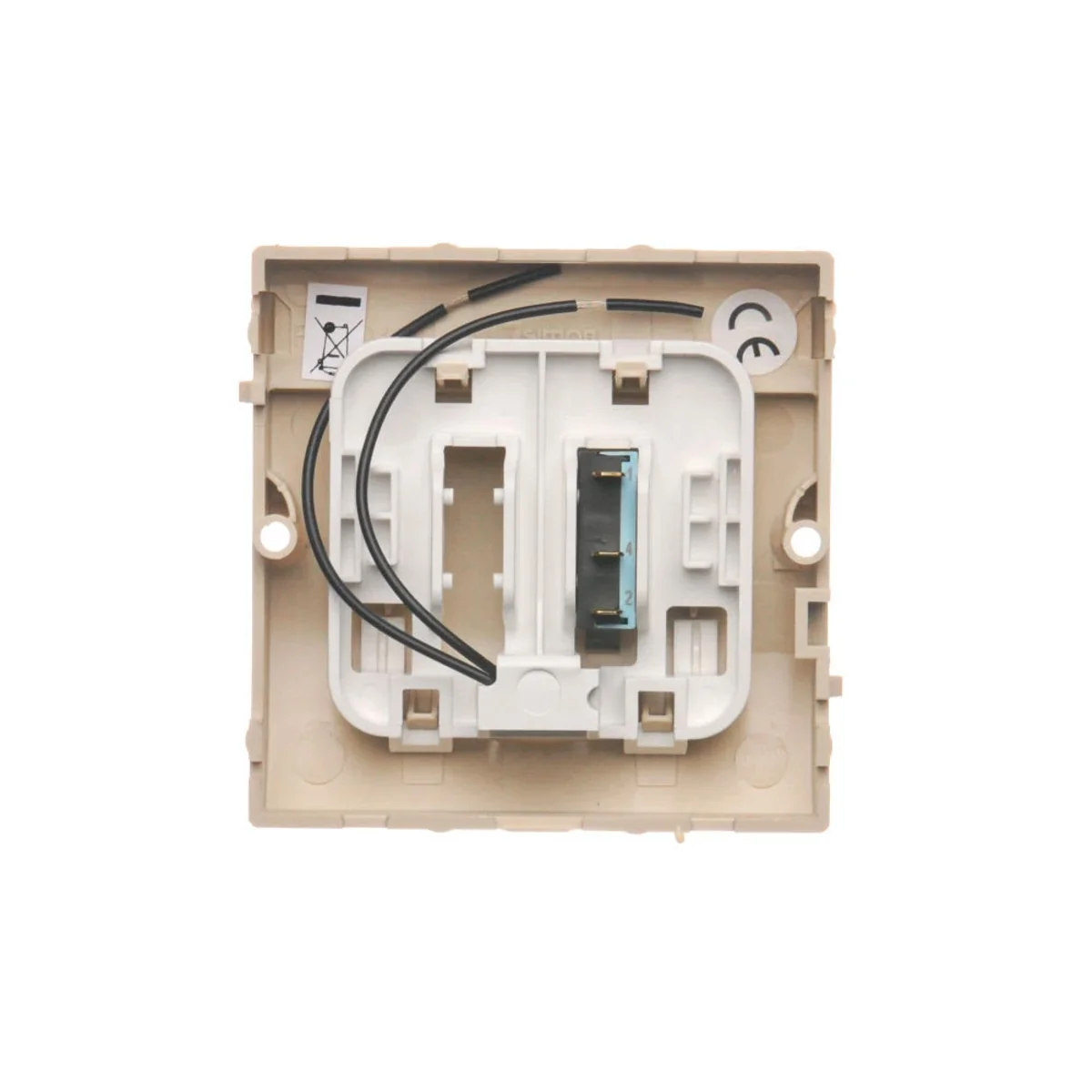

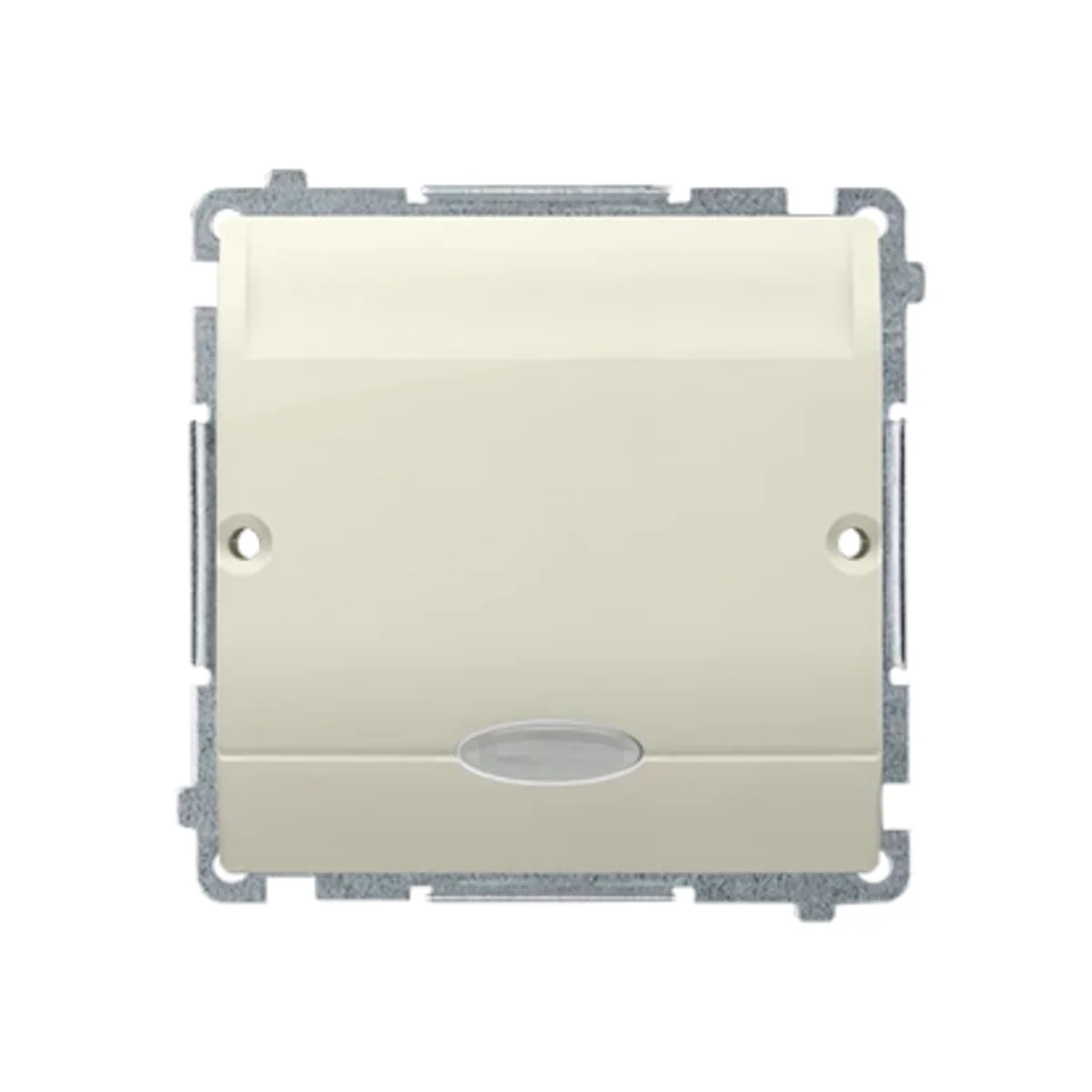

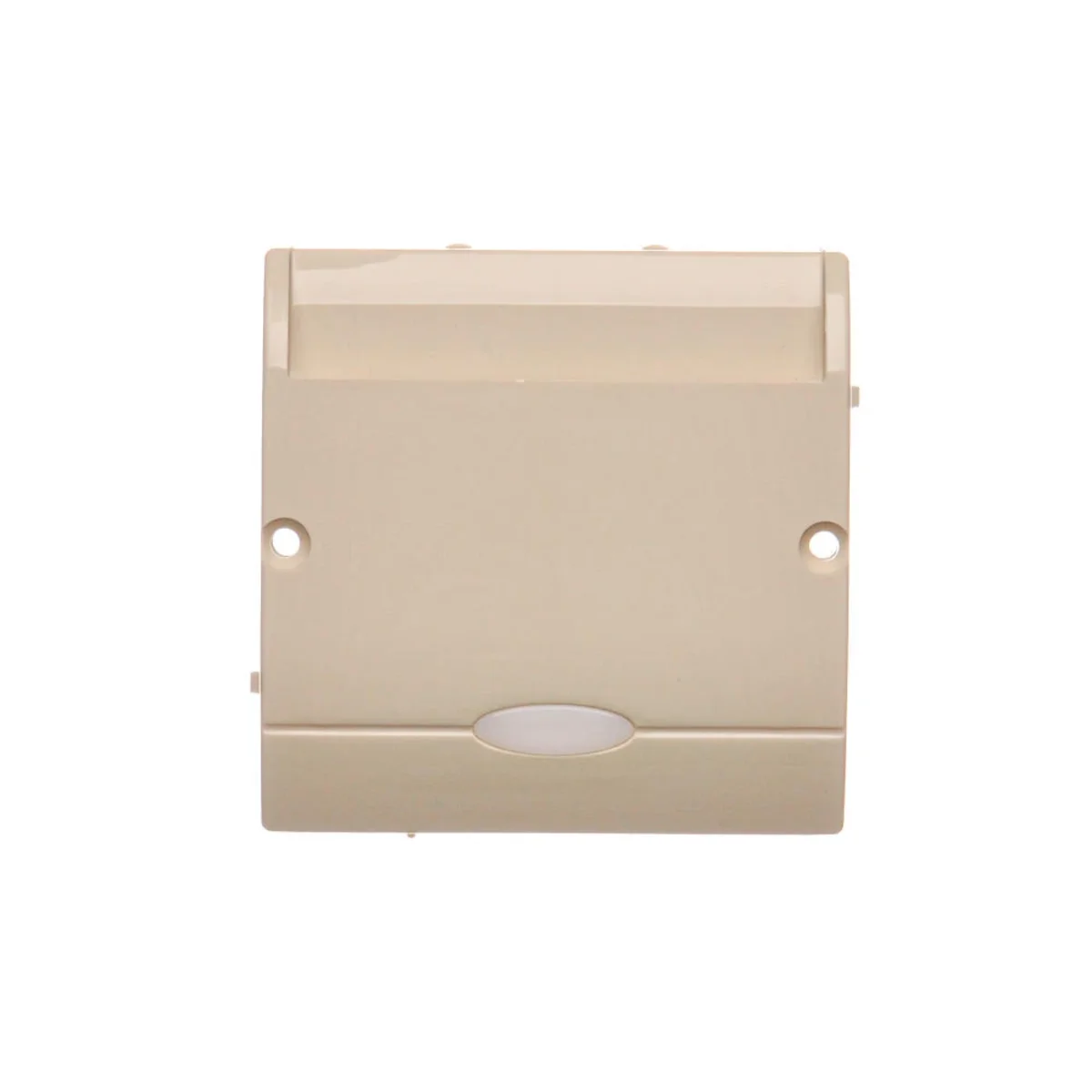

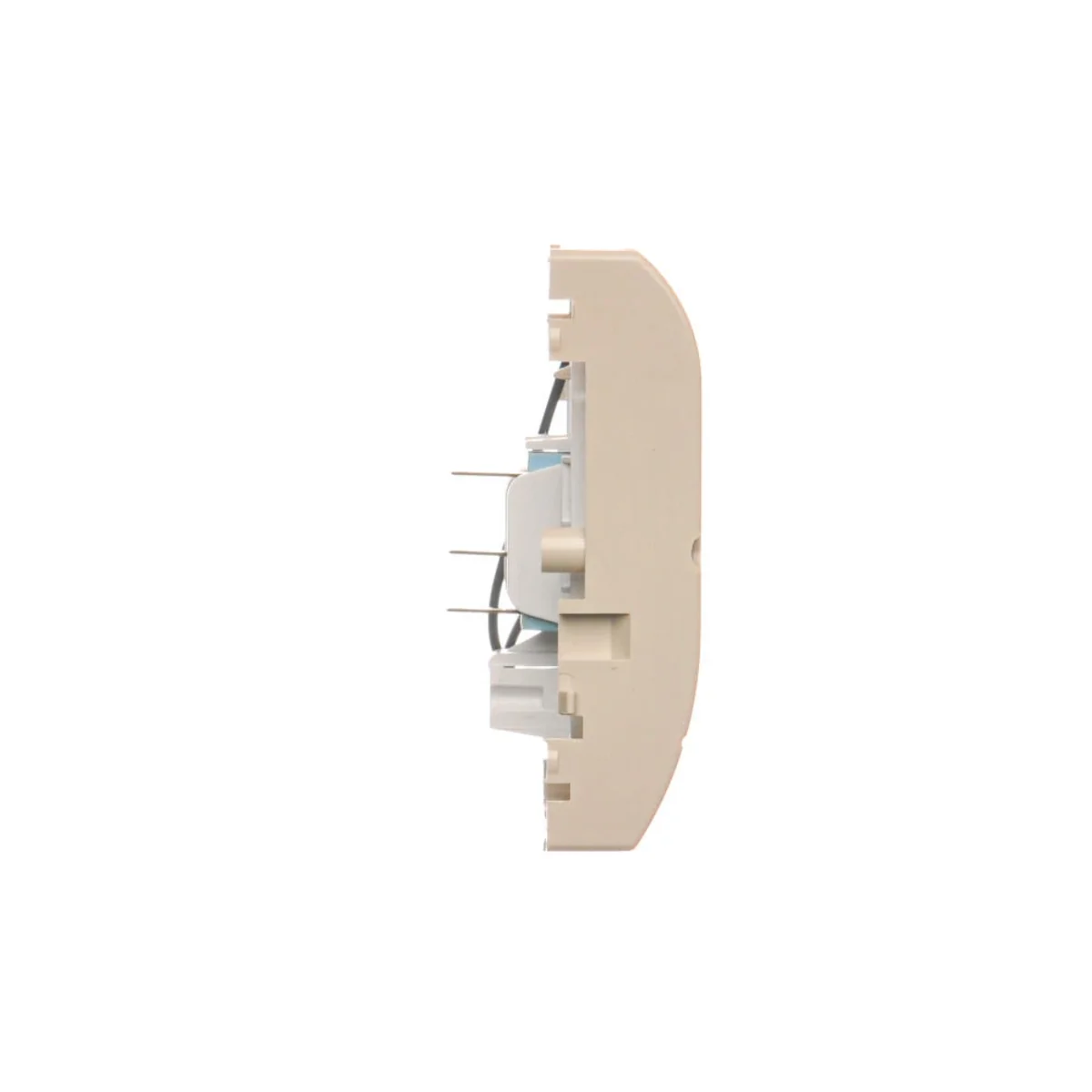

Single hotel switch with backlight, 10A, beige

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: thirty

Number of keys: hotel card

See full description

Price:

25,61 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Hotel switch from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BMWH1.02/12.

FEATURES

With built-in backlight.< /li>
Connection type / Terminal type: plug, other.
Rated current (inductive load): 2 A.
Hotel card operation.

SERIES DESCRIPTION

Simon Basic is a series of electrical accessories, which is based on a classic look and functionality. Hotel connector characterize the features of this unique series.

Technical data

Halogen free

Yes
Number of keys

hotel card
Shape

Square
Fixing

screw
Rated current [A]

10
Family

SIMON BASIC
Width [mm]

80.5
Height [mm]

80.5
Surface finish

Shiny
Mounting depth [mm]

11.5
Exact material

PC
Backlight color

Blue

Depth [mm]

thirty
Color

Beige
Material

Plastic
Rated voltage [V]

230
Type

Hotel
Level of security

IP20
Type

Flush-mounted
Surface protection

Natural
Backlight

Yes
For the frame system

Yes
Backlight type

Orientation Smoldering lamp
PKWIU

27.33.11.0

Other technical data

Wiring system

Off switch 1-pole
Assembly arrangement

Basic element with central cover plate
Material

Plastic
Surface protection

Untreated
Colour

Beige
Nominal voltage

250 V

Method of operation

Hotel card
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Glossy
Suitable for degree of protection (IP)

IP20
Connection type

Other

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,034	0,034	0,428
Width (m)	0,080	0,091	0,190
Length (m)	0,080	0,038	0,230
Depth (m)	0,030	0,135	0,100
