Single end RTV-SAT socket RTV-SAT 2 dB / 3.5 dB (mechanical) 75466-69
local index:
MJA001KONT
Catalog No:
75466-69
EAN code:
8421053060384
Price:
16,47 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

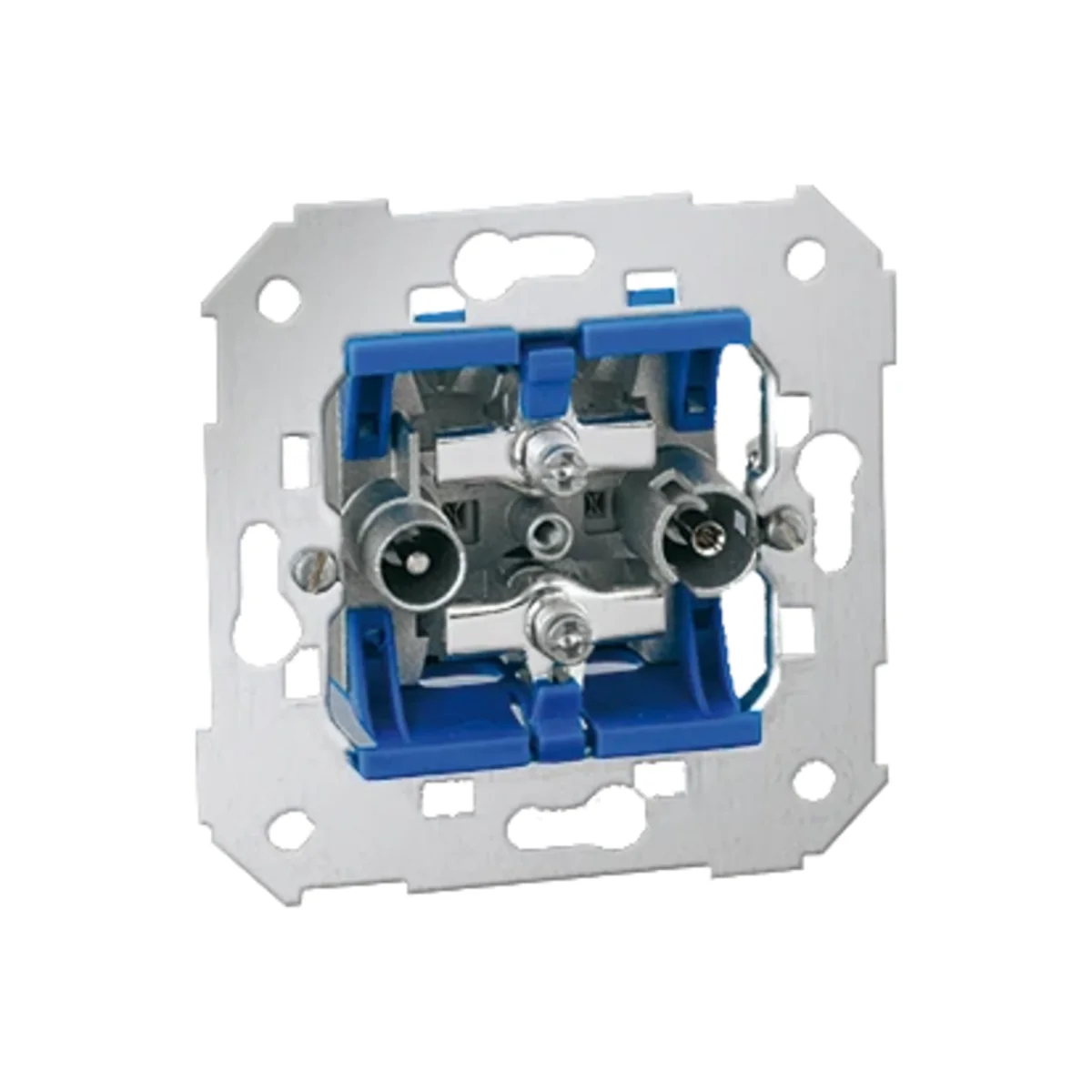

Mechanism of the antenna socket from the Simon 82 series, from the manufacturer Contact Simon. The product catalog number is 75466-69.
FEATURES
- RTV-SAT.
- Final.
Technical data
-
Depth [mm]32
-
ShapeSquare
-
Fixingclaws Screws
-
TypeAntenna
-
Level of securityIP20
-
Attenuation [dB]Connections for 860 MHz: 2 Passthrough for 860 MHz: 3.5 Connection for 2150 MHz: 3.5
-
VersionFinal
-
Surface protectionNatural
-
BacklightNO
-
Terminal typeThreaded
-
F-type inputNO
-
PKWIU27.33.13.0
-
Number of sockets2
-
MaterialMetal
-
InstallationFlush-mounted
-
FamilySimon 82
-
Width [mm]75
-
TypeSocket mechanism
-
Height [mm]75
-
Frequency Range [MHz]5-2400
-
Mounting depth [mm]26
-
VariantRTV sat
-
For the frame systemYes
Other technical data
-
ModelEnd socket
-
Tap loss at 2150 MHz3.5 dB
-
Through loss at 860 MHz3.5 dB
-
Frequency5 ... 2400 MHz
-
Tap loss at 860 MHz2 dB
-
Number of outlets2
-
Suitable for remote power supplyYes
Manufacturer details
-
ManufacturerKONTAKT - SIMON S.A.
-
Address43-500 Czechowice-Dziedzice Bestwińska 21
-
Phone number
-
E-mail
-
Tax identification number6520005366
-
GLN5900009931105
Bulk packaging
| A kind of package | Paczka | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,113 | 0,113 | 1,140 |
| Width (m) | 0,075 | 0,085 | 0,190 |
| Length (m) | 0,075 | 0,050 | 0,290 |
| Depth (m) | 0,032 | 0,085 | 0,085 |
