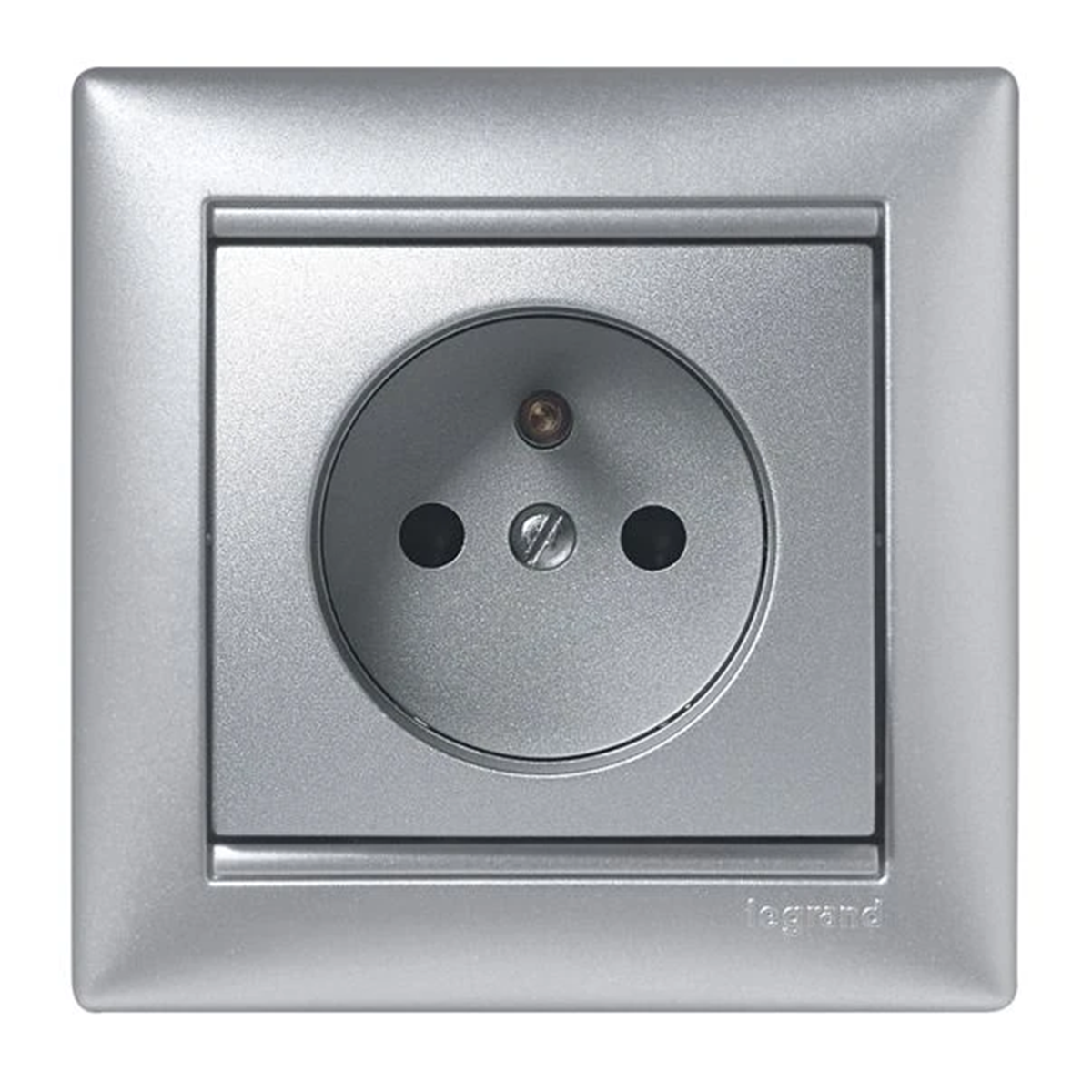

Single electric socket, aluminum color 770196

local index:
MEE077LEGR
Catalog No:
770196
EAN code:
3245067701966
Manufacturer: LEGRAND
Number of sockets: 1
Color: Silver
Shape: Square
Outlet

Stan produktu: Towar jest fabrycznie nowy, nieuszkodzony. Może nosić ślady długiego magazynowania.

Opakowanie: Towar może zostać dostarczony w opakowaniu zastępczym lub w lekko uszkodzonym oryginalnym opakowaniu.

Dostępność: Tylko w ilości dostępnej na magazynie.

Price:
4,16 €
gross / pcs.
(including VAT 23%)
Last lowest price: 9,86 € gross
Base price: 10,47 € gross -60%
Delivery in 3h
Accessible 1 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Print

Product description

Electric socket from the Valena series, from the manufacturer Legrand. The product part number is 770196.



FEATURES

  • Single.
  • 2P + Z.
  • Earth; ground pin.
  • Equipped with double screw terminals.
  • Module without frame.
  • Color aluminum.
  • Rated current 16A.
  • Rated voltage 230V.
  • Mounting recessed.
  • Mounting with claws or screws.



SERIES DESCRIPTION

Valena is a series of electrical installation accessories distinguished by a simple, elegant shape.

Technical data

  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Ground
    Hurt
  • Backlight
    NO
  • Standard
    European
  • On the DATA key
    NO
  • PKWIU
    27.33.13.0
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    VALENA
  • Type
    Flush-mounted
  • Accurate color
    Aluminum
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes

Other technical data

  • Model
    Norma francuska NF
  • Okrągły styk ochronny
    Yes
  • Number of active contacts (flat)
    0
  • With built-in USB power supply
    No
  • Number of socket outlets switchable
    0
  • Imprint/indication
    Bez nadruku
  • With hinged lid
    No
  • Label space/information surface
    No
  • RAL-number (similar)
    7040
  • Lockable
    No
  • With function lighting
    No
  • Over voltage protection
    No
  • With miniature fuse
    No
  • Mounting method
    Flush-mounted
  • Material
    Plastic
  • Halogen free
    Yes
  • Surface finishing
    Glossy
  • With on/off switch
    No
  • Rotated central insert
    No
  • Nominal voltage
    250 V
  • Do stosowania w warunkach trudnych (wg VDE)
    No
  • Device width
    71 mm
  • Device depth
    43 mm
  • Protective contact
    Yes
  • Number of active contacts (round)
    1
  • With signal lamp
    No
  • Number of units
    1
  • Number of phases
    1
  • Connection type
    Screwed terminal
  • With enhanced contact protection
    No
  • Colour
    Aluminium
  • Transparent
    No
  • Eject-mechanism
    No
  • With orientation lighting
    No
  • Fault current protection
    No
  • Special power supply
    No special power supply
  • Type of fastening
    Mounting with claw and screw
  • Material quality
    Thermoplastic
  • Surface protection
    Lacquered
  • Anti-bacterial treatment
    No
  • With loop through function
    Yes
  • Nominal current
    16 A
  • Suitable for degree of protection (IP)
    IP21
  • Impact strength
    IK04
  • Device height
    71 mm

Bulk packaging

A kind of package Pudełko Karton Paleta
Quantity 10 pcs. 100 pcs. 1000 pcs.
Weight (kg) 0,748 7,840 78,400
Volume (m3) 0,000 0,000 0,001
Width (m) 0,175 0,300 1,200
Length (m) 0,055 0,365 0,549
Depth (m) 0,395 0,405 1,000
