Single computer socket, cat. 5e MMC white GPK-1U/K/M/00
local index:
MEI146OSPE
Catalog No:
GPK-1U/K/M/00
EAN code:
5907577482596
Price:
12,41 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

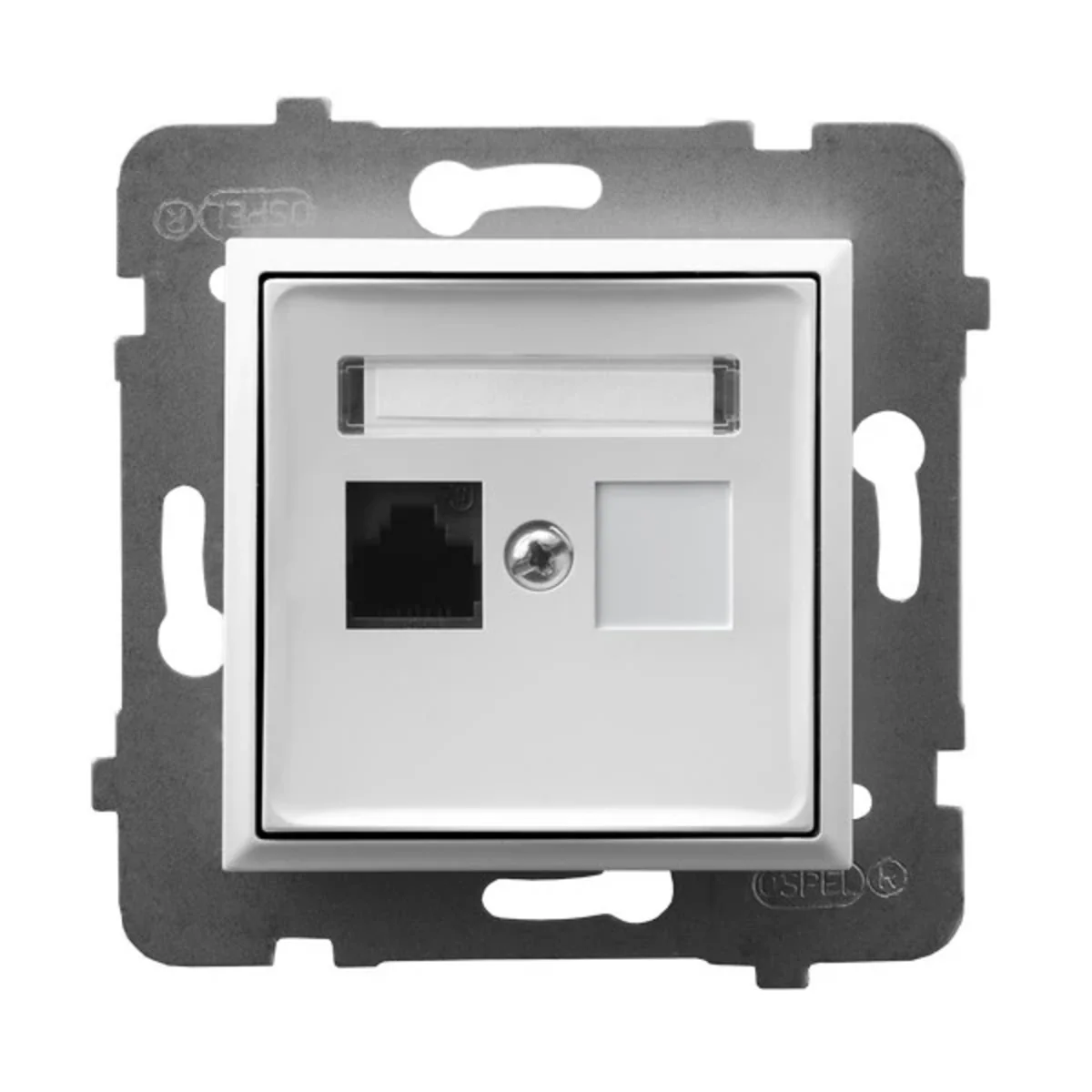

Single RJ-45 computer socket, category 5e MMC. It is used to connect a twisted pair signal cable, unshielded category 5e. Data transfer speed is 1Gb/s. The catalog number is GPK-1U/K/M/00.
- Type of connection - tool-free.
< /p>
SERIES DESCRIPTION
Aria products have an internal decorative frame that adds originality and distinguishes them from other series.
Technical data
-
Depth [mm]33
-
ColorWhite
-
MaterialPlastic
-
InstallationFlush-mounted
-
TypeInternet
-
Level of securityIP20
-
TypeFlush-mounted
-
Dimension [mm]71 x 71
-
Surface protectionNatural
-
Terminal typeThreadless MMC
-
For the frame systemYes
-
Dust coverNO
-
Exact materialPlastic Metal
-
Category5e
-
ShapeSquare
-
Fixingclaws screws
-
Descriptive fieldYes
-
FamilyARIA
-
Width [mm]71
-
VersionUTP
-
Height [mm]71
-
Mounting depth [mm]22
-
VariantRJ45 (twisted pair)
-
Number of internet sockets1
-
Extra socketBlank space
-
PKWIU26.30.30.0
Other technical data
-
Surface mountingNo
-
Floor box/subfloor mountedNo
-
Assembly arrangementBasic element with complete housing
-
With buses/couplingsYes
-
Category5E
-
RAL-number9003
-
Shielded busesNo
-
Separate earthing connectionNo
-
Compatible with third-party coversNo
-
Mounting method shielding connectionNone
-
With dust coverNo
-
Mechanical codingNo
-
Device width82 mm
-
Device depth37 mm
-
Duct installationNo
-
Type of fasteningEngage (snap)
-
Type of connectorRJ45 8(4)
-
Suitable for number of connectors1
-
ColourWhite
-
Connection typeOther
-
Shielded housingNo
-
With label spaceYes
-
Separate strain reliefNo
-
Outlet directionStraight
-
Degree of protection (IP)IP20
-
Colour codingYes
-
Device height82 mm
Bulk packaging
| A kind of package | Pudełko | |
| Quantity | 1 pcs. | 10 pcs. |
| Weight (kg) | 0,058 | - |
| Width (m) | 0,071 | 0,162 |
| Length (m) | 0,071 | 0,290 |
| Depth (m) | 0,033 | 0,090 |
