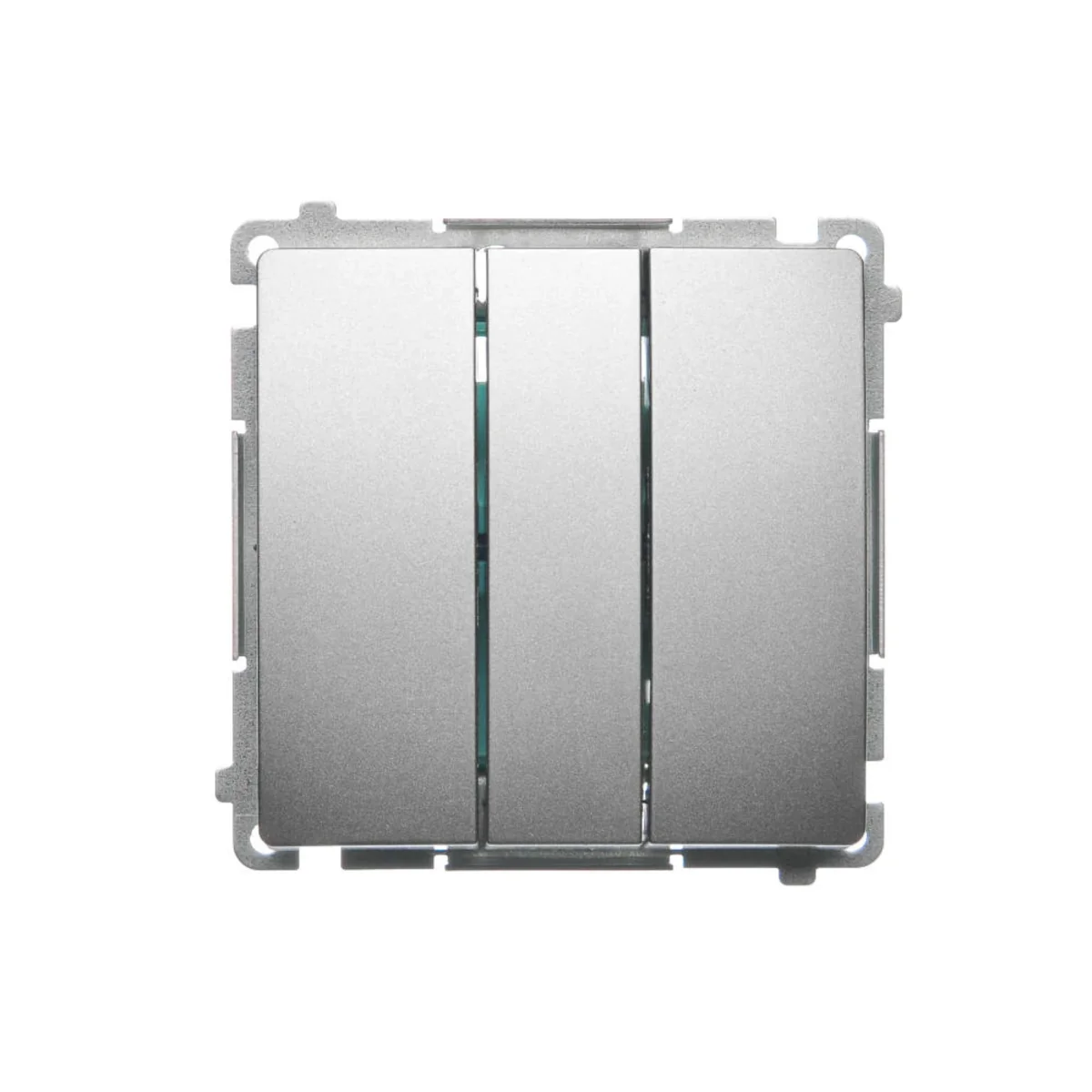

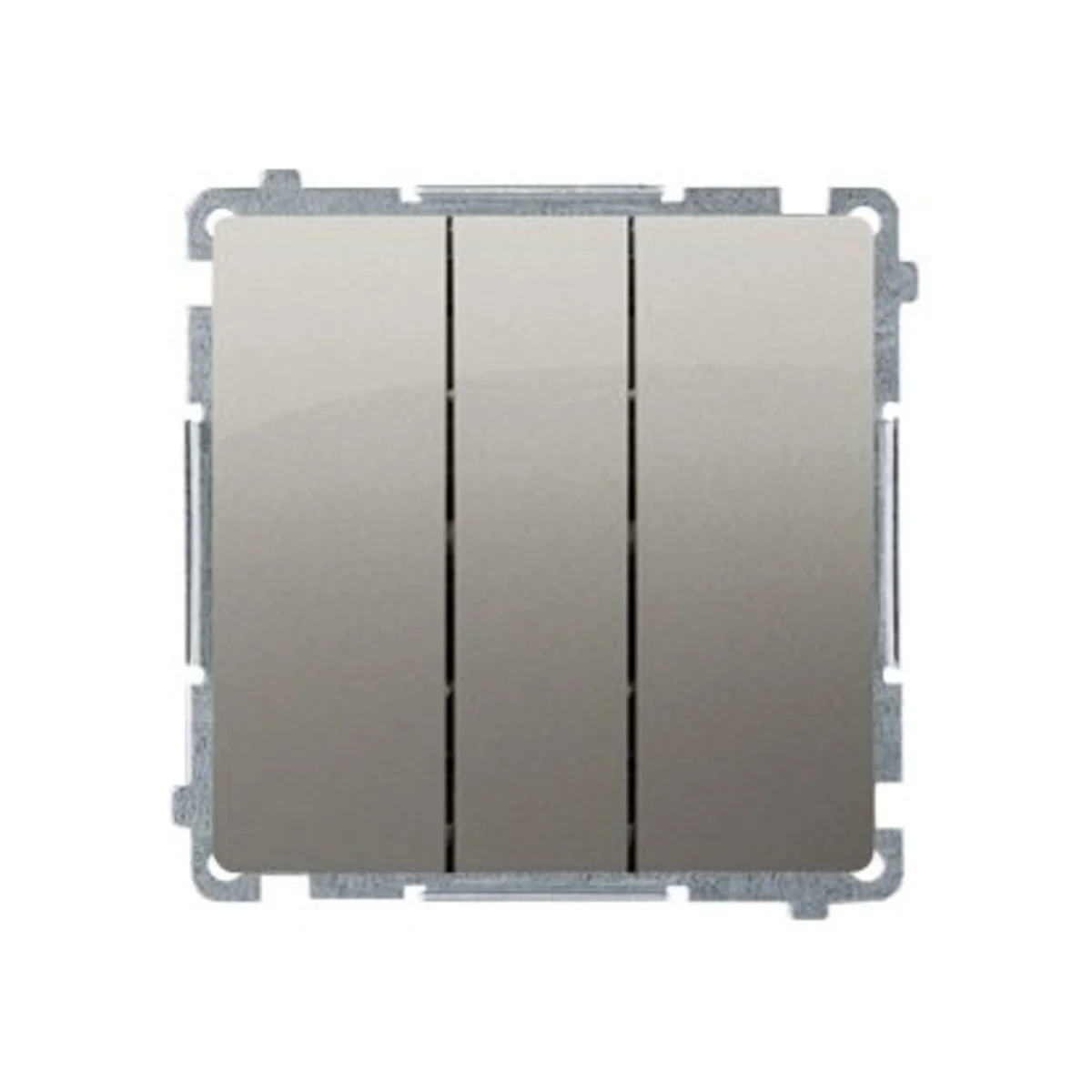

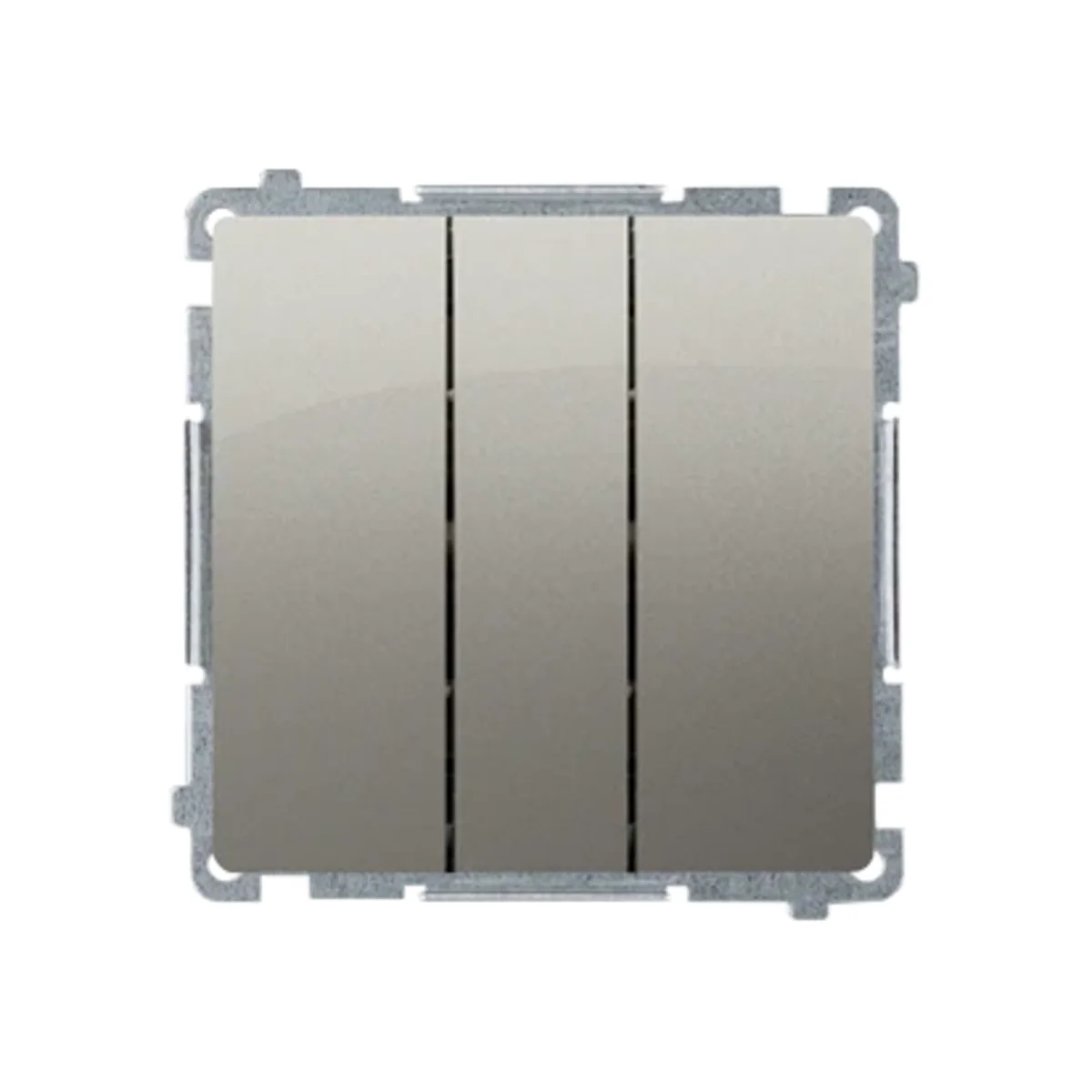

SIMON BASIC Triple button with LED backlight 10A 250V satin BMP31L.01/29

Índice local:
MMZ135KONT
Número de catálogo:
BMP31L.01/29
Código EAN:
5902787859749
Fabricante: KONTAKT-SIMON
Halogen free: Yes
Number of keys: 3
Color: Silver
Precio:
70,29 zł
gross / uds.
(IVA incluido 23%)
hasta 4 semanas
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

Triple button with backlight,  Simon Basic series, from the manufacturer Contact Simon. Product catalog number it is BMP31L.01/29. Satin, metallised.



FEATURES

  • Quick connectors.
  • 3x1-pole pushbutton (monostable)
  • LED backlight (not replaceable), blue.



SERIES DESCRIPTION

Functionality and classic look are the hallmarks of the Simon Basic series, which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Datos técnicos

  • Halogen free
    Yes
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Version
    Confident
  • Surface protection
    varnishing
  • Accurate color
    Satin metallic
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • Backlight type
    LED
  • PKWIU
    27.33.11.0
  • Number of keys
    3
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    matte
  • Backlight
    Yes
  • Variant
    Ordinary
  • Exact material
    PC
  • Backlight color
    Blue

Detalles del fabricante

Empaquetado a granel

una especie de paquete Paczka Karton
Cantidad 1 uds. 10 uds.
Peso (kg) 0,077 0,860
Ancho (m) 0,110 0,190
Longitud (m) 0,045 0,230
Profundidad (m) 0,160 0,100
