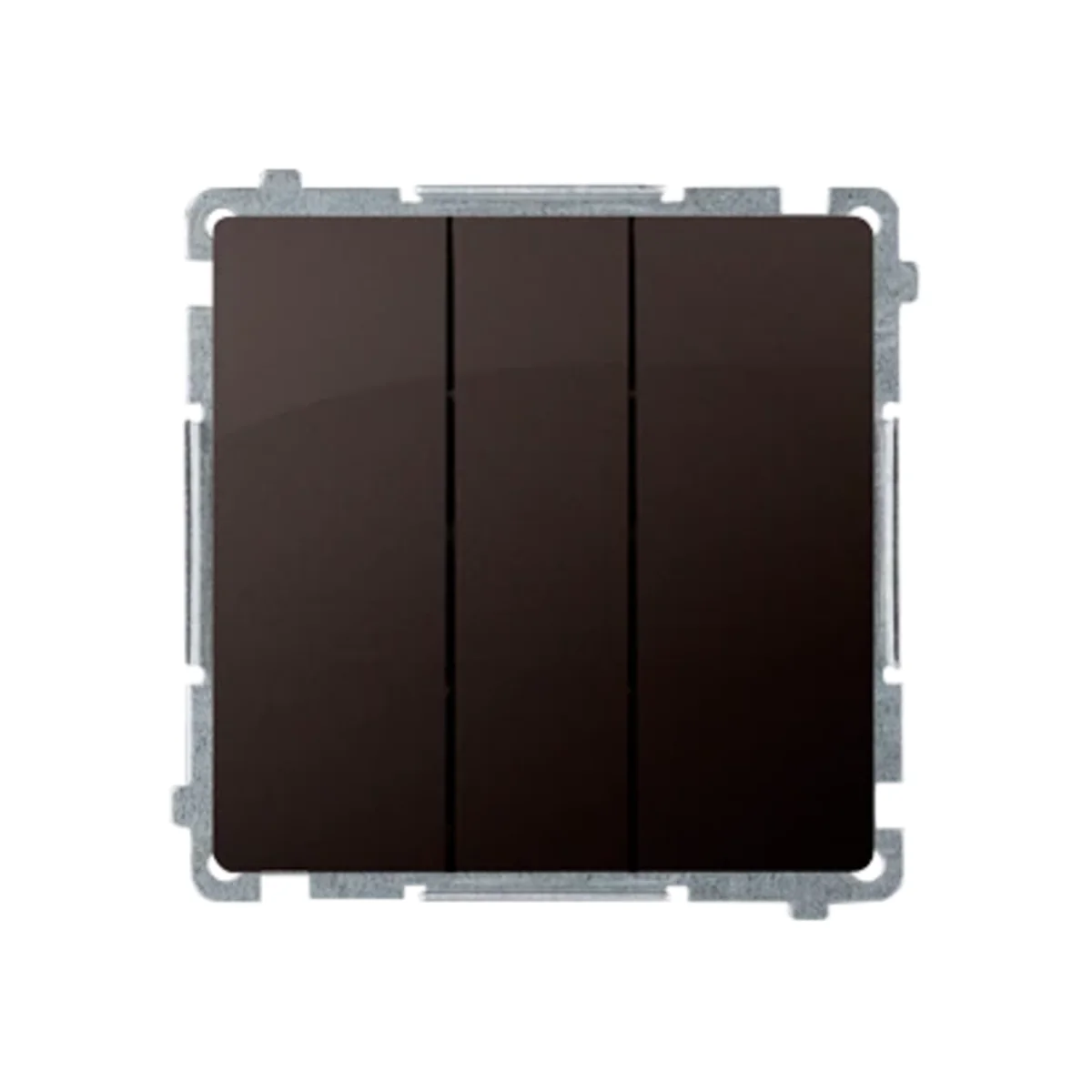

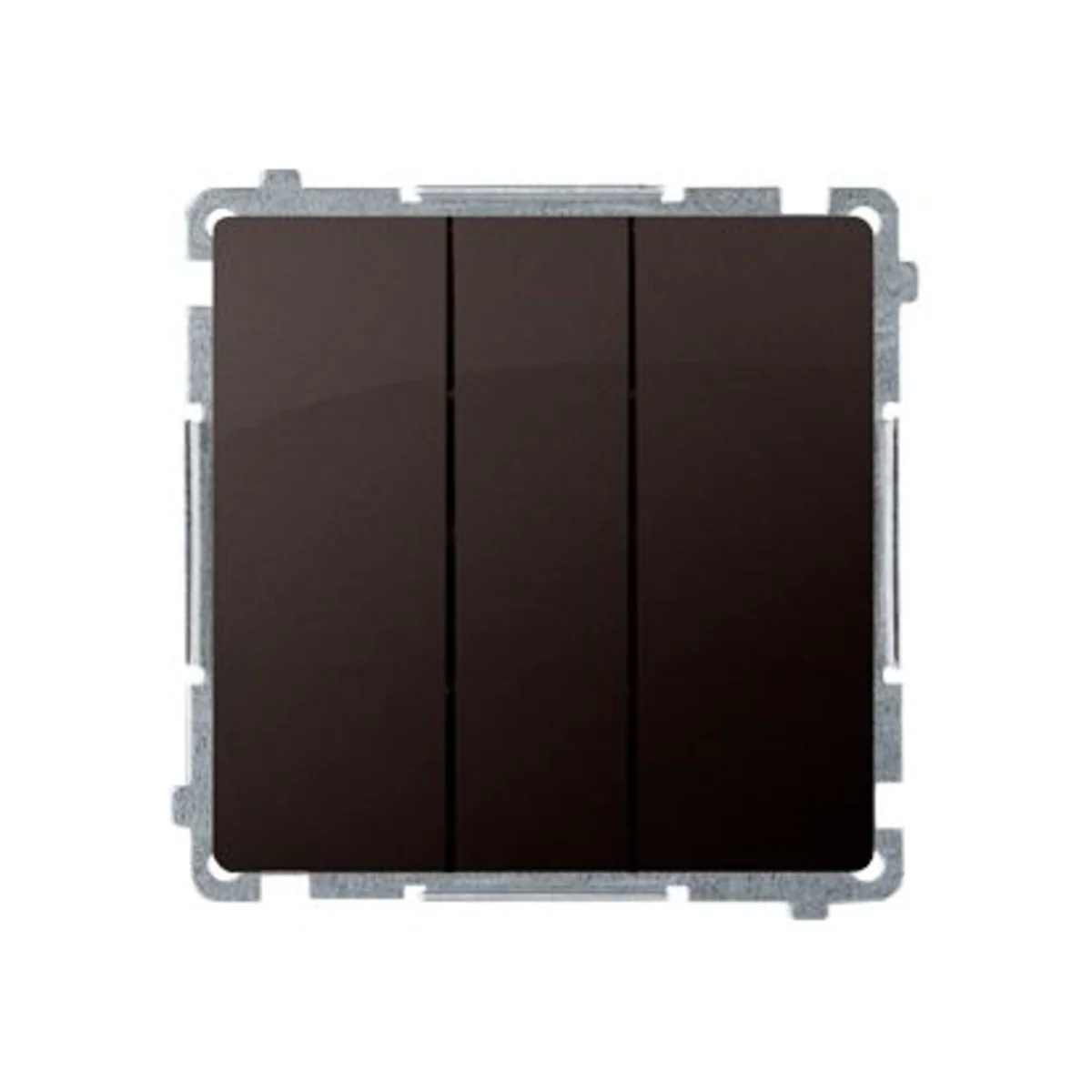

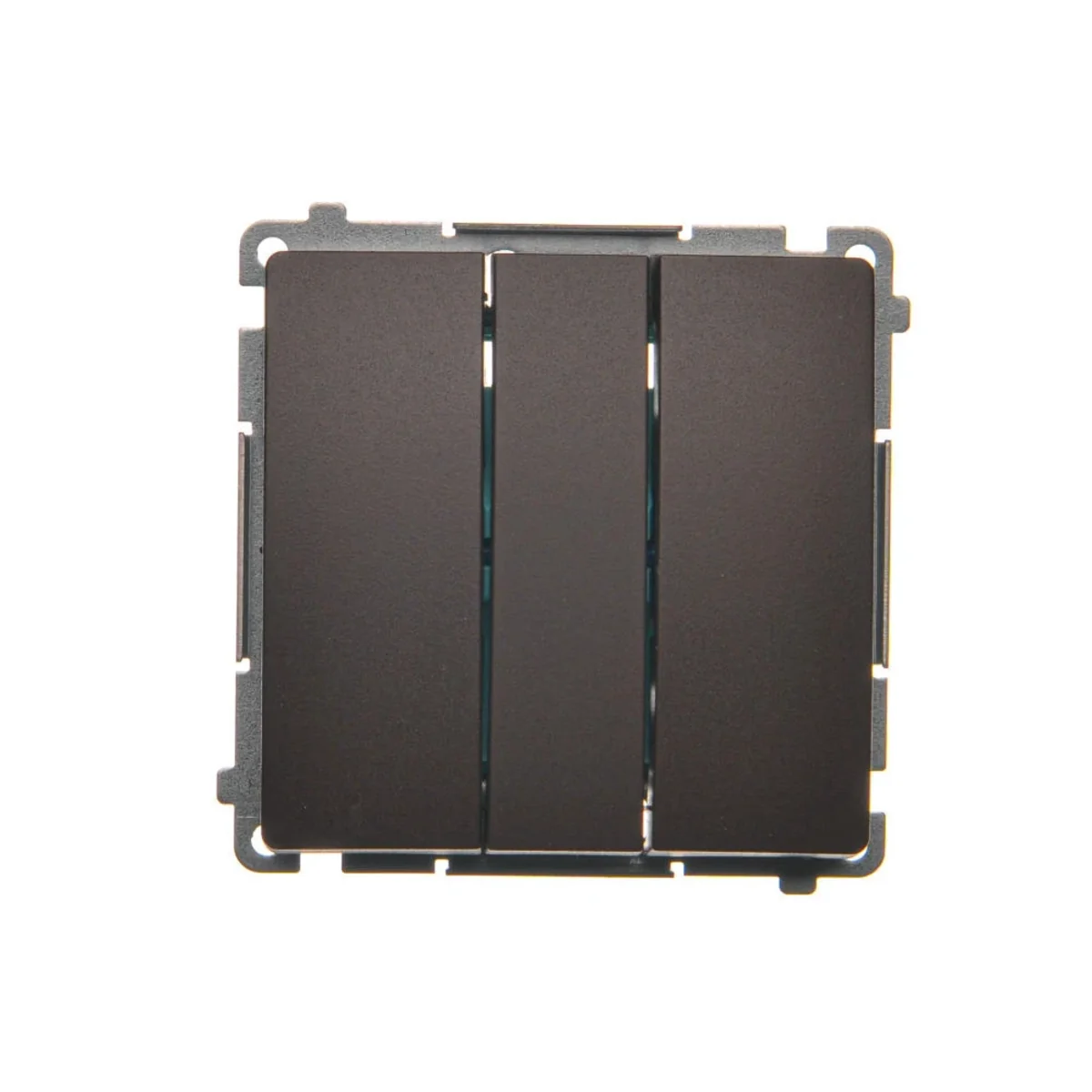

SIMON BASIC Triple button with LED backlight 10A 250V chocolate BMP31L.01/47

Index local:
MMZ137KONT
Numéro de catalogue:
BMP31L.01/47
Code EAN:
5902787859763
Producteur: KONTAKT-SIMON
Halogen free: Yes
Number of keys: 3
Color: Brown
Prix:
63,90 zł
gross / pcs.
(y compris la TVA 23%)
En rupture de stock
Ajouter à la demande de devis
Imprimer

Description du produit

Triple button with backlight,  Simon Basic series, from the manufacturer Contact Simon. Product catalog number it BMP31L.01/47. Chocolate matt, metallised.



FEATURES

    < li>Quick connectors.
  • 3x1-pole pushbutton (monostable)
  • LED backlight (not replaceable), blue.



SERIES DESCRIPTION

Functionality and classic look are the hallmarks of the Simon Basic series, which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Données techniques

  • Halogen free
    Yes
  • Color
    Brown
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Version
    Confident
  • Surface protection
    varnishing
  • Accurate color
    Chocolate matt metallic
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • Backlight type
    LED
  • PKWIU
    27.33.11.0
  • Number of keys
    3
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    matte
  • Backlight
    Yes
  • Variant
    Ordinary
  • Exact material
    PC
  • Backlight color
    Blue

Détails du fabricant

  • Producteur
    KONTAKT - SIMON S.A.
  • Adresse
    43-500 Czechowice-Dziedzice Bestwińska 21
  • Numéro identifiant TVA
    6520005366
