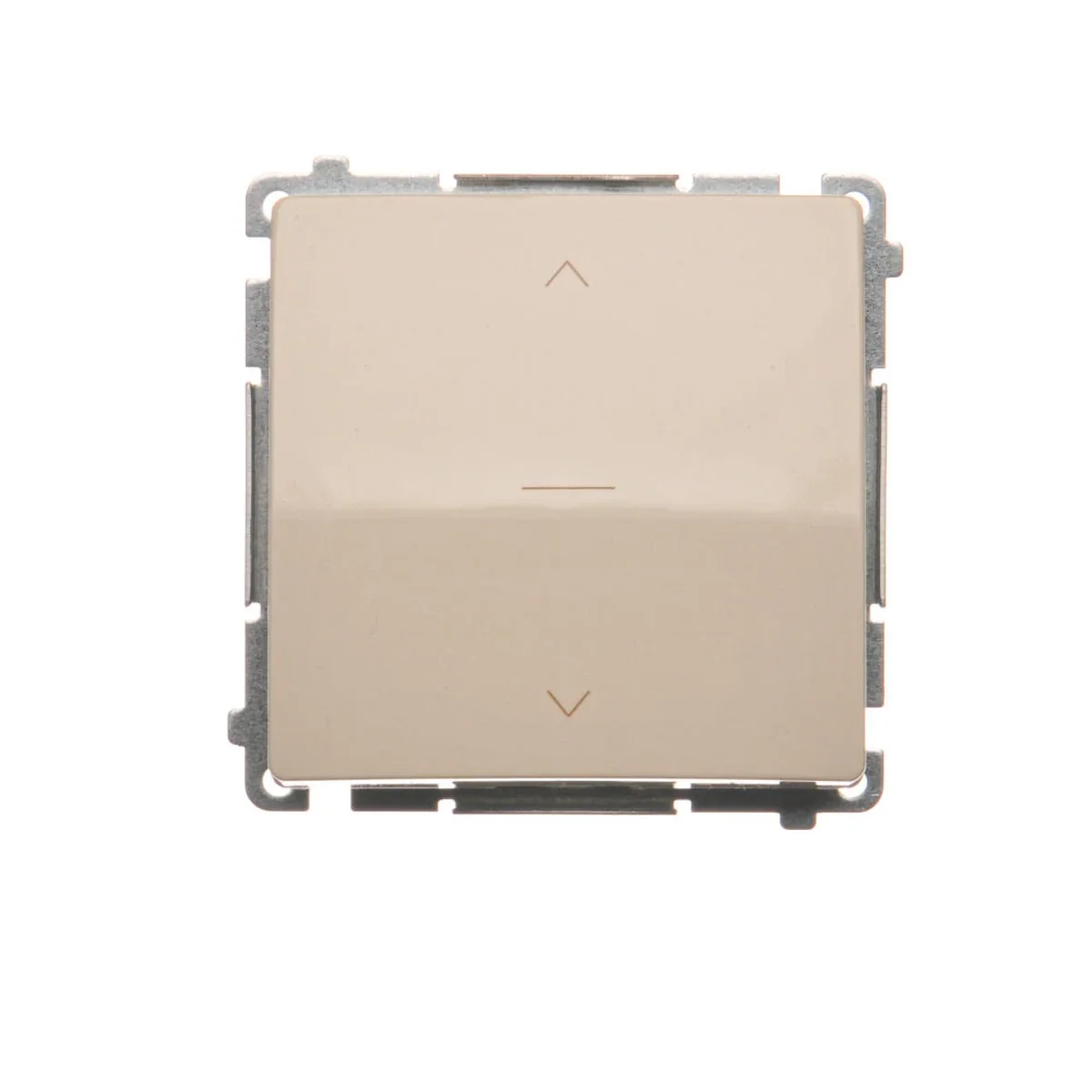

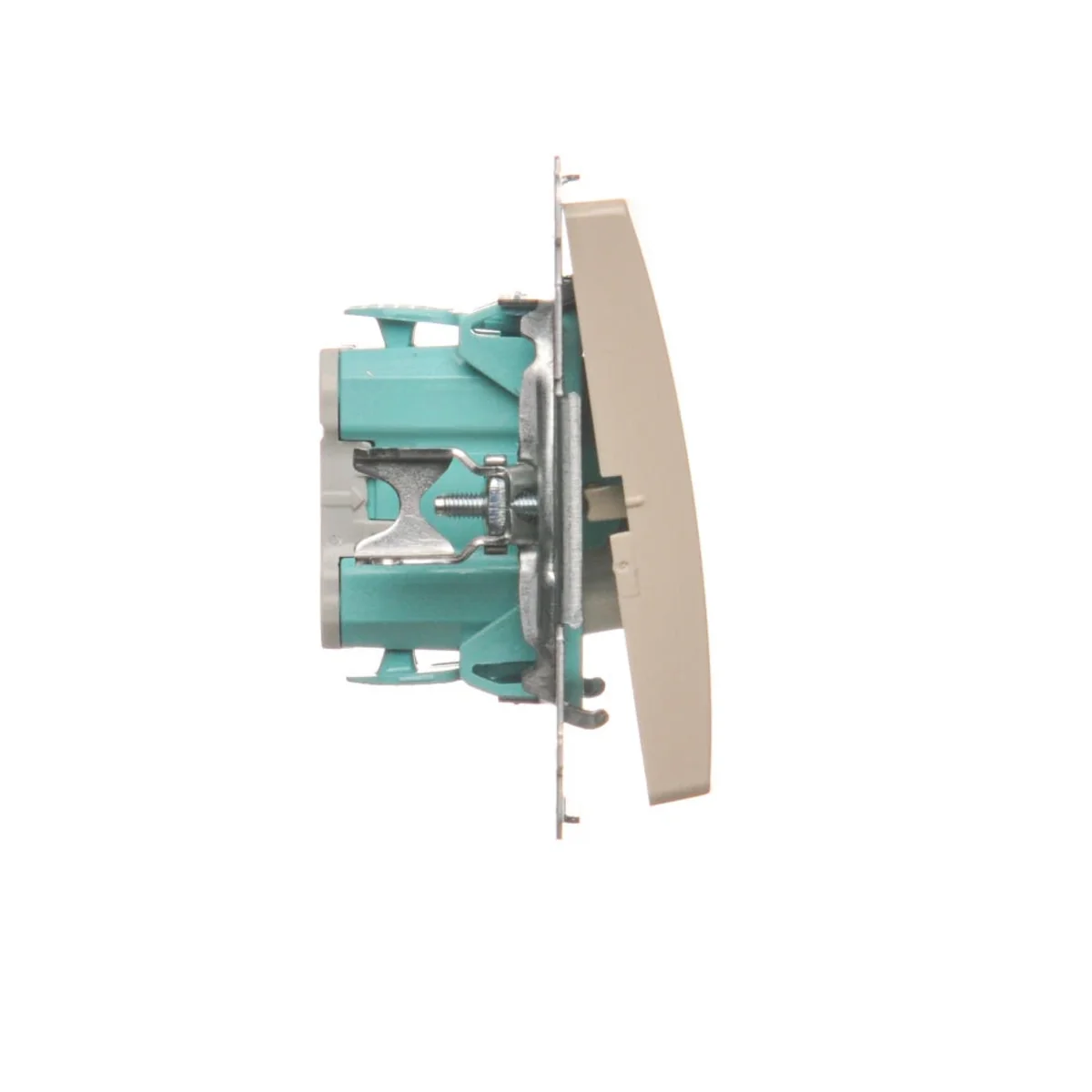

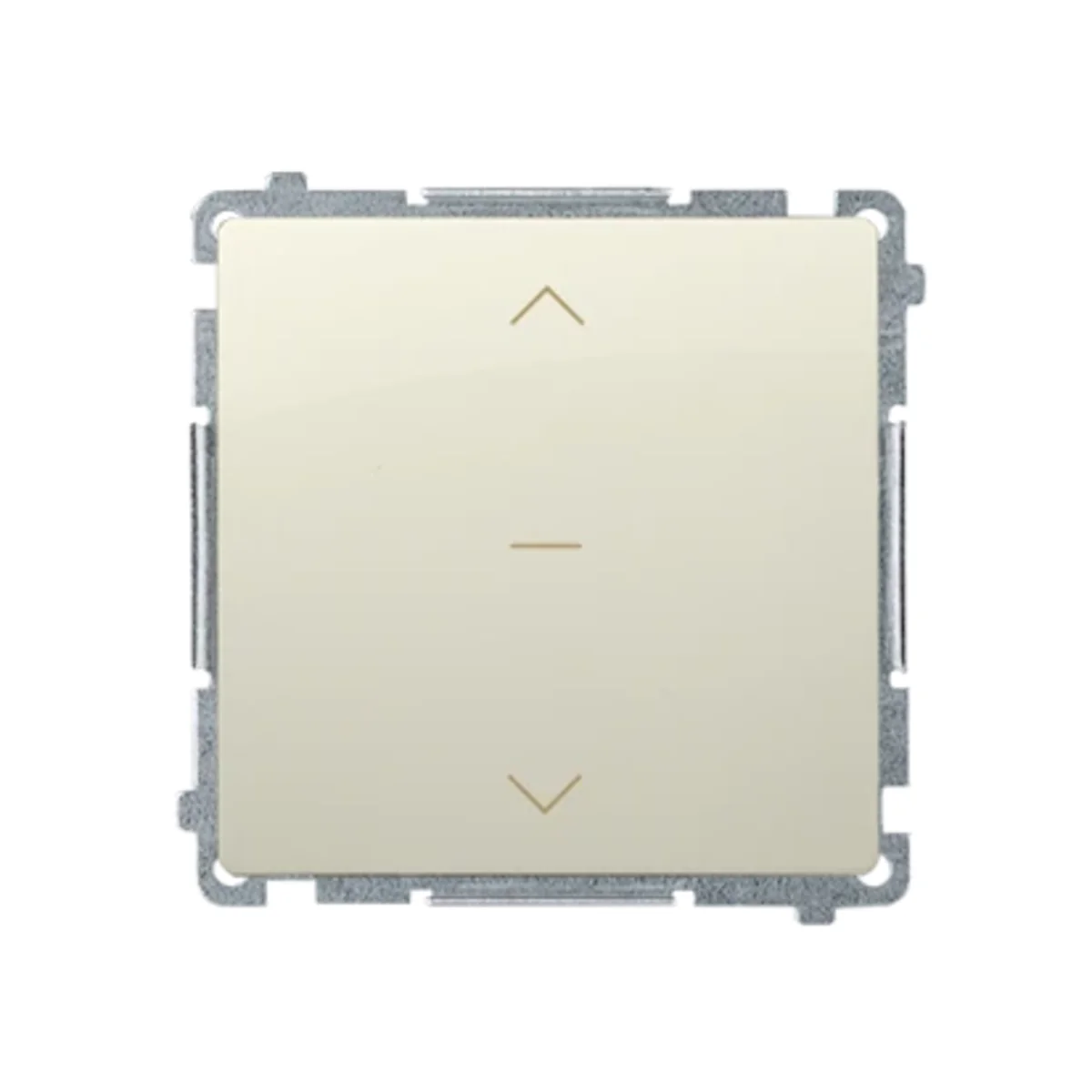

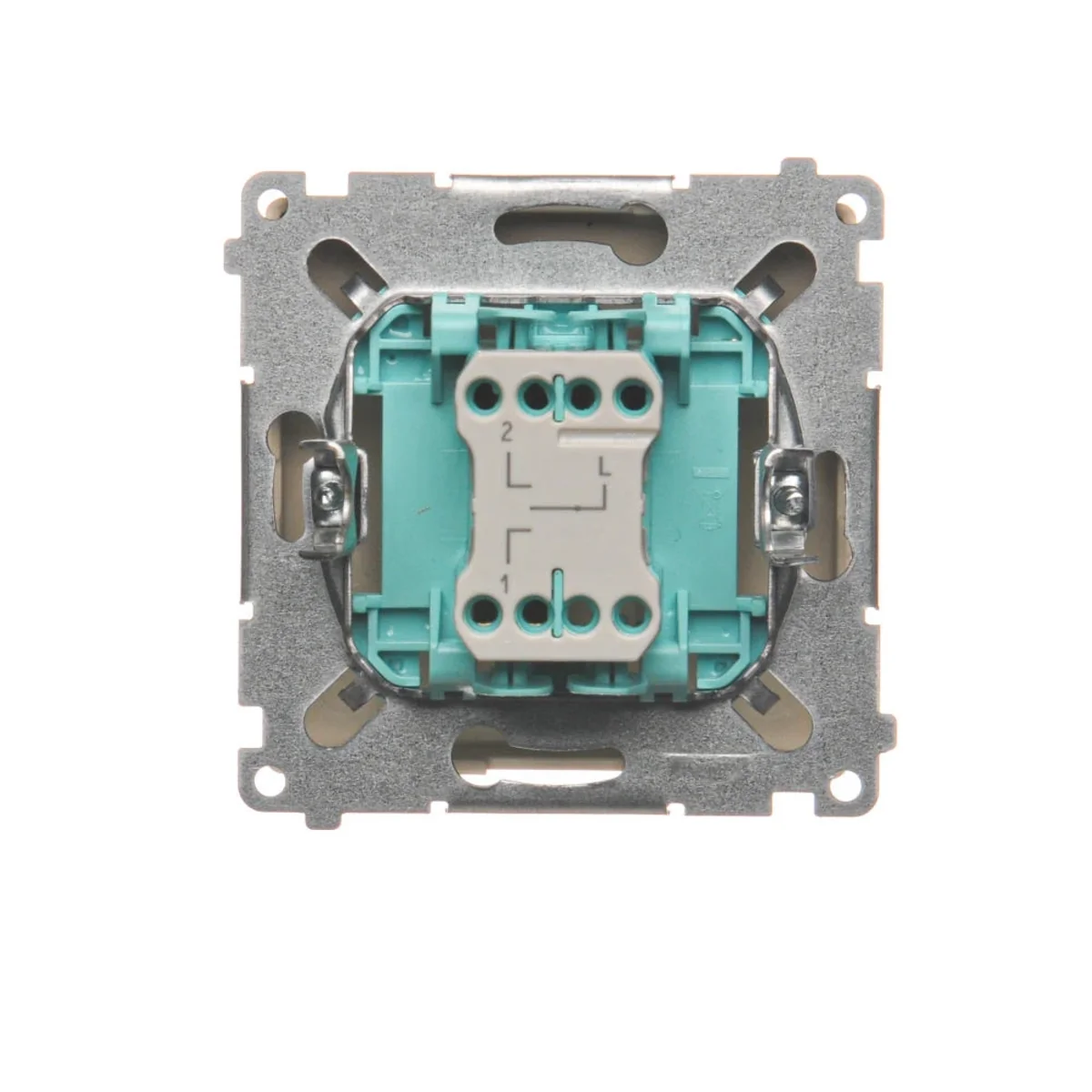

SIMON BASIC Three-position roller shutter switch 1-0-2 beige BMZW1K.01/12

local index:
MMO039KONT
Catalog No:
BMZW1K.01/12
EAN code:
5902787857875
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 41
Number of keys: 1
Price:
7,82 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Louvre switchfrom the Simon Basic series, from the manufacturer Contact Simon. The product part number is BMZW1K.01/12.

  • Single.
  • Triój position (1-0-2).
  • Quick connectors.
  • IP20 version only.
  • Clamp mounting.



SERIES DESCRIPTION

Simon Basic is a series of electrical equipment, which is based on a classic look and functionality. The shutter connector characterizes the features of this unique series.

Technical data

  • Halogen free
    Yes
  • Number of keys
    1
  • Shape
    Square
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    SIMON BASIC
  • Symbol
    Blinds
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    Shiny
  • Mounting depth [mm]
    24
  • Variant
    Three-position
  • Exact material
    PC
  • Depth [mm]
    41
  • Color
    Beige
  • Material
    Plastic
  • Rated voltage [V]
    230
  • Type
    Shutter
  • Level of security
    IP20
  • Width [mm]
    75
  • Version
    Single
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,077 0,077 -
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,045 0,230
Depth (m) 0,041 0,160 0,100
