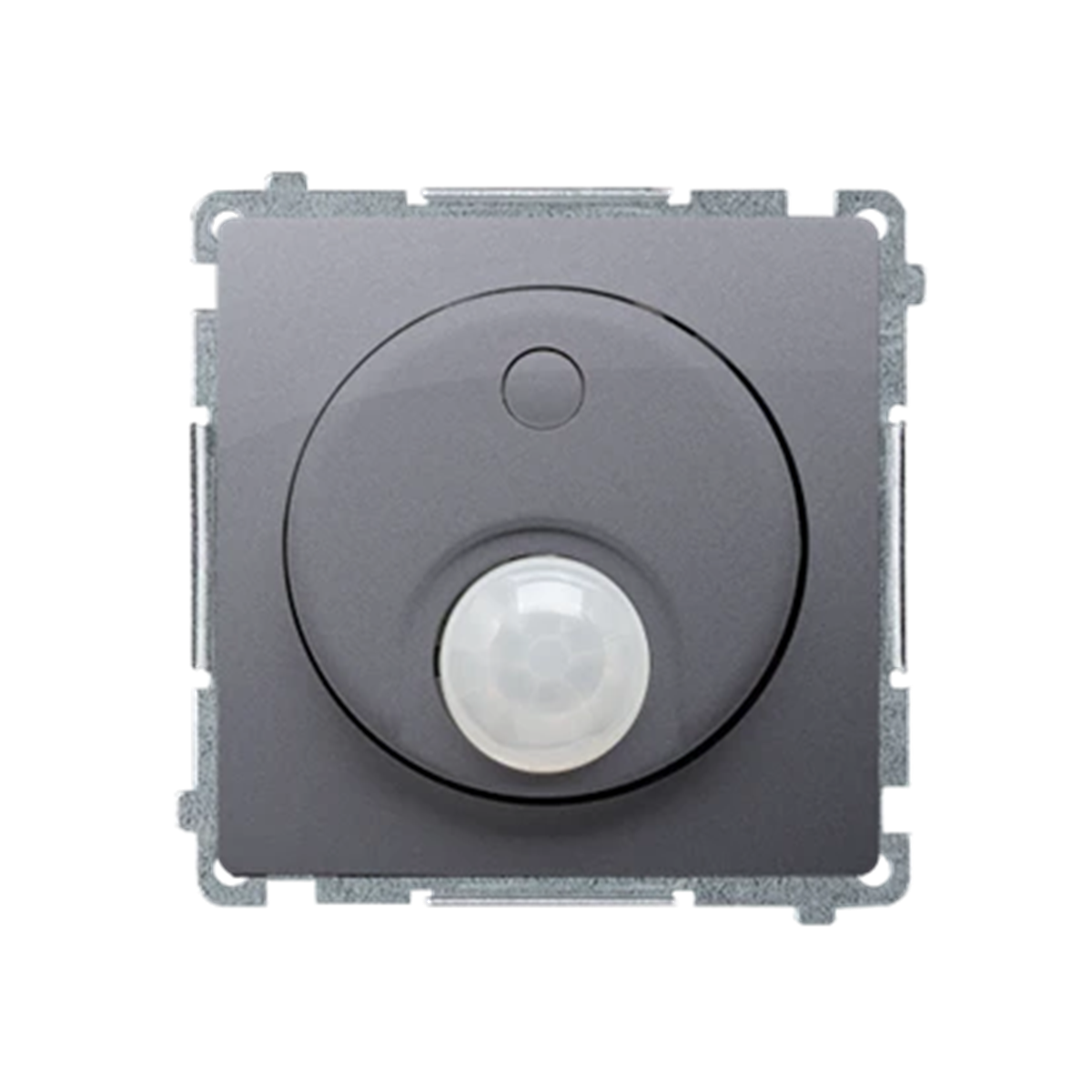

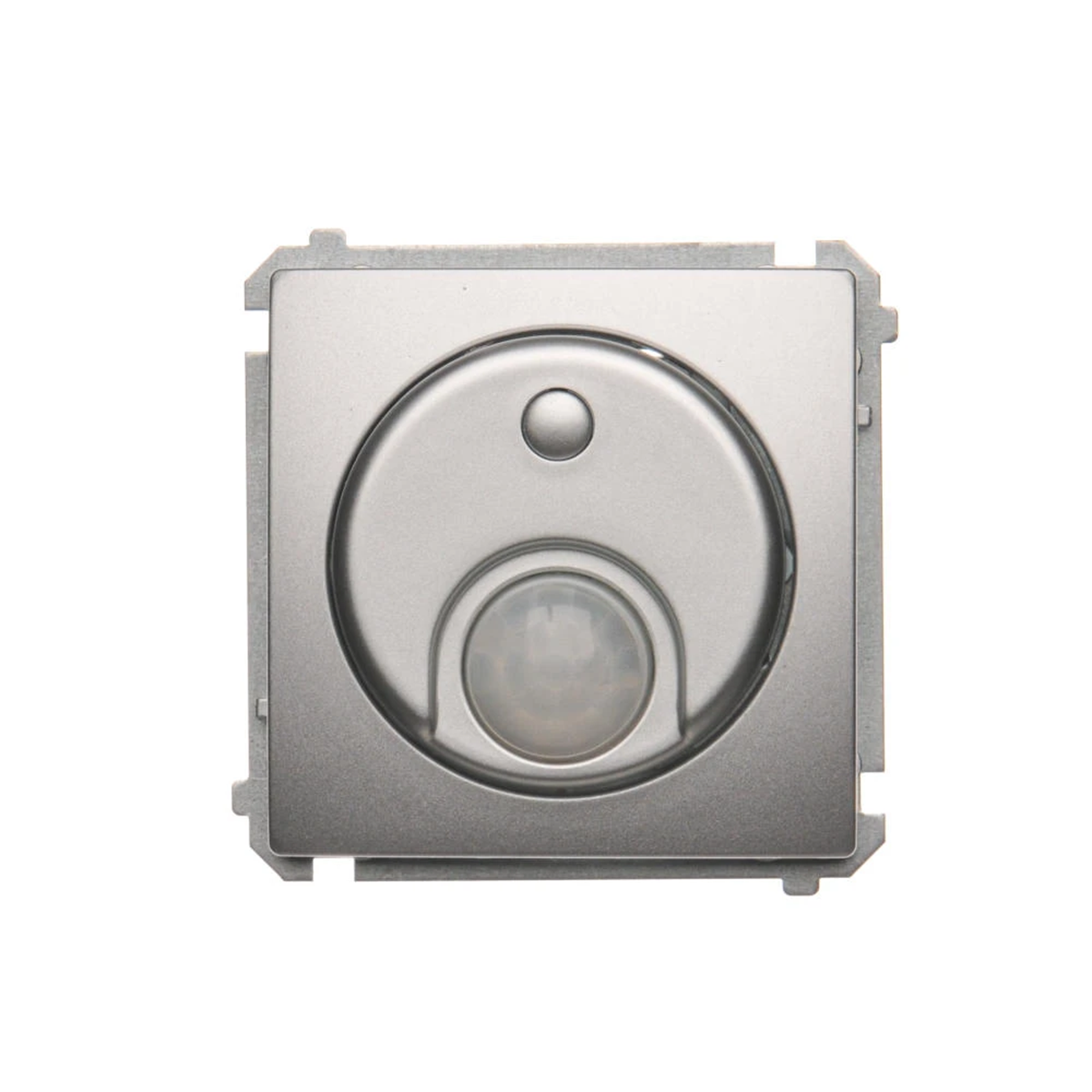

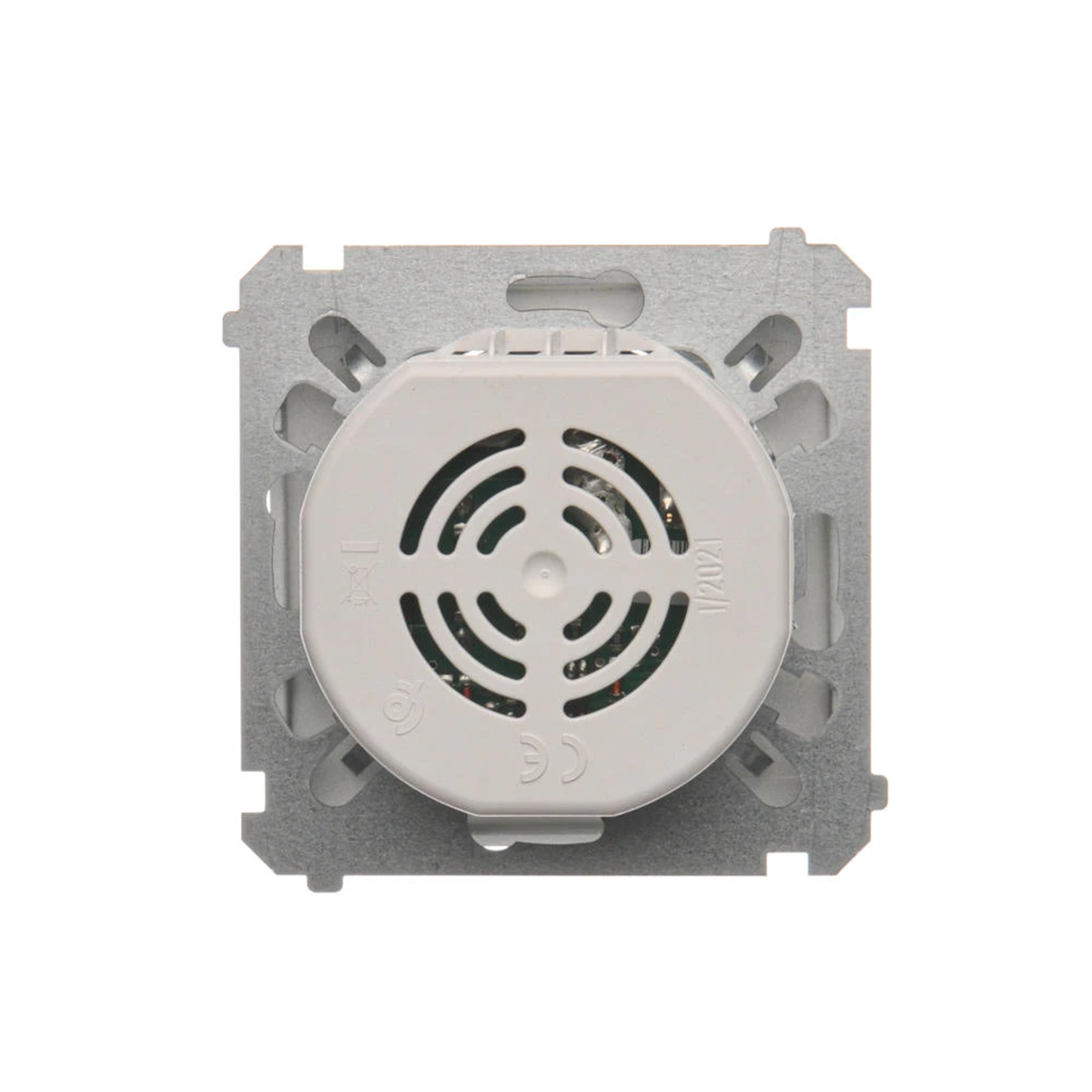

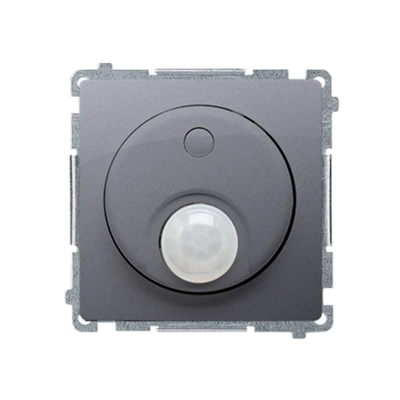

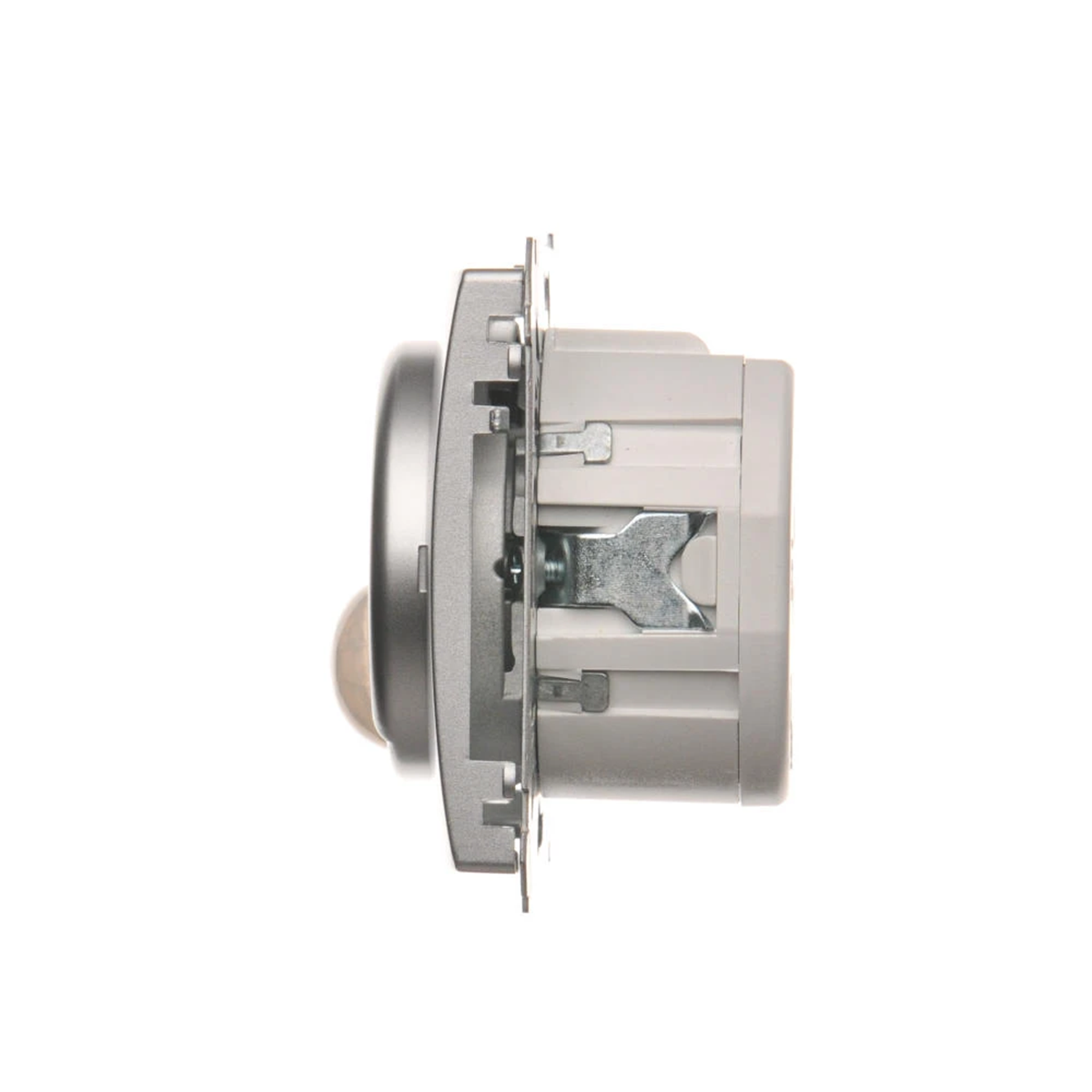

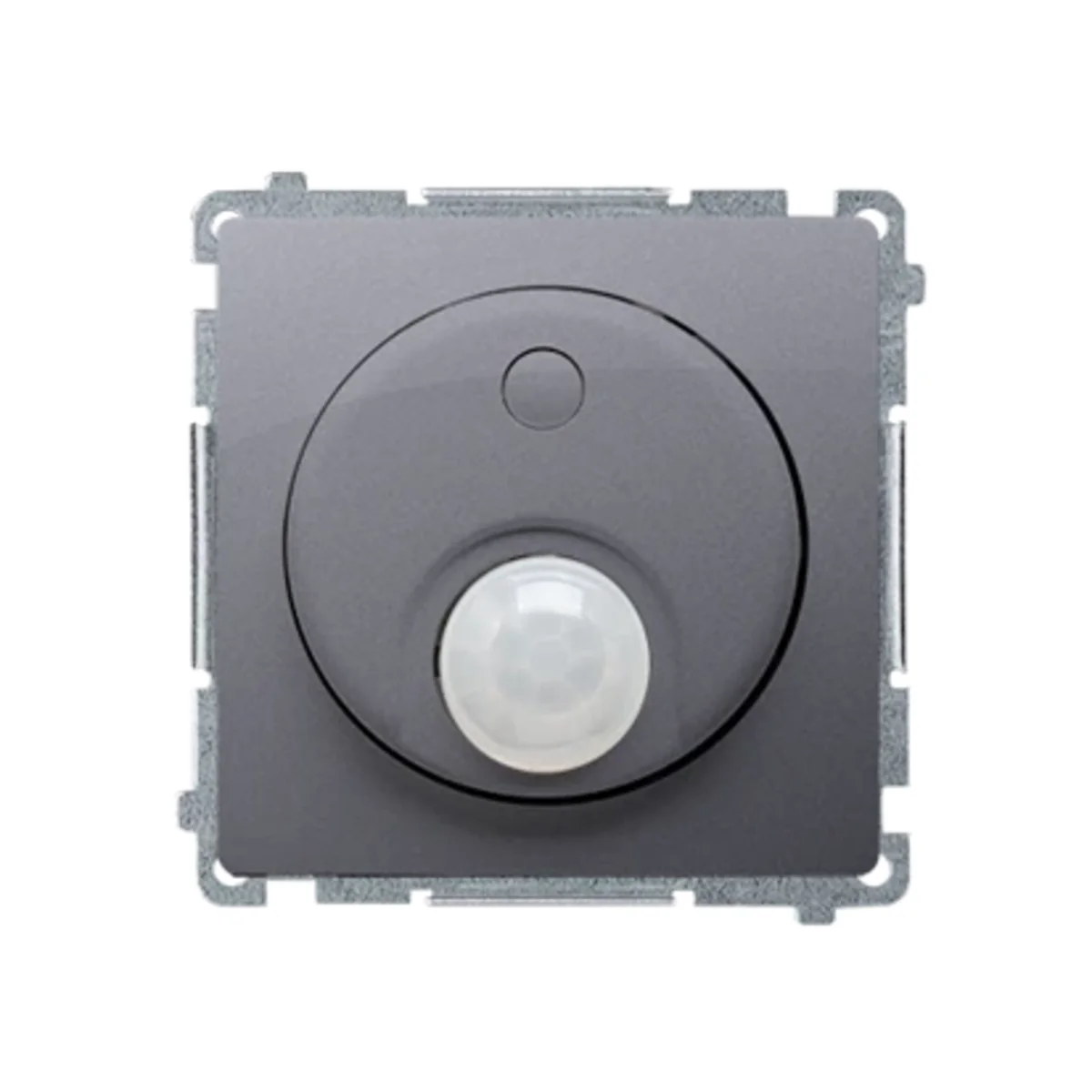

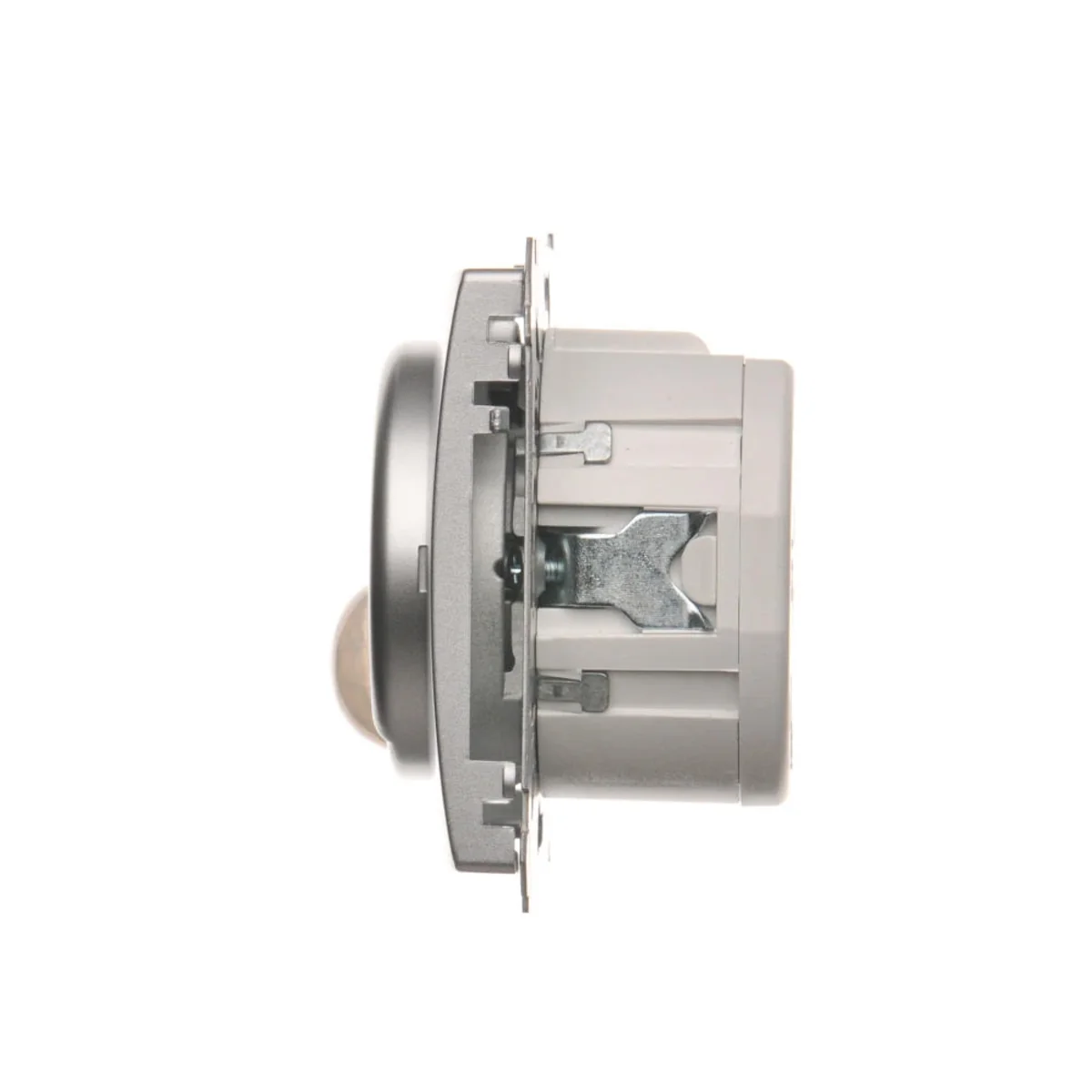

SIMON BASIC Switch with motion sensor and protection (module) 20–500W silver matt BMCR11T.01/43
local index:
MWC039KONT
Catalog No:
BMCR11T.01/43
EAN code:
5902787844110
Price:
70,07 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Functionality and classic look are the hallmarks of the SIMON BASIC series, which will work in any space. It includes a switch with a motion sensor and protection against unauthorized access to control elements. It has the following features:
- Rated voltage: 230V
- Power: 20-500W
- Screw terminals
- Type of material: Plastic plastic, PC
- Surface protection: Varnishing
- Surface finish: Matt
- Fastening method: Claws/screws
- Colour: Matt silver< /li>
- FOR LIGHT SOURCES:
- 230V bulbs,
- 230V bulbs, < li> 12V bulbs - electronic transformer,
- 12V bulbs - toroidal core transformer.
Technical data
-
Depth [mm]51
-
InstallationFlush-mounted
-
FamilySIMON BASIC
-
Width [mm]75
-
Height [mm]75
-
PKWIU27.33.11.0
-
ColorSilver
-
Rated voltage [V]230
-
Level of securityIP20
-
Clamp typehelical
-
Accurate colorsilver matt
Other technical data
-
ModelMovement sensor
-
HVAC-controlNo
-
NetworkableNo
-
Max. reach sideways7 m
-
Suitable for wireless transmissionNo
-
Response value sensitivity adjustableNo
-
With signal unitYes
-
Dim function with dimmer basic elementNo
-
MaterialPlastic
-
Surface protectionLacquered
-
Voltage typeAC
-
Nominal voltage230 V
-
Max. duty cycle21 min
-
Max. switching power500 W
-
Substation inputYes
-
Constant light controlYes
-
Animal zoneNo
-
Optimum mounting height1.2 m
-
Max. reach frontally7 m
-
Remote operationNo
-
Response value luminosity adjustableYes
-
Teach-function for response value luminosityNo
-
Mounting methodFlush-mounted
-
Material qualityThermoplastic
-
Surface finishingMatt
-
Frequency50 ... 50 Hz
-
Min. switch-on time5 s
-
Response value luminosity2 ... 500 lx
-
Temperature0 ... 40 °C
Manufacturer details
-
ManufacturerKONTAKT - SIMON S.A.
-
Address43-500 Czechowice-Dziedzice Bestwińska 21
-
Phone number
-
E-mail
-
Tax identification number6520005366
-
GLN5900009931105
