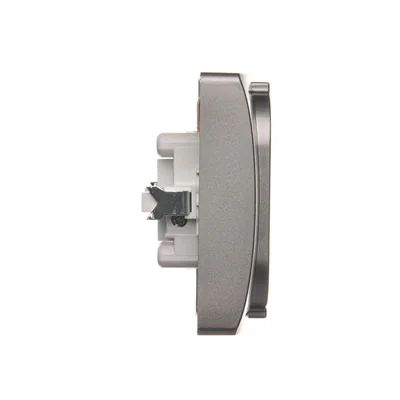

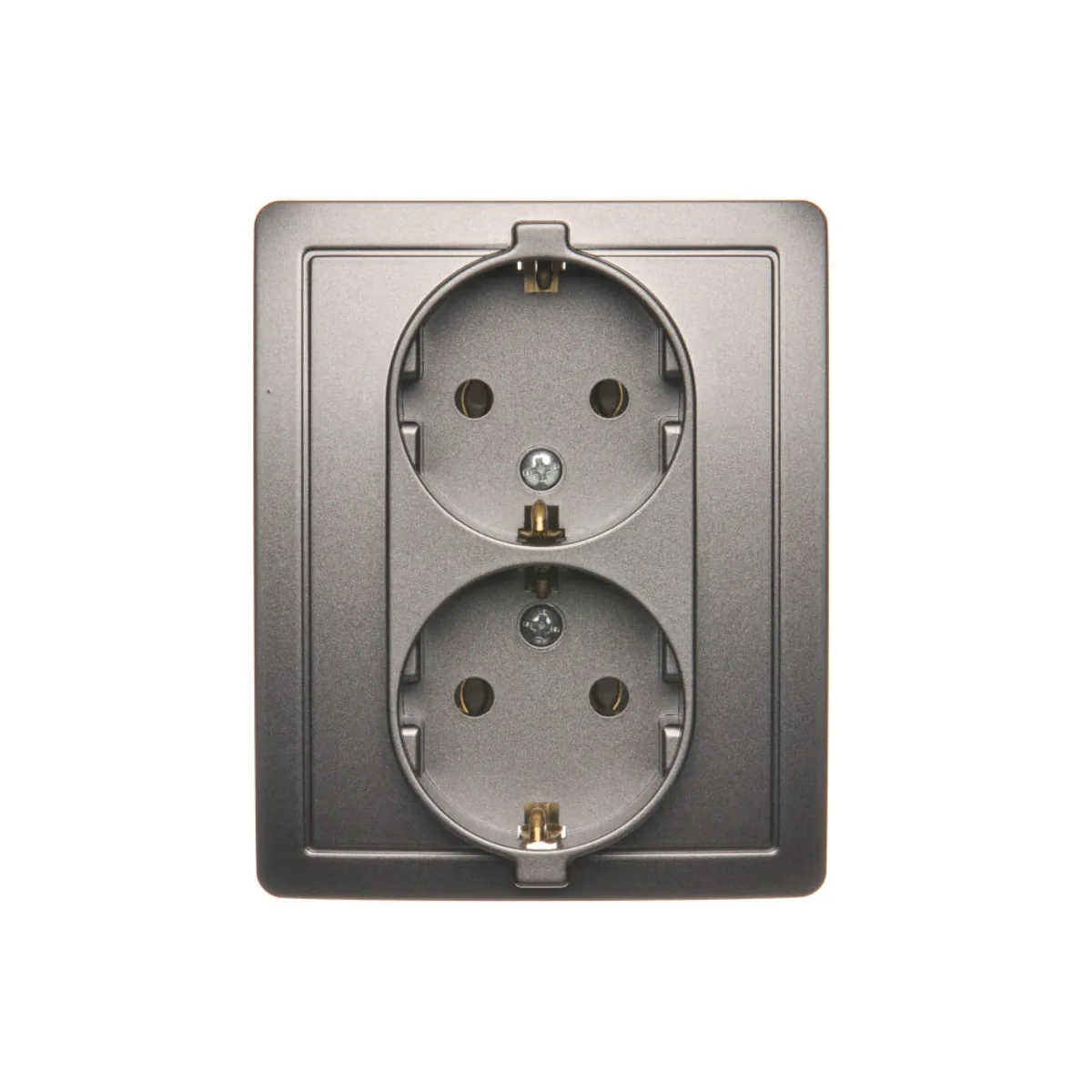

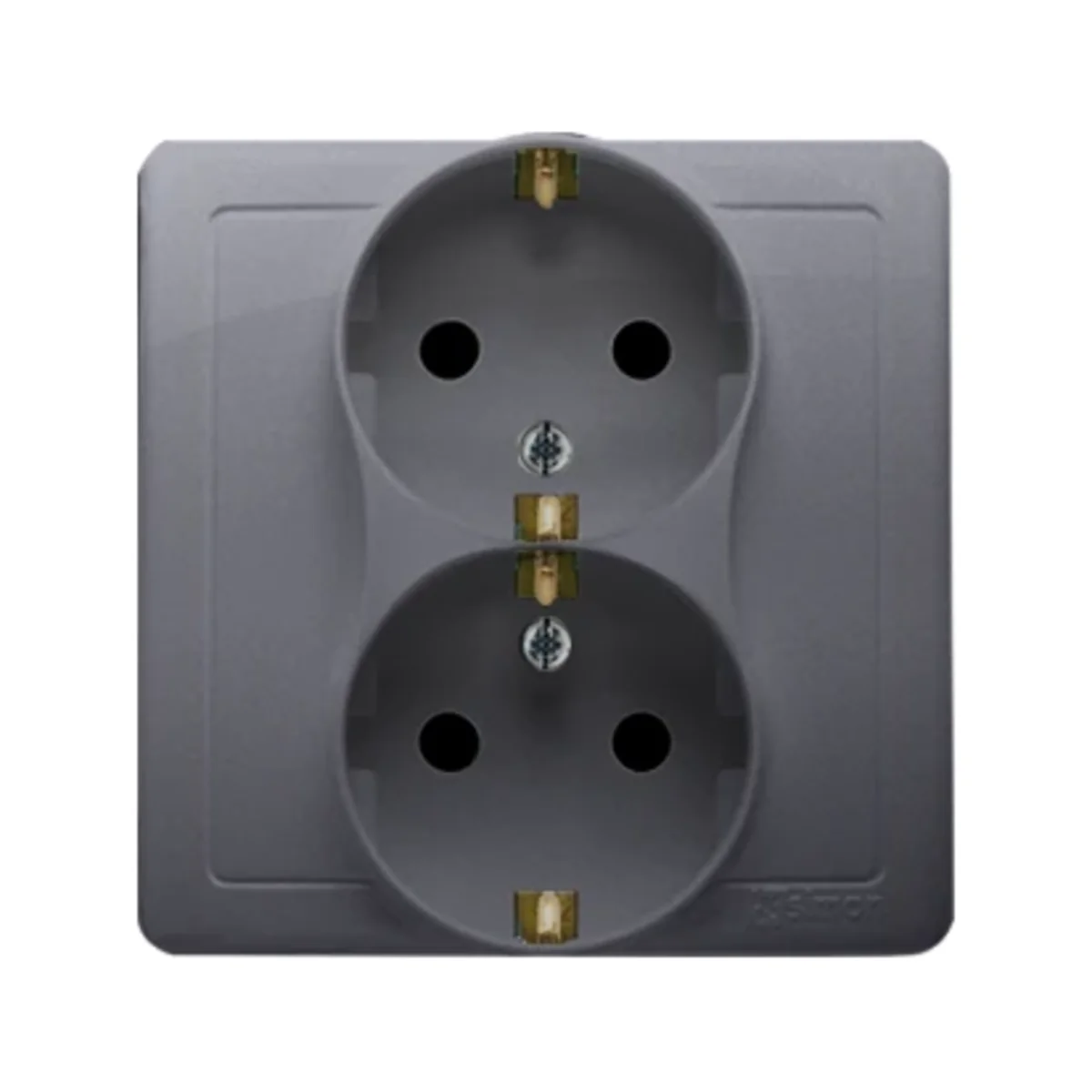

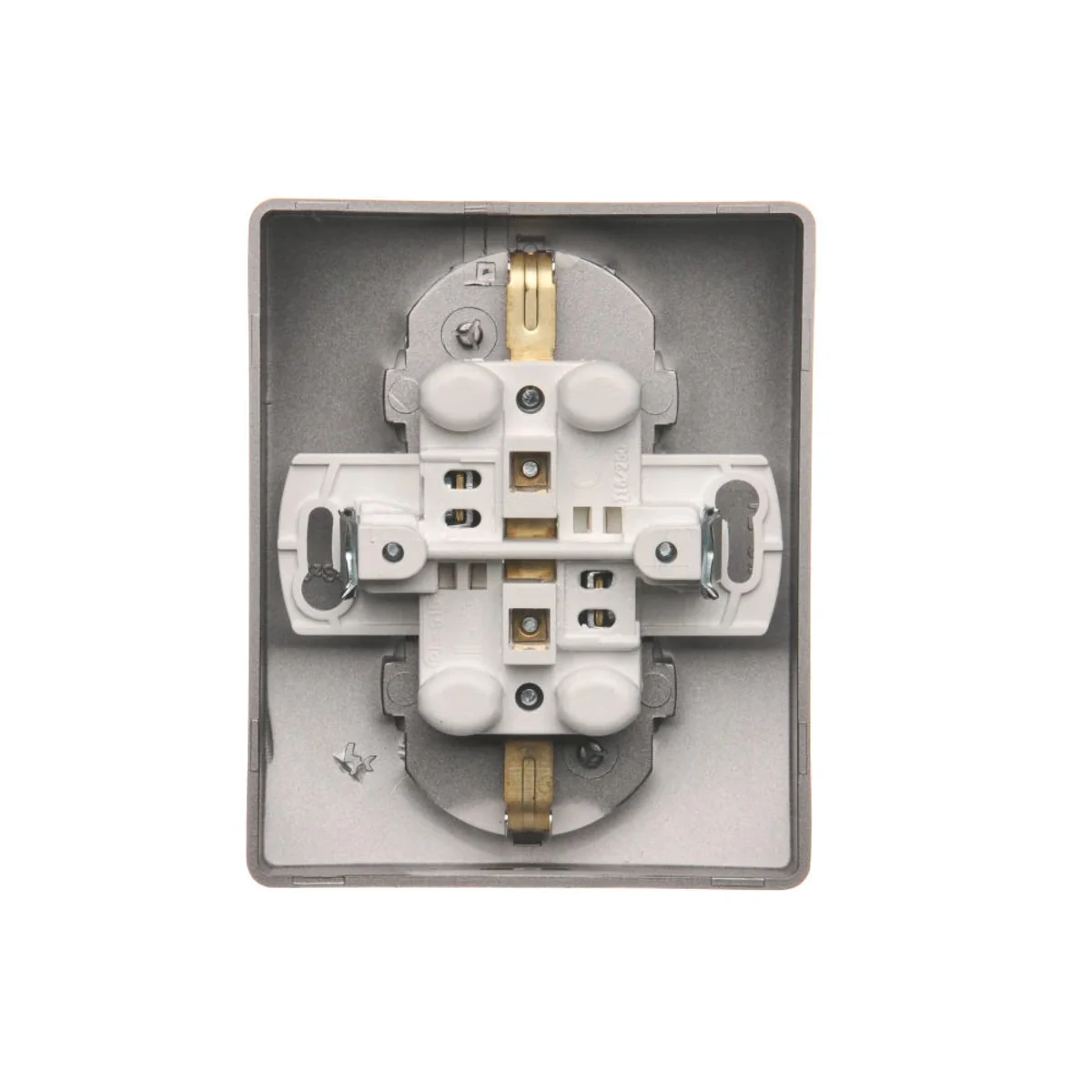

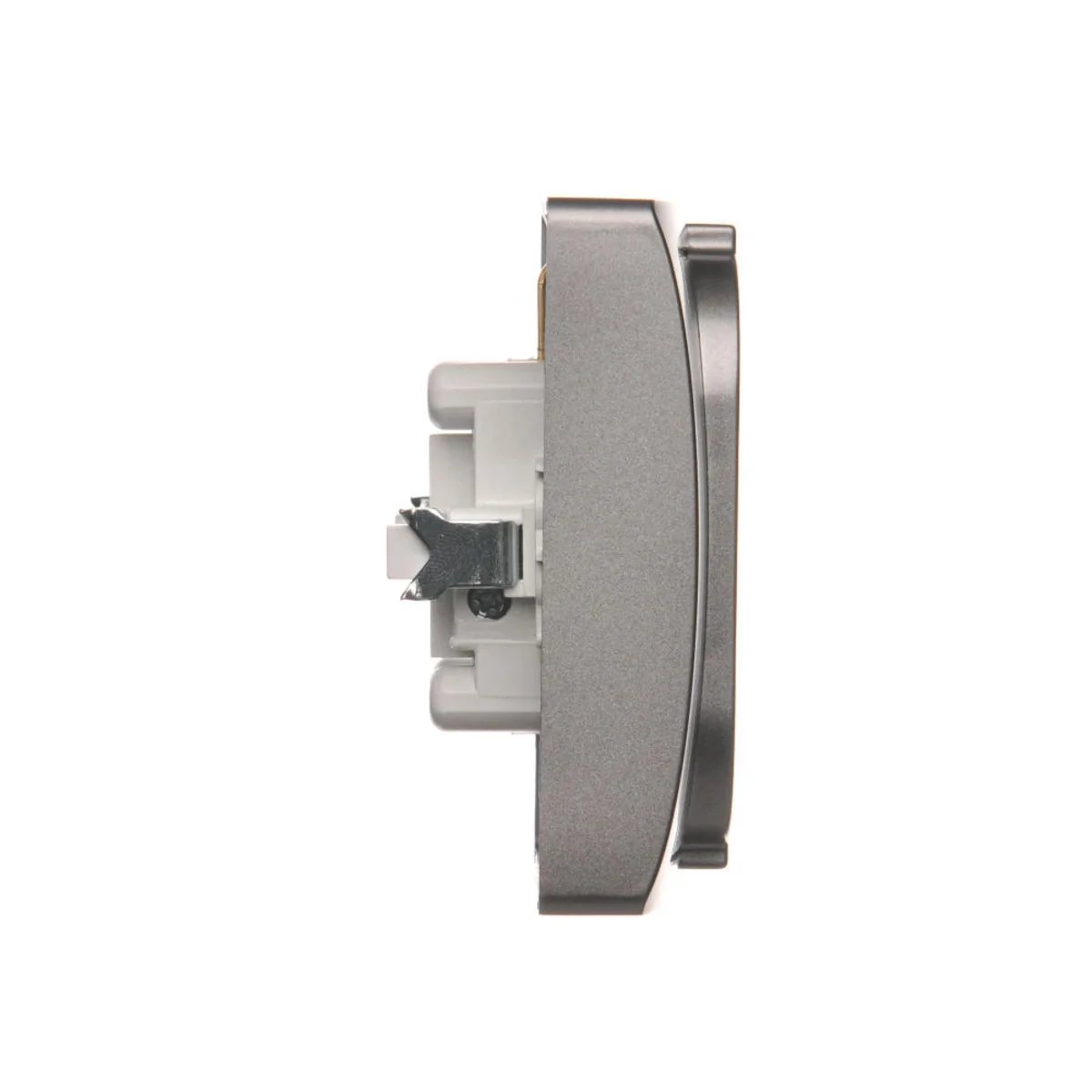

SIMON BASIC Socket with earthing Schuko double stainless steel BGSZ2/21

Índice local:
MEE112KONT
Número de catálogo:
BGSZ2/21
Código EAN:
5902787852627
Fabricante: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 47
Number of sockets: 2
Precio:
28,08 zł
gross / uds.
(IVA incluido 23%)
hasta 4 semanas
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir

Descripción del producto

Socket from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BGSZ2/21.



FEATURES

  • Double.
  • Schuko ground.
  • Screw terminals.
  • Complete product; with frame.
  • Color stainless steel.
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • Mounting flush.< /li>
  • Dimensions: 89.5 x 82 mm (H x W).
  • Made of PC.
< p>

SERIES DESCRIPTION

Functionality and classic look are the characteristic features of the Simon Basic series, which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Datos técnicos

  • Halogen free
    Yes
  • Number of sockets
    2
  • Shape
    Rectangular
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    89.5
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    NO
  • PKWIU
    27.33.13.0
  • Depth [mm]
    47
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SIMON BASIC
  • Width [mm]
    82
  • Ground
    schuko
  • Surface protection
    varnishing
  • Accurate color
    stainless steel
  • Mounting depth [mm]
    21
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    PC

Otros datos técnicos

  • Number of units
    2
  • Connection type
    Screwed terminal
  • Colour
    Grey
  • Type of fastening
    Other
  • Surface finishing
    Matt
  • Frequency
    50 ... 60 Hz
  • Number of modules (module system)
    1
  • With hinged lid
    No
  • Mounting method
    Flush-mounted
  • Surface protection
    Lacquered
  • Nominal voltage
    250 V

Detalles del fabricante

Empaquetado a granel

una especie de paquete Paczka Karton
Cantidad 1 uds. 10 uds.
Peso (kg) 0,093 -
Ancho (m) 0,110 0,190
Longitud (m) 0,052 0,290
Profundidad (m) 0,160 0,100
