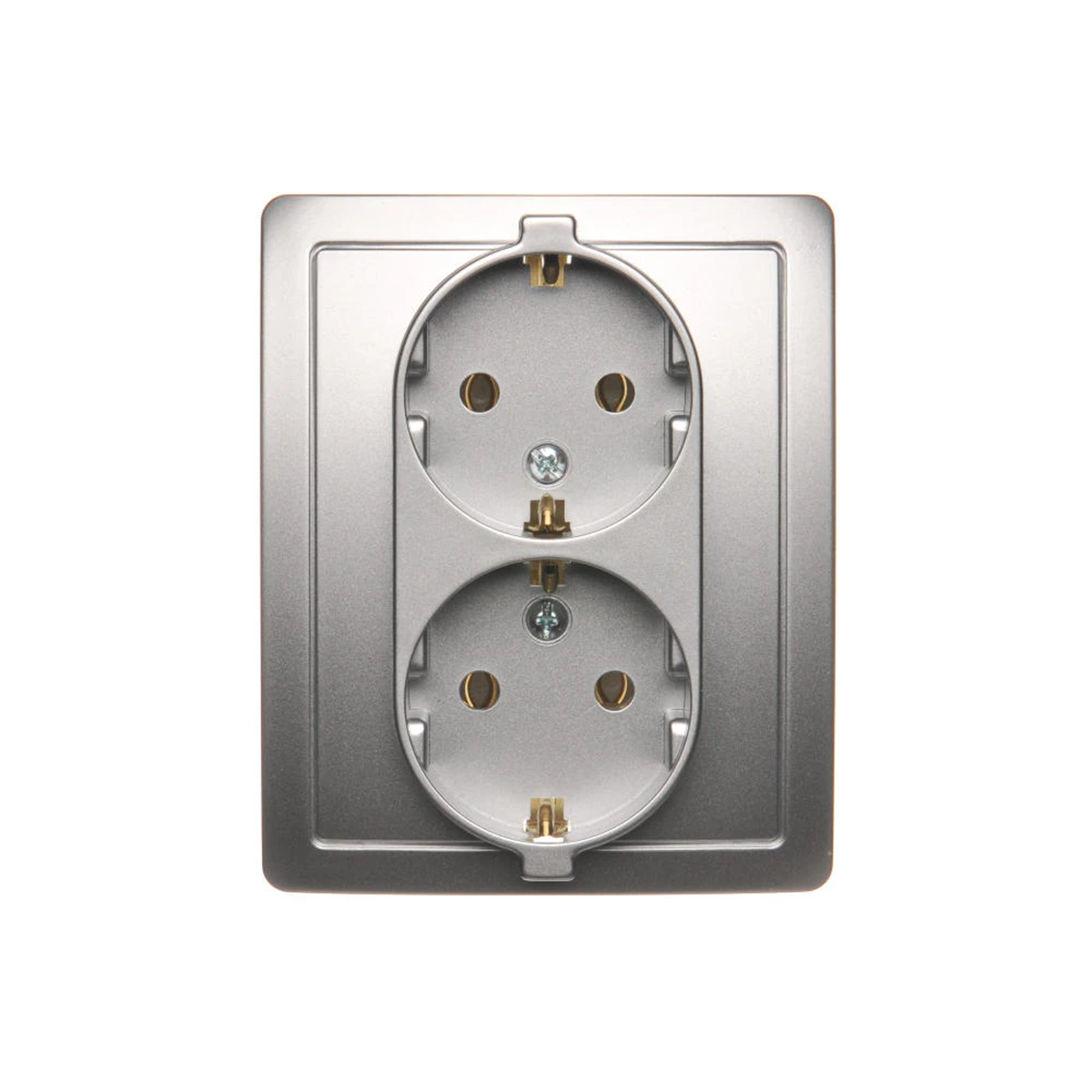

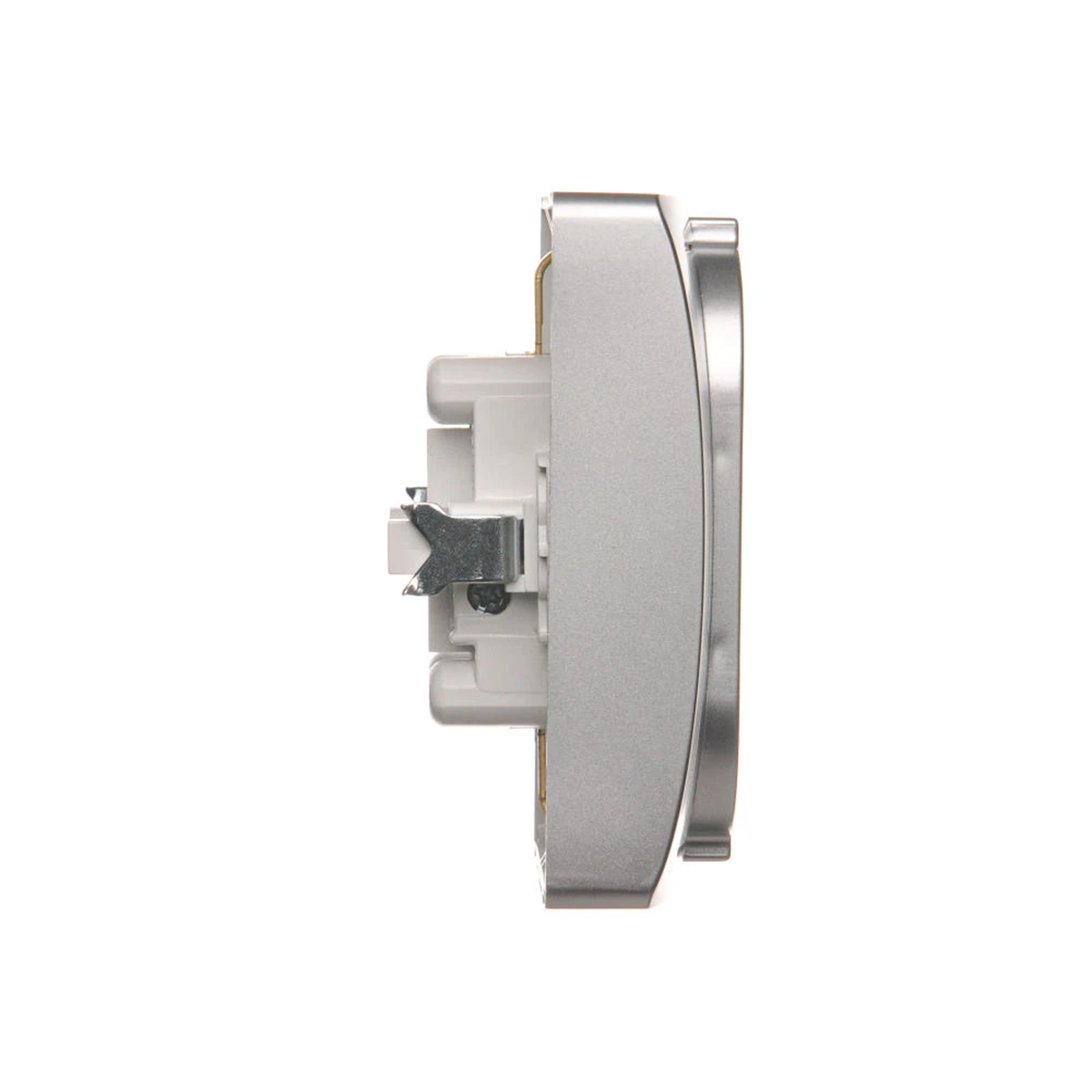

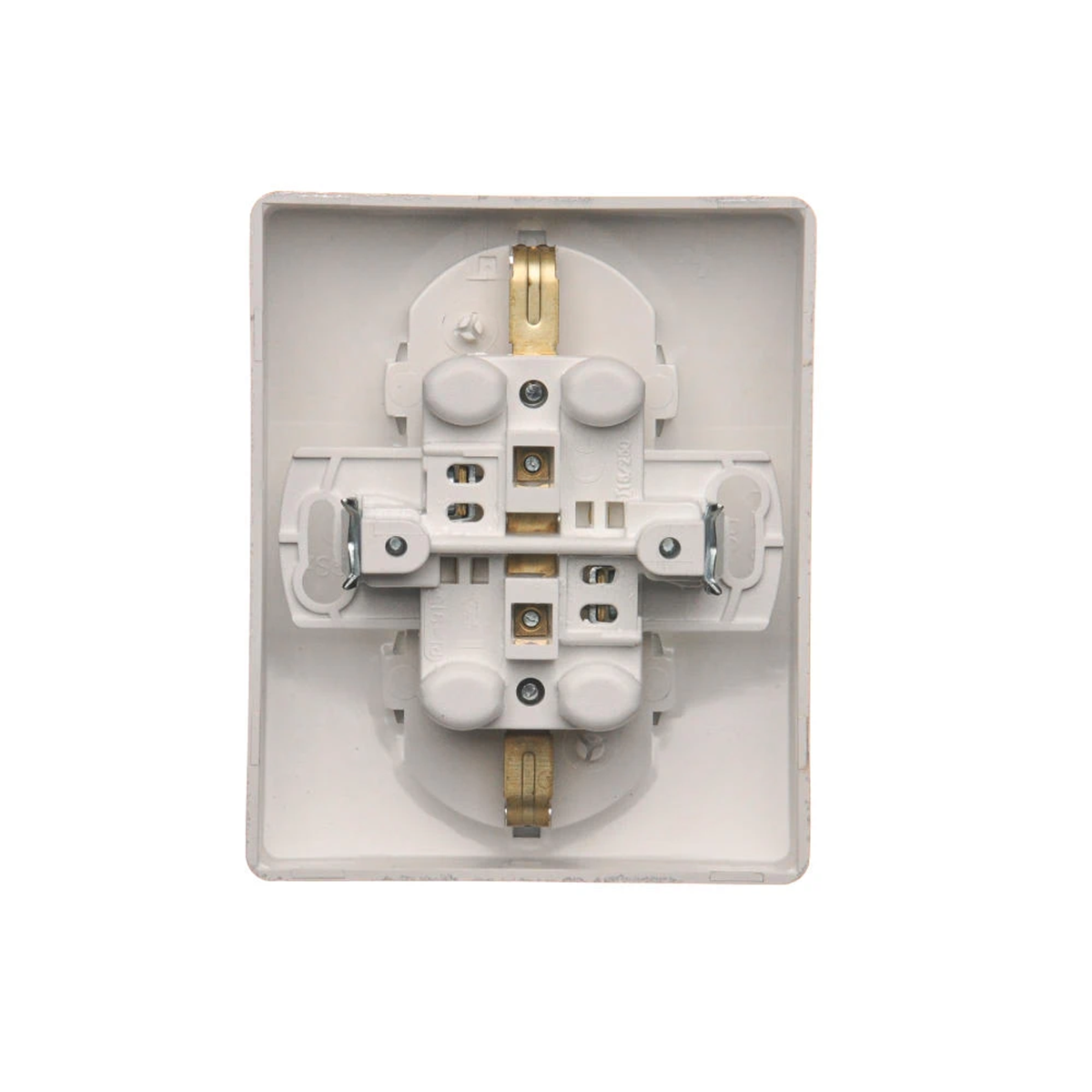

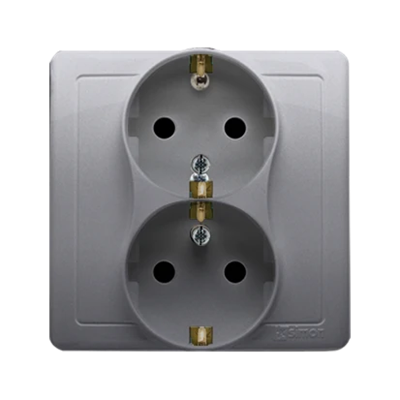

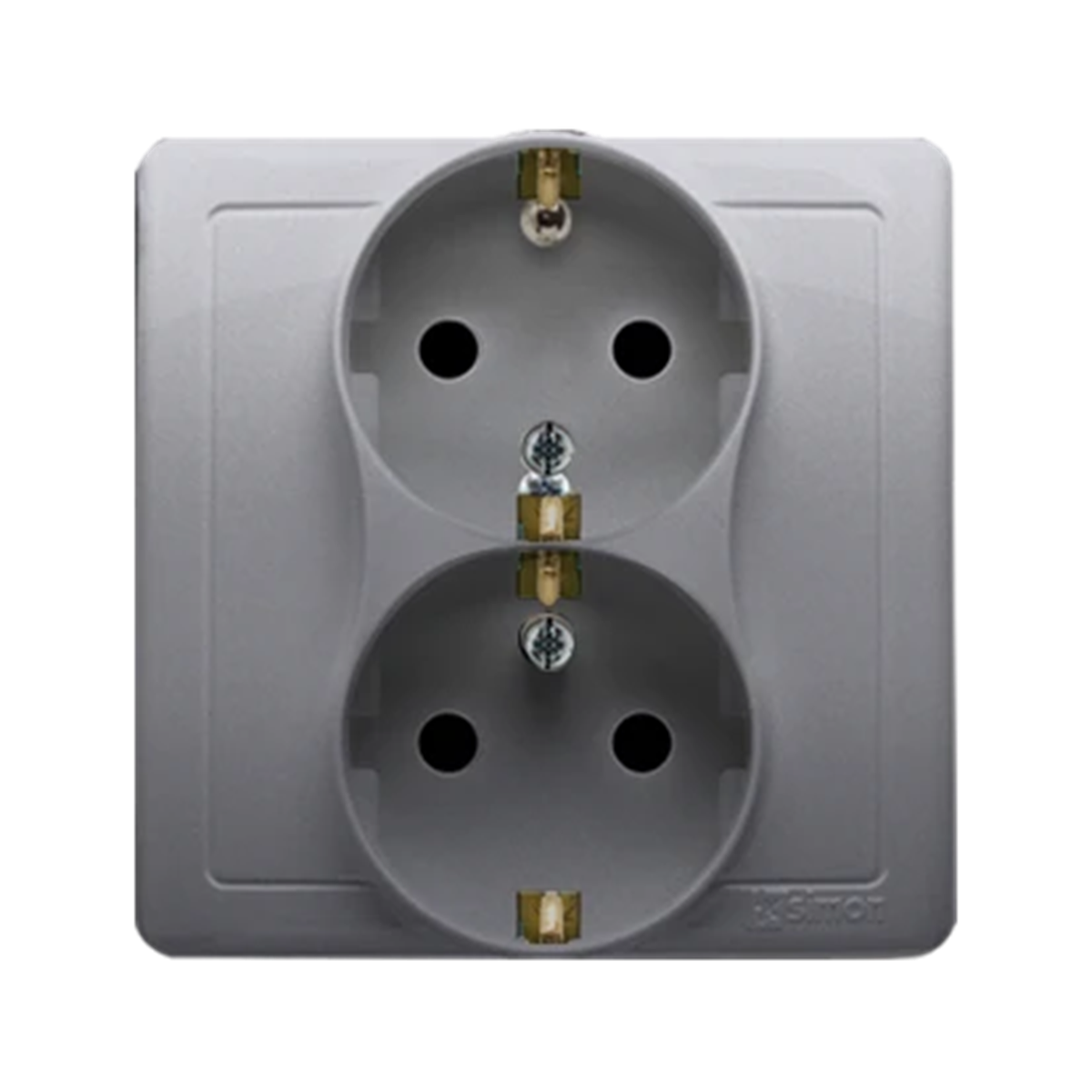

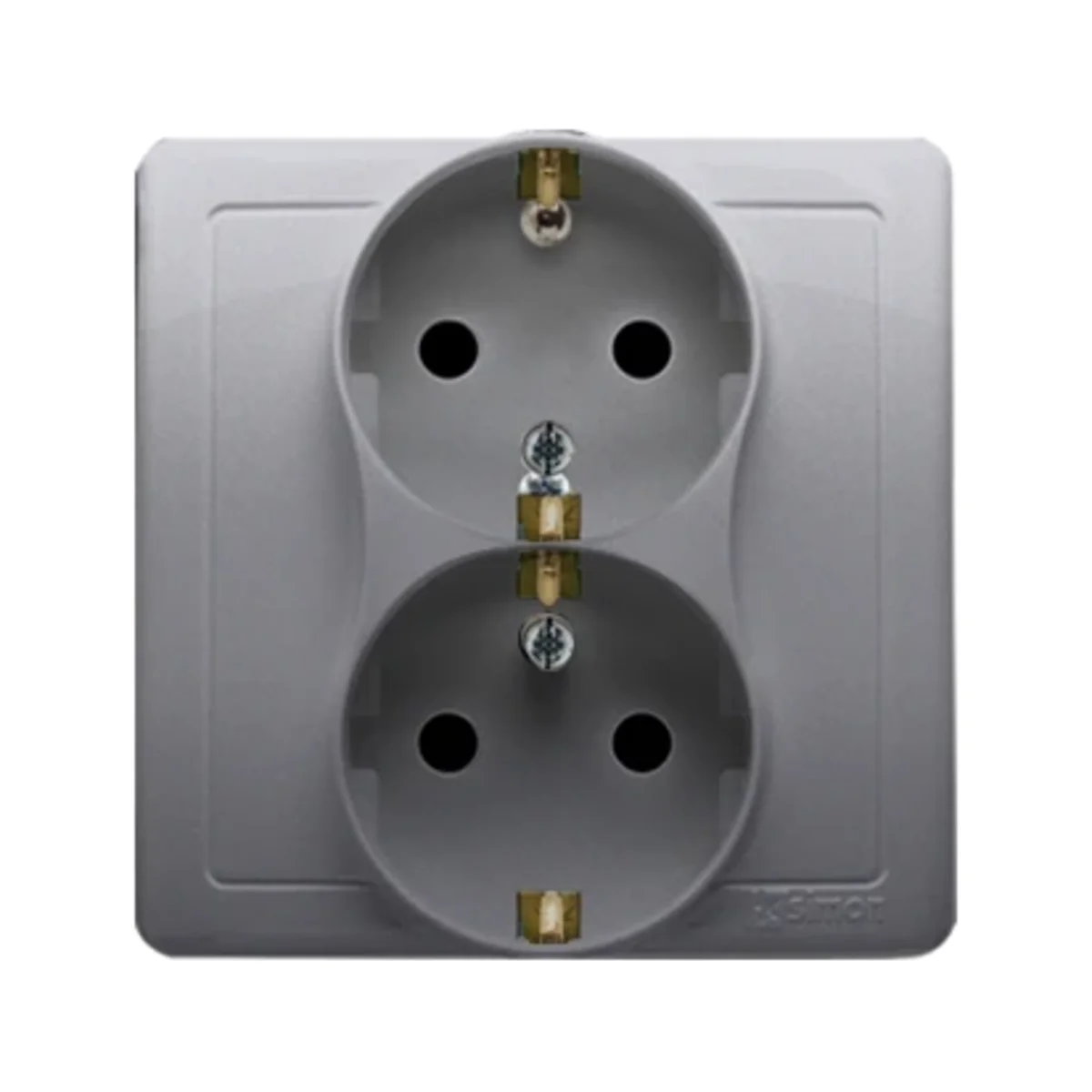

SIMON BASIC Socket with earthing Schuko double silver matt BGSZ2/43

local index:
MEE115KONT
Catalog No:
BGSZ2/43
EAN code:
5902787852641
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 47
Number of sockets: 2
Price:
5,77 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Socket from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BGSZ2/43.



FEATURES

  • Double.
  • Schuko ground.
  • Screw terminals.
  • Complete product; with a frame.
  • Color matt silver, metallic.
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • Mounting flush .
  • Dimensions: 89.5 x 82 mm (H x W).
  • Made of PC.



SERIES DESCRIPTION

Functionality and classic look are the hallmarks of the Simon Basic series, which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    2
  • Shape
    Rectangular
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    89.5
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    NO
  • PKWIU
    27.33.13.0
  • Depth [mm]
    47
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SIMON BASIC
  • Width [mm]
    82
  • Ground
    schuko
  • Surface protection
    varnishing
  • Accurate color
    Silver metallic matt
  • Mounting depth [mm]
    21
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    PC

Manufacturer details

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,093 0,093 -
Width (m) 0,090 0,110 0,190
Length (m) 0,082 0,052 0,290
Depth (m) 0,047 0,160 0,100
