SIMON BASIC Single socket outlet with earthing schuko white BMGSZ1.01/11

local index:
MEE172KONT
Catalog No:
BMGSZ1.01/11
EAN code:
5902787568092
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 42
Number of sockets: 1
Price:
3,22 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

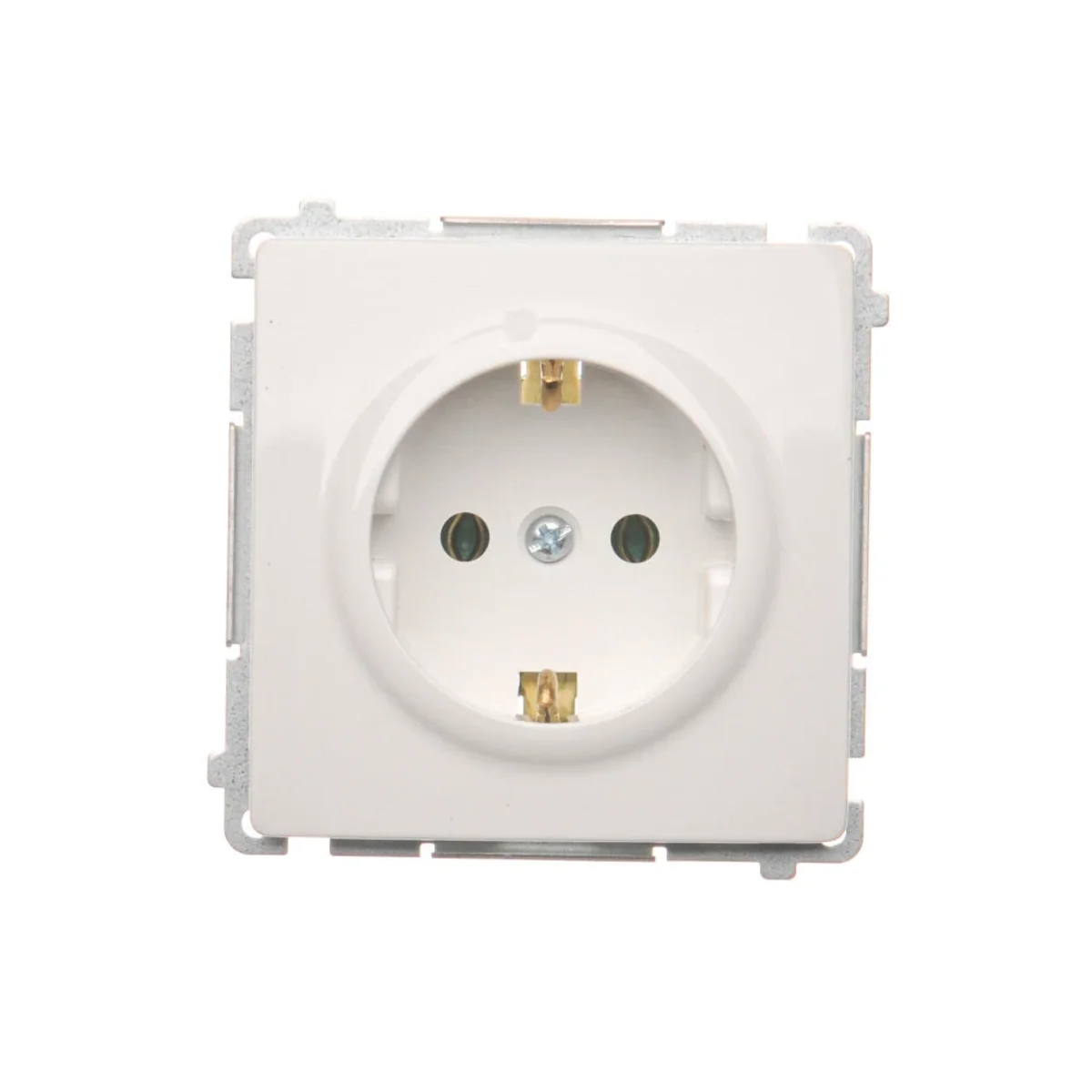

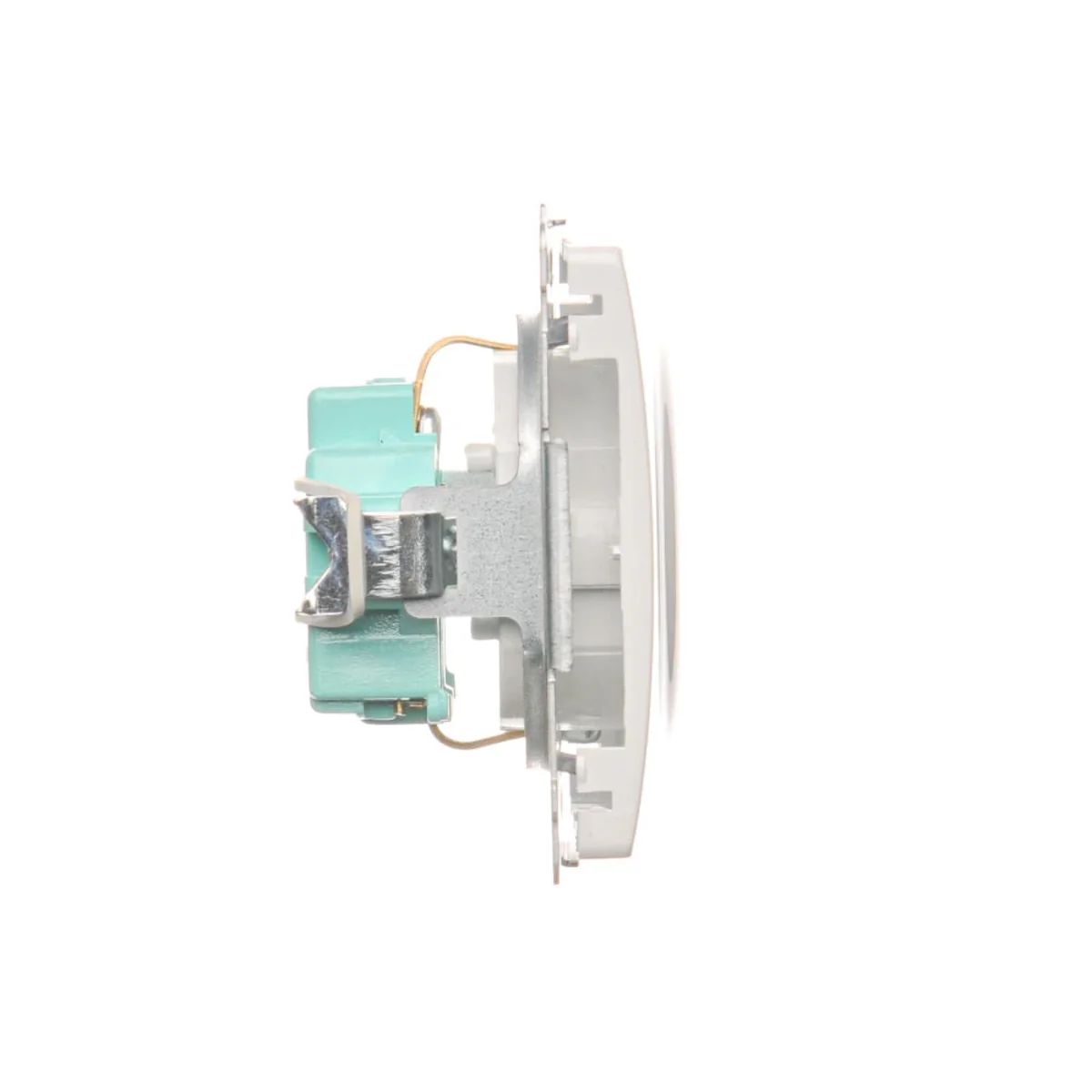

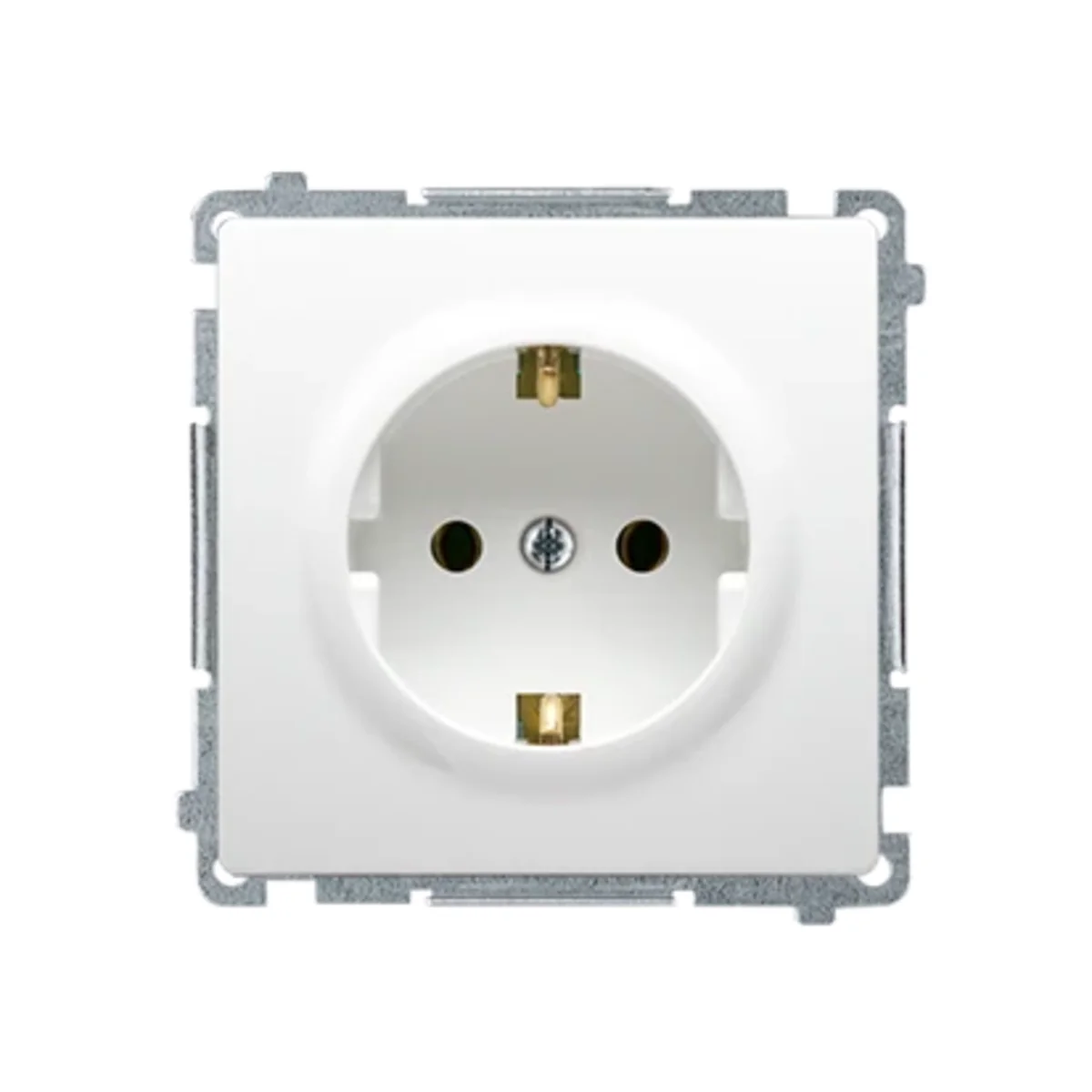

Socket from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BMGSZ1.01/11.



FEATURES

  • Single.
  • With Schuko earthing.

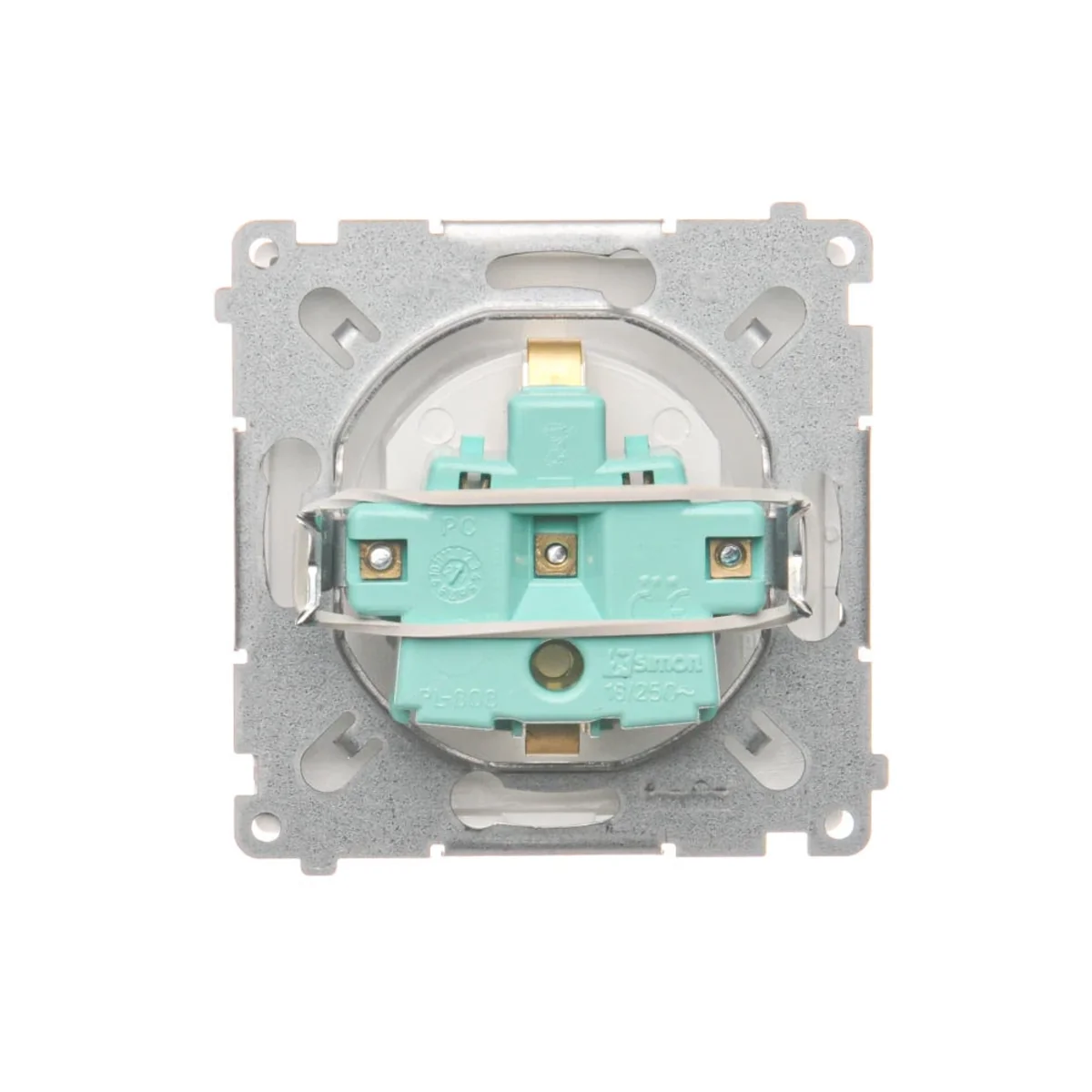

  • Screw terminals.
  • To be equipped with a frame .
  • Color white.
  • Rated current 16A.
  • Rated voltage 230V< /strong>.
  • Ingress protection IP20.
  • flush mounting.
  • Dimensions: 75 x 75 mm (H x W).
  • Made of PC.



SERIES DESCRIPTION

Functionality and classic look are the hallmarks of the Simon Basic series, which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    1
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    Shiny
  • Mounting depth [mm]
    27.5
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    PC
  • Depth [mm]
    42
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Ground
    schuko
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,072 0,072 0,805
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,047 0,230
Depth (m) 0,042 0,160 0,100
