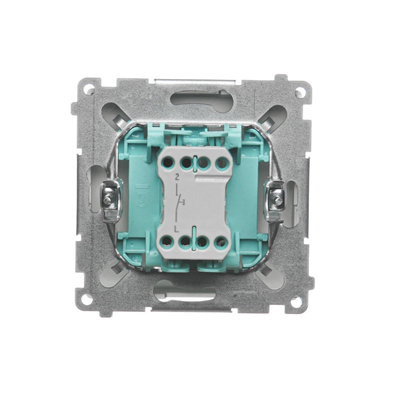

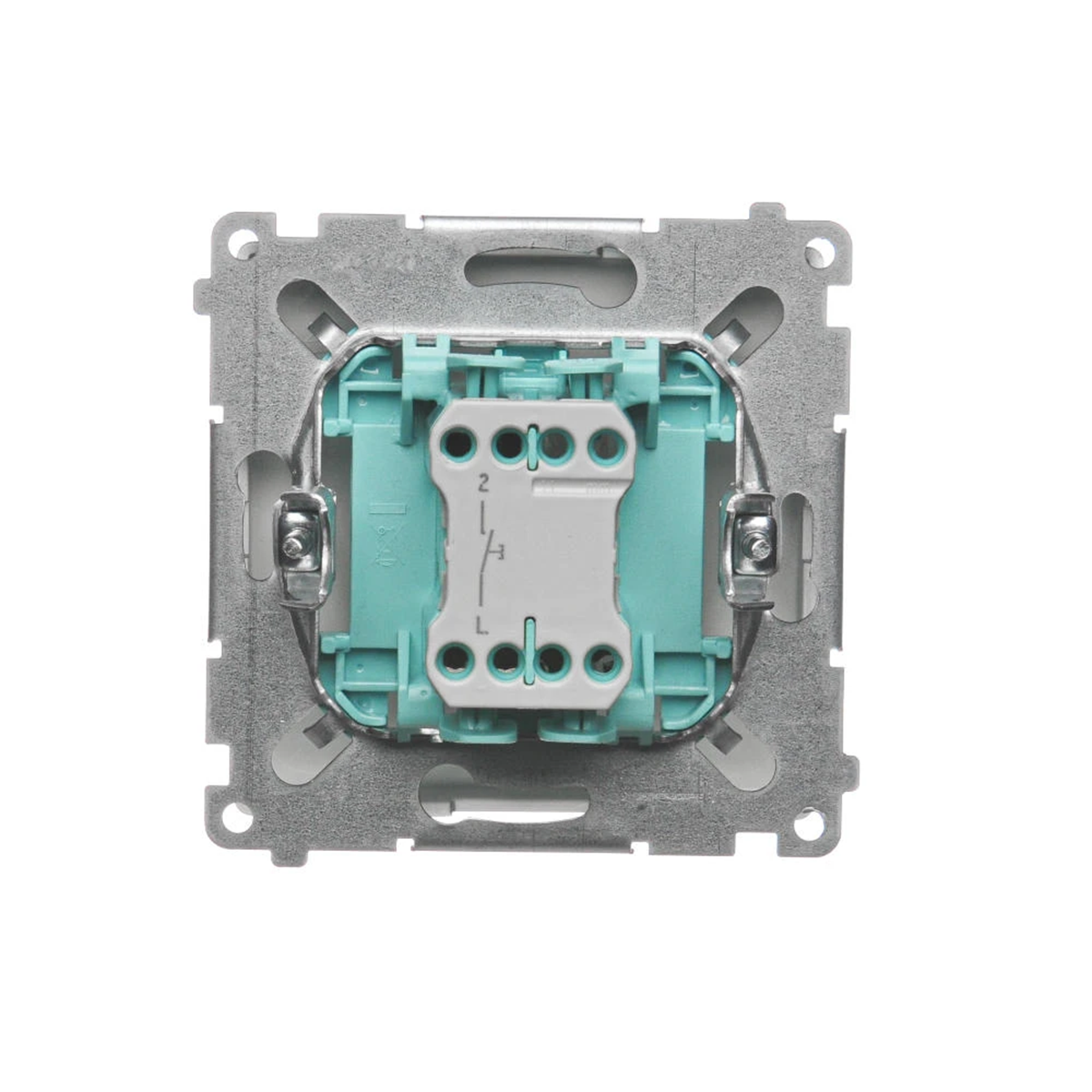

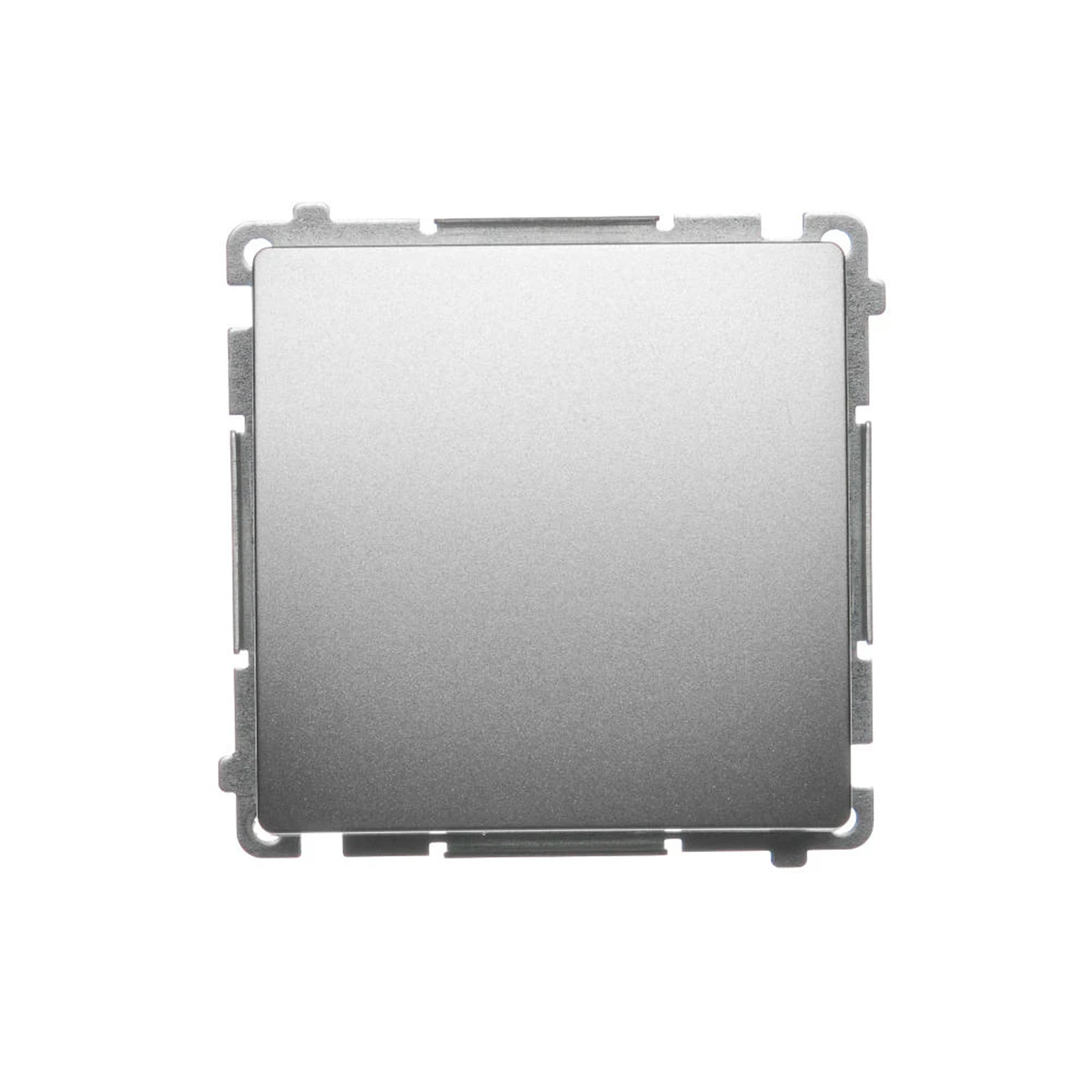

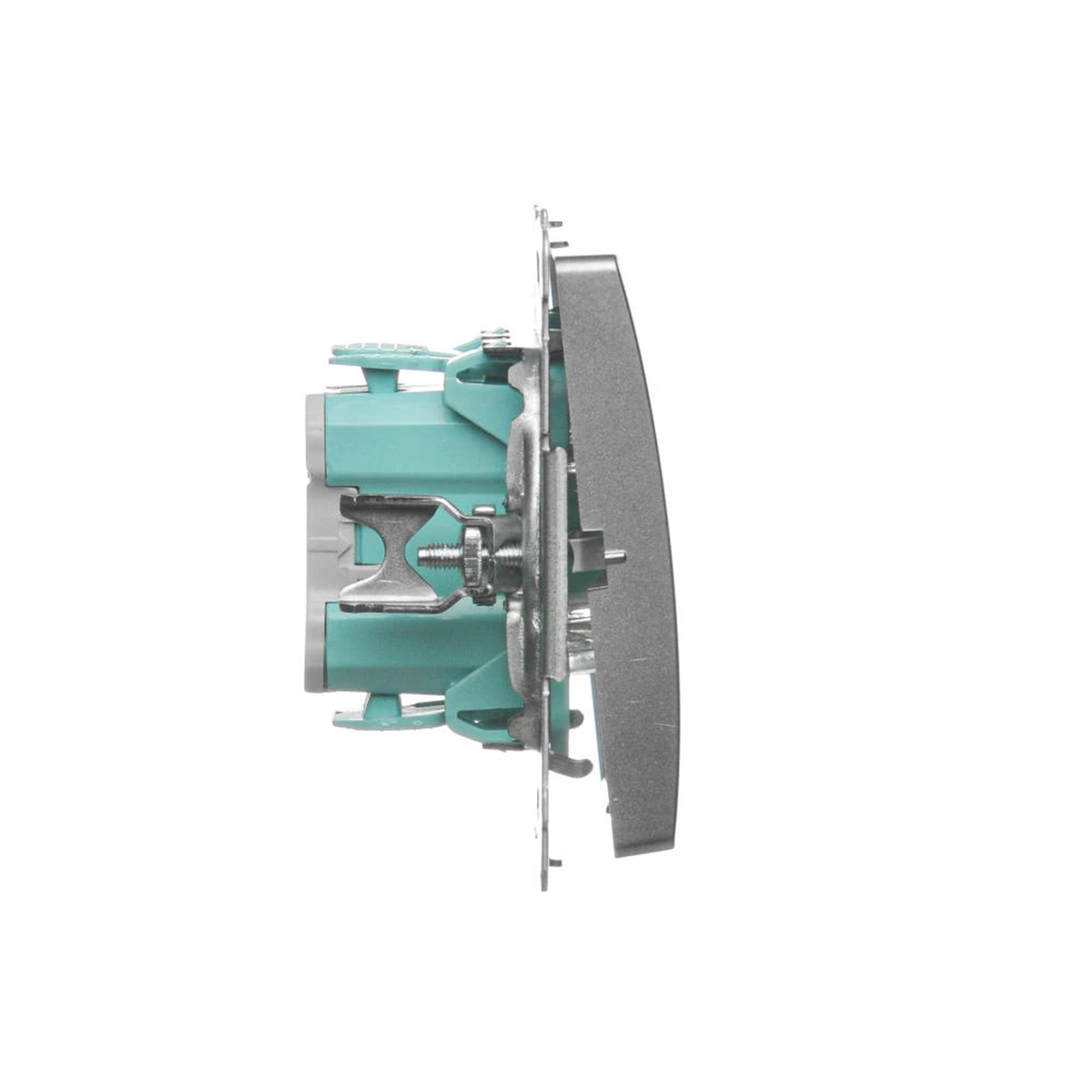

SIMON BASIC Single push-button without pictogram (module) 10AX 250V quick connectors satin metallized BMP1.01/29

Indeks lokalny:
MMZ043KONT
Nr katalogowy:
BMP1.01/29
Kod EAN:
5902787551902
Producent: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 41
Number of keys: 1
Cena:
6,53 €
gross / szt.
(w tym VAT 23%)
Dostawa do 3h
do 2 tygodni (dni robocze)
Odbiór za 1h
Ilość szt.
(wielokrotność:
1
)
Dodaj do schowka
Drukuj

Opis produktu

Single push button without pictogram,  Simon Basic, from the manufacturer Contact Simon. The product catalog number is < strong>BMP1.01/29. Satin, metallised colour.



FEATURES

  • Quick connectors.< /li>
  • To obtain the IP44 splash-proof class, use the IP44 NEOS frame: BMRC1B/..; BMRC2B/... or IP44 frame STANDARD: BMR1B/..; BMR2B/...; BMR3B/..



SERIES DESCRIPTION

Functionality and classic look are the hallmarks of the Simon Basic series which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Dane techniczne

  • Halogen free
    Yes
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0
  • Depth [mm]
    41
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Version
    Confident
  • Surface protection
    varnishing
  • Accurate color
    Satin metallic
  • Mounting depth [mm]
    24
  • Variant
    Ordinary
  • Exact material
    PC

Pozostałe dane techniczne

  • Assembly arrangement
    Basic element with central cover plate
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Nominal voltage
    250 V
  • Contacts
    1 make contact (NO)
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Suitable for degree of protection (IP)
    IP20

Dane producenta

Opakowania zbiorcze

Rodzaj opakowania Paczka Karton
Ilość 1 szt. 10 szt.
Waga (kg) 0,073 0,820
Szerokość (m) 0,110 0,190
Długość (m) 0,045 0,230
Głębokość (m) 0,160 0,100
