SIMON BASIC Regulator 1–10 V (module) for light sources 6A 230V inox BMS9V.01/21

Name: SIMON BASIC Regulator 1–10 V (module) for light sources 6A 230V inox
Brand: KONTAKT-SIMON
SKU: MMC003KONT
Price: 33.64 PLN

local index:

MMC003KONT

Catalog No:

BMS9V.01/21

EAN code:

5902787555894

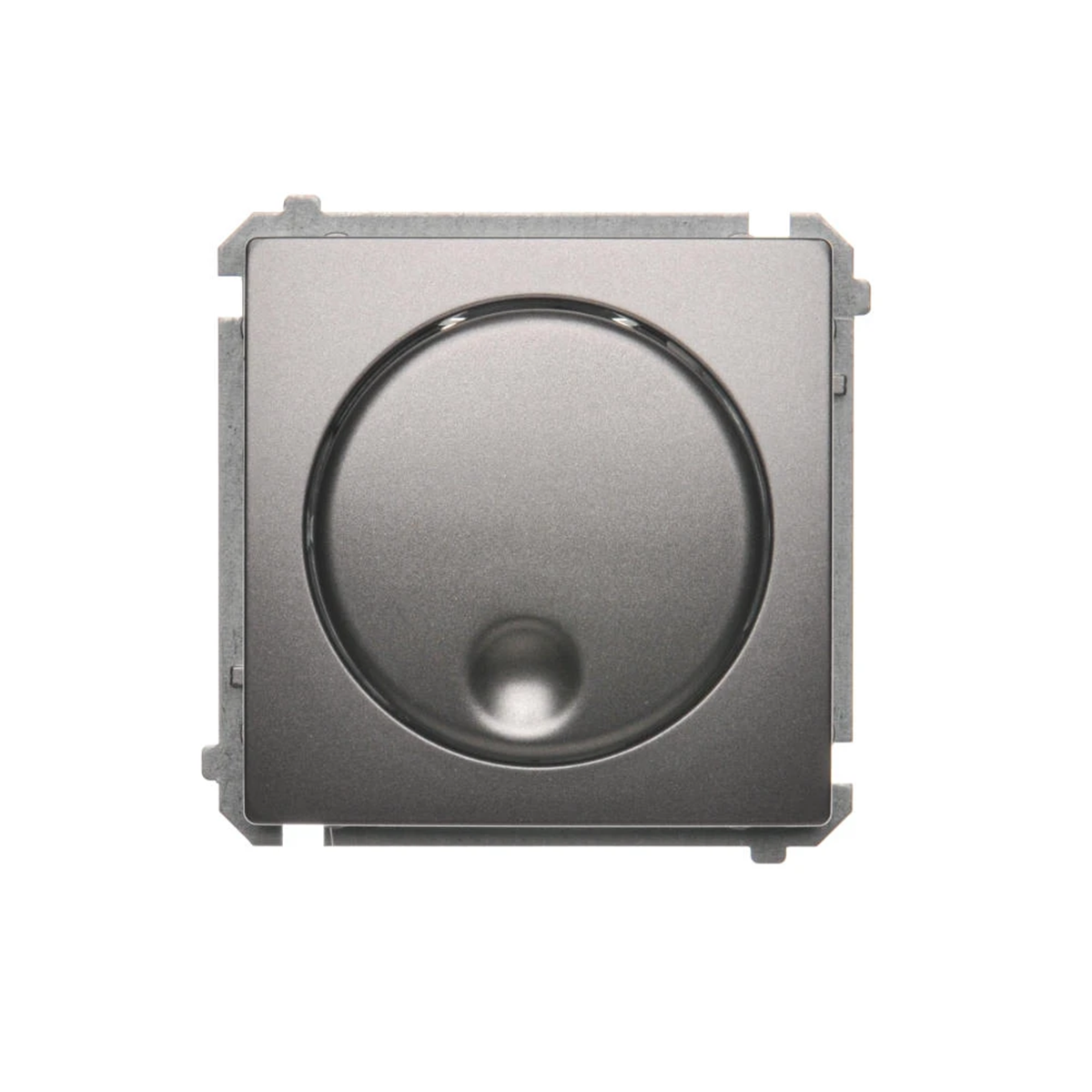

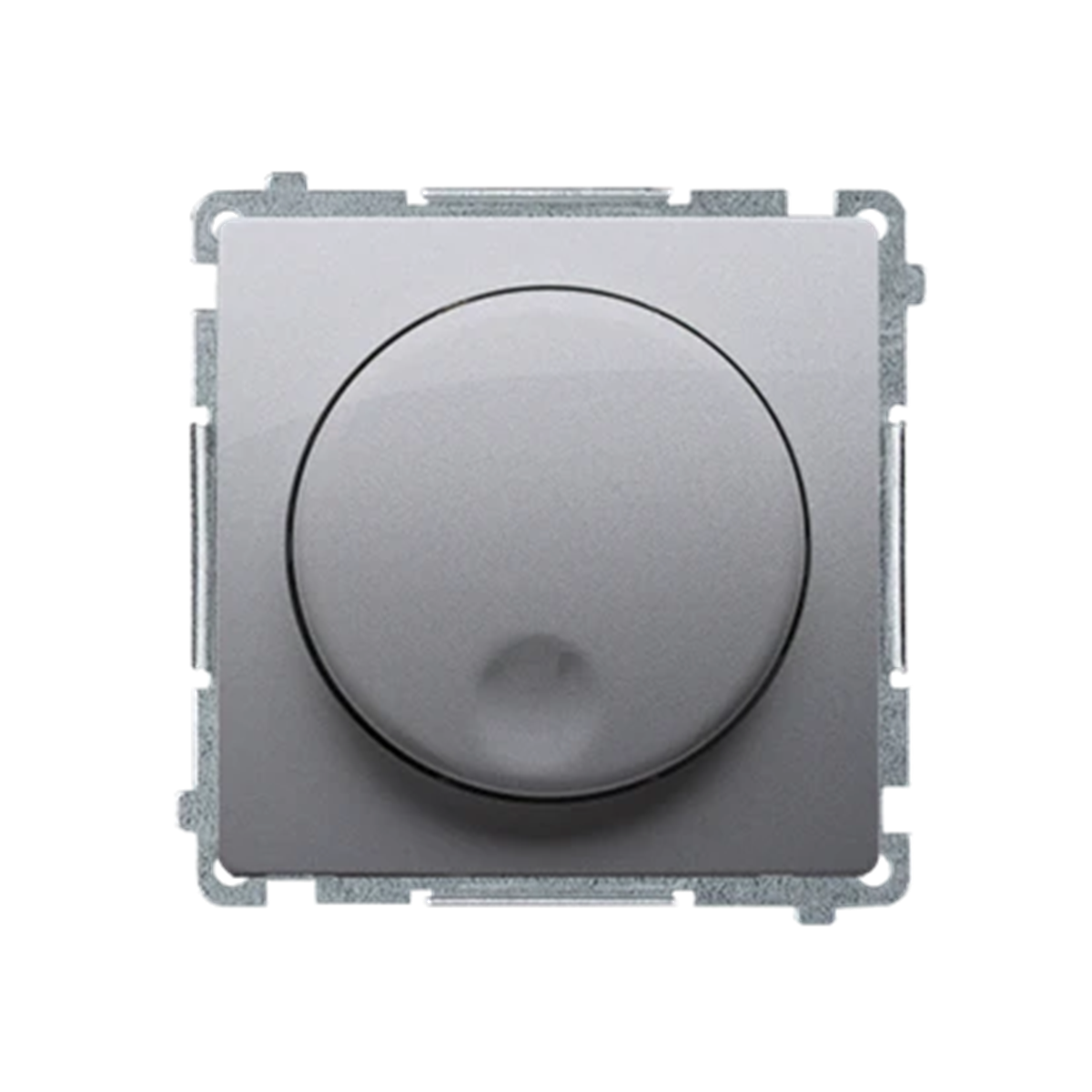

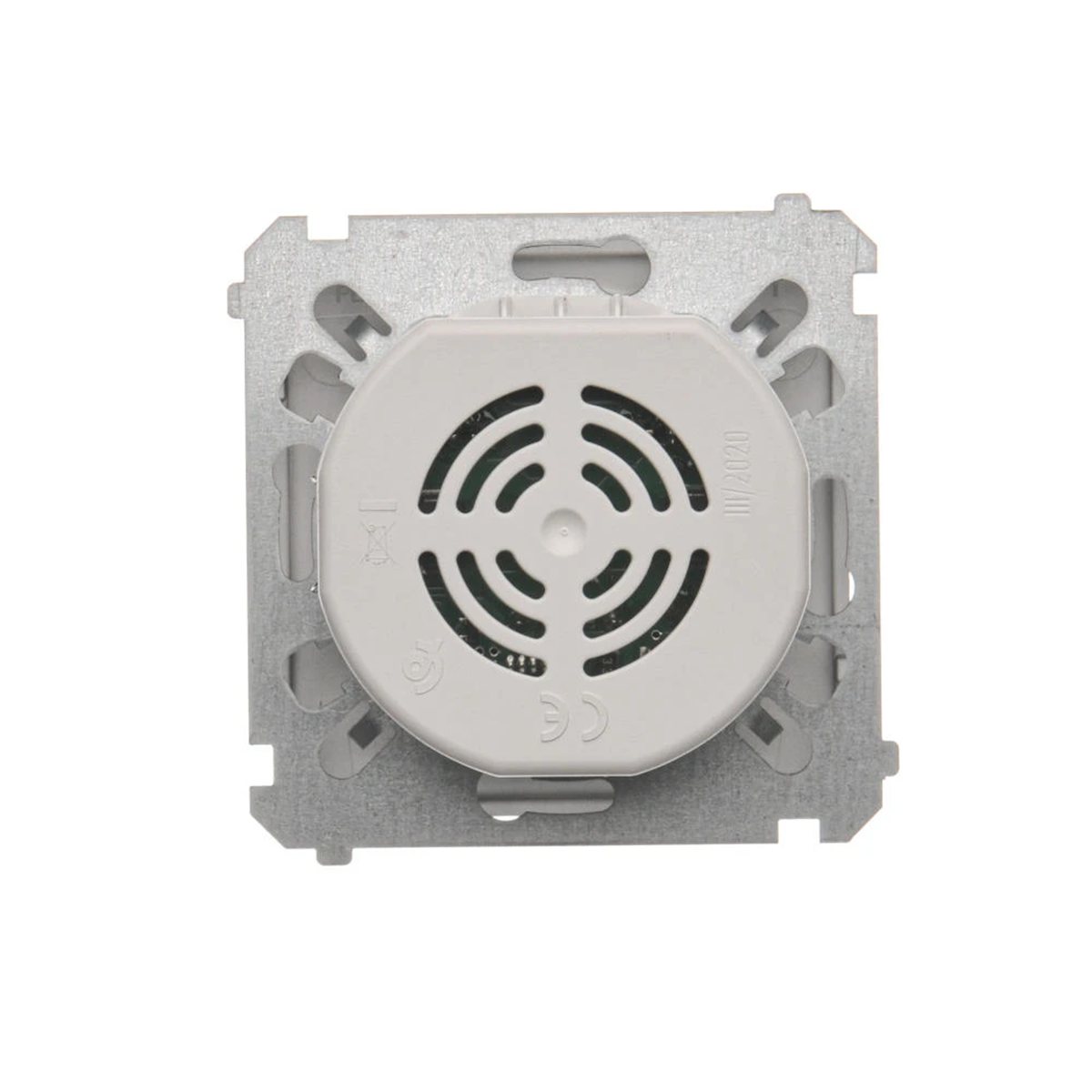

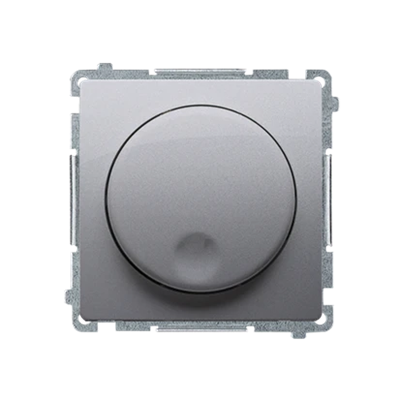

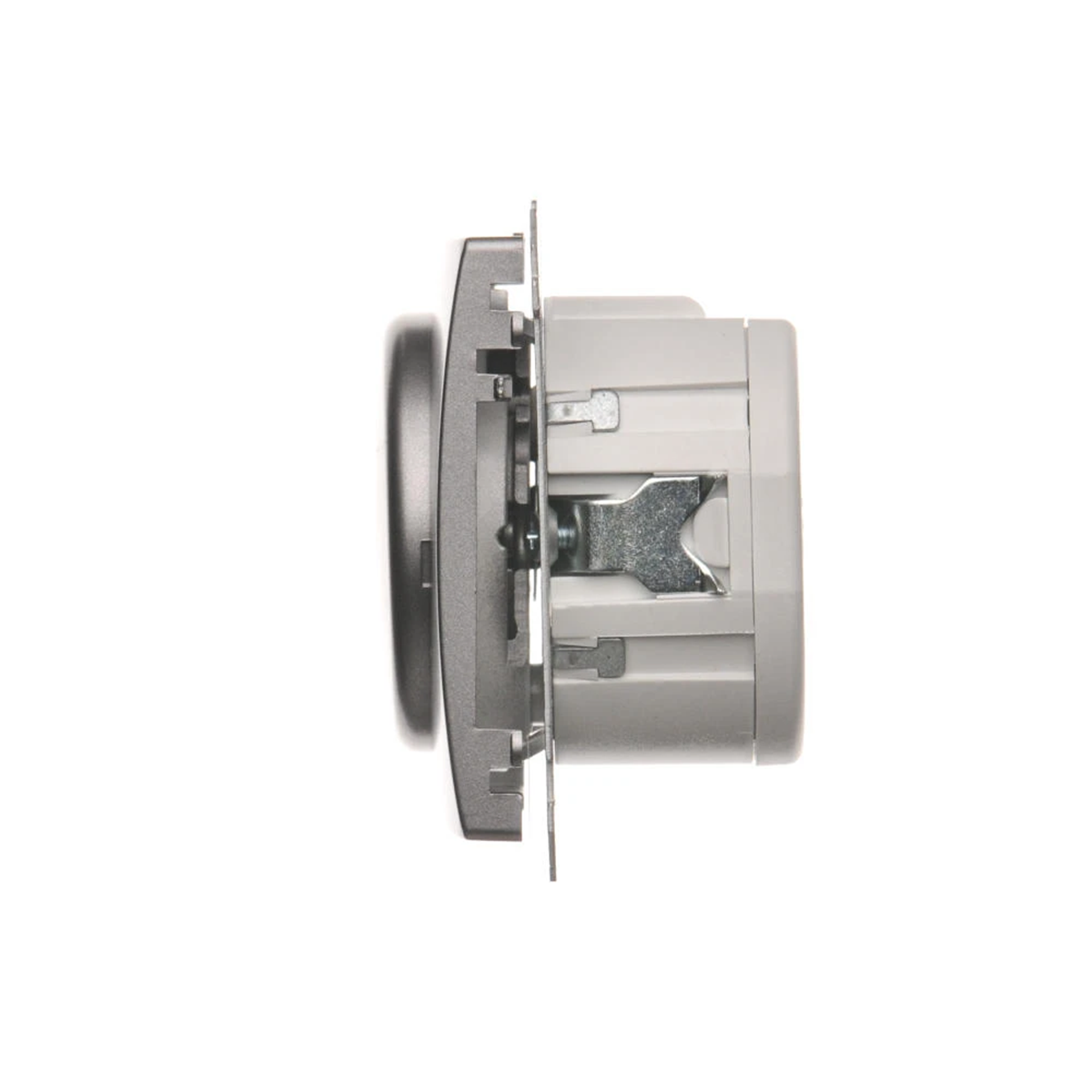

SIMON BASIC Regulator 1–10 V (module) for light sources 6A 230V inox

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 46

Number of keys: Knob | 1

See full description

Price:

33,64 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Regulator 1–10V from the Simon Basic series, from the manufacturer Contact Simon. The product catalog number is BMS9V.01/21.

FEATURES

Screw terminals.
With brightness level memory.
Type of dimming control: 1-10 V.
Operation: knob/button.
For light sources:
- LED via an additional dimmer 1-10V - YES,
- linear fluorescent lamp via an additional dimmable ballast 1-10V - YES,
- 12V halogen bulbs via an additional 1-10V dimmer - YES.

SERIES DESCRIPTION

< p>Simon Basic is a series of electrical accessories, which is based on a classic look and functionality. Regulator characterize the features of this unique series.

Technical data

Halogen free

Yes
Number of keys

Knob 1
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

dimmers
Level of security

IP20
Type

Flush-mounted
Height [mm]

75
Surface finish

matte
Backlight

NO
Terminal type

Threaded
For the frame system

Yes
PKWIU

27.33.11.0

Depth [mm]

46
Color

Silver
Material

Plastic
Installation

Flush-mounted
Rated current [A]

6
Family

SIMON BASIC
Width [mm]

75
Version

For halogen lighting For LED By additional dimmer
Surface protection

varnishing
Accurate color

Metallized stainless steel
Mounting depth [mm]

28
Variant

Rotary Button
Exact material

PC

Other technical data

Mounting method

Flush-mounted
Frequency

50 ... 50 Hz
Light value memory

Yes
Applicable with movement sensor

No
Applicable with time switch/timer

No
Applicable with infrared button

No

Nominal voltage

230 V
Substation input

No
Applicable with button

No
Applicable with presence indicator

No
Applicable with transmission button

No

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,108	0,108	1,169
Width (m)	0,075	0,087	0,190
Length (m)	0,075	0,055	0,230
Depth (m)	0,046	0,085	0,100
