SIMON BASIC RD/TV/SAT pass-through antenna socket white BMZAR-SAT10/P.01/11

Name: SIMON BASIC RD/TV/SAT pass-through antenna socket white
Brand: KONTAKT-SIMON
SKU: MEA235KONT
Price: 29.99 PLN

local index:

MEA235KONT

Catalog No:

BMZAR-SAT10/P.01/11

EAN code:

5902787585679

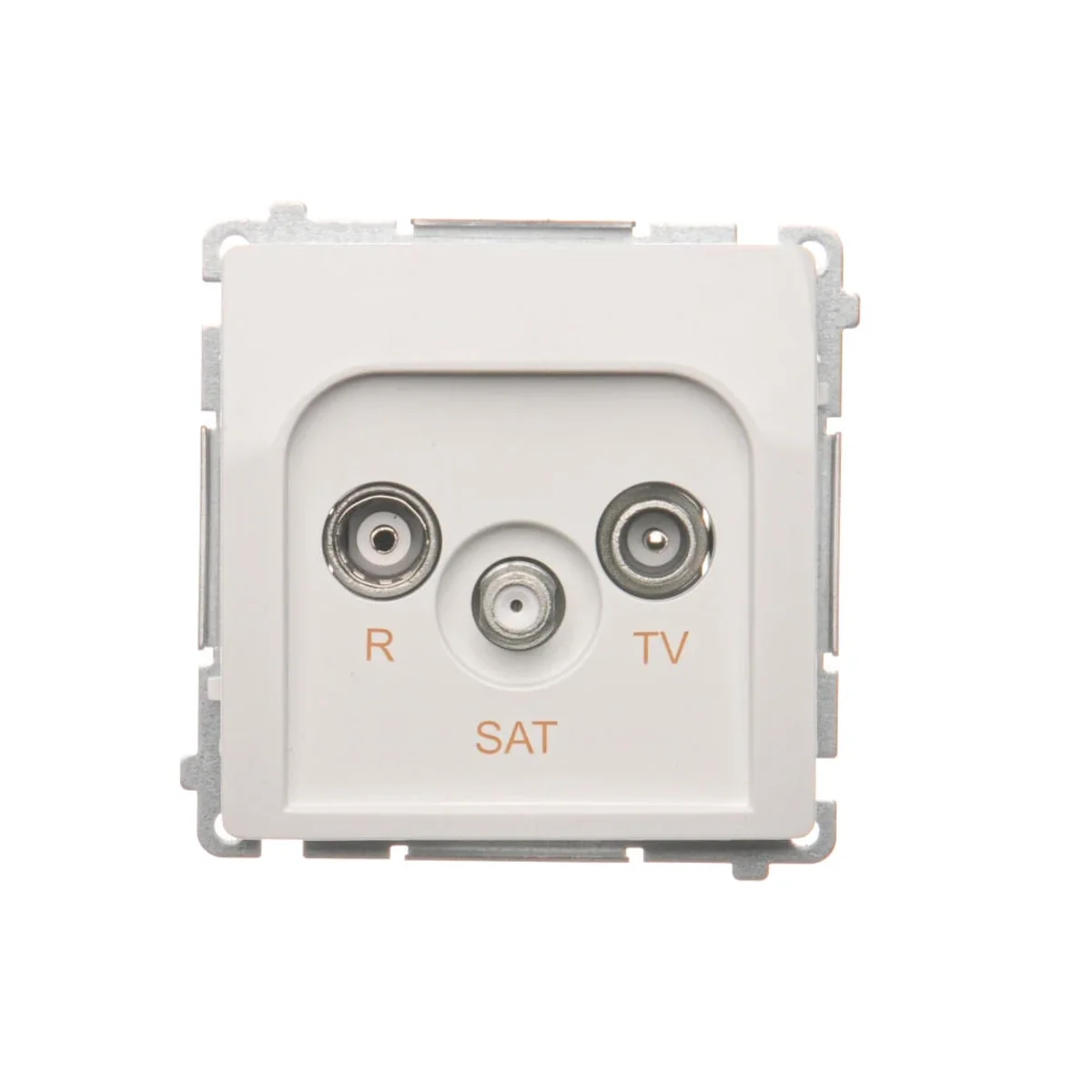

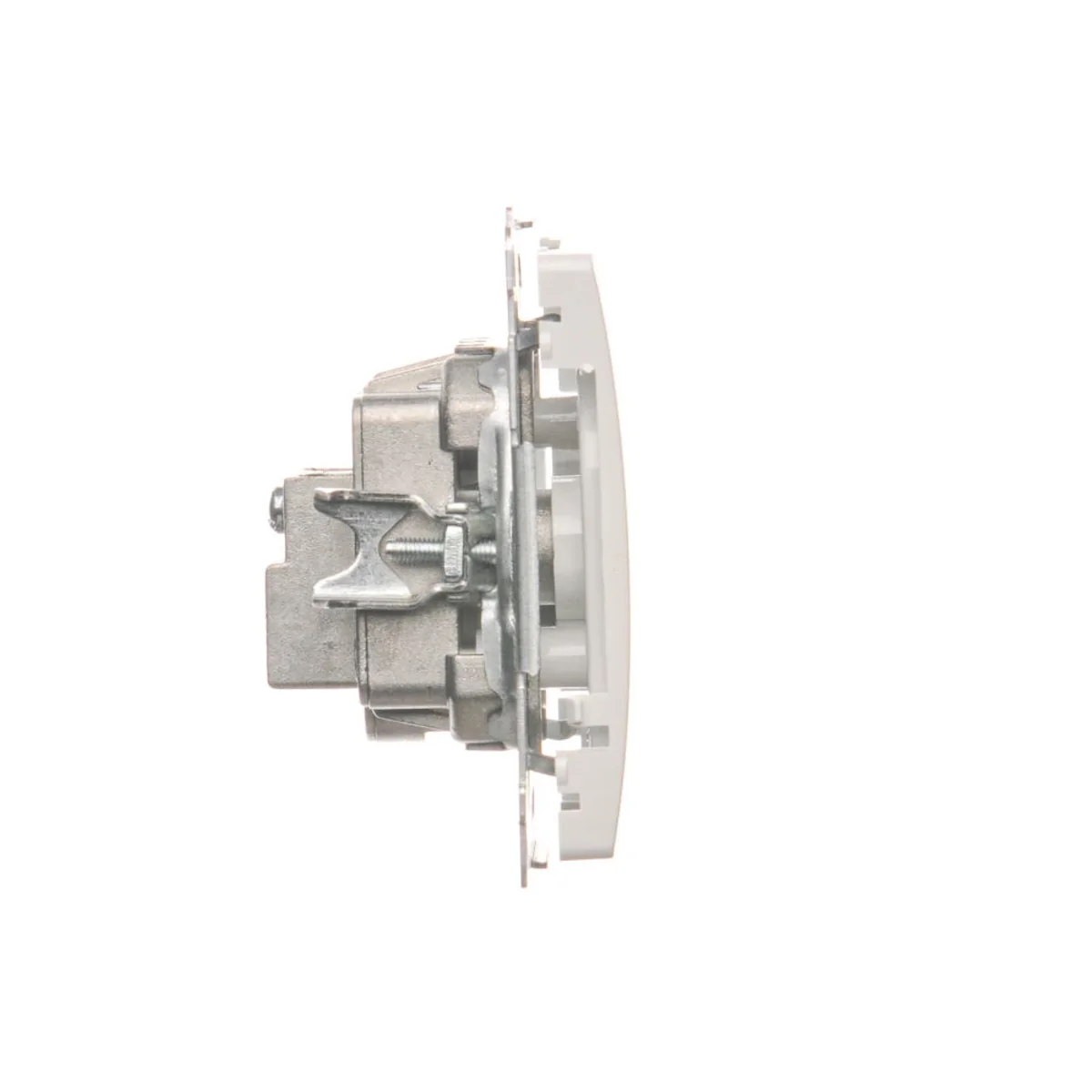

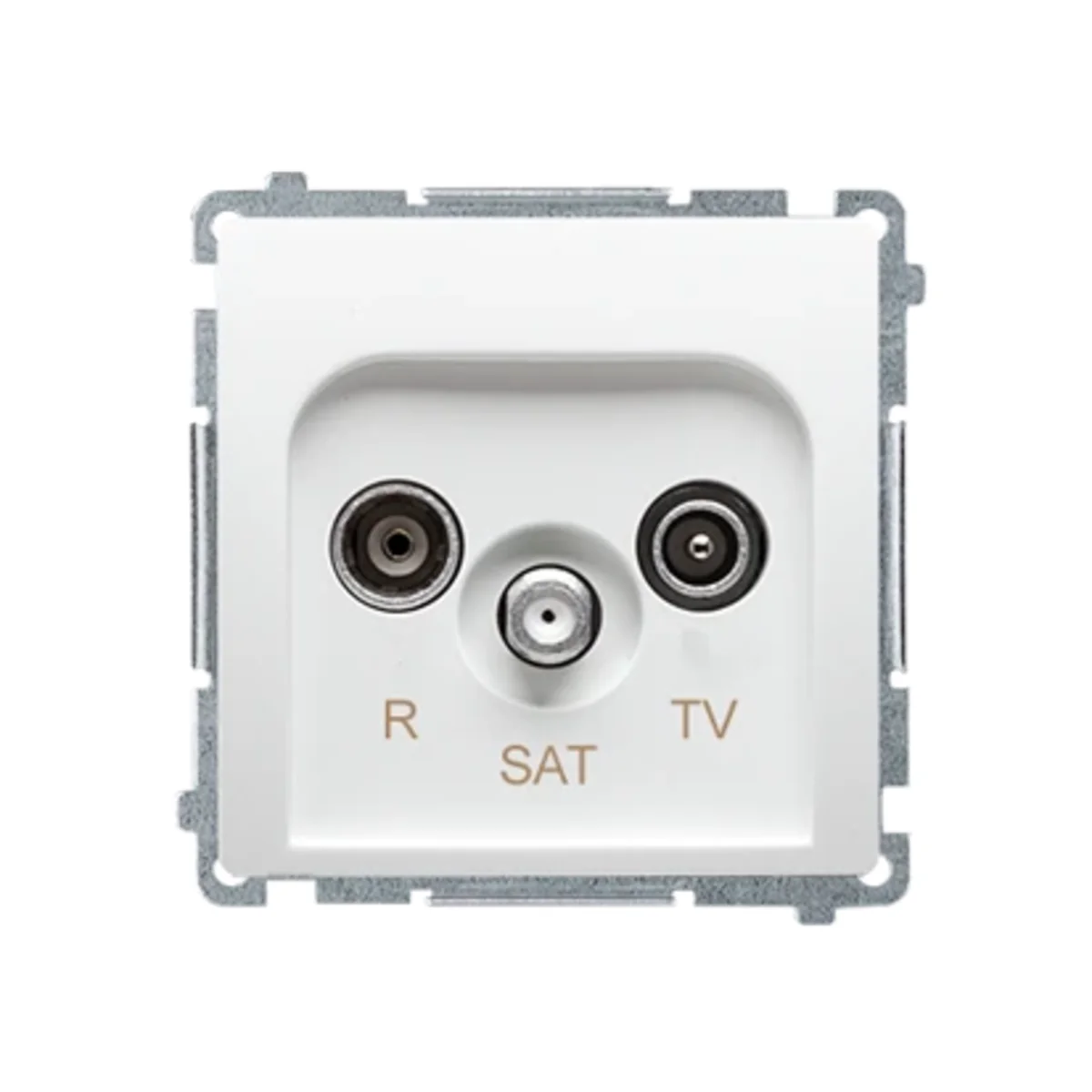

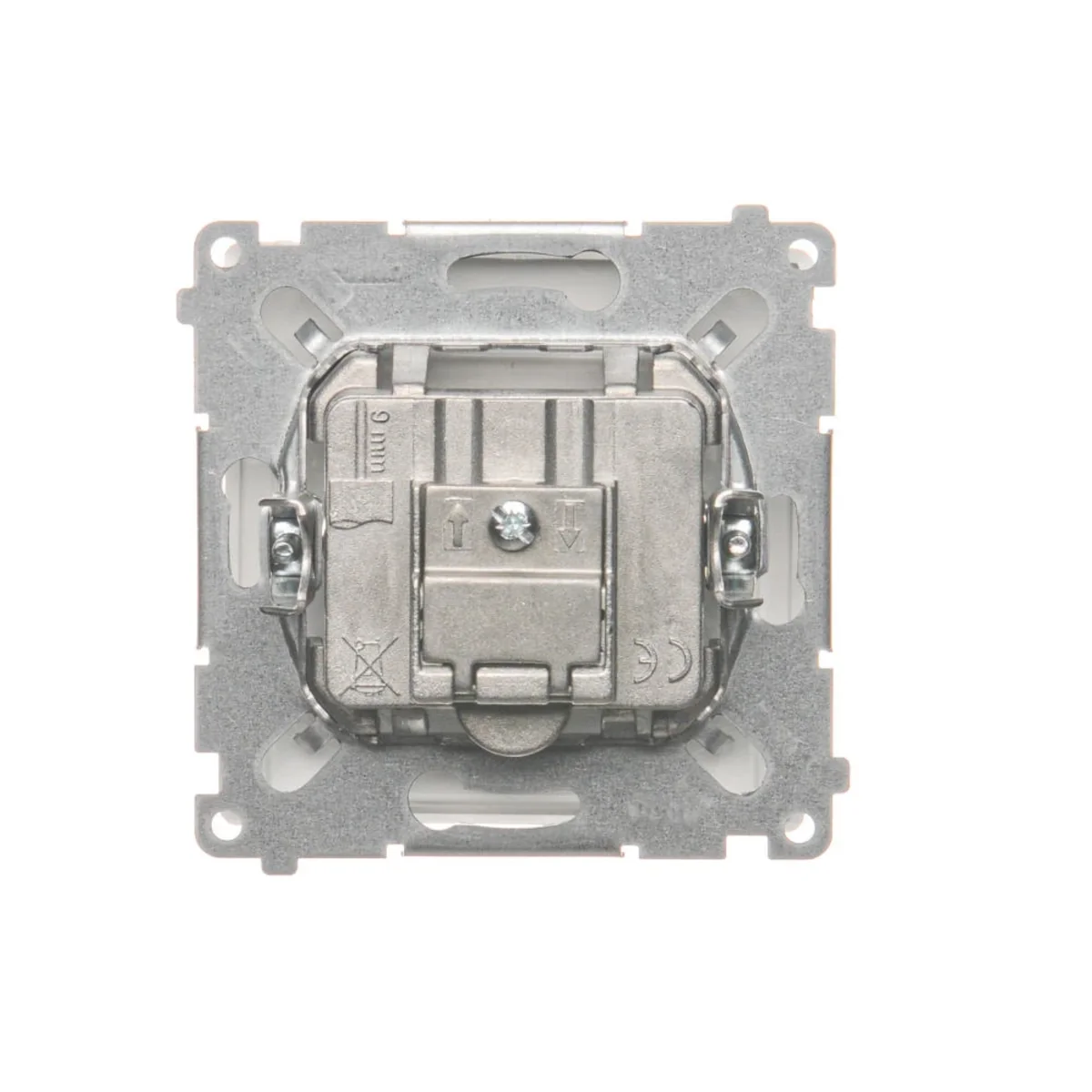

SIMON BASIC RD/TV/SAT pass-through antenna socket white

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of sockets: 3

See full description

Price:

29,99 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Antenna socket from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BMZAR-SAT10/P.01/11.

FEATURES

R-TV-SAT.
Through-through.
Module without frame.
Color white .

SERIES DESCRIPTION

Simon Basic is a series of electrical accessories which ra is based on a classic look and functionality. The antenna socket has all the features of this unique series.

Technical data

Halogen free

Yes
Number of sockets

3
Shape

Square
Fixing

claws Screws
Overprint

Yes
Family

SIMON BASIC
Width [mm]

75
Type

Flush-mounted
Height [mm]

75
Frequency Range [MHz]

5-2400
Backlight

NO
Terminal type

Threaded
F-type input

NO
Exact material

PC

Depth [mm]

41
Color

White
Material

Plastic
Installation

Flush-mounted
Type

Antenna
Level of security

IP20
Attenuation [dB]

Connections for 860 MHz: 10 Passthroughs for 860 MHz: 4 Connections for 2150 MHz: 8 Passthrough for 2400 MHz: 6
Version

through
Surface protection

Natural
Surface finish

Shiny
Mounting depth [mm]

29
Variant

R TV sat
For the frame system

Yes
PKWIU

27.33.13.0

Other technical data

Model

Loop-through socket
Tap loss at 2150 MHz

8 dB
Through loss at 860 MHz

4 dB
Suitable for remote power supply

Yes

Tap loss at 860 MHz

10 dB
Number of outlets

3
Through loss at 2150 MHz

6 dB
Frequency

5 ... 2400 MHz

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,120	0,120	1,285
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,046	0,230
Depth (m)	0,041	0,160	0,100
