SIMON BASIC Momentary shutter switch with a key, 3-position "I-0-II" 2 N/O contacts, silver matt BMPZK.01/43

Name: SIMON BASIC Momentary shutter switch with a key, 3-position \"I-0-II\" 2 N/O contacts, silver matt
Brand: KONTAKT-SIMON
SKU: MMO023KONT
Price: 98.98 PLN

local index:

MMO023KONT

Catalog No:

BMPZK.01/43

EAN code:

5902787843694

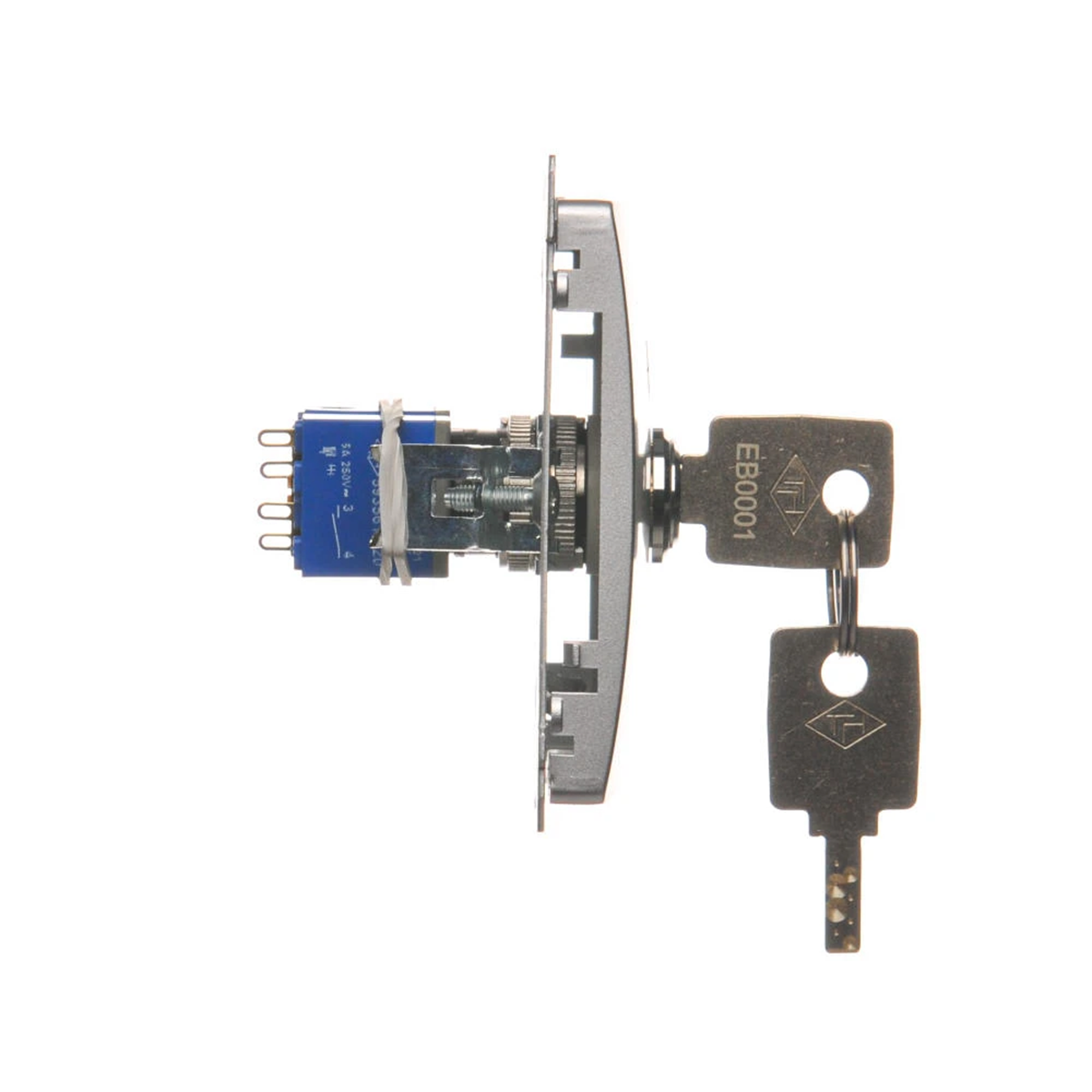

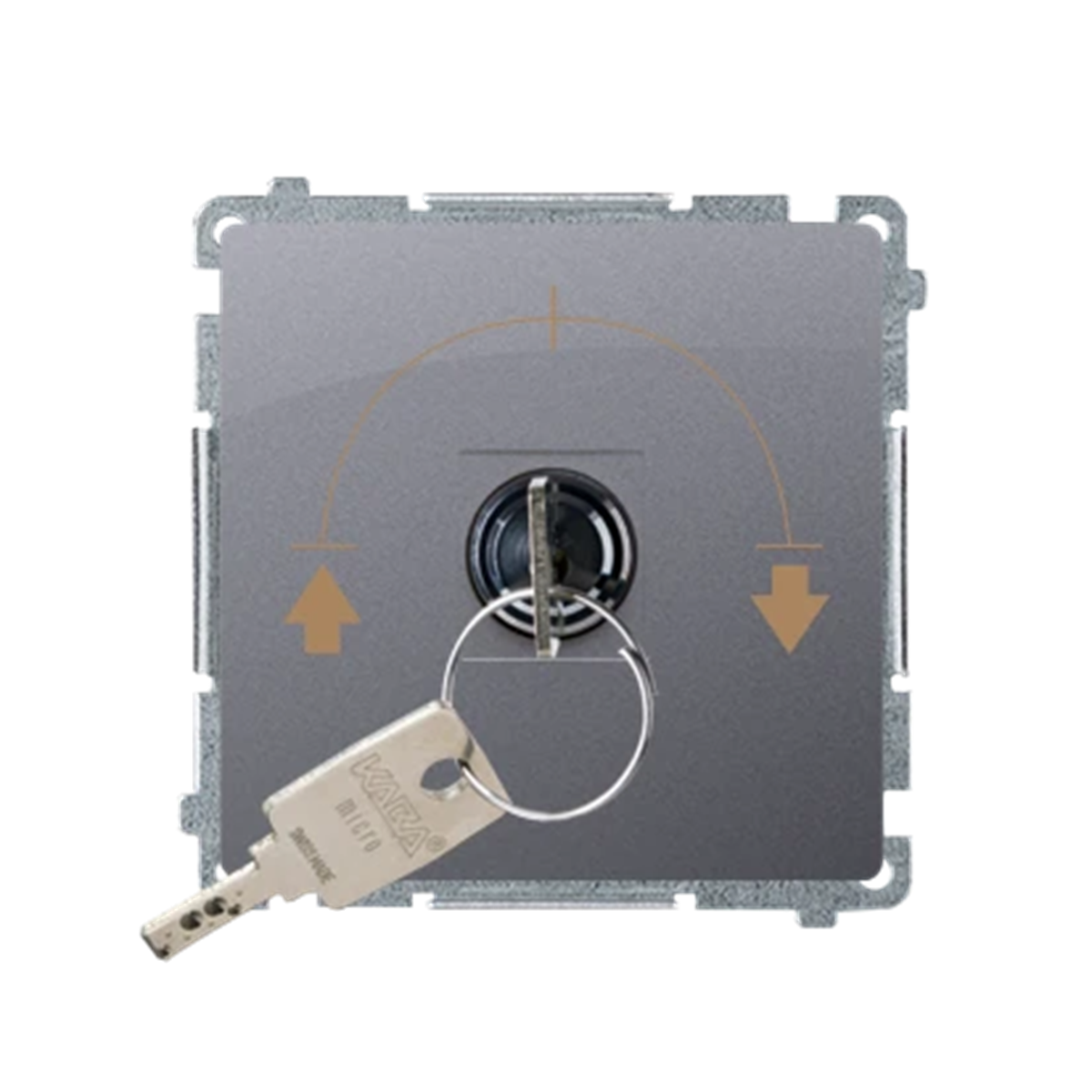

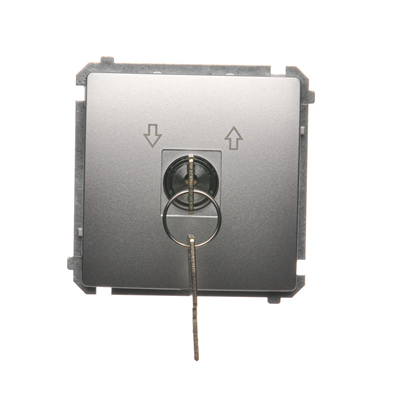

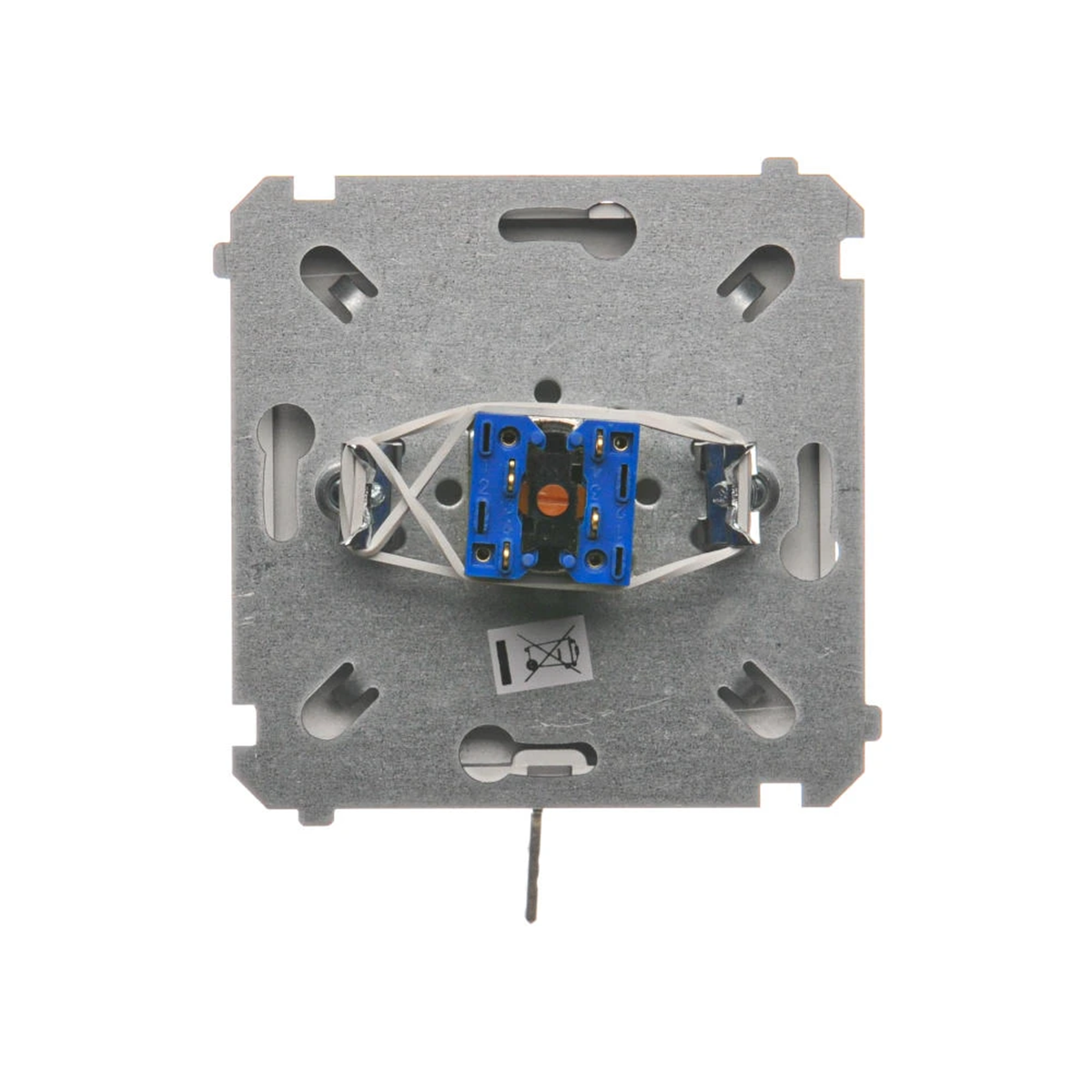

SIMON BASIC Momentary shutter switch with a key, 3-position "I-0-II" 2 N/O contacts, silver matt

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 47

Number of keys: key

See full description

Price:

98,98 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

Momentary shutter key switch from the Simon Basic series, from the manufacturer Contact Simon. The product catalog number is BMPZK.01/43.

FEATURES

The key can be removed only in 0 position.
2 keys are included with the product.
For soldering.

SERIES DESCRIPTION

Simon Basic is a series of electrical equipment, which is based on classic design and functionality. The shutter connector characterizes the features of this unique series.

Technical data

Halogen free

Yes
Number of keys

key
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Shutter
Level of security

IP20
Type

Flush-mounted
Height [mm]

75
Surface finish

matte
Backlight

NO
Variant

Three-position normally open
Exact material

PC

Depth [mm]

47
Color

Silver
Material

Plastic
Installation

Flush-mounted
Rated current [A]

5
Family

SIMON BASIC
Width [mm]

75
Version

Single
Surface protection

varnishing
Accurate color

Silver metallic matt
Mounting depth [mm]

31
For the frame system

Yes
PKWIU

27.33.11.0

Other technical data

Assembly arrangement

Basic element with central cover plate
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Suitable for degree of protection (IP)

IP20

Method of operation

Key
Material

Plastic
Surface protection

Lacquered
Colour

Silver
Nominal voltage

250 V

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,096	0,096	1,063
Width (m)	0,075	0,085	0,190
Length (m)	0,075	0,055	0,290
Depth (m)	0,047	0,115	0,100
