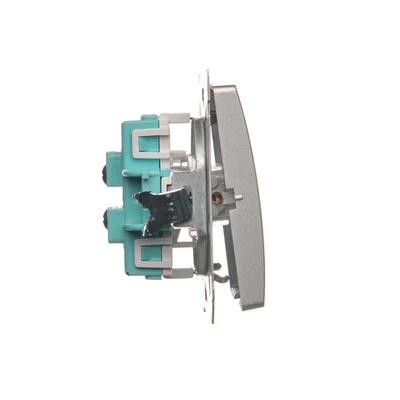

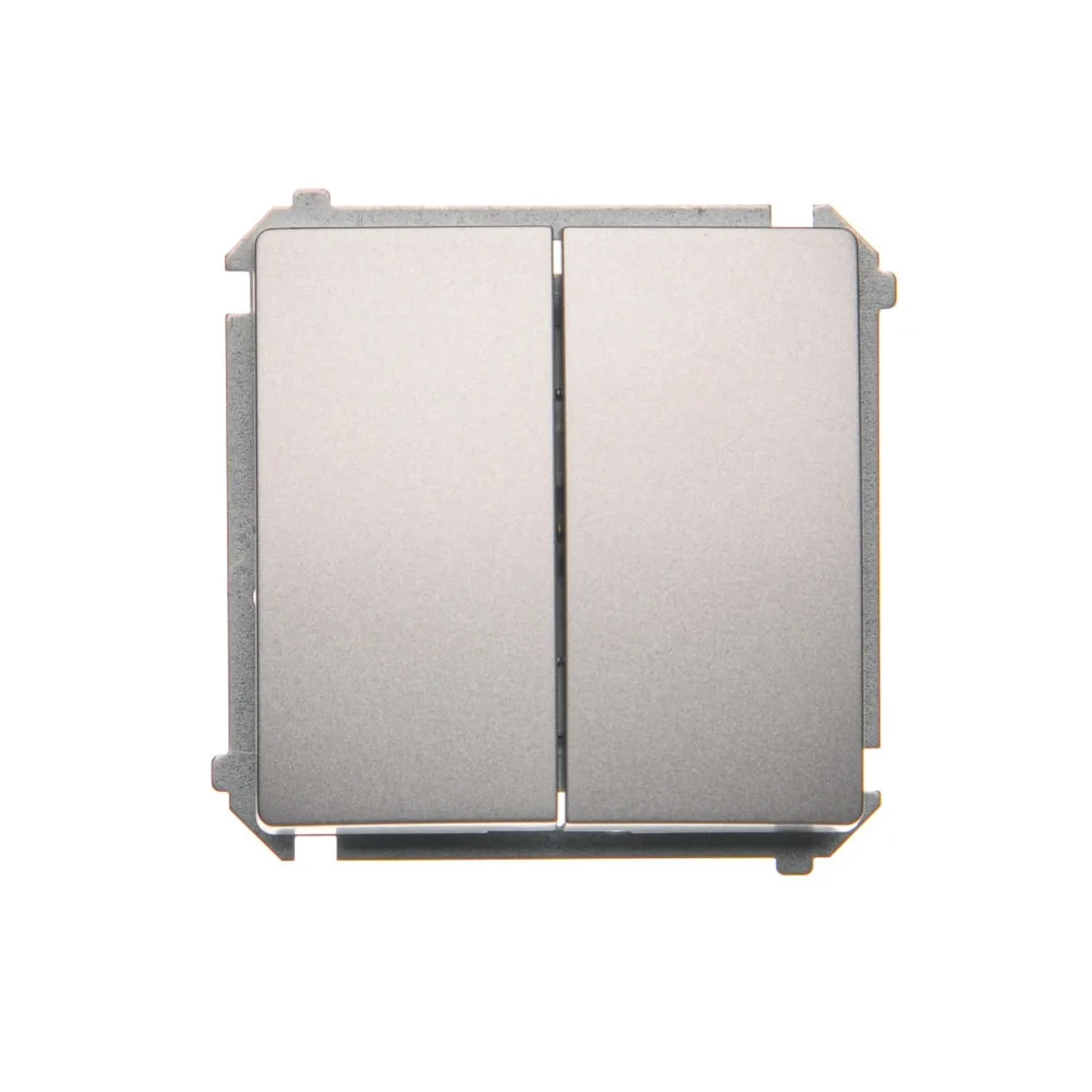

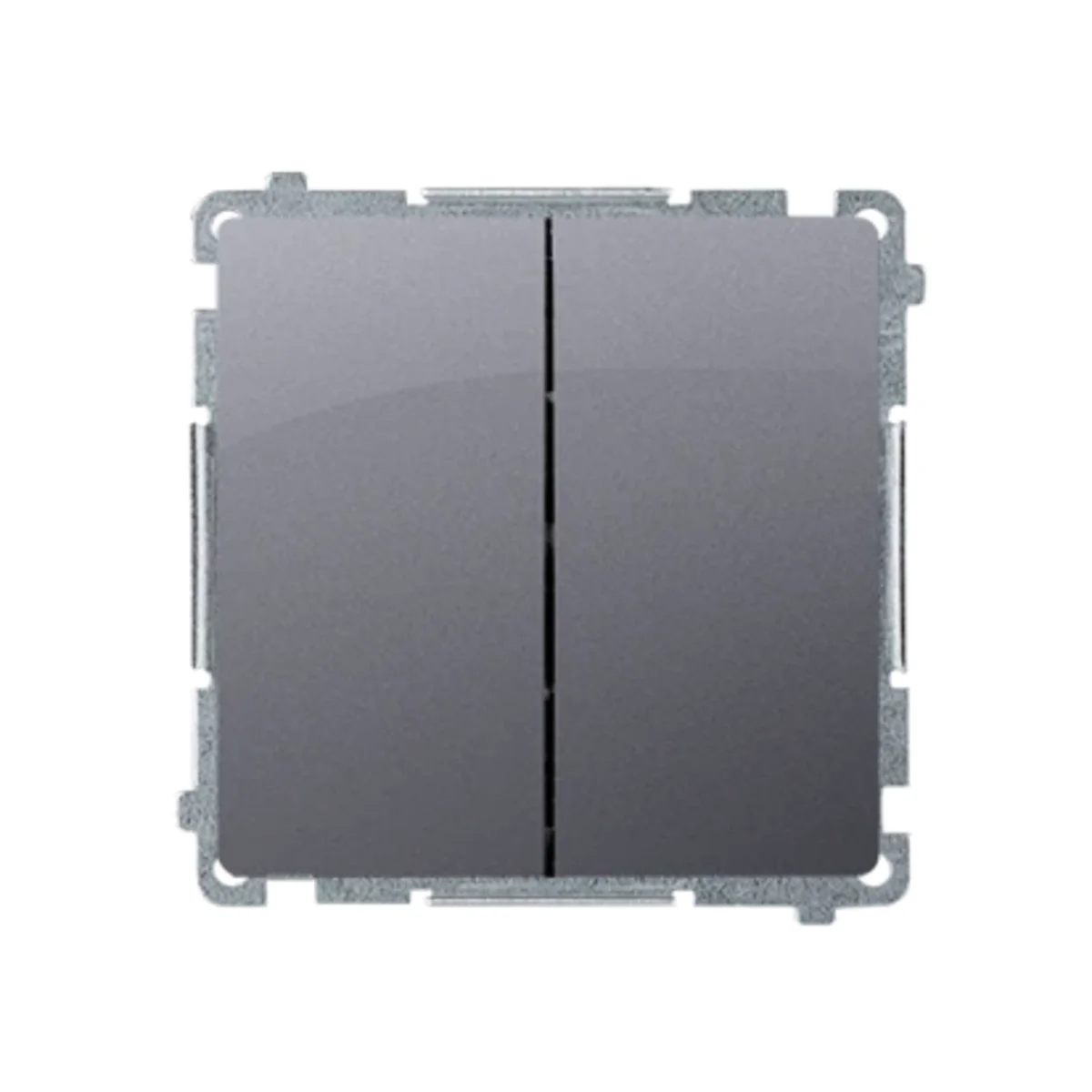

SIMON BASIC Double stair switch (module) 10AX 230V silver mat BMW6/2.01/43

local index:
MMS022KONT
Catalog No:
BMW6/2.01/43
EAN code:
5902787838621
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 41
Number of keys: 2
Price:
11,49 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Stair switch from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BMW6/2.01/43.



FEATURES

  • Doubleó .
  • Module without frame.

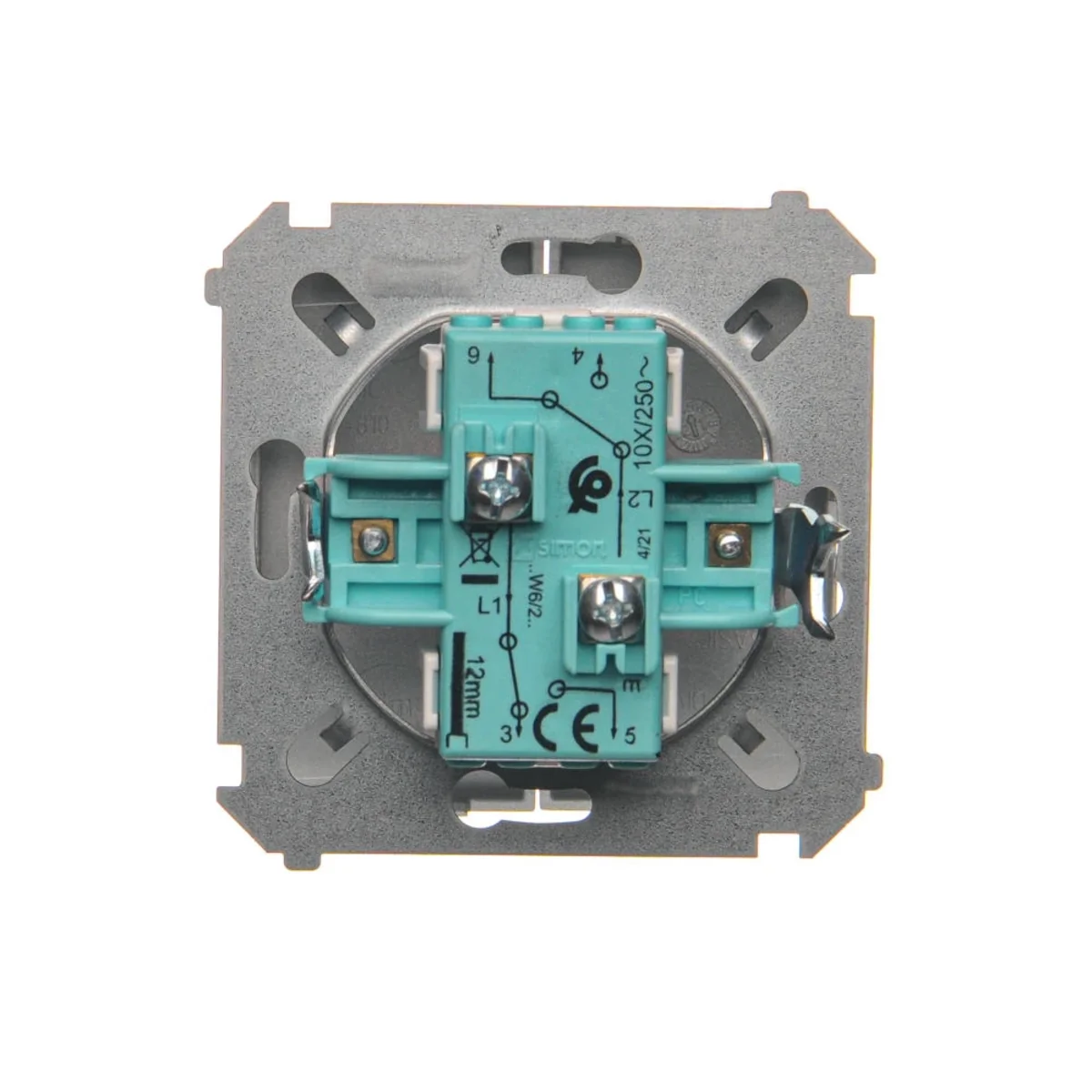

  • Screw terminals.
  • Color < strong>silver matt, metallised.
  • Rated current for fluorescent lamps10AX.
  • Rated voltage 230V .
  • flush mounting.
  • Dimensions: 75 x 75 mm (height x width).
  • Made of PC.
  • Rocker switch.
  • To obtain IP44 splash-proof class, use the IP44 NEOS frame: BMRC1B/...; BMRC2B/... or IP44 frame STANDARD: BMR1B/...; BMR2B/...; BMR3B/...
  • To obtain the IP44 splash-proof class, additionally use a gasket under the keys: NU1W.



SERIES DESCRIPTION

Functionality and classic look are the hallmarks of the Simon Basic series, which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Technical data

  • Halogen free
    Yes
  • Number of keys
    2
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    stairs
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Surface protection
    varnishing
  • Accurate color
    Silver metallic matt
  • Mounting depth [mm]
    31
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0
  • Depth [mm]
    41
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Height [mm]
    75
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threaded
  • Exact material
    PC

Other technical data

  • Method of operation
    Rocker/button
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Suitable for degree of protection (IP)
    IP20
  • Switching current for fluorescent lamps
    10 AX
  • Assembly arrangement
    Basic element with central cover plate
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Colour
    Silver
  • Nominal voltage
    230 V
  • Connection type
    Screwed terminal

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,084 0,084 0,943
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,045 0,230
Depth (m) 0,041 0,160 0,100
