KONTAKT-SIMON

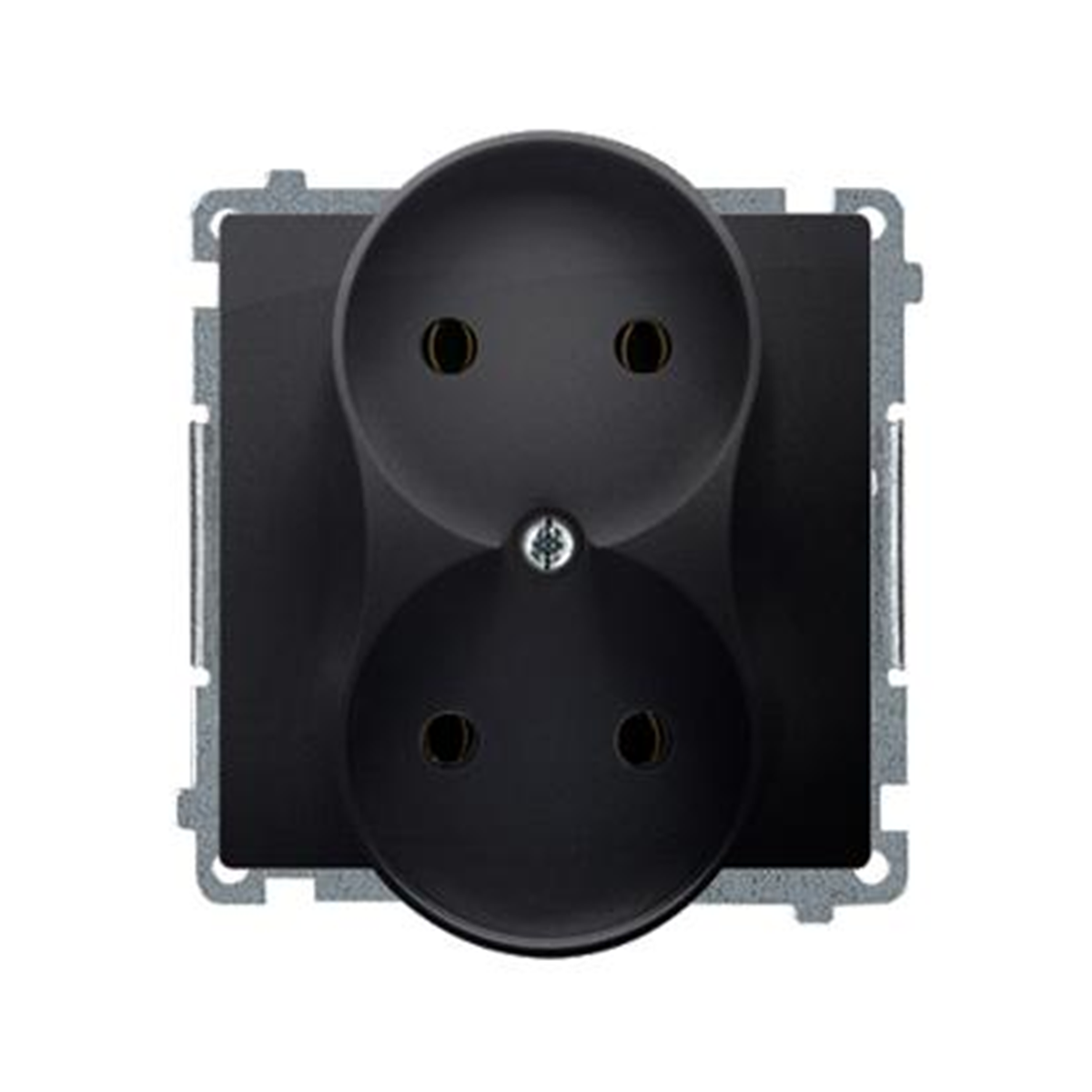

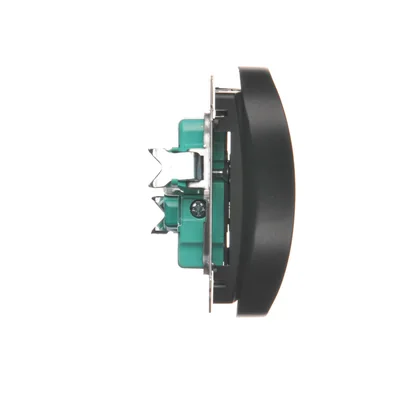

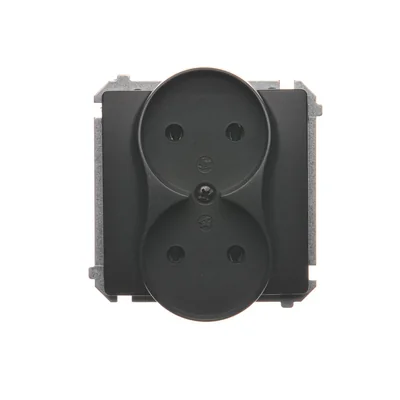

SIMON BASIC Double socket without grounding (module) 16A 230V matt graphite BMG2M.01/28

local index:
MEE146KONT
Catalog No:
BMG2M.01/28
EAN code:
5902787839109
Price:
5,72 €
gross / pcs.
including VAT 23%
Availability:
Lack
Delivery:
From 3,71 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

Socket from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BMG2M.01/28.



FEATURES

  • Double.
  • Ungrounded.

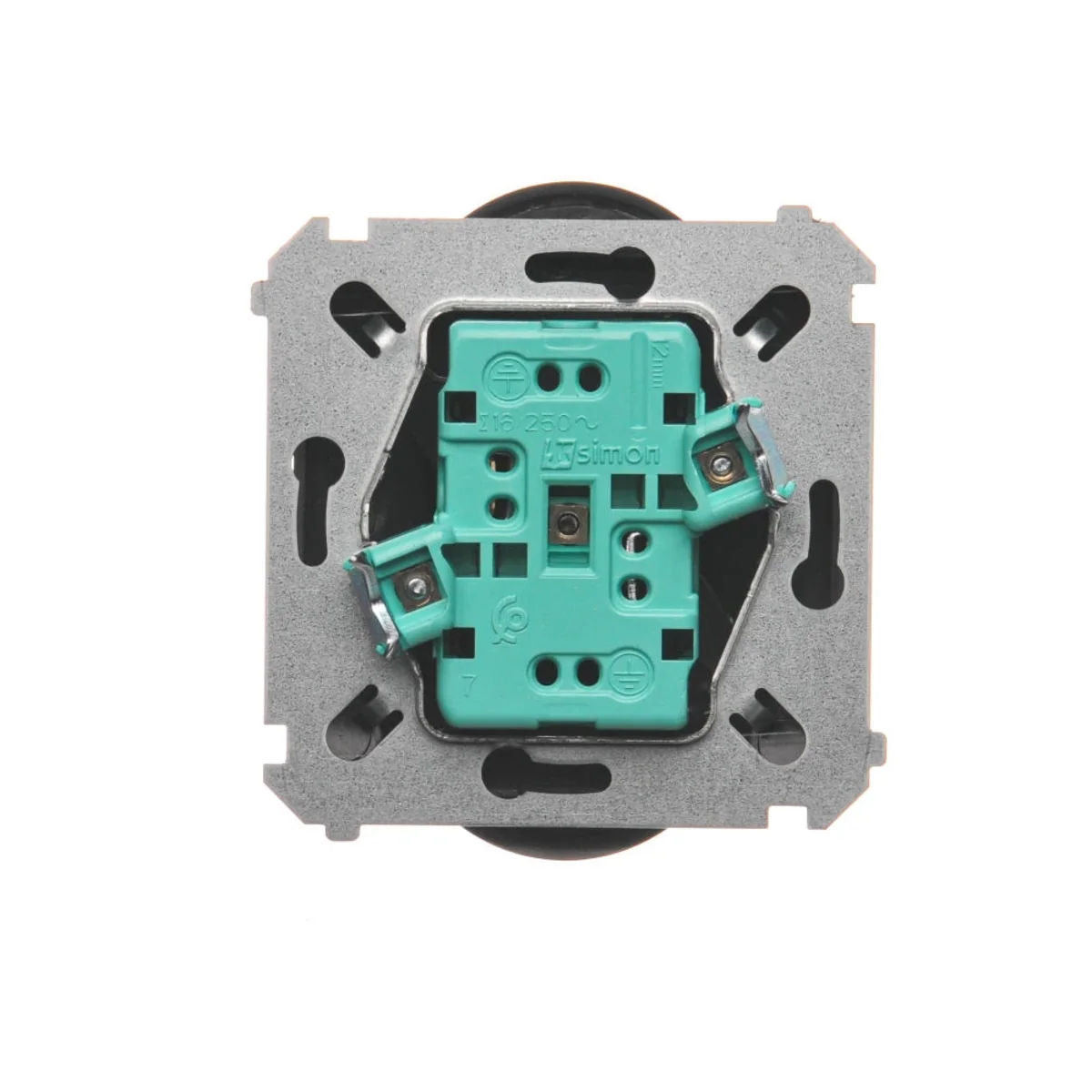

  • Screw terminals.
  • To be equipped with frame .
  • Color graphite mat, metallised.
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • flush mounting.
  • Dimensions : 80 x 75 mm (HxW).
  • Made of PC.



SERIES DESCRIPTION

Functionality and classic look are the hallmarks of the Simon Basic series, which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    2
  • Shape
    Rectangular
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    80
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    Yes
  • Depth [mm]
    45
  • Color
    Graphite
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Ground
    Lack
  • Surface protection
    varnishing
  • Accurate color
    Metallic matt graphite
  • Mounting depth [mm]
    21
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    PC

Other technical data

  • Number of units
    2
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Frequency
    50 ... 60 Hz
  • Connection type
    Screwed terminal
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20
