SIMON BASIC Double socket outlet with earthing and phase invariance function silver matt metallised 16A BMGZ2T/43

Name: SIMON BASIC Double socket outlet with earthing and phase invariance function silver matt metallised 16A
Brand: KONTAKT-SIMON
SKU: MEE238KONT
Price: 5.38 PLN

local index:

MEE238KONT

Catalog No:

BMGZ2T/43

EAN code:

5902787853044

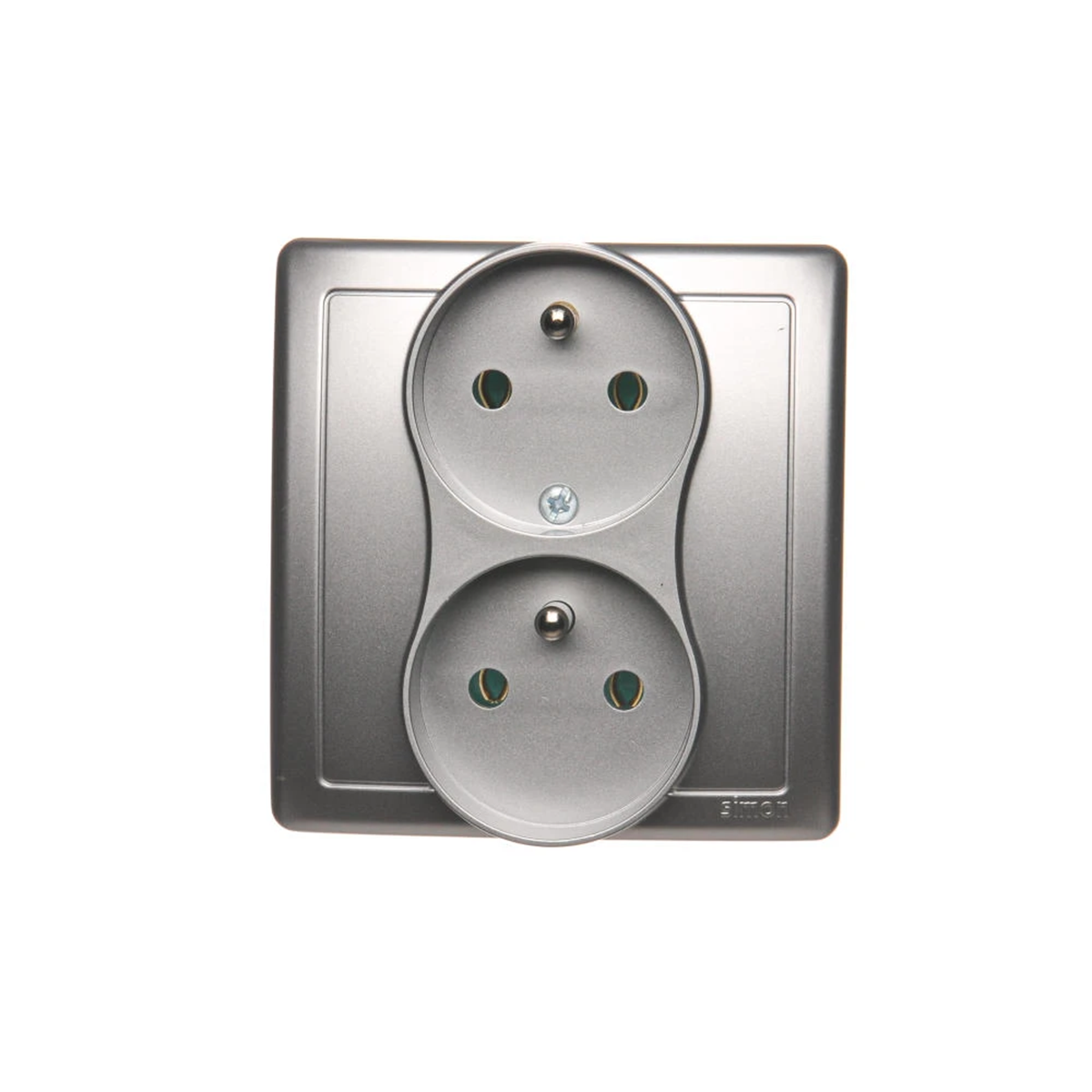

SIMON BASIC Double socket outlet with earthing and phase invariance function silver matt metallised 16A

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 44

Number of sockets: 2

See full description

Price:

5,38 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging

Product description

Socket from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BMGZ2T/43.

FEATURES

Double.
Grounded; ground pin.
Screw terminals.
Complete; with a frame.
With phase stability function.
Colour matt silver, metallic.< /li>
Rated current 16A.
Rated voltage 230V.
Ingress protection IP20.

flush mounting.

Dimensions: 84 x 81mm (H x W).

Made of < strong>PC.

SERIES DESCRIPTION

Functionality and classic design are the hallmarks of the Simon Basic series , which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Technical data

Halogen free

Yes
Number of sockets

2
Shape

Rectangular
Fixing

claws Screws
Rated voltage [V]

230
Type

Electric
Level of security

IP20
Type

Flush-mounted
Height [mm]

84
Surface finish

matte
Backlight

NO
Terminal type

Threaded
Shutters of current paths

NO
For the frame system

NO
Phase invariance function

Yes

Depth [mm]

44
Color

Silver
Material

Plastic
Installation

Flush-mounted
Rated current [A]

16
Family

SIMON BASIC
Width [mm]

81
Ground

Hurt
Surface protection

varnishing
Accurate color

Silver metallic matt
Mounting depth [mm]

26
Standard

European
On the DATA key

NO
Exact material

PC
PKWIU

27.33.13.0

Other technical data

Number of units

2
Colour

Silver
Material

Plastic
Surface protection

Lacquered
Nominal voltage

250 V
Suitable for degree of protection (IP)

IP20

Connection type

Screwed terminal
Mounting method

Flush-mounted
Material quality

Thermoplastic
Surface finishing

Matt
Frequency

50 ... 50 Hz

Manufacturer details

Manufacturer

KONTAKT - SIMON S.A.
Address

43-500 Czechowice-Dziedzice Bestwińska 21
Phone number

323246300
E-mail

info@kontakt-simon.com.pl
WWW

https://www.kontakt-simon.com.pl
Tax identification number

6520005366
GLN

5900009931105

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,081	0,081	0,896
Width (m)	0,084	0,110	0,190
Length (m)	0,081	0,046	0,230
Depth (m)	0,044	0,160	0,100
