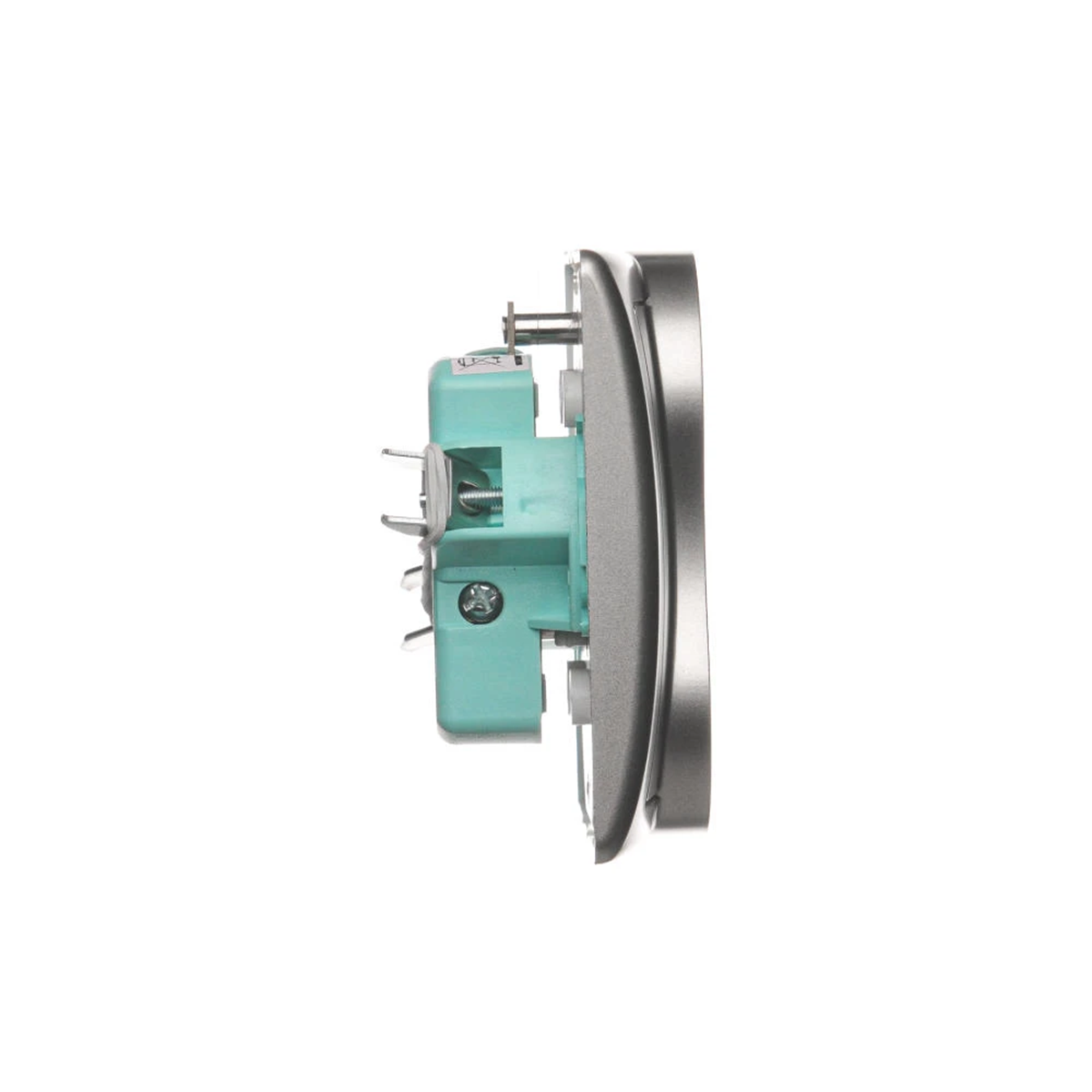

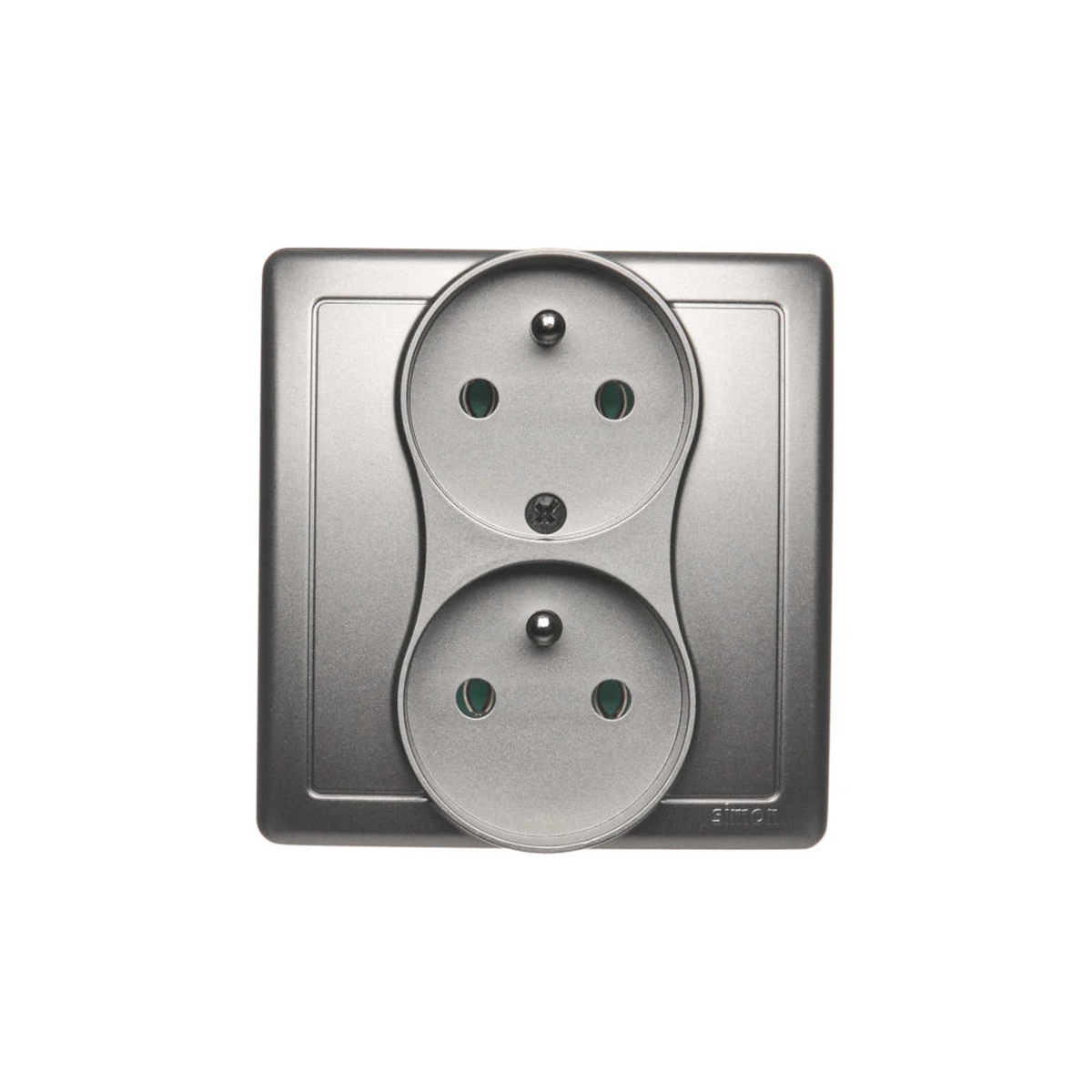

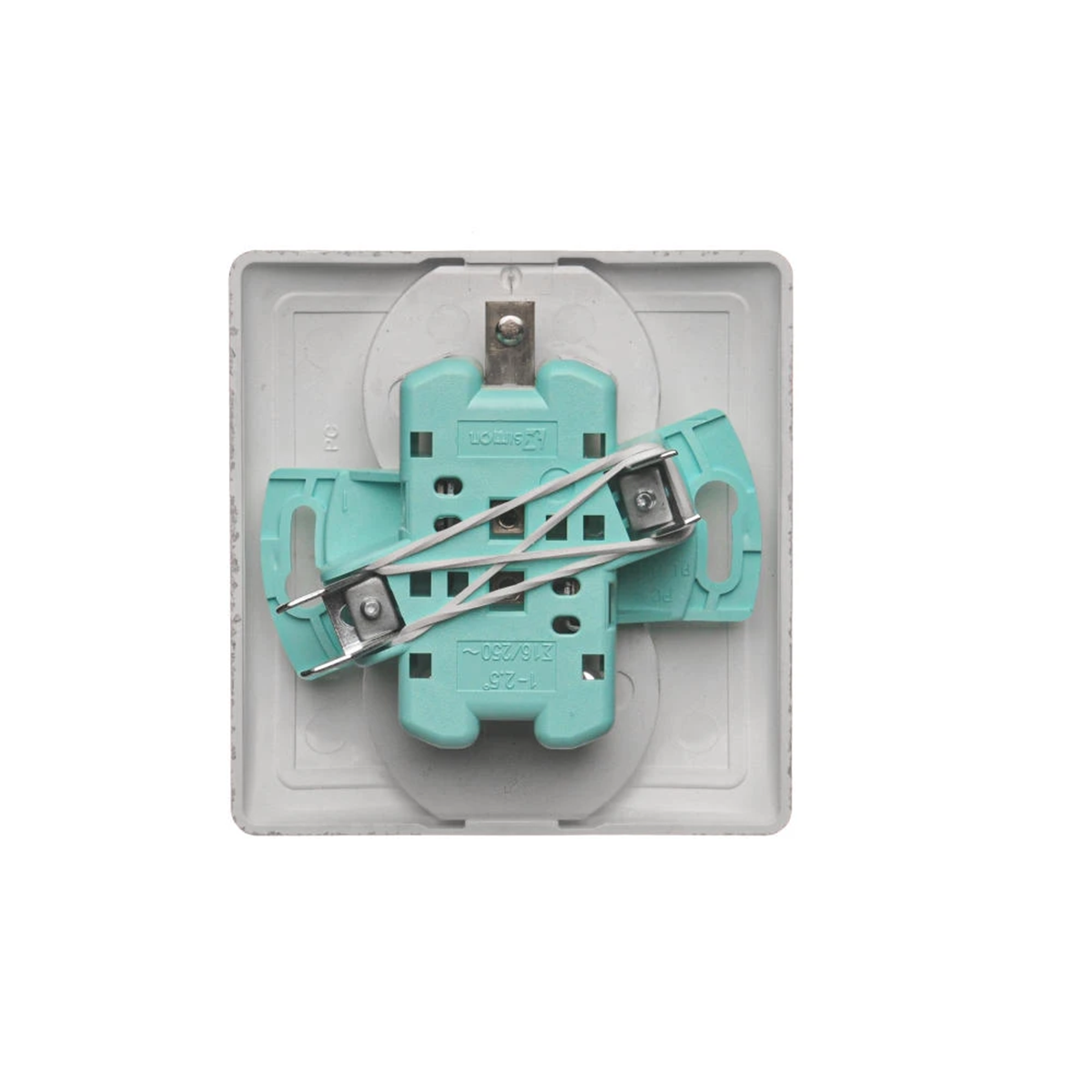

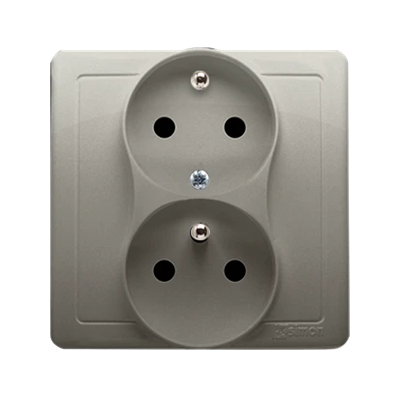

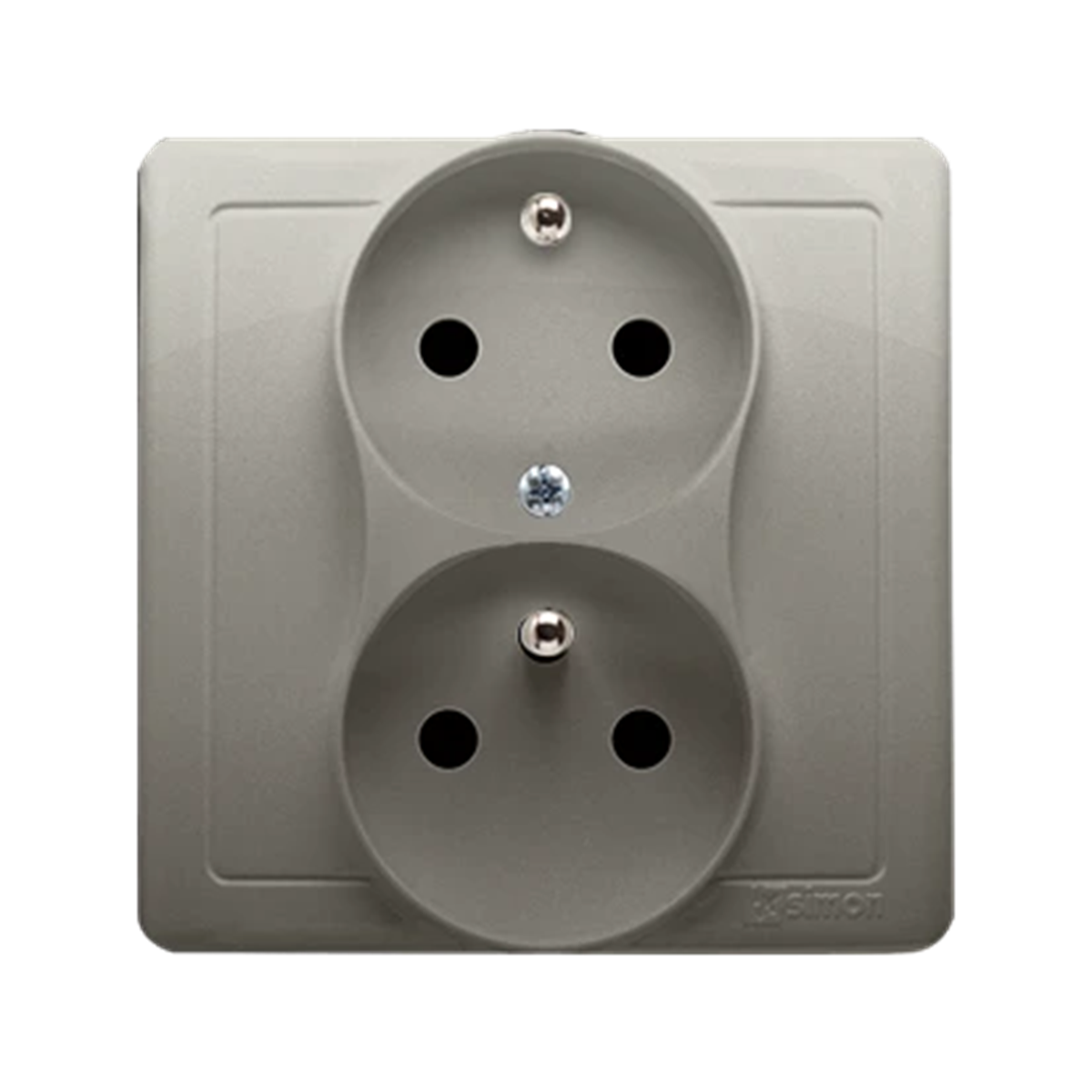

SIMON BASIC Double socket outlet with earthing and phase invariance function 16A 230V complete satin BMGZ2T/29

Indeks lokalny:
MEE237KONT
Nr katalogowy:
BMGZ2T/29
Kod EAN:
5902787853037
Producent: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 44
Number of sockets: 2
Cena:
5,82 €
gross / szt.
(w tym VAT 23%)
Dostawa do 3h
do 4 tygodni (dni robocze)
Odbiór za 1h
Ilość szt.
(wielokrotność:
1
)
Dodaj do schowka
Drukuj

Opis produktu

Socket from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BMGZ2T/29.



FEATURES

  • Double.
  • Grounded; ground pin.
  • Screw terminals.
  • Complete; with frame.
  • With phase stability.
  • satin metallic finish li>
  • Rated current 16A.
  • Rated voltage 230V.
  • Ingress protection IP20.
  • flushmount.
  • Dimensions: 84 x 81mm (H x W).
  • Made of PC.



SERIES DESCRIPTION

Functionality and classic design are the hallmarks of the Simon Basic< series /strong>, which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Dane techniczne

  • Halogen free
    Yes
  • Number of sockets
    2
  • Shape
    Rectangular
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Electric
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    84
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threaded
  • Shutters of current paths
    NO
  • For the frame system
    NO
  • Phase invariance function
    Yes
  • Depth [mm]
    44
  • Color
    Silver
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    SIMON BASIC
  • Width [mm]
    81
  • Ground
    Hurt
  • Surface protection
    varnishing
  • Accurate color
    Satin metallic
  • Mounting depth [mm]
    26
  • Standard
    European
  • On the DATA key
    NO
  • Exact material
    PC
  • PKWIU
    27.33.13.0

Pozostałe dane techniczne

  • Number of units
    2
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Frequency
    50 ... 50 Hz
  • Connection type
    Screwed terminal
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Nominal voltage
    250 V
  • Suitable for degree of protection (IP)
    IP20

Dane producenta

Opakowania zbiorcze

Rodzaj opakowania Paczka Karton Paczka Karton
Ilość 1 szt. 10 szt. 1 szt. 10 szt.
Waga (kg) 0,081 0,896 0,081 0,896
Szerokość (m) 0,110 0,190 0,110 0,190
Długość (m) 0,046 0,230 0,046 0,230
Głębokość (m) 0,160 0,100 0,160 0,100
