SIMON BASIC Data communication socket RJ45 cat.5e + RJ11 white BMF5T.02/11

Index local:
MEI203KONT
Numéro de catalogue:
BMF5T.02/11
Code EAN:
5902787570958
Producteur: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 31
Category: 5e
Prix:
104,35 zł
gross / pcs.
(y compris la TVA 23%)
jusqu'à 2 semaines
Sur commande
Quantité pcs.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer

Description du produit

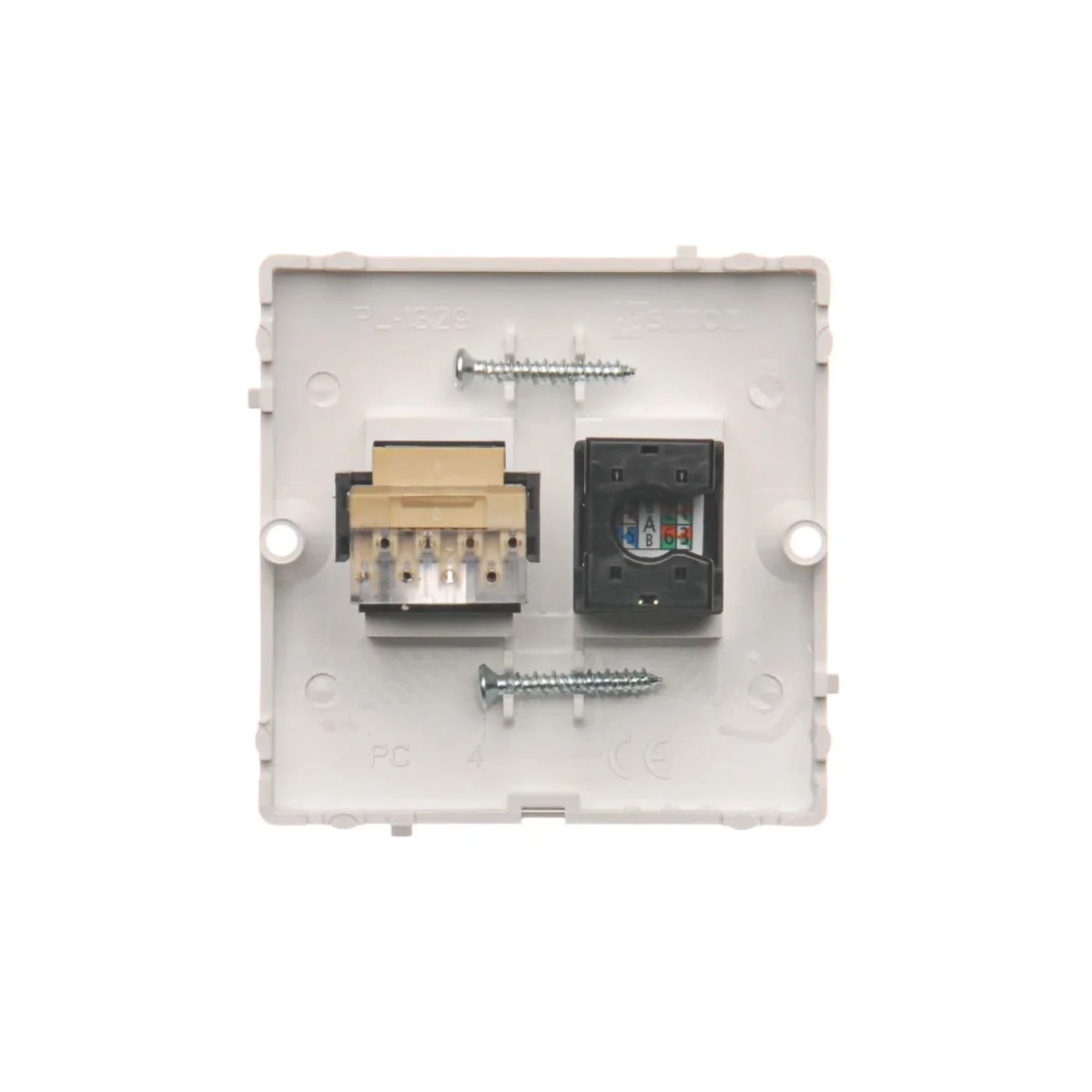

Internet computer socket from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BMF5T.02/11.

  • RJ45 category 5e + telephone RJ11.



SERIES DESCRIPTION

Simon Basic is a series of electrical equipment based on classic design and functionality. Internet socket characterize the features of this unique series.

Données techniques

  • Halogen free
    Yes
  • Category
    5e
  • Shape
    Square
  • Fixing
    Screws
  • Overprint
    Yes
  • Family
    SIMON BASIC
  • Width [mm]
    67
  • Version
    UTP
  • Surface protection
    Natural
  • Surface finish
    Shiny
  • Terminal type
    Insulation piercing clamp
  • For the frame system
    Yes
  • Dust cover
    NO
  • Exact material
    PC
  • Depth [mm]
    31
  • Color
    White
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Internet
  • Level of security
    IP20
  • Type
    Flush-mounted
  • Height [mm]
    67
  • Application
    IBM Data Link
  • Mounting depth [mm]
    20
  • Variant
    RJ45 (twisted pair)
  • Number of internet sockets
    1
  • Extra socket
    RJ11
  • PKWIU
    27.33.13.0

Autres données techniques

  • Type of connector
    RJ45 8(8)
  • Outlet direction
    Straight
  • Colour
    White
  • With dust cover
    No

Détails du fabricant

Emballage en vrac

Une sorte de paquet Paczka Karton
Quantité 1 pcs. 10 pcs.
poids (kg) 0,031 0,402
Largeur (m) 0,110 0,190
Longueur (m) 0,036 0,230
Profondeur (m) 0,160 0,100
