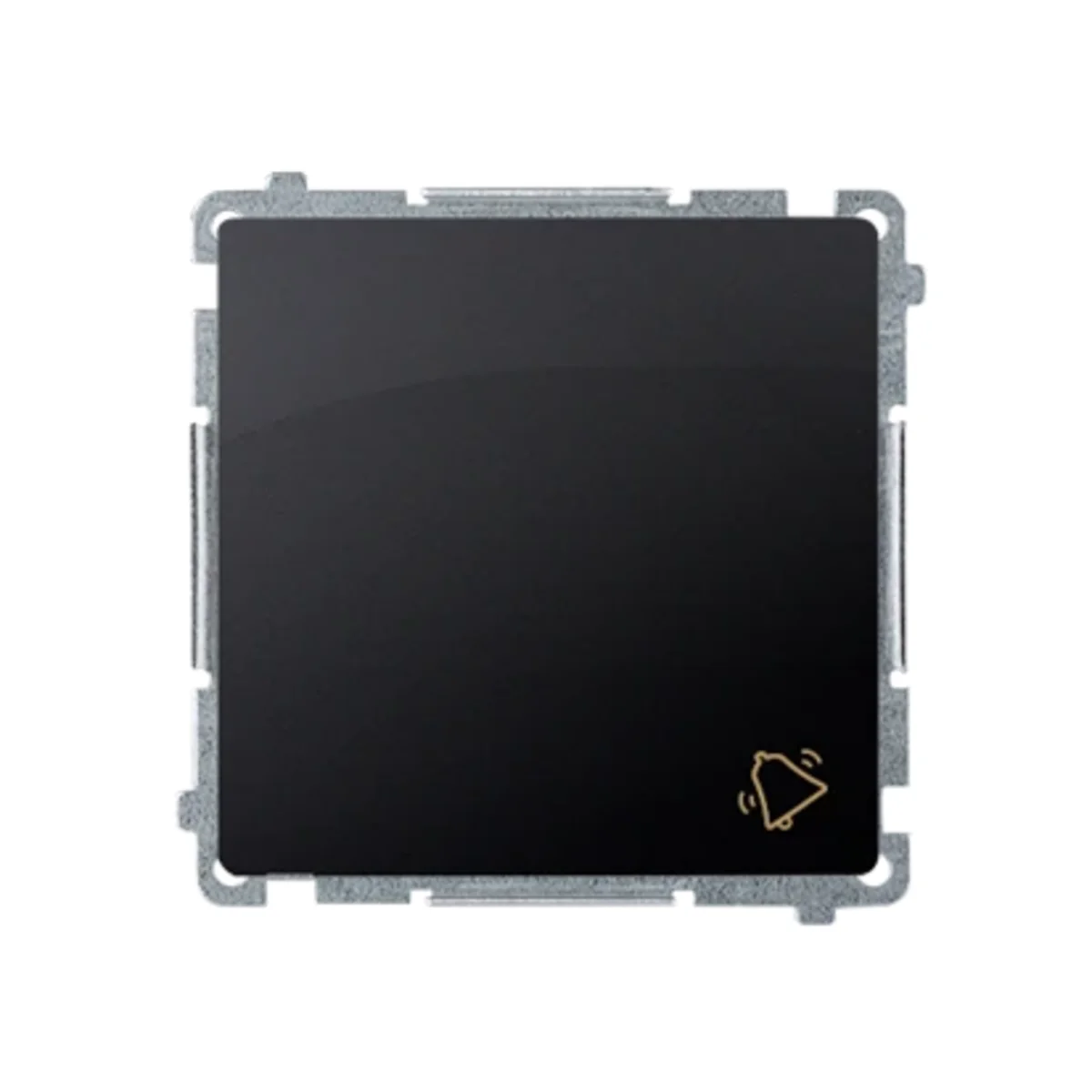

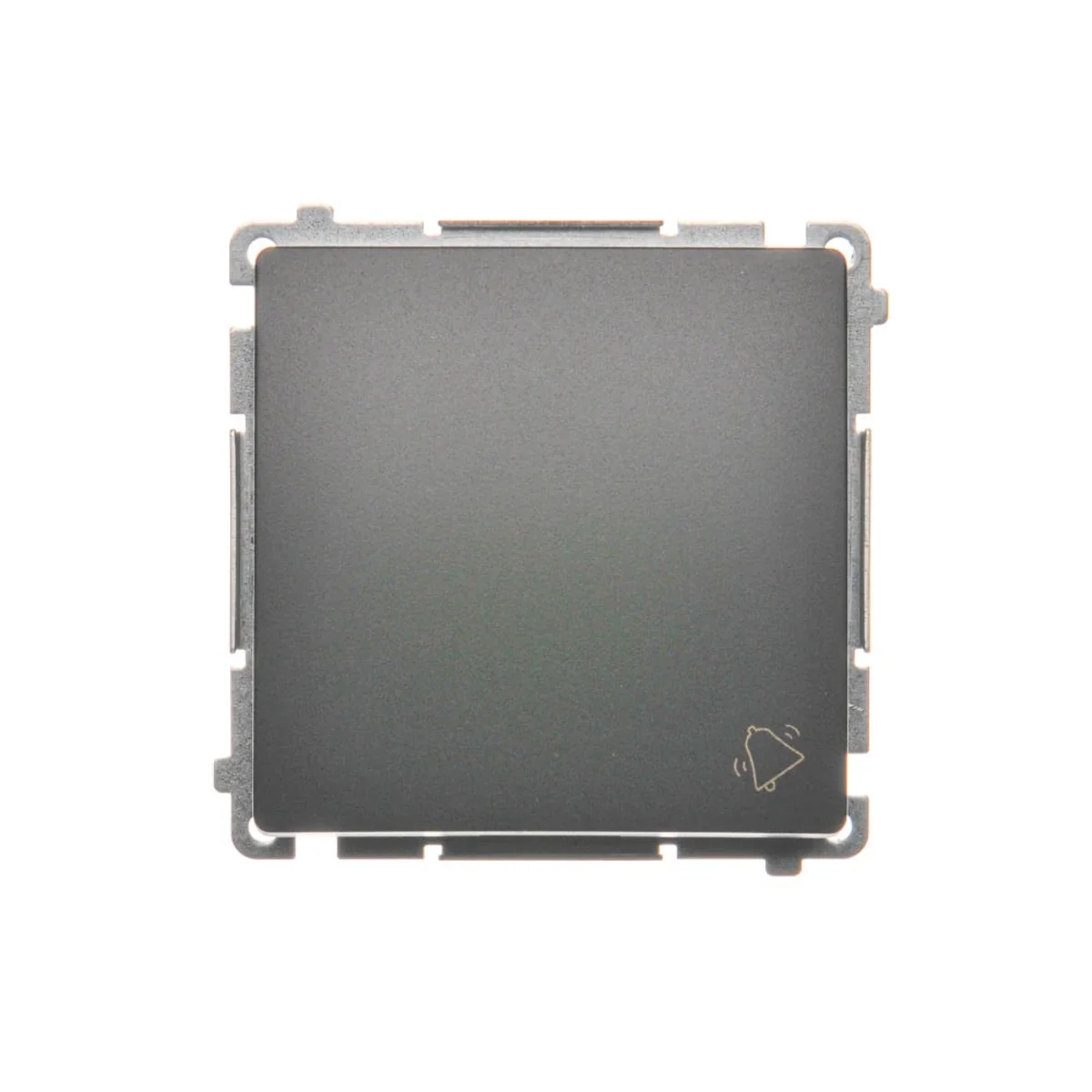

SIMON BASIC Button "bell" (module) 10AX 250V, quick connectors, graphite matt, metallised BMD1.01/28

Indice locale:
MMZ099KONT
Numero di catalogo:
BMD1.01/28
Codice EAN:
5902787839048
Produttore: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 41
Number of keys: 1
Prezzo:
27,49 zł
gross / pezzi
(inclusa IVA 23%)
Esaurito
Aggiungi alla richiesta di preventivo
Stampa

Descrizione del prodotto

"bell button" from the  Simon Basic series, from the manufacturer Contact Simon. The product part number is BMD1.01/28.  ;In the color of matt graphite, metallised.



FEATURES

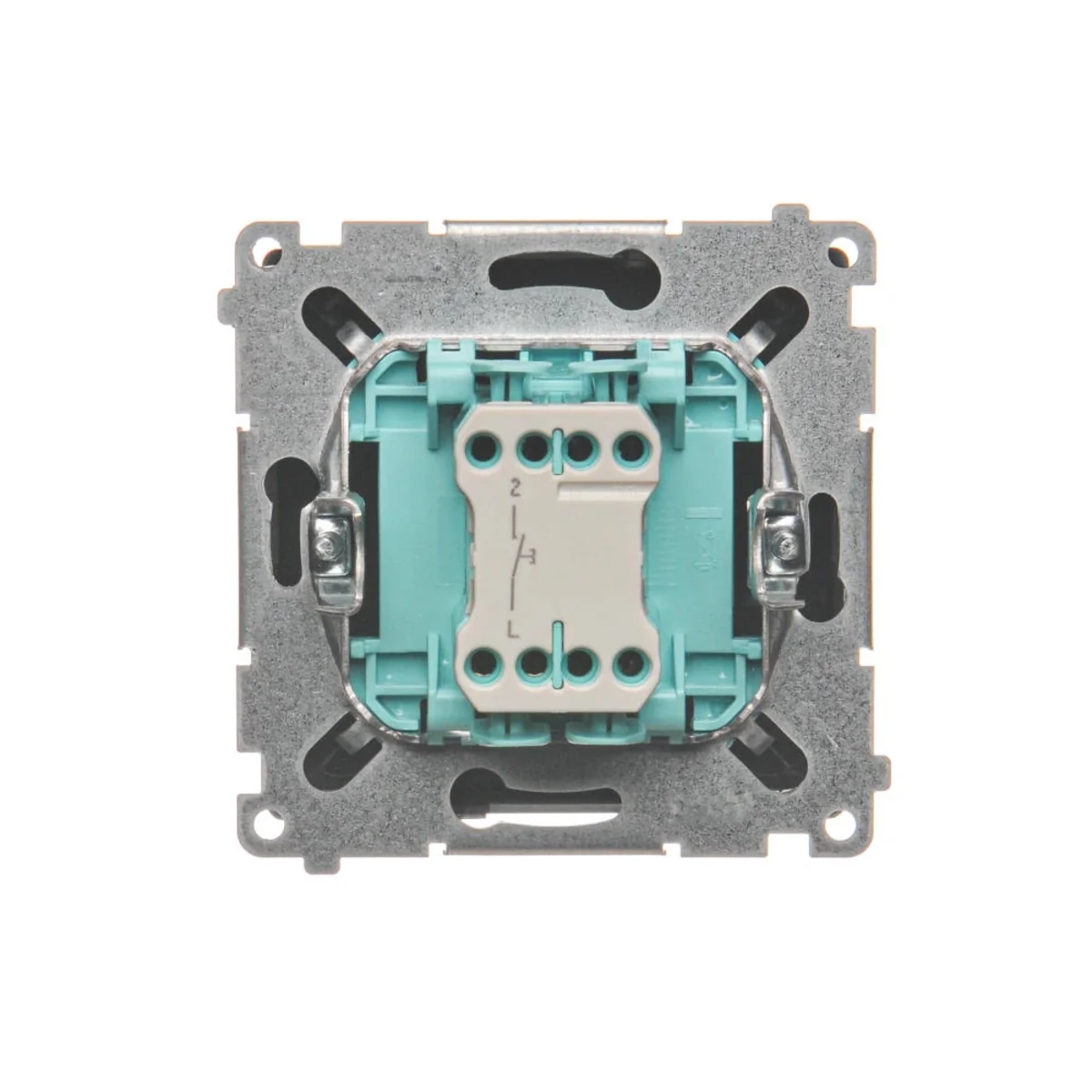

  • Quick connectors.
  • "bell" symbol on the key.
  • To obtain the IP44 splash-proof class, use the IP44 NEOS frame: BMRC1B/..; BMRC2B/... or IP44 frame STANDARD: BMR1B/..; BMR2B/...; BMR3B/..



SERIES DESCRIPTION

Functionality and classic look are the hallmarks of the Simon Basic series which will work in any space. The color palette makes it possible to subtly integrate switches and sockets into the design of an apartment, premises, living room or office.

Dati tecnici

  • Halogen free
    Yes
  • Number of keys
    1
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Short
  • Level of security
    IP20
  • Width [mm]
    75
  • Version
    Confident
  • Surface protection
    varnishing
  • Accurate color
    Metallic matt graphite
  • Mounting depth [mm]
    24
  • Variant
    Bell
  • Exact material
    PC
  • Depth [mm]
    41
  • Color
    Graphite
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Rated current [A]
    10
  • Family
    SIMON BASIC
  • Symbol
    Bell
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Surface finish
    matte
  • Backlight
    NO
  • Terminal type
    Threadless
  • For the frame system
    Yes
  • PKWIU
    27.33.11.0

Altri dati tecnici

  • Assembly arrangement
    Basic element with central cover plate
  • Mounting method
    Flush-mounted
  • Material quality
    Thermoplastic
  • Surface finishing
    Matt
  • Nominal voltage
    250 V
  • Contacts
    1 make contact (NO)
  • Material
    Plastic
  • Surface protection
    Lacquered
  • Suitable for degree of protection (IP)
    IP20

Dettagli del produttore

  • Produttore
    KONTAKT - SIMON S.A.
  • Indirizzo
    43-500 Czechowice-Dziedzice Bestwińska 21
  • NIP
    6520005366
