SIMON BASIC Antenna socket RD/TV/SAT beige BMZAR-SAT10/P.01/12

local index:
MEA236KONT
Catalog No:
BMZAR-SAT10/P.01/12
EAN code:
5902787590055
Manufacturer: KONTAKT-SIMON
Halogen free: Yes
Depth [mm]: 41
Number of sockets: 3
Price:
30,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

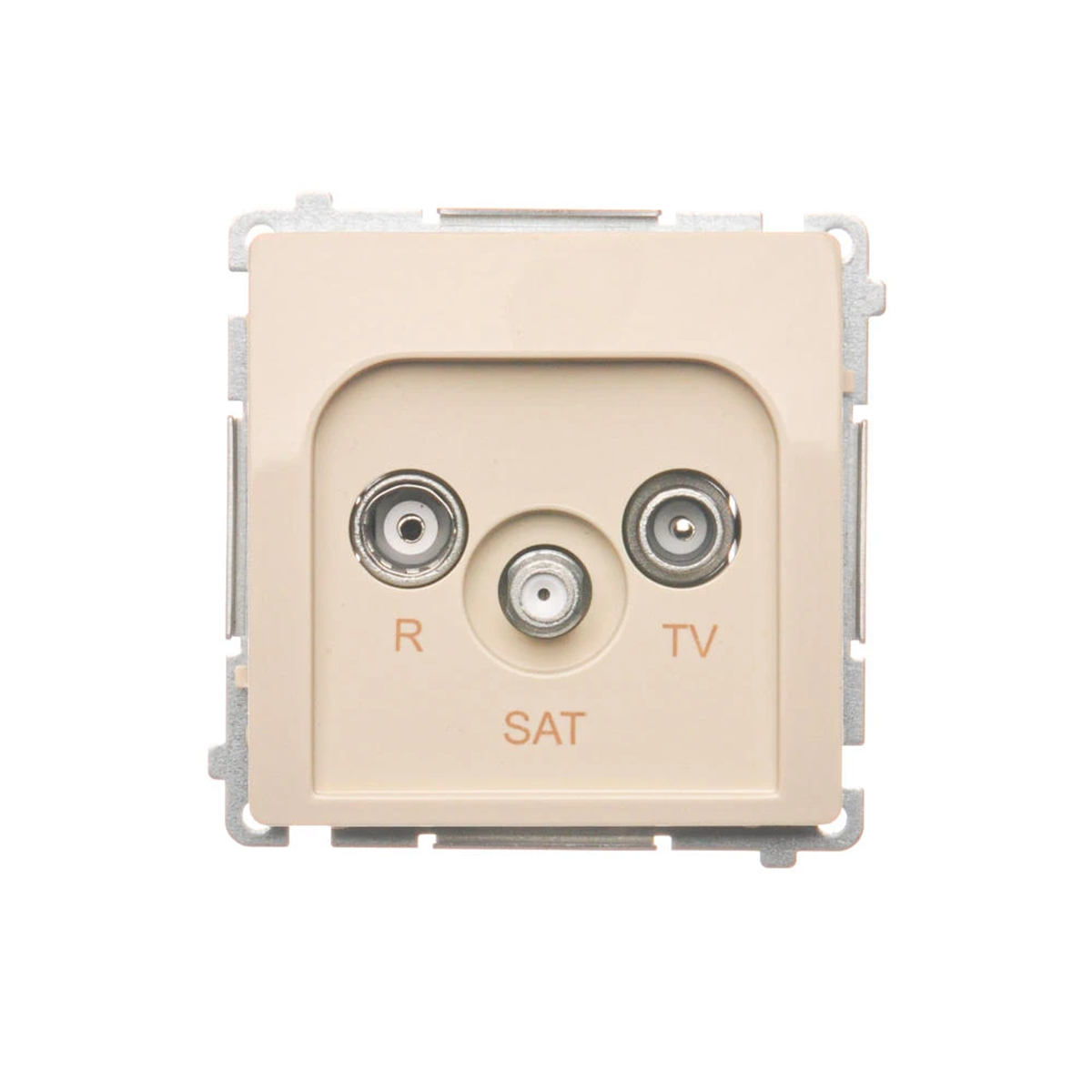

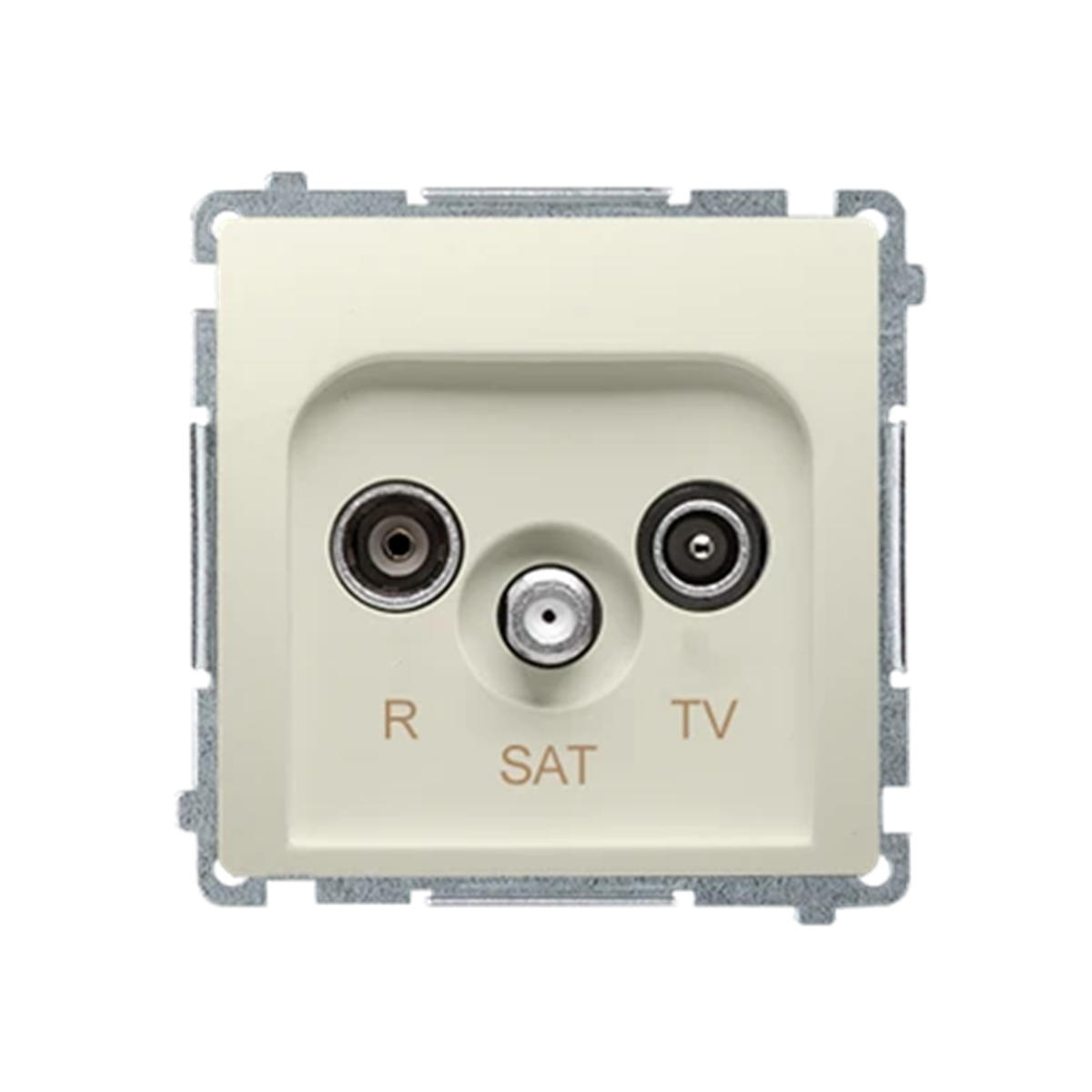

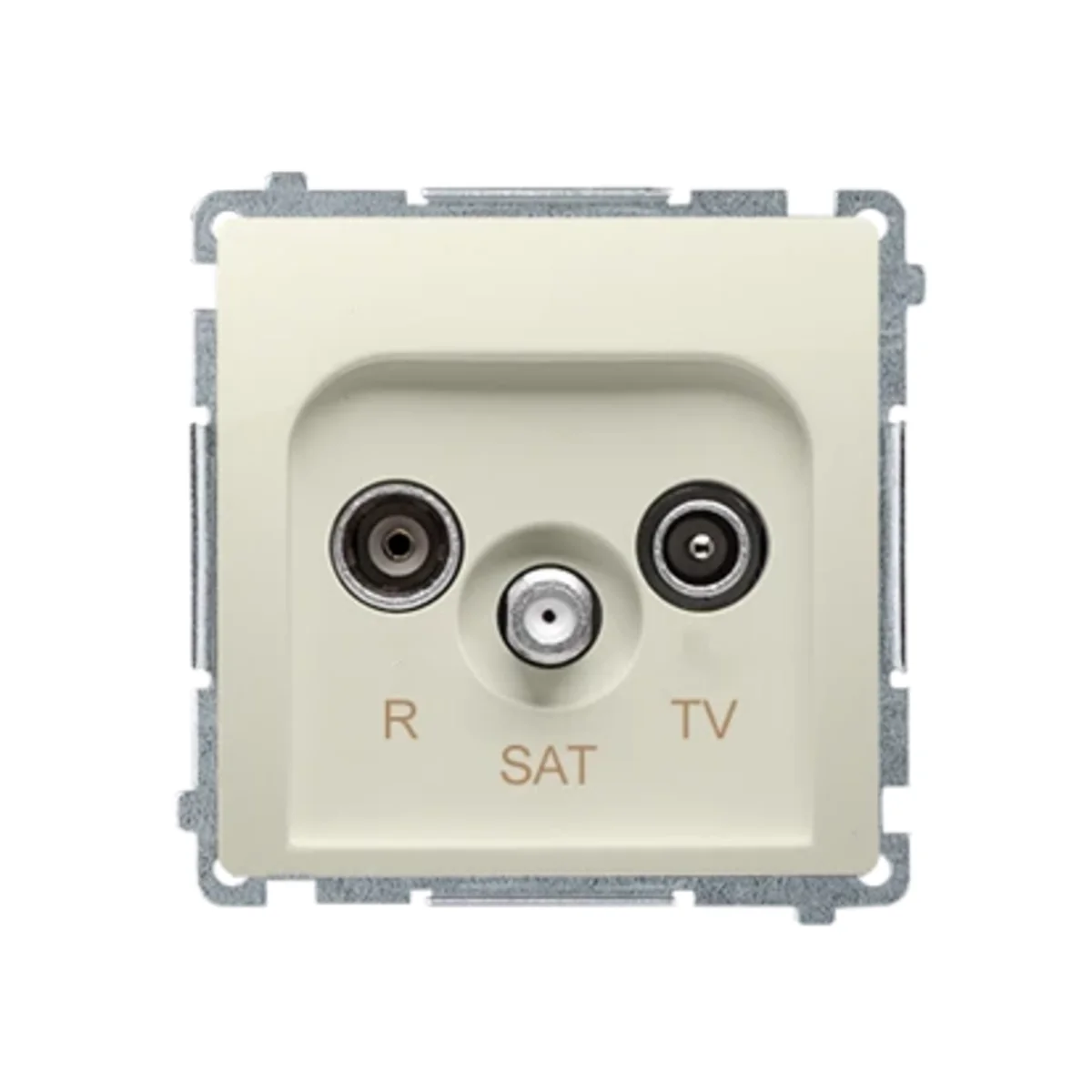

Antenna socket from the Simon Basic series, from the manufacturer Contact Simon. The product part number is BMZAR-SAT10/P.01/12.



FEATURES

  • R-TV-SAT.
  • Through-port.
  • Module without frame.
  • Color beige .



SERIES DESCRIPTION

Simon Basic is a series of electrical accessories which ra is based on a classic look and functionality. Antenna socket has all the features of this unique series.

Technical data

  • Halogen free
    Yes
  • Number of sockets
    3
  • Shape
    Square
  • Fixing
    claws Screws
  • Overprint
    Yes
  • Family
    SIMON BASIC
  • Width [mm]
    75
  • Type
    Flush-mounted
  • Height [mm]
    75
  • Frequency Range [MHz]
    5-2400
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • Exact material
    PC
  • Depth [mm]
    41
  • Color
    Beige
  • Material
    Plastic
  • Installation
    Flush-mounted
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    Connections for 860 MHz: 10 Passthroughs for 860 MHz: 4 Connections for 2150 MHz: 8 Passthrough for 2400 MHz: 6
  • Version
    through
  • Surface protection
    Natural
  • Surface finish
    Shiny
  • Mounting depth [mm]
    29
  • Variant
    R TV sat
  • For the frame system
    Yes
  • PKWIU
    27.33.13.0

Other technical data

  • Model
    Loop-through socket
  • Tap loss at 2150 MHz
    8 dB
  • Through loss at 860 MHz
    4 dB
  • Suitable for remote power supply
    Yes
  • Tap loss at 860 MHz
    10 dB
  • Number of outlets
    3
  • Through loss at 2150 MHz
    6 dB
  • Frequency
    5 ... 2400 MHz

Manufacturer details

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Weight (kg) 0,120 0,120 1,285
Width (m) 0,075 0,110 0,190
Length (m) 0,075 0,046 0,230
Depth (m) 0,041 0,160 0,100
