SIMON BASIC Antenna socket R-TV-SAT pass-through attenuation 10dB satin metallized BMZAR-SAT10/P.01/29

Name: SIMON BASIC Antenna socket R-TV-SAT pass-through attenuation 10dB satin metallized
Brand: KONTAKT-SIMON
SKU: MEA123KONT
Price: 31.89 PLN

local index:

MEA123KONT

Catalog No:

BMZAR-SAT10/P.01/29

EAN code:

5902787813437

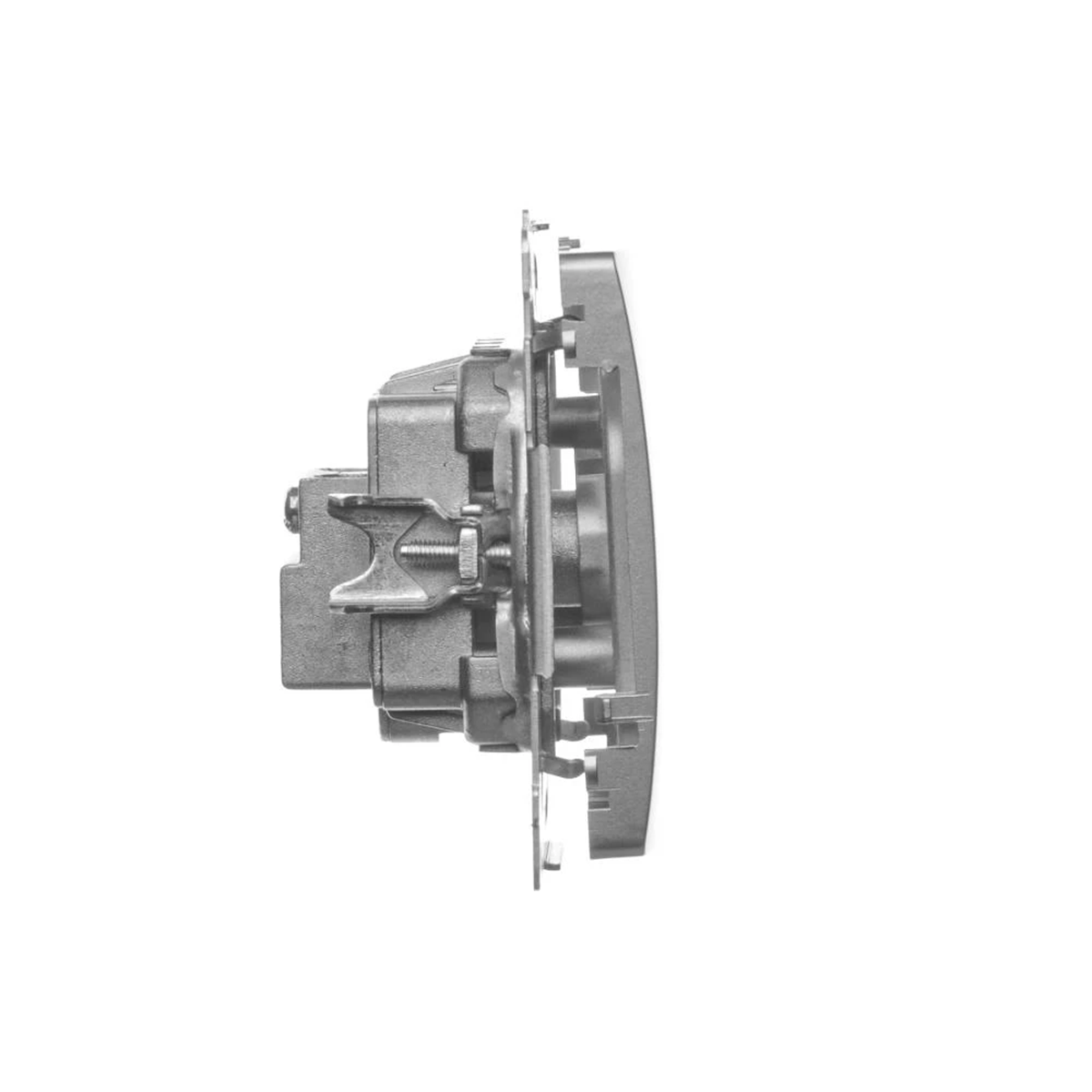

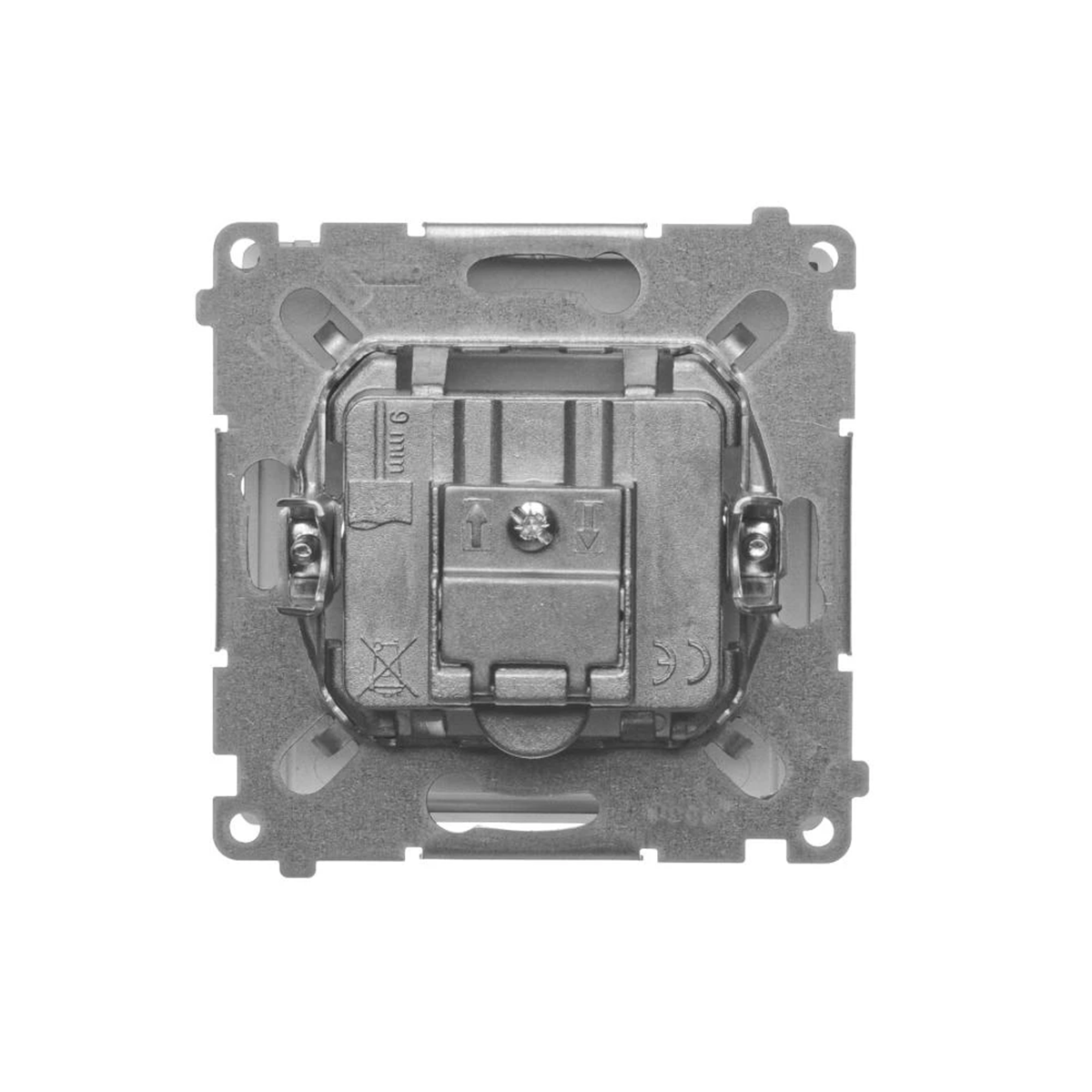

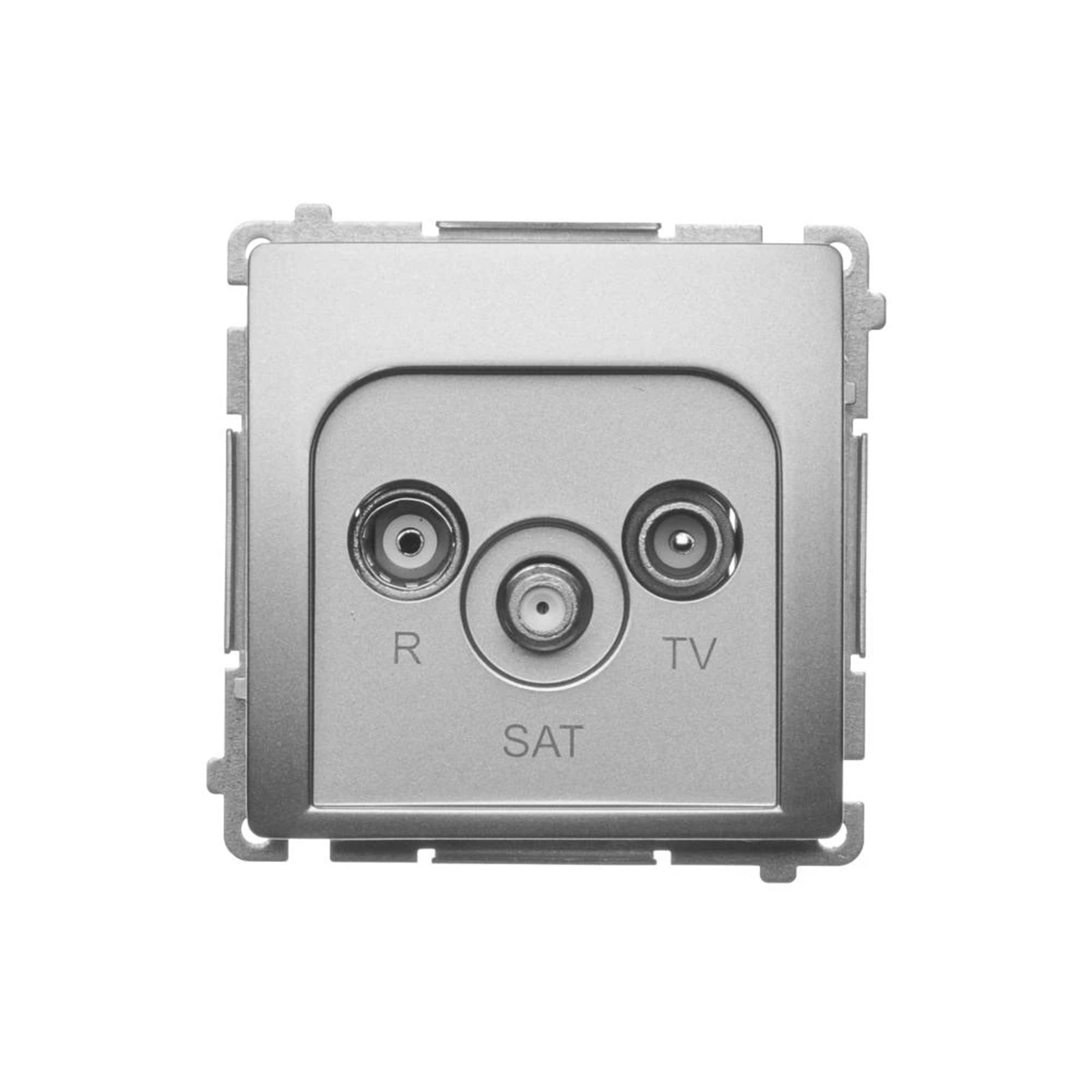

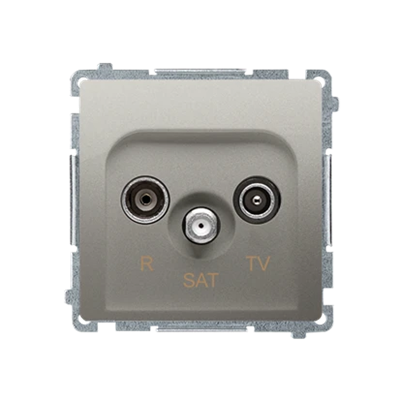

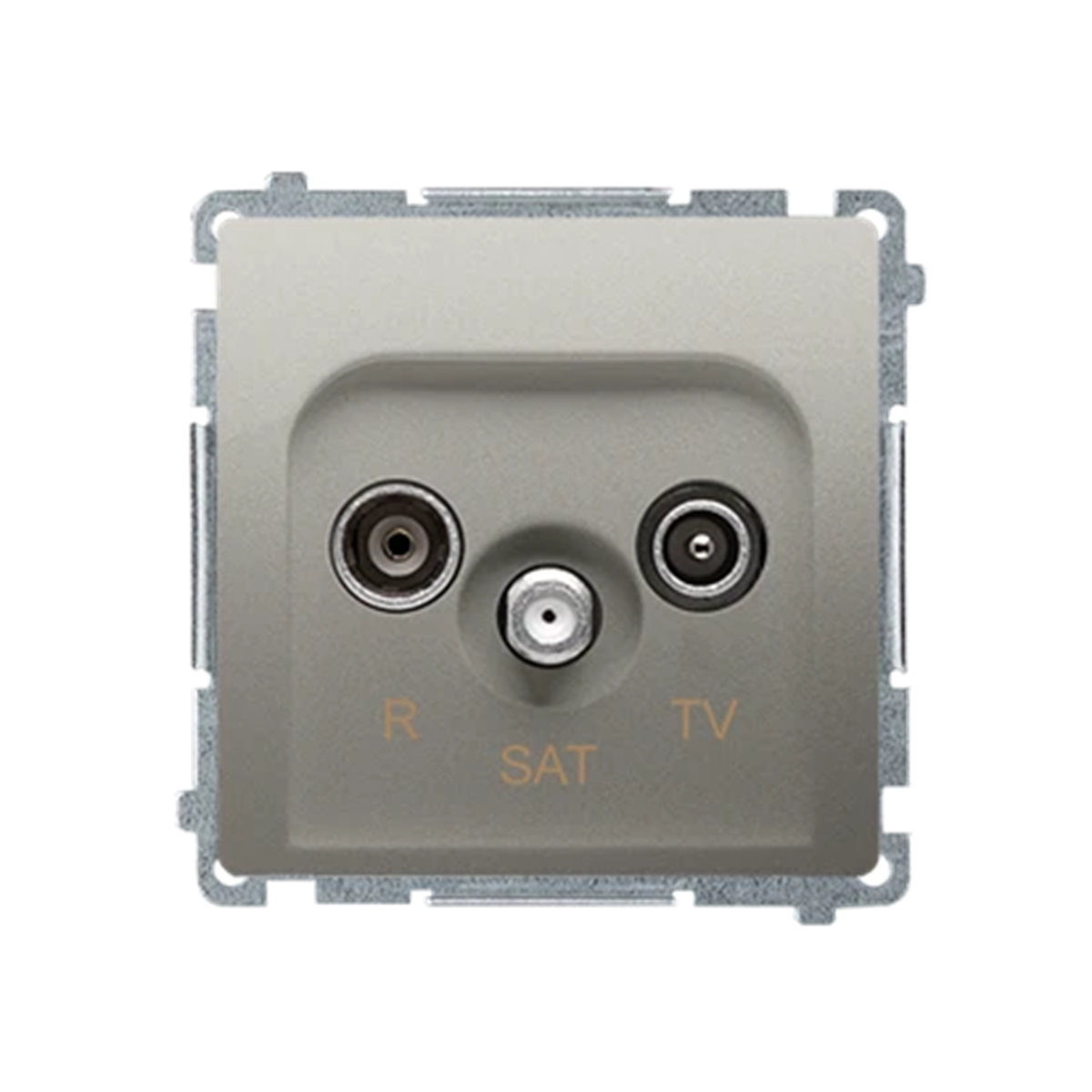

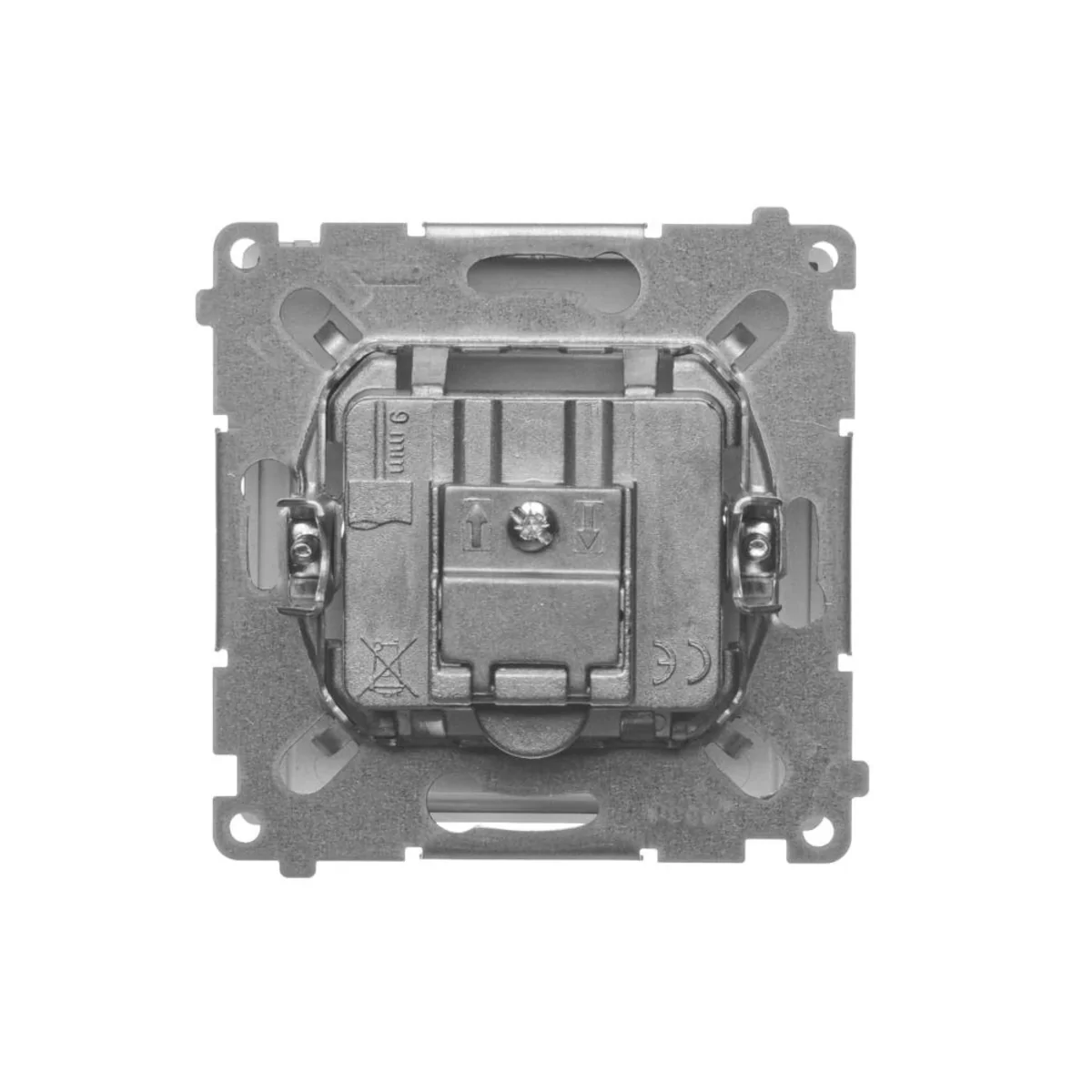

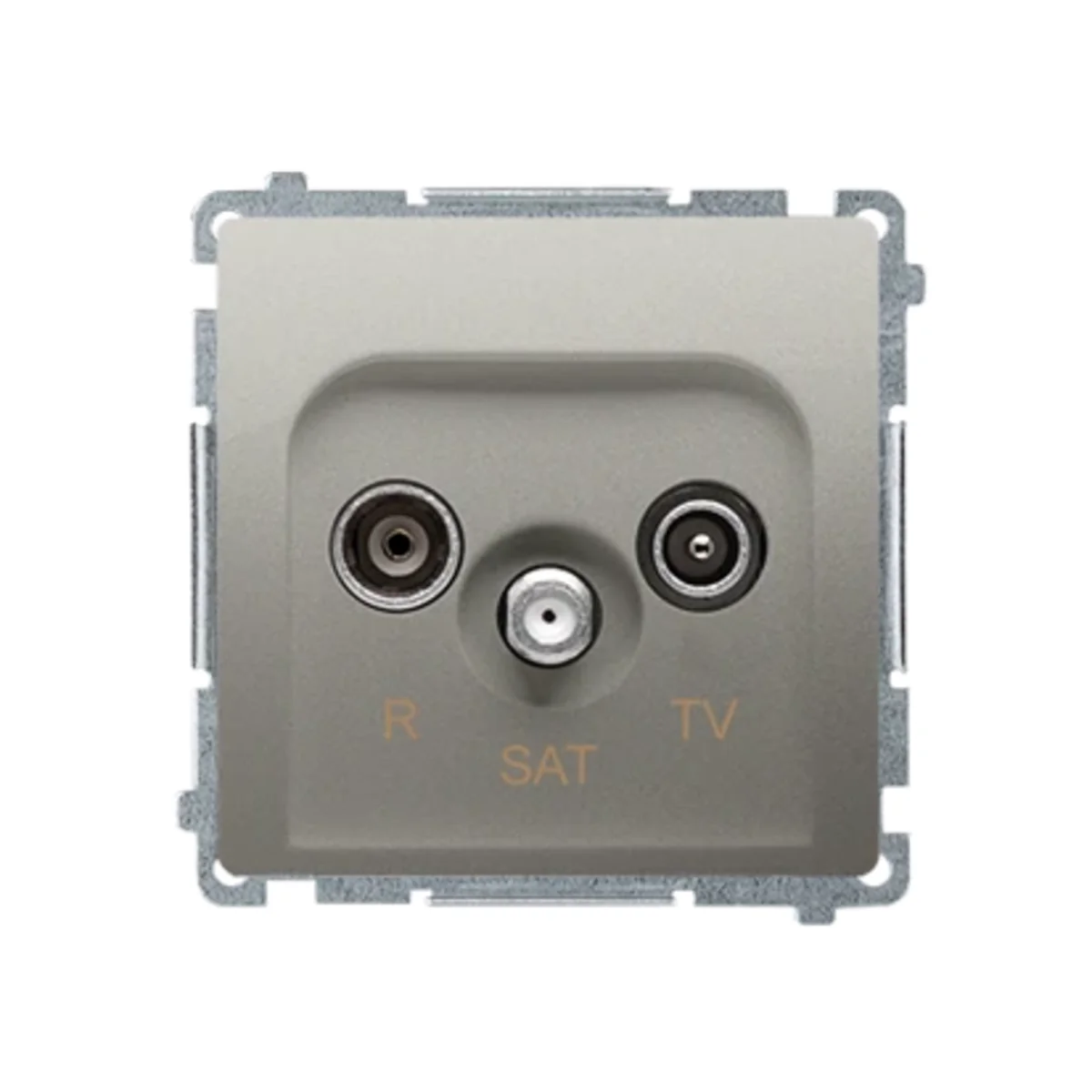

SIMON BASIC Antenna socket R-TV-SAT pass-through attenuation 10dB satin metallized

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of sockets: 3

See full description

Price:

31,89 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Functionality and classic look are the hallmarks of the SIMON BASIC series, which will work in any space. It includes antenna socket R-TV-SAT pass-through.

Technical data

Halogen free

Yes
Number of sockets

3
Shape

Square
Fixing

claws Screws
Overprint

Yes
Family

SIMON BASIC
Width [mm]

75
Type

Flush-mounted
Height [mm]

75
Frequency Range [MHz]

5-2400
Accurate color

Satin metallic
Mounting depth [mm]

29
Variant

R TV sat
For the frame system

Yes
PKWIU

27.33.13.0

Depth [mm]

41
Color

Silver
Material

Plastic
Installation

Flush-mounted
Type

Antenna
Level of security

IP20
Attenuation [dB]

Connections for 860 MHz: 10 Passthroughs for 860 MHz: 4 Connections for 2150 MHz: 8 Passthrough for 2400 MHz: 6
Version

through
Surface protection

varnishing
Surface finish

matte
Backlight

NO
Terminal type

Threaded
F-type input

NO
Exact material

PC

Other technical data

Model

Loop-through socket
Tap loss at 2150 MHz

8 dB
Through loss at 860 MHz

4 dB
Suitable for remote power supply

Yes

Tap loss at 860 MHz

10 dB
Number of outlets

3
Through loss at 2150 MHz

6 dB
Frequency

5 ... 2400 MHz

Manufacturer details

Manufacturer

KONTAKT - SIMON S.A.
Address

43-500 Czechowice-Dziedzice Bestwińska 21
Phone number

323246300
E-mail

info@kontakt-simon.com.pl
WWW

https://www.kontakt-simon.com.pl
Tax identification number

6520005366
GLN

5900009931105

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,120	0,120	1,285
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,046	0,230
Depth (m)	0,041	0,160	0,100
