SIMON AKORD Terminal R-TV antenna socket separated aluminum AAK/26

Name: SIMON AKORD Terminal R-TV antenna socket separated aluminum
Brand: KONTAKT-SIMON
SKU: MEA042KONT
Price: 14.16 PLN

local index:

MEA042KONT

Catalog No:

AAK/26

EAN code:

5902787598518

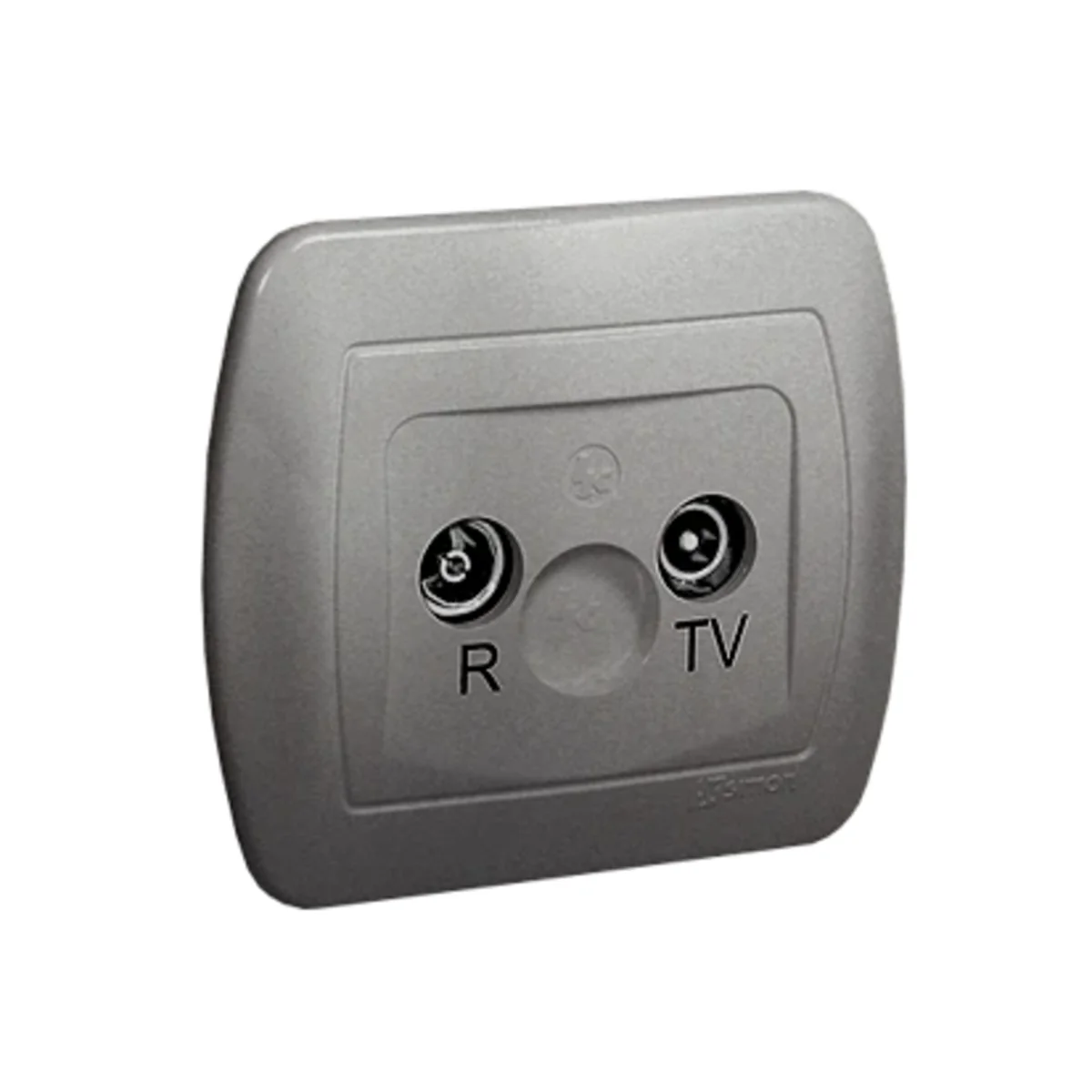

SIMON AKORD Terminal R-TV antenna socket separated aluminum

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Halogen free: Yes

Depth [mm]: 41

Number of sockets: 2

See full description

Price:

14,16 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

R-TV antenna socket

SERIES DESCRIPTION

Slightly longer base and spine line in relation to the sides and clearly rounded corners of the frames distinguish this series from others. Simon AKORD is a monoblock, i.e. non-frame series. Economical, but tasteful colors combined with a characteristic oval shape will appeal to customers who expect originality and minimalism from functional details.

Technical data

Halogen free

Yes
Number of sockets

2
Shape

Rectangular
Fixing

claws Screws
Overprint

Yes
Family

SIMON CHORD
Width [mm]

90
Type

Flush-mounted
Height [mm]

80.5
Frequency Range [MHz]

5-852
Accurate color

Aluminum metallised
Mounting depth [mm]

29
Variant

R TV
For the frame system

NO
Exact material

PC

Depth [mm]

41
Color

Silver
Material

Plastic
Installation

Flush-mounted
Type

Antenna
Level of security

IP20
Attenuation [dB]

Connections for 860 MHz: 1
Version

Final
Surface protection

varnishing
Surface finish

matte
Backlight

NO
Terminal type

Threaded
F-type input

NO
Separated

Yes
PKWIU

27.33.13.0

Other technical data

Model

End socket
Number of outlets

1
Frequency

5 ... 852 MHz

Tap loss at 860 MHz

1 dB
Suitable for remote power supply

Yes

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,115	0,115	1,234
Width (m)	0,080	0,110	0,190
Length (m)	0,090	0,046	0,230
Depth (m)	0,041	0,160	0,100
