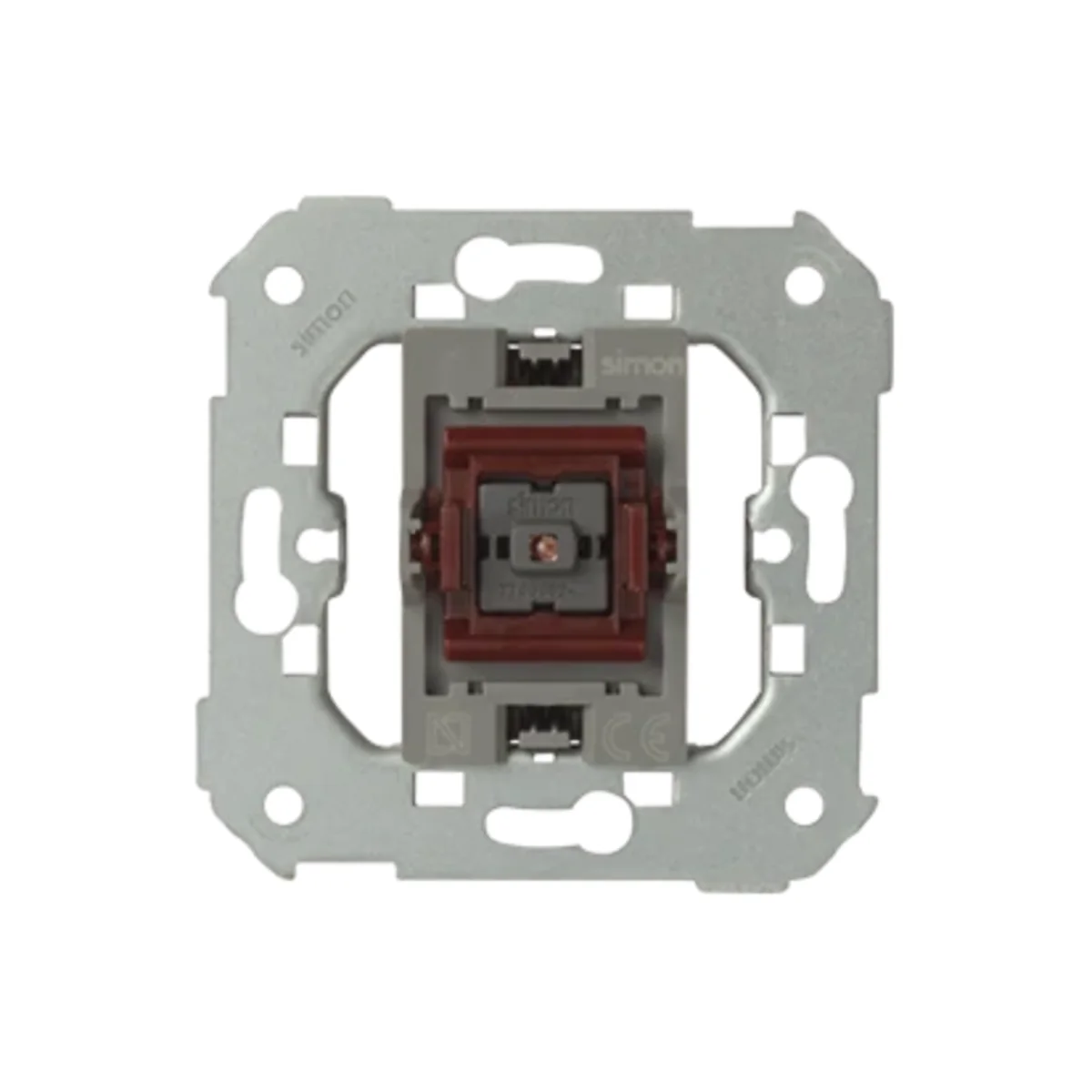

SIMON 82 Single-pole switch with 24V activation signaling (mechanism) 7700112-039

local index:
MPP006KONT
Catalog No:
7700112-039
EAN code:
8421053080184
Manufacturer: KONTAKT-SIMON
Number of keys: 1
Shape: Square
Material: Metal
Price:
16,67 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Single-pole switch mechanism from the Simon 82 series, from the manufacturer Contact Simon. The product's catalog number is 7700112-039.

  • With activation signaling.
  • To obtain IP44 splash-proof class, use a gasket under the keys and a frame gasket.
  • 1 click (insert the wire without stripping the insulation and tighten).
  • Built-in backlight.
  • Toggle switch.

Technical data

  • Number of keys
    1
  • Material
    Metal
  • Installation
    Flush-mounted
  • Rated current [A]
    16
  • Family
    Simon 82
  • Surface protection
    Natural
  • For the frame system
    Yes
  • Backlight color
    Blue
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Type
    Single
  • Type
    The linkage mechanism
  • Backlight
    Yes
  • Backlight type
    Smoldering lamp Activation signaling
  • PKWIU
    27.33.11.0

Other technical data

  • Wiring system
    Off switch 1-pole
  • Assembly arrangement
    Basic element
  • Material
    Metal
  • Nominal voltage
    250 V
  • Method of operation
    Rocker/button
  • Mounting method
    Flush-mounted
  • Surface protection
    Untreated
  • Switching current for fluorescent lamps
    16 AX

Bulk packaging

A kind of package Paczka
Quantity 1 pcs. 1 pcs.
Weight (kg) 0,065 0,065
Width (m) - 0,083
Length (m) - 0,223
Depth (m) - 0,082
