SIMON 82 Single-pole switch 10AX (mechanism) 7700101-039

Name: SIMON 82 Single-pole switch 10AX (mechanism)
Brand: KONTAKT-SIMON
SKU: MPP005KONT
Price: 6.51 PLN

local index:

MPP005KONT

Catalog No:

7700101-039

EAN code:

8421053075814

SIMON 82 Single-pole switch 10AX (mechanism)

Click on the photo to enlarge

Manufacturer: KONTAKT-SIMON

Depth [mm]: 40

Number of keys: 1

Shape: Square

See full description

Price:

6,51 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 4 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

)

Add to clipboard

Ask about the product

Product description Technical data Bulk packaging Files to download

Product description

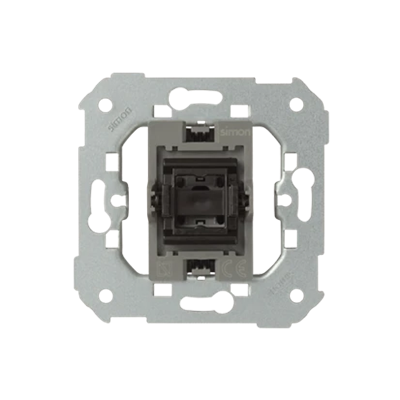

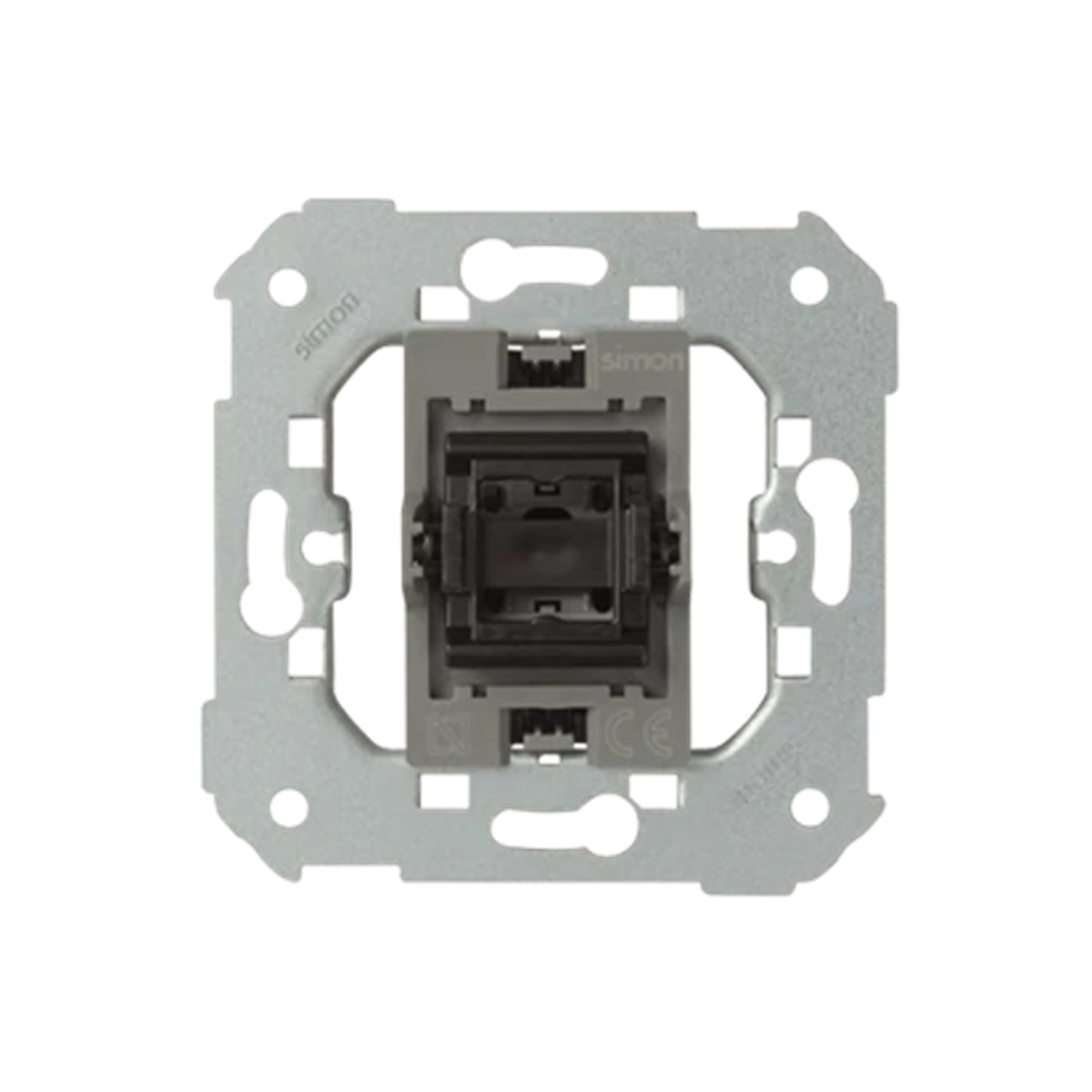

Single-pole switch mechanism from the Simon 82 series, from the manufacturer Contact Simon. The product's catalog number is 7700101-039.

Use a frame gasket to achieve IP44 splash-proof rating.
1 click (insert; d without stripping the insulation and clamp).
Optional backlight, not included.
Dedicated to keys: 82010-..; 82017-..; 82018-..; 82063-...
Toggle switch.

Technical data

Depth [mm]

40
Shape

Square
Fixing

claws Screws
Rated voltage [V]

230
Type

Single
Level of security

IP20
Type

The linkage mechanism
Surface protection

Natural
Mounting depth [mm]

29
PKWIU

27.33.11.0

Number of keys

1
Material

Metal
Installation

Flush-mounted
Rated current [A]

10
Family

Simon 82
Width [mm]

75
Height [mm]

75
Backlight

NO
For the frame system

Yes

Other technical data

Wiring system

Off switch 1-pole
Assembly arrangement

Basic element
Material

Metal
Suitable for degree of protection (IP)

IP20
Switching current for fluorescent lamps

10 AX

Method of operation

Rocker/button
Mounting method

Flush-mounted
Surface protection

Untreated
Nominal voltage

250 V

Bulk packaging

A kind of package		Paczka	Karton
Quantity	1 pcs.	1 pcs.	10 pcs.
Weight (kg)	0,058	0,058	0,670
Width (m)	0,075	0,110	0,190
Length (m)	0,075	0,045	0,230
Depth (m)	0,040	0,160	0,100
