SIMON 82 SAT-SAT-RTV satellite antenna socket double attenuation 1dB 75496Z-69

local index:
MJA009KONT
Catalog No:
75496Z-69
EAN code:
5902787856762
Manufacturer: KONTAKT-SIMON
Depth [mm]: 41
Number of sockets: 3
Shape: Rectangular
Price:
19,16 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

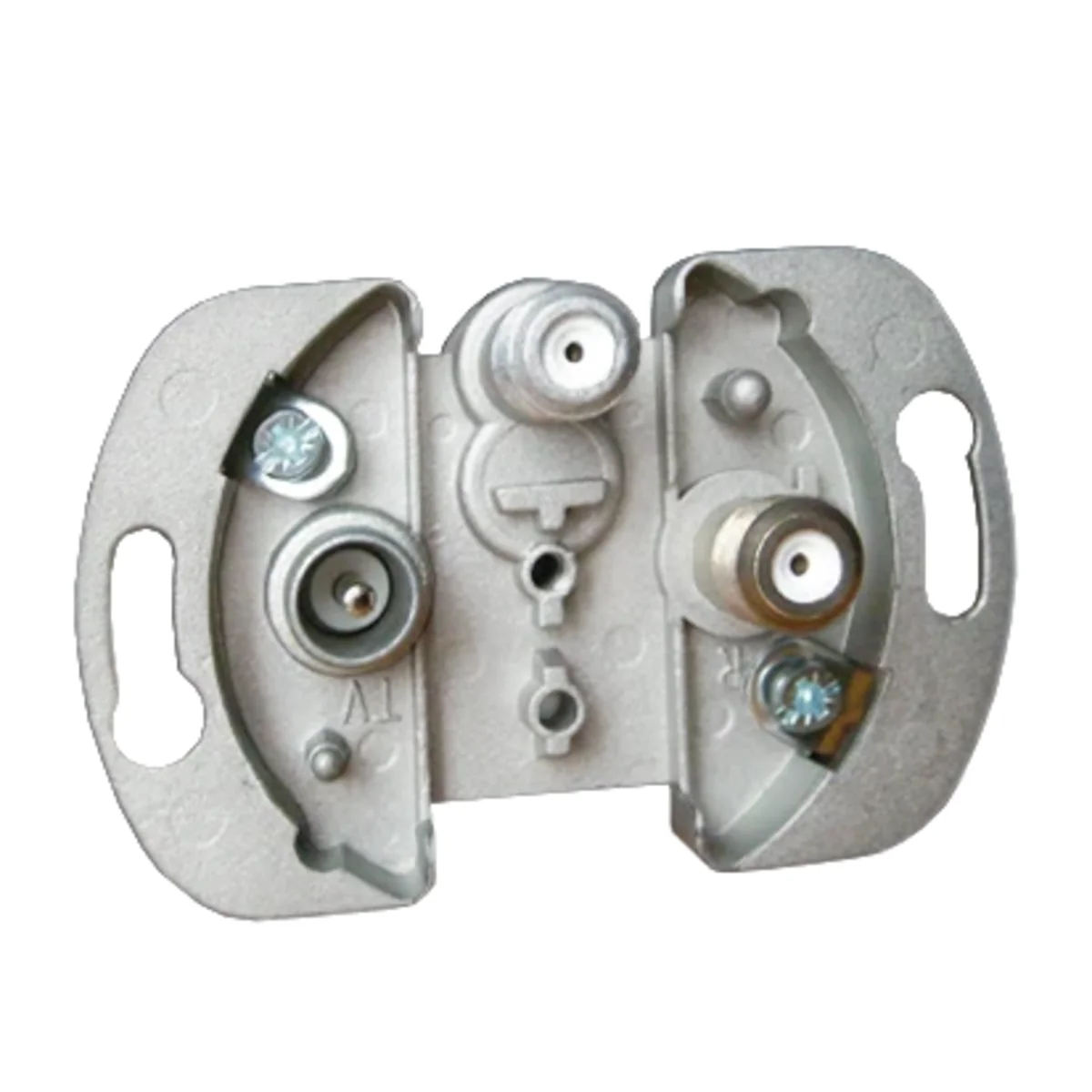

Mechanism of the antenna socket from the Simon 82 series, from the manufacturer Contact Simon. The product part number is 75496Z-69.



FEATURES

  • SAT-SAT-RTV .
  • Final.
  • Satellite.
  • Connection type/terminal type: plug, screw terminals.

Technical data

  • Depth [mm]
    41
  • Shape
    Rectangular
  • Fixing
    claws Screws
  • Type
    Antenna
  • Level of security
    IP20
  • Attenuation [dB]
    Connections for 860 MHz: 1 Connections for 2150 MHz: 2
  • Version
    Final Final
  • Surface protection
    Natural
  • Backlight
    NO
  • Terminal type
    Threaded
  • F-type input
    NO
  • PKWIU
    27.33.13.0
  • Number of sockets
    3
  • Material
    Metal
  • Installation
    Flush-mounted
  • Family
    Simon 82
  • Width [mm]
    71
  • Type
    Socket mechanism
  • Height [mm]
    46
  • Frequency Range [MHz]
    5-2400
  • Mounting depth [mm]
    31
  • Variant
    RTV sat sat2
  • For the frame system
    Yes

Other technical data

  • Model
    End socket
  • Tap loss at 2150 MHz
    2 dB
  • Suitable for remote power supply
    Yes
  • Tap loss at 860 MHz
    1 dB
  • Number of outlets
    3
  • Frequency
    5 ... 2400 MHz

Bulk packaging

A kind of package Paczka Karton
Quantity 1 pcs. 1 pcs. 10 pcs.
Width (m) 0,046 0,110 0,190
Length (m) 0,071 - 0,230
Depth (m) 0,041 0,160 0,100
