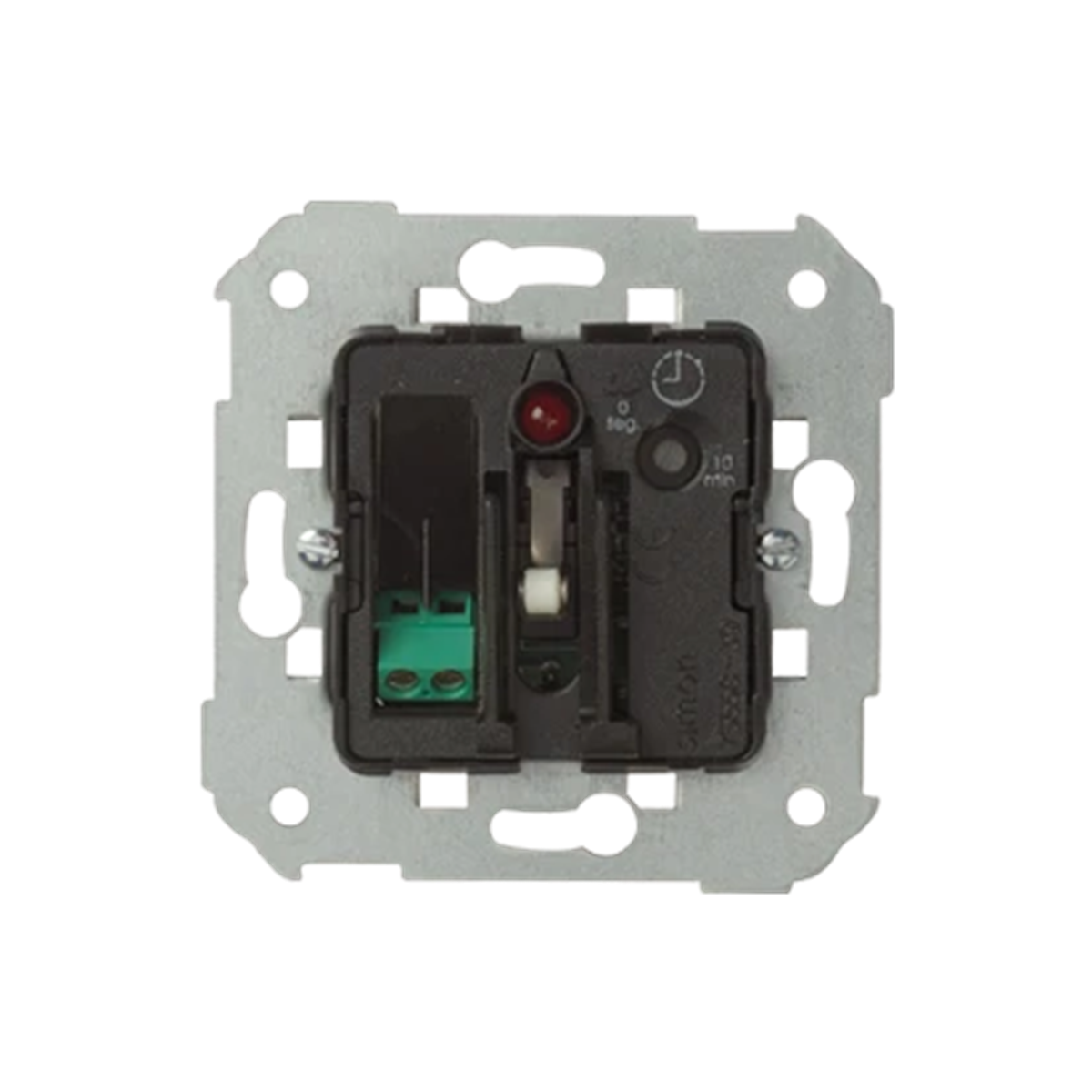

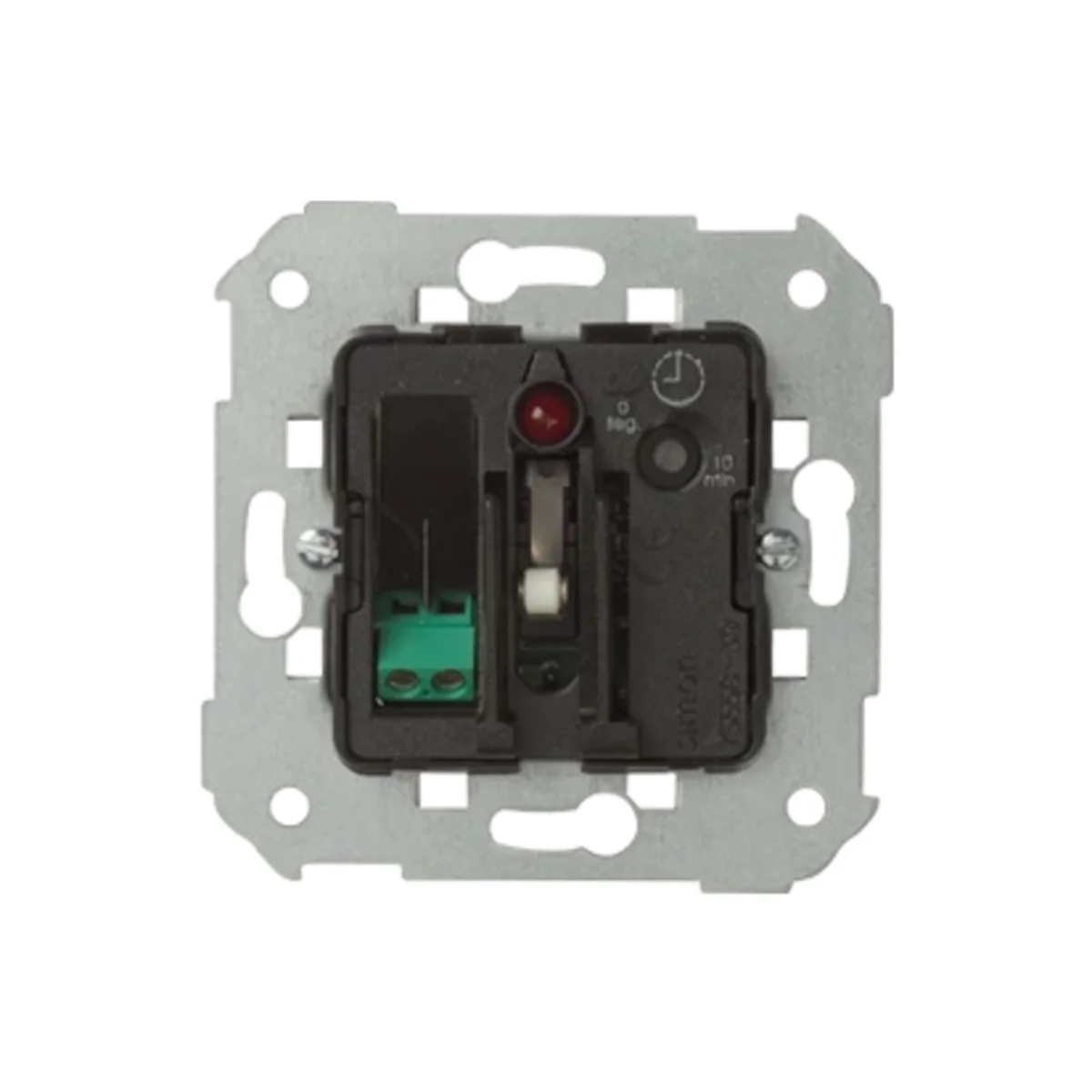

SIMON 82 Hotel switch for coded cards with backlight and delay 75559-39

local index:
MPH002KONT
Catalog No:
75559-39
EAN code:
8421053072356
Manufacturer: KONTAKT-SIMON
Depth [mm]: 45
Number of keys: hotel card
Shape: Square
Price:
106,37 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 4 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Hotel connector from the Simon 82 series, from the manufacturer Contact Simon. The product part number is 75559-39.



FEATURES

  • Backlit.
  • for encoded cards.
  • With switch-off delay from 0 s to 10 minutes.
  • Hotel card operation.
  • Single pole switch.

Technical data

  • Depth [mm]
    45
  • Shape
    Square
  • Fixing
    claws Screws
  • Rated voltage [V]
    230
  • Family
    Simon 82
  • Width [mm]
    75
  • Height [mm]
    75
  • Backlight
    Yes
  • Terminal type
    Threaded
  • Backlight type
    Smoldering lamp
  • PKWIU
    27.33.11.0
  • Number of keys
    hotel card
  • Material
    Metal
  • Installation
    Flush-mounted
  • Type
    Hotel
  • Level of security
    IP20
  • Type
    The linkage mechanism
  • Surface protection
    Natural
  • Mounting depth [mm]
    31
  • For the frame system
    Yes
  • Backlight color
    Red

Other technical data

  • Wiring system
    Off switch 1-pole
  • Mounting method
    Flush-mounted
  • Surface protection
    Untreated
  • Nominal voltage
    230 V
  • Method of operation
    Hotel card
  • Material
    Metal
  • Suitable for degree of protection (IP)
    IP20
  • Connection type
    Screwed terminal

Bulk packaging

A kind of package Paczka
Quantity 1 pcs. 1 pcs.
Weight (kg) 0,090 0,090
Width (m) 0,075 0,077
Length (m) 0,075 0,080
Depth (m) 0,045 0,055
